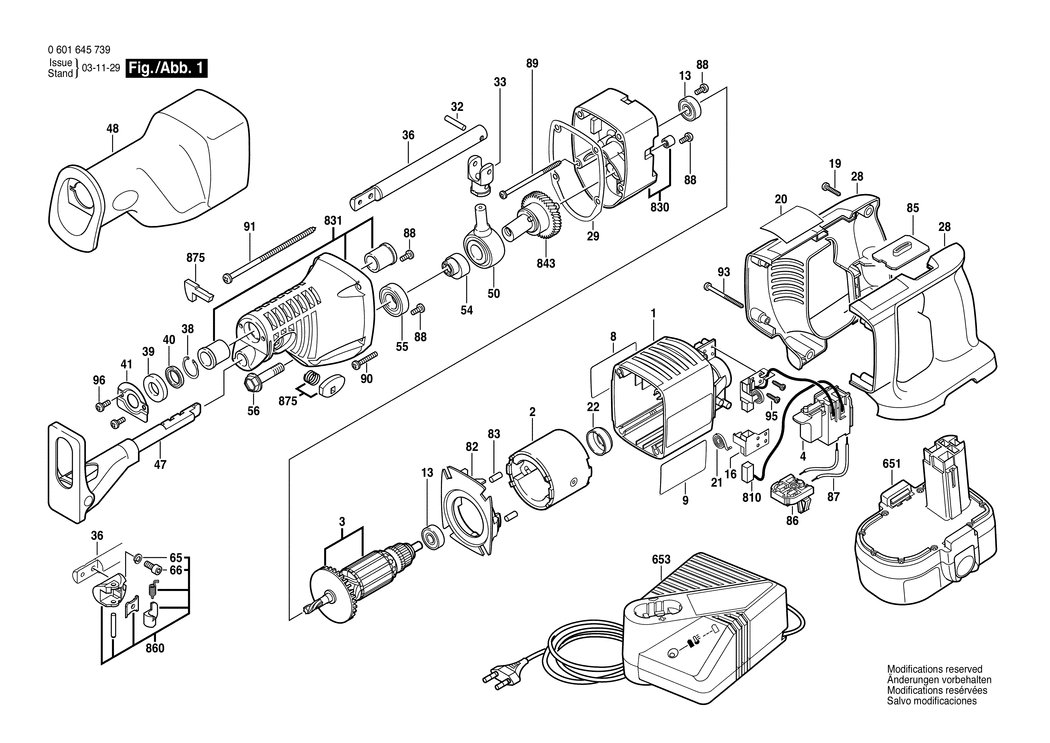

1 - MOTOR HOUSING
BSD-2610995800.A4
2610995800
|
£18.96
|
£22.75
|
|
|
2 - POLE HOUSING 14;4-24V
BSD-2610942109.A74
2610942109
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE
BSD-2610909088.A1
2610909088
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2610995801.A1
2610995801
|
£24.45
|
£29.34
|
|
|
8 - NAMEPLATE
BSD-2610907678.A0
2610907678
|
£3.72
|
£4.47
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2610907679.A0
2610907679
|
£3.72
|
£4.47
|
|
|
13 - BALL BEARING
BSD-1619P01511.A16
1619P01511
|
£6.52
|
£7.83
|
|
|
16 - BRUSH HOLDER
BSD-2610995803.A3
2610995803
|
£3.72
|
£4.47
|
|
|
19 - SCREW ST3.9x19
BSD-2610315386.A51
2610315386
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2610907680.A4
2610907680
|
£3.72
|
£4.47
|
|
|
21 - SPIRAL SPRING
BSD-1619P14306.A21
1619P14306
|
£3.72
|
£4.47
|
|
|
22 - PLAIN WASHER
BSD-2610990845.A39
2610990845
|
£2.33
|
£2.80
|
|
|
28 - HANDLE
BSD-2610917454.A0
2610917454
|
-
|
|
|
|
29 - SEALING DISK
BSD-2610995849.A0
2610995849
|
£4.26
|
£5.11
|
|
|
32 - STRAIGHT PIN DIN 6325-4M6x24
BSD-2917530101.A9
2917530101
|
£2.80
|
£3.36
|
|
|
33 - FORK
BSD-2610995810.A1
2610995810
|
£59.53
|
£71.44
|
|
|
36 - CONNECTING ROD
BSD-2610912954.A1
2610912954
|
£37.27
|
£44.72
|
|
|
38 - RETAINING SNAP RING
BSD-2610027867.A0
2610027867
|
£4.26
|
£5.11
|
|
|
39 - FELT WASHER SP 14.0
BSD-2610030004.A16
2610030004
|
£2.16
|
£2.59
|
|
|
40 - SHAFT SEAL
BSD-2610995815.A16
2610995815
|
£10.10
|
£12.12
|
|
|
41 - BEARING COVER
BSD-2610995816.A0
2610995816
|
£8.67
|
£10.41
|
|
|
47 - BASE PLATE
BSD-2610995821.A4
2610995821
|
£21.42
|
£25.71
|
|
|
48 - INSULATING CAP
BSD-2610995826.A4
2610995826
|
£40.80
|
£48.96
|
|
|
50 - WOBBLE PLATE
BSD-2610995840.A1
2610995840
|
£72.18
|
£86.62
|
|
|
54 - SLEEVE
BSD-2610995827.A0
2610995827
|
£8.67
|
£10.41
|
|
|
55 - GROOVE BALL BEARING
BSD-2610015361.A11
2610015361
|
£16.41
|
£19.69
|
|
|
56 - BOLT
BSD-2610995829.A3
2610995829
|
£10.10
|
£12.12
|
|
|
65 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916683006.A0
2916683006
|
£1.75
|
£2.10
|
|
|
66 - HEX SOCKET HEAD CAP SCREW M 5x10
BSD-2910131152.A0
2910131152
|
£2.16
|
£2.59
|
|
|
82 - BAFFLE
BSD-2610995833.A1
2610995833
|
£7.36
|
£8.83
|
|
|
83 - RUBBER BUFFER
BSD-3602391503.A49
3602391503
|
-
|
|
|
|
85 - SELECTIVE SWITCH
BSD-2610995835.A3
2610995835
|
£6.61
|
£7.93
|
|
|
86 - CONTACT RETAINER
BSD-1609280362.A3
1609280362
|
£33.74
|
£40.49
|
|
|
87 - CABLE
BSD-2610907407.A0
2610907407
|
£4.26
|
£5.11
|
|
|
88 - SCREW
BSD-2610907504.A12
2610907504
|
£2.16
|
£2.59
|
|
|
89 - TAPPING SCREW
BSD-2610991306.A0
2610991306
|
£1.75
|
£2.10
|
|
|
90 - TAPPING SCREW
BSD-2610908547.A3
2610908547
|
£2.33
|
£2.80
|
|
|
91 - TAPPING SCREW
BSD-2610995848.A3
2610995848
|
£1.95
|
£2.34
|
|
|
93 - SCREW
BSD-1619P01446.A7
1619P01446
|
£1.75
|
£2.10
|
|
|
95 - TAPPING SCREW
BSD-2610914920.A3
2610914920
|
£1.32
|
£1.58
|
|
|
96 - SCREW
BSD-1619P01491.A12
1619P01491
|
£1.75
|
£2.10
|
|
|
651 - BATTERY PACK 24V.2.0Ah.NiCd
BSD-2607335445.A4
2607335445
|
£263.33
|
£316.00
|
|
|
651 - BATTERY PACK 24V.2.6Ah.NiMh
BSD-2607335561.A14
2607335561
|
-
|
|
|
|
653 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A528
2607224425
|
£88.07
|
£105.68
|
|
|
653 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A4
2607224427
|
£103.14
|
£123.77
|
|
|
653 - FAST CHARGER AUS 240/7.2-24V. 1h
BSD-2607224429.A18
2607224429
|
£102.57
|
£123.08
|
|
|
653 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A151
2607225029
|
£88.07
|
£105.68
|
|
|
808 - NAMEPLATE
BSD-1619P01431.A1
1619P01431
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2610918932.A3
2610918932
|
-
|
|
|
|
830 - PIVOT PLATE
BSD-2610995813.A3
2610995813
|
£72.18
|
£86.62
|
|
|
831 - FRONT HOUSING
BSD-2610995814.A1
2610995814
|
£72.18
|
£86.62
|
|
|
843 - HELICAL GEAR
BSD-2610995817.A3
2610995817
|
£135.25
|
£162.30
|
|
|
860 - BLADE HOLDER
BSD-2610995820.A1
2610995820
|
£18.96
|
£22.75
|
|
|
875 - SEALING PLATE
BSD-2610995825.A0
2610995825
|
-
|
|
|
