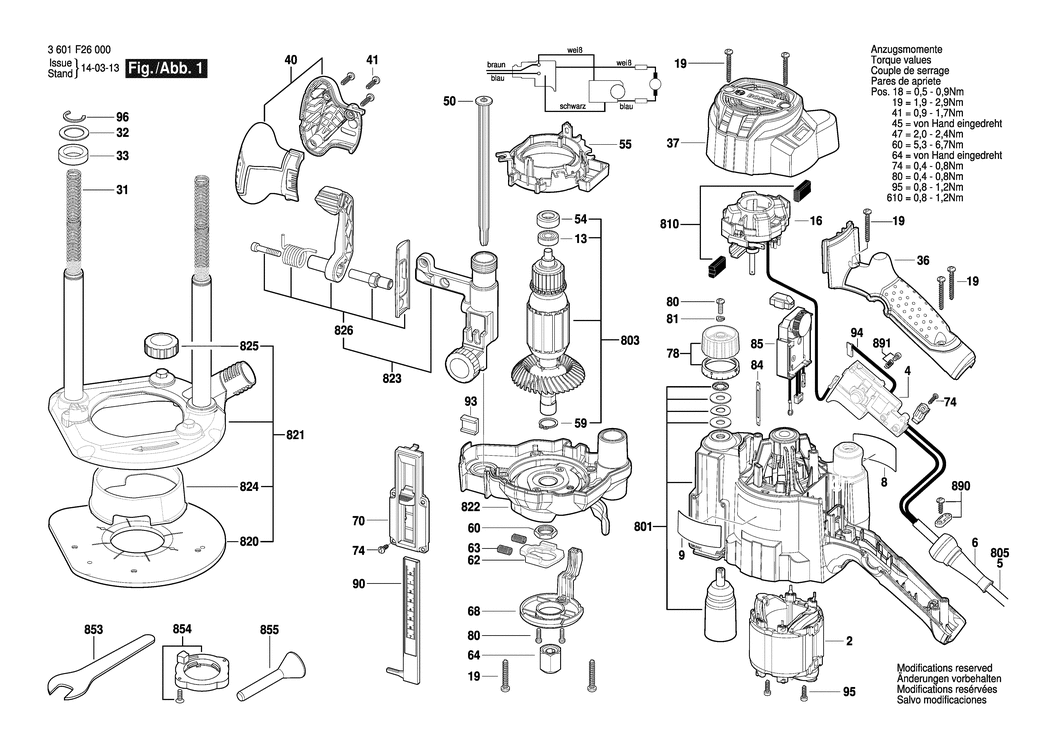

2 - FIELD 110V
BSD-2604220764.A3
2604220764
|
£54.42
|
£65.30
|
|
|
4 - SWITCH
BSD-2607200688.A13
2607200688
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F
BSD-1604460204.A19
1604460204
|
£35.42
|
£42.51
|
|
|
6 - GROMMET dia8.7-dia9.6x66 MM
BSD-1600703035.A9
1600703035
|
£2.94
|
£3.53
|
|
|
8 - NAMEPLATE
BSD-2601112874.A0
2601112874
|
£3.91
|
£4.69
|
|
|
9 - MANUFACTURER'S NAMEPLATE GOF 1250 CE
BSD-160111C15U.A3
160111C15U
|
£2.61
|
£3.13
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-2600905086.A14
2600905086
|
£5.58
|
£6.70
|
|
|
16 - BRUSH PLATE
BSD-2604337124.A14
2604337124
|
£35.42
|
£42.51
|
|
|
19 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A178
2603490025
|
£1.84
|
£2.21
|
|
|
31 - COMPRESSION SPRING
BSD-2604618008.A2
2604618008
|
£9.11
|
£10.93
|
|
|
32 - PLAIN WASHER
BSD-2600101127.A12
2600101127
|
£3.91
|
£4.69
|
|
|
33 - DAMPING ELEMENT
BSD-2600102078.A3
2600102078
|
£5.58
|
£6.70
|
|
|
36 - HANDLE
BSD-2605132076.A13
2605132076
|
£12.64
|
£15.17
|
|
|
37 - HOUSING COVER
BSD-2605132077.A2
2605132077
|
£16.41
|
£19.69
|
|
|
40 - HANDLE
BSD-2605133040.A13
2605133040
|
£22.60
|
£27.12
|
|
|
41 - SCREW 4x16
BSD-2603490022.A628
2603490022
|
£1.84
|
£2.21
|
|
|
50 - GUIDE PIECE
BSD-2603101067.A2
2603101067
|
£5.58
|
£6.70
|
|
|
54 - RUBBER RING
BSD-1600206036.A58
1600206036
|
£1.84
|
£2.21
|
|
|
55 - AIR-DEFLECTOR RING
BSD-2600148017.A4
2600148017
|
£7.36
|
£8.83
|
|
|
59 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A462
2916650006
|
£1.75
|
£2.10
|
|
|
60 - HEX NUT
BSD-2603300021.A0
2603300021
|
£10.61
|
£12.73
|
|
|
62 - CLAMPING PIECE
BSD-2602305066.A2
2602305066
|
£13.78
|
£16.54
|
|
|
63 - COMPRESSION SPRING
BSD-2604618009.A13
2604618009
|
£8.67
|
£10.41
|
|
|
64 - CHUCK
BSD-2600400077.A11
2600400077
|
£48.68
|
£58.42
|
|
|
68 - COVER
BSD-2605500213.A1
2605500213
|
£7.72
|
£9.27
|
|
|
70 - POINTER
BSD-2601030134.A7
2601030134
|
£8.67
|
£10.41
|
|
|
74 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A969
2603490017
|
£2.27
|
£2.72
|
|
|
78 - CONTROL KNOB
BSD-2600451006.A5
2600451006
|
£11.30
|
£13.56
|
|
|
80 - TORX OVAL-HEAD SCREW
BSD-2912761122.A14
2912761122
|
£2.61
|
£3.13
|
|
|
81 - LOCKING WASHER
BSD-2600118025.A11
2600118025
|
£2.61
|
£3.13
|
|
|
84 - BLADE TERMINAL
BSD-1604477005.A99
1604477005
|
£2.74
|
£3.29
|
|
|
85 - SPEED GOVERNOR
BSD-1607233550.A1
1607233550
|
£68.42
|
£82.10
|
|
|
90 - STRAIGHT EDGE
BSD-2601030151.A2
2601030151
|
£12.04
|
£14.45
|
|
|
93 - U SECTION
BSD-2602317075.A15
2602317075
|
£4.48
|
£5.37
|
|
|
94 - CONNECTING CABLE
BSD-2604448373.A1
2604448373
|
£6.52
|
£7.83
|
|
|
95 - TAPPING SCREW
BSD-2603435086.A194
2603435086
|
£1.84
|
£2.21
|
|
|
96 - LOCKING WASHER
BSD-2600224011.A11
2600224011
|
£3.91
|
£4.69
|
|
|
801 - MOTOR HOUSING
BSD-2605105971.A1
2605105971
|
£57.14
|
£68.57
|
|
|
803 - ARMATURE 110V
BSD-2604011958.A2
2604011958
|
£135.25
|
£162.30
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321958.A1
2604321958
|
£12.04
|
£14.45
|
|
|
820 - SLIDING PLATE
BSD-2600009022.A4
2600009022
|
£33.22
|
£39.87
|
|
|
821 - BASE PLATE
BSD-2601016110.A1
2601016110
|
£102.57
|
£123.08
|
|
|
822 - FAN HOUSING
BSD-2605500215.A15
2605500215
|
£98.57
|
£118.28
|
|
|
823 - ADJUSTING PIECE
BSD-2601099903.A3
2601099903
|
£45.67
|
£54.80
|
|
|
824 - SUCTION HOOD
BSD-2600290065.A4
2600290065
|
£10.61
|
£12.73
|
|
|
825 - KNURLED THUMBSCREW
BSD-2603481024.A15
2603481024
|
£5.58
|
£6.70
|
|
|
826 - ADJUSTING LEVER
BSD-2601902007.A15
2601902007
|
£21.68
|
£26.01
|
|
|
853 - SINGLE-HEAD ENG. WRENCH SW19
BSD-1907950511.A55
1907950511
|
£11.78
|
£14.13
|
|
|
854 - GUIDE SLEEVE
BSD-2610991370.A12
2610991370
|
£31.64
|
£37.97
|
|
|
855 - CENTERING PIN
BSD-2603105140.A15
2603105140
|
£23.86
|
£28.63
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A8
2607001305
|
£4.48
|
£5.37
|
|
|
891 - CROSS RECESSED-HEAD SCREW
BSD-2603429010.A36
2603429010
|
£2.61
|
£3.13
|
|
