Bosch GBH 3-28 E / 0611239776 / EU 230 Volt Spare Parts

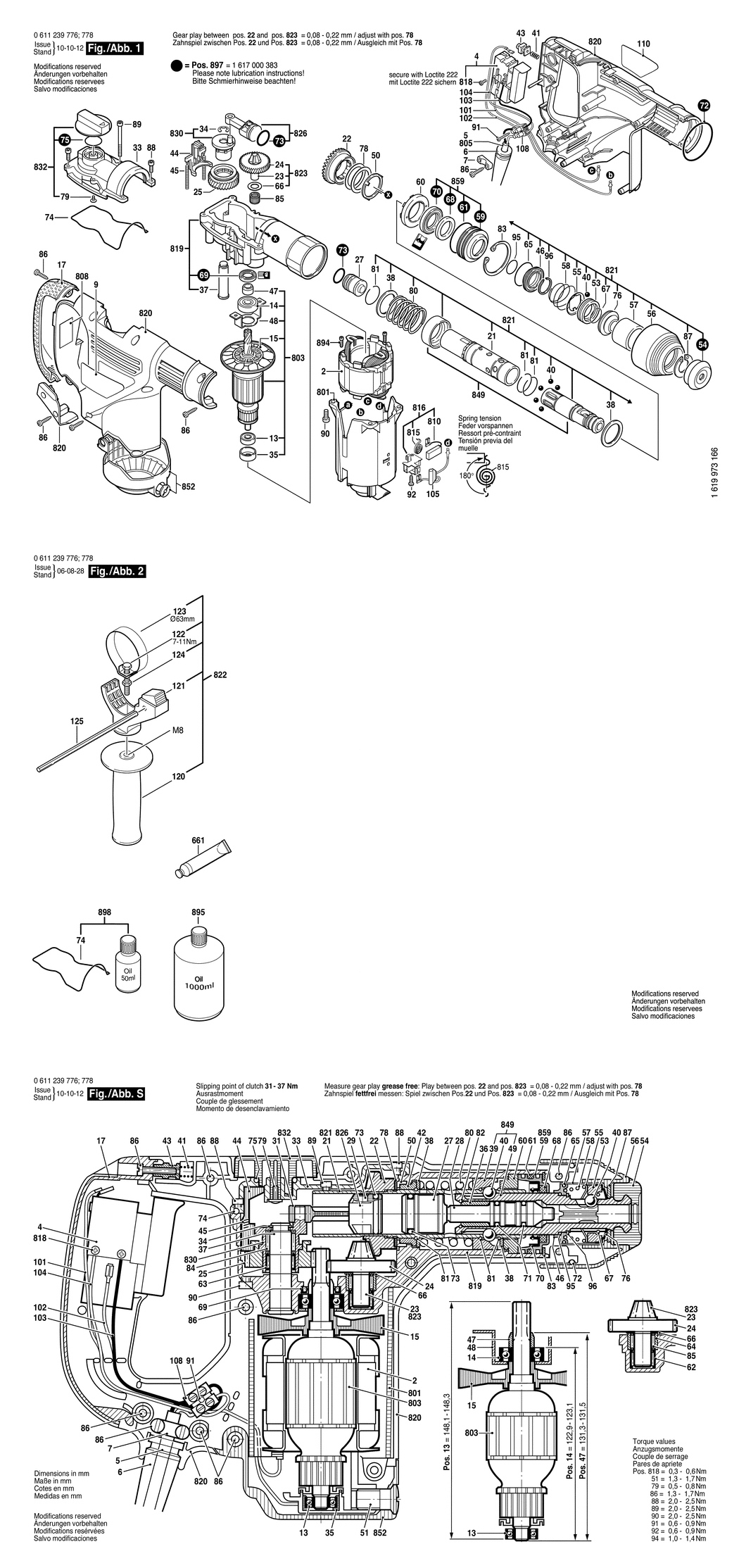

An exploded drawing and listing for the Bosch GBH 3-28 E / 0611239776 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-1614220118.A8 1614220118	£27.31	£32.77
4 - SWITCH BSD-2607200512.A11 2607200512	£33.74	£40.49
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A226 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A105 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110C47.A0 1611110C47	-
13 - BALL BEARING 7x19x6 BSD-2600905032.A1778 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 10x26x8 BSD-1610905036.A22 1610905036	£7.36	£8.83
15 - FAN BSD-1616610088.A3 1616610088	£2.80	£3.36
17 - FLAP GRIP BSD-1615132075.A6 1615132075	£7.36	£8.83
21 - PIPE BSD-1615806047.A7 1615806047	£40.80	£48.96
22 - CROWN GEAR Z=31 BSD-1616333038.A16 1616333038	£31.64	£37.97
23 - PINION Z=6 BSD-1616333039.A5 1616333039	£16.41	£19.69
24 - CYLINDRICAL GEAR BSD-1616312005.A16 1616312005	£12.04	£14.45
25 - ECCENTRIC COG WHEEL Z=31 BSD-1616317061.A14 1616317061	£19.45	£23.34
27 - STRIKER BSD-1610311016.A2 1610311016	£13.12	£15.75
33 - GEAR COVER BSD-1615808082.A9 1615808082	£13.12	£15.75
34 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A131 2916080910	£2.16	£2.59
35 - INTERMEDIATE RING BSD-1600502023.A7 1600502023	£2.16	£2.59
37 - ECCENTRIC SHAFT BSD-1613123004.A11 1613123004	£12.04	£14.45
38 - SUPPORTING DISC BSD-1610202018.A6 1610202018	£7.36	£8.83
40 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A583 1903230013	£2.16	£2.59
41 - COMPRESSION SPRING BSD-3604618008.A3 3604618008	£2.16	£2.59
43 - SCREW BUSHING BSD-1610390043.A21 1610390043	£1.75	£2.10
44 - CONTROL FORK BSD-1611329019.A14 1611329019	£2.80	£3.36
45 - COMPRESSION SPRING BSD-1614611016.A13 1614611016	£1.75	£2.10
46 - SEAL RING BSD-1610290071.A0 1610290071	£1.75	£2.10
47 - INNER RING BSD-1610250010.A0 1610250010	£5.58	£6.70
48 - FIXING PLATE BSD-1611329020.A7 1611329020	£2.61	£3.13
50 - FRICTION WASHER BSD-1610290059.A12 1610290059	£1.75	£2.10
53 - THRUST RING BSD-1610422018.A0 1610422018	£6.52	£7.83
54 - PROTECTIVE CAP L=13 MM BSD-1610508039.A13 1610508039	£5.58	£6.70
55 - HOLDING PLATE BSD-1610190040.A13 1610190040	£2.61	£3.13
56 - PROTECTION SLEEVE BSD-1610499042.A9 1610499042	£3.72	£4.47
57 - COLLAR SLEEVE BSD-1610516015.A0 1610516015	£2.61	£3.13
58 - COMPRESSION SPRING BSD-1614615004.A4 1614615004	£2.61	£3.13
59 - SEALING SLEEVE BSD-1610314003.A17 1610314003	£2.61	£3.13
60 - PLAIN BEARING BSD-1615190087.A7 1615190087	£2.52	£3.02
61 - O-RING 39.0x3.0 MM BSD-1610210156.A17 1610210156	£1.75	£2.10
65 - O-RING 31.0x1.5 MM BSD-1610210164.A0 1610210164	£1.75	£2.10
66 - SUPPORT DISC 0.5 MM BSD-1610100612.A14 1610100612	£1.75	£2.10
67 - RETAINING RING BSD-1614601032.A19 1614601032	£1.75	£2.10
68 - FELT WASHER BSD-1610205008.A16 1610205008	£1.75	£2.10
69 - ROTARY SHAFT LIP SEAL BSD-1610283031.A21 1610283031	£4.26	£5.11
70 - ROTARY SHAFT LIP SEAL BSD-1610283032.A0 1610283032	£6.52	£7.83
72 - O-RING 52.0x3.0 MM BSD-1610210157.A4 1610210157	£1.75	£2.10
73 - O-RING 17.0x3.0 MM BSD-1610210121.A25 1610210121	£2.61	£3.13
74 - SEALING FRAME BSD-1611014002.A11 1611014002	£3.72	£4.47
75 - O-RING 19.0x2.5 MM BSD-1610210155.A4 1610210155	£1.75	£2.10
76 - CUP SEAL BSD-1610415000.A0 1610415000	£5.30	£6.36
78 - SHIM 0.3 MM BSD-1610102051.A9 1610102051	£1.75	£2.10
78 - SHIM 0.4 MM BSD-1610102052.A12 1610102052	£1.75	£2.10
78 - SHIM 0.5 MM BSD-1610102053.A9 1610102053	£1.75	£2.10
79 - OVAL-HEAD SCREW BSD-1928491082.A4 1928491082	£1.75	£2.10
80 - COMPRESSION SPRING BSD-1614615003.A17 1614615003	£3.72	£4.47
81 - RETAINING RING BSD-1614601033.A0 1614601033	£1.75	£2.10
83 - SPRING RETAINING RING BSD-1614601036.A28 1614601036	£1.75	£2.10
85 - NEEDLE-ROLLER ASSEMBLY BSD-1610913015.A17 1610913015	£2.80	£3.36
86 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A44 1603435050	£2.33	£2.80
87 - BACKUP RING BSD-1610209006.A12 1610209006	£1.75	£2.10
88 - HEX SOCKET HEAD CAP SCREW BSD-1613414016.A15 1613414016	£1.75	£2.10
89 - HEX SOCKET HEAD CAP SCREW BSD-1613414017.A13 1613414017	£1.75	£2.10
90 - HEX SOCKET HEAD CAP SCREW DIN 7984-M5x12-8.8 BSD-2910131154.A22 2910131154	£1.75	£2.10
91 - TAPPING SCREW DIN 7983-ST-2.9x19 BSD-2912401008.A22 2912401008	£1.75	£2.10
92 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A608 2910211005	£1.75	£2.10
95 - O-RING 20.0x1.5 MM BSD-1610210075.A80 1610210075	£2.61	£3.13
96 - SPRING RETAINING RING BSD-1610224006.A0 1610224006	£1.75	£2.10
101 - CONNECTING CABLE L=360 MM BSD-1614449012.A12 1614449012	£3.72	£4.47
102 - CONNECTING CABLE L=220 MM BSD-1614431028.A24 1614431028	£2.61	£3.13
103 - CONNECTING CABLE L=180 MM BSD-1614437017.A24 1614437017	£2.61	£3.13
104 - CONNECTING CABLE BSD-1614437018.A4 1614437018	£4.26	£5.11
105 - SUPPRESSION FILTER BSD-1614431029.A3 1614431029	£5.30	£6.36
108 - CONNECTING TERMINAL BSD-1611091003.A10 1611091003	-
108 - CONNECTING TERMINAL BSD-1611091006.A11 1611091006	£1.75	£2.10
110 - REFERENCE PLATE BSD-1611110C48.A0 1611110C48	-
120 - AUXILIARY HANDLE BSD-160202507H.A132 160202507H	£11.30	£13.56
121 - SUPPORT CLAMP BSD-1618040073.A18 1618040073	£3.34	£4.01
122 - HEX SCREW M 8x40 MM BSD-1613450017.A24 1613450017	£1.75	£2.10
123 - CLAMPING BAND dia 63 MM BSD-1611316018.A10 1611316018	£2.80	£3.36
124 - HEX NUT ISO-4035-M8-05 BSD-2915051180.A23 2915051180	£1.75	£2.10
125 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A14 1613001009	£3.72	£4.47
661 - GREASE TUBE 30 ML BSD-1615430010.A47 1615430010	£6.52	£7.83
801 - INSULATING HOUSING BSD-1615108103.A19 1615108103	£12.04	£14.45
803 - ARMATURE WITH FAN 220-230V BSD-1614010705.A6 1614010705	£81.81	£98.17
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A59 1614460026	£18.96	£22.75
808 - NAMEPLATE BSD-160111A3HD.A69 160111A3HD	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617014137.A9 1617014137	£14.91	£17.89
815 - SPIRAL SPRING BSD-1614652003.A11 1614652003	£1.75	£2.10
816 - BRUSH HOLDER BSD-1617000392.A21 1617000392	£18.96	£22.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2872 2603410001	£1.75	£2.10
819 - GEAR HOUSING BSD-1617000382.A18 1617000382	£48.38	£58.06
820 - HOUSING SECTION BSD-1615104025.A1 1615104025	-
821 - TOOLHOLDER BSD-1618598221.A8 1618598221	£116.15	£139.38
822 - AUXILIARY HANDLE dia 63 MM BSD-1612025053.A9 1612025053	£10.82	£12.99
823 - PINION BSD-1617016009.A4 1617016009	£31.64	£37.97
826 - HAMMER PISTON BSD-1618700085.A16 1618700085	£14.91	£17.89
830 - ECCENTRIC BSD-1612210118.A14 1612210118	£37.27	£44.72
832 - CLAMP HANDLE BSD-1612026090.A15 1612026090	£3.34	£4.01
849 - TOOL HOLDING FIXTURE BSD-1618598220.A4 1618598220	£88.07	£105.68
852 - BRUSH-COVER BSD-1615500310.A4 1615500310	£8.67	£10.41
859 - SEALING SLEEVE BSD-1610314004.A5 1610314004	£10.10	£12.12
894 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A447 2603435015	£2.16	£2.59
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A105 1615430019	£59.53	£71.44
897 - WEAR AND TEAR PART SET BSD-1617000383.A5 1617000383	£18.96	£22.75
898 - OIL RESERVOIR 50 ML BSD-1615437509.A20 1615437509	£11.30	£13.56
