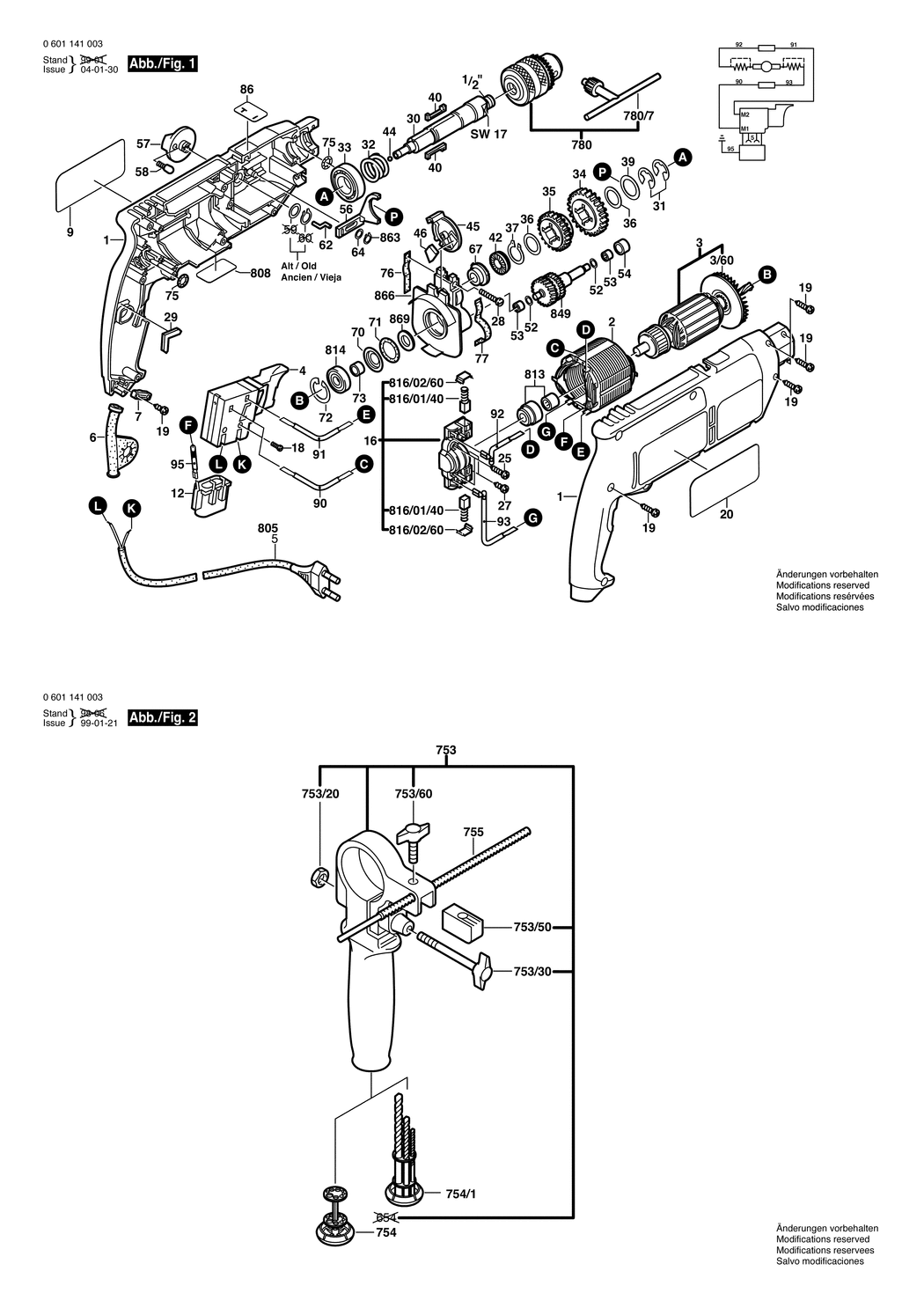

1 - HOUSING SECTION
BSD-2605104437.A7
2605104437
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-2604220429.A30
2604220429
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 220-230V
BSD-2604010877.A5
2604010877
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A383
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200260.A245
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460140.A15
2604460140
|
£22.76
|
£27.31
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A94
2600707059
|
£3.91
|
£4.69
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2480
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118438.A8
2601118438
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A383
2607329114
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2605807060.A17
2605807060
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2452
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2210
2603490022
|
£1.84
|
£2.21
|
|
|
20 - REFERENCE PLATE
BSD-2601118439.A0
2601118439
|
-
|
|
|
|
25 - TORX OVAL-HEAD SCREW 3x30
BSD-2603490019.A10
2603490019
|
£1.84
|
£2.21
|
|
|
27 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A727
2603490018
|
£1.75
|
£2.10
|
|
|
28 - SOCKET HEAD CAP SCREW
BSD-2603429005.A39
2603429005
|
£1.75
|
£2.10
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A166
2601022000
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE 1/2. SW 17
BSD-2606135044.A29
2606135044
|
-
|
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A134
2600118001
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A103
2600118002
|
£1.84
|
£2.21
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A230
2600118006
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-2604616002.A197
2604616002
|
£1.84
|
£2.21
|
|
|
33 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A20
1900905163
|
£11.30
|
£13.56
|
|
|
34 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A150
2606317045
|
£14.72
|
£17.67
|
|
|
35 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A33
2606317037
|
-
|
|
|
|
36 - SHIM 1.0 MM
BSD-2600101515.A229
2600101515
|
£2.05
|
£2.46
|
|
|
37 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A112
2916650006
|
£1.75
|
£2.10
|
|
|
39 - RETAINING WASHER
BSD-2600101671.A41
2600101671
|
£1.84
|
£2.21
|
|
|
40 - FLAT KEY
BSD-2602300028.A139
2602300028
|
-
|
|
|
|
42 - CATCH DISK
BSD-2600190052.A115
2600190052
|
£8.17
|
£9.80
|
|
|
44 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A356
1903230010
|
£1.84
|
£2.21
|
|
|
45 - INDEXING DISK
BSD-2601990001.A103
2601990001
|
£1.38
|
£1.66
|
|
|
46 - PRESSURE PLATE
BSD-2601074003.A181
2601074003
|
£1.75
|
£2.10
|
|
|
52 - SHIM 0.3 MM
BSD-2600100607.A446
2600100607
|
£1.75
|
£2.10
|
|
|
53 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A169
2600914010
|
£2.94
|
£3.53
|
|
|
54 - BEARING SLEEVE
BSD-2600400027.A23
2600400027
|
£4.48
|
£5.37
|
|
|
56 - CONTROL FORK
BSD-2602033005.A42
2602033005
|
-
|
|
|
|
57 - ROTARY HEAD
BSD-2602026091.A41
2602026091
|
-
|
|
|
|
58 - RATCHET CAP
BSD-2600590006.A298
2600590006
|
£1.84
|
£2.21
|
|
|
62 - DRIVER PIN
BSD-2601335001.A54
2601335001
|
£2.27
|
£2.72
|
|
|
64 - SHIM WASHER
BSD-2600100618.A144
2600100618
|
£1.84
|
£2.21
|
|
|
67 - CATCH DISK
BSD-2600190057.A65
2600190057
|
-
|
|
|
|
70 - CUPPED WASHER
BSD-2600500014.A9
2600500014
|
-
|
|
|
|
71 - O-RING 18x3 MM
BSD-1900210117.A94
1900210117
|
£3.91
|
£4.69
|
|
|
72 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A130
2916660008
|
£2.16
|
£2.59
|
|
|
73 - RECEPTACLE
BSD-2600400008.A657
2600400008
|
£1.75
|
£2.10
|
|
|
75 - O-RING 5.0x1.5 MM
BSD-1900210000.A113
1900210000
|
£1.84
|
£2.21
|
|
|
76 - FELT STRIP
BSD-2601005011.A164
2601005011
|
-
|
|
|
|
77 - FELT STRIP
BSD-2601005016.A10
2601005016
|
£1.38
|
£1.66
|
|
|
86 - STICKER
BSD-2601110580.A11
2601110580
|
-
|
|
|
|
90 - CONNECTING CABLE L=133 MM
BSD-2604448136.A7
2604448136
|
£1.84
|
£2.21
|
|
|
91 - CONNECTING CABLE L=83 MM
BSD-2604448129.A6
2604448129
|
-
|
|
|
|
92 - CONNECTING CABLE L=73 MM
BSD-2604448123.A16
2604448123
|
-
|
|
|
|
93 - CONNECTING CABLE L=88 MM
BSD-2604448130.A56
2604448130
|
£1.75
|
£2.10
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A42
1619P10682
|
£12.49
|
£14.99
|
|
|
753/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A62
2915011007
|
-
|
|
|
|
753/30 - WING SCREW M6x(15)55
BSD-1613480007.A34
1613480007
|
£1.75
|
£2.10
|
|
|
753/50 - CLAMPING PLATE M6
BSD-2608040014.A90
2608040014
|
-
|
|
|
|
753/60 - WING SCREW M6x20 MM
BSD-1613480008.A429
1613480008
|
£1.84
|
£2.21
|
|
|
754 - DRILL HOLDER
BSD-2607000122.A109
2607000122
|
-
|
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A10
2603001019
|
£2.63
|
£3.16
|
|
|
780 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A10
1608571080
|
£28.59
|
£34.31
|
|
|
780/7 - CHUCK WRENCH SG2
BSD-2607950007.A761
2607950007
|
£6.85
|
£8.22
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4209
160111A3H3
|
£2.74
|
£3.29
|
|
|
813 - NEEDLE BEARING
BSD-2600917902.A61
2600917902
|
-
|
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A256
2600905039
|
£12.64
|
£15.17
|
|
|
816/01/40 - CARBON-BRUSH SET
BSD-2604321913.A13
2604321913
|
-
|
|
|
|
816/02/60 - RATCHET CAP
BSD-2601329051.A73
2601329051
|
£2.33
|
£2.80
|
|
|
816/02/60 - RATCHET CAP
BSD-2601322013.A282
2601322013
|
£1.84
|
£2.21
|
|
|
849 - TOOTHED SHAFT Z= 10/29/22
BSD-2606309913.A47
2606309913
|
-
|
|
|
|
863 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A596
2916080007
|
£2.74
|
£3.29
|
|
|
866 - BEARING BRACKET
BSD-2605807928.A7
2605807928
|
-
|
|
|
|
869 - FELT DISC
BSD-2600108000.A43
2600108000
|
-
|
|
|
