Elu ST142 Type 1 Jigsaw Spare Parts

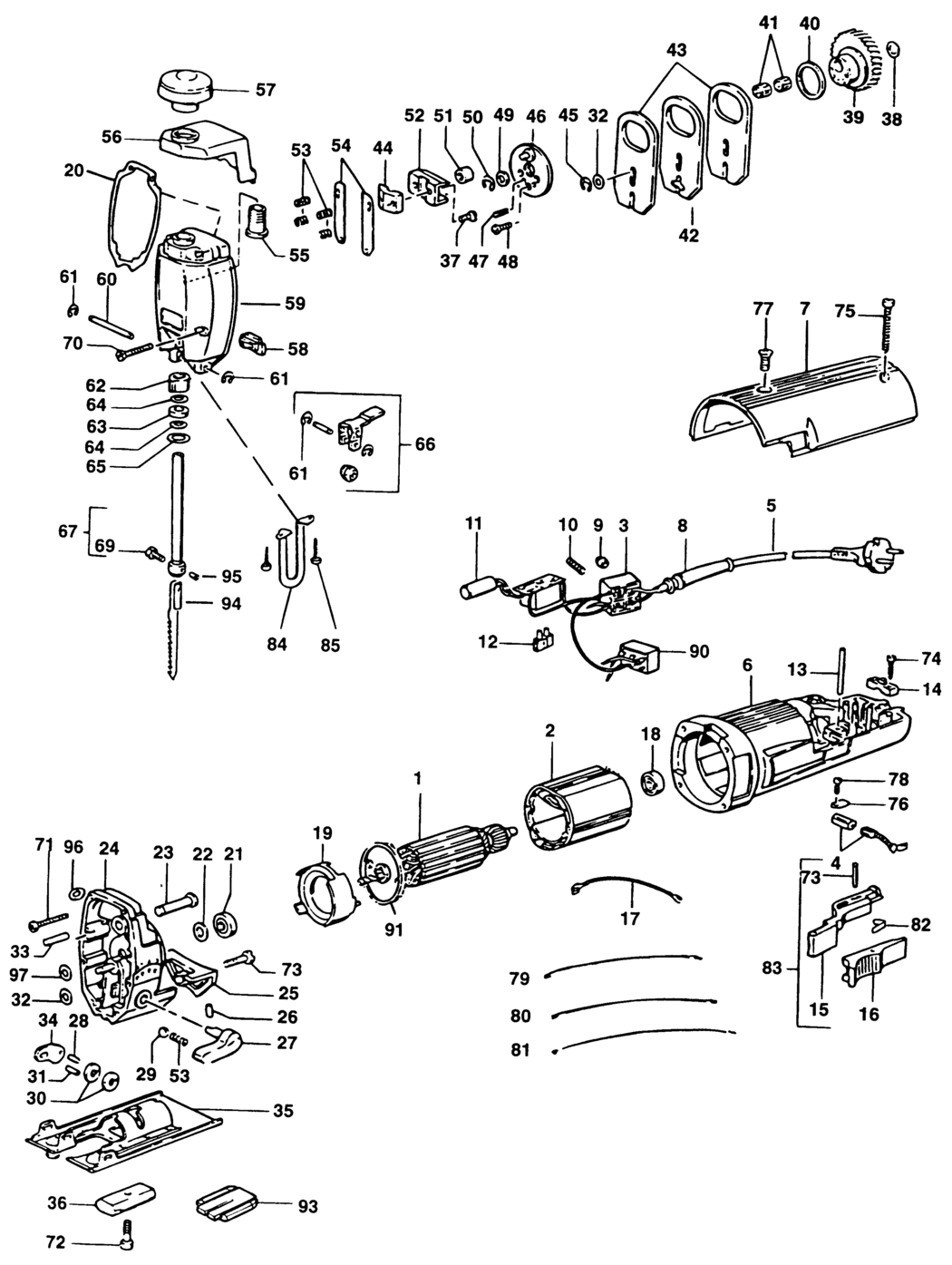

An exploded drawing and spare parts listing for the Elu ST142 Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 220V TYPE 2 BDE-000000-00.A17581 000000-00	-
1 - NO LONGER AVAILABLE 115V TYPE 2 BDE-000000-00.A17582 000000-00	-
1 - NO LONGER AVAILABLE 220 / 240V TYPE 1 BDE-000000-00.A17583 000000-00	-
1 - NO LONGER AVAILABLE 240V TYPE 2 BDE-000000-00.A17584 000000-00	-
1 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A17585 000000-00	-
2 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A17586 000000-00	-
2 - NO LONGER AVAILABLE 115V TYPE 2 BDE-000000-00.A17587 000000-00	-
2 - NO LONGER AVAILABLE 220 / 240V TYPE 1 BDE-000000-00.A17588 000000-00	-
2 - NO LONGER AVAILABLE 240V TYPE 2 BDE-000000-00.A17589 000000-00	-
2 - NO LONGER AVAILABLE 220V TYPE 2 BDE-000000-00.A17590 000000-00	-
3 - SWITCH BDE-140160300.A3 140160300	£24.39	£29.27
4 - BRUSH HOLDER 230V 220 / 240V TYPE 1 BDE-140105702.A3 140105702	£14.57	£17.48
4 - NO LONGER AVAILABLE 115V TYPE 2 BDE-000000-00.A17591 000000-00	-
4 - NO LONGER AVAILABLE 115V TYPE 1 BDE-000000-00.A17592 000000-00	-
5 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A17593 000000-00	-
5 - CORDSET GB 115V BDE-378990.A42 378990	£9.41	£11.29
6 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17594 000000-00	-
7 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17595 000000-00	-
8 - SLEEVE BDE-012160900.A2 012160900	-
9 - CAP BDE-140161100.A6 140161100	-
10 - SPRING BDE-024931038.A3 024931038	-
11 - CAPACITOR BDE-065121902.A6 065121902	-
12 - NO LONGER AVAILABLE BDE-000000-00.A17596 000000-00	-
13 - PIN BDE-018810000.A7 018810000	£1.78	£2.13
14 - CABLE CLAMP BDE-379684.A2 379684	£1.66	£1.99
15 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A17597 000000-00	-
15 - LEVER TYPE 2 BDE-941095.A7 941095	£3.30	£3.96
16 - NO LONGER AVAILABLE BDE-000000-00.A17598 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A17599 000000-00	-
18 - BEARING BDE-141830000.A6 141830000	£9.41	£11.29
19 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17600 000000-00	-
19 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A17601 000000-00	-
20 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17602 000000-00	-
21 - BEARING BDE-142830000.A31 142830000	£9.41	£11.29
22 - NO LONGER AVAILABLE BDE-000000-00.A17603 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A17604 000000-00	-
24 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17605 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A17606 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A17607 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A17608 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A17609 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A17610 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A17611 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A17612 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A17613 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A17614 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A17615 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A17616 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A17617 000000-00	-
37 - SCREW BDE-860205-04.A50 860205-04	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A17636 000000-00	-
39 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17637 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A17638 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A17639 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A17640 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A17641 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A17642 000000-00	-
45 - CIRCLIP BDE-860322-00.A2 860322-00	£1.66	£1.99
46 - NO LONGER AVAILABLE BDE-000000-00.A17643 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A17644 000000-00	-
48 - SCREW.TEMP BDE-720685-00.A34 720685-00	£1.66	£1.99
49 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A17645 000000-00	-
50 - CIRCLIP BDE-120820700.A9 120820700	£1.66	£1.99
51 - NO LONGER AVAILABLE BDE-000000-00.A17618 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A17619 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A17620 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A17621 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A17622 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A17623 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A17624 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A17625 000000-00	-
59 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17626 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A17627 000000-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A17628 000000-00	-
62 - NO LONGER AVAILABLE BDE-000000-00.A17629 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A17630 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A17631 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A17632 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A17633 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A17634 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A17635 000000-00	-
71 - SCREW BDE-249416-03.A22 249416-03	£1.66	£1.99
72 - NO LONGER AVAILABLE BDE-000000-00.A17646 000000-00	-
73 - SCREW.TEMP BDE-760996-00.A2 760996-00	£1.66	£1.99
74 - SCREW BDE-249416-06.A55 249416-06	£1.66	£1.99
75 - SCREW BDE-949896-12.A126 949896-12	£1.66	£1.99
76 - CLAMP BDE-140931226.A2 140931226	£3.70	£4.44
77 - SCREW BDE-860089-25.A60 860089-25	£1.66	£1.99
78 - SCREW BDE-949896-12.A127 949896-12	£1.66	£1.99
79 - NO LONGER AVAILABLE BDE-000000-00.A17647 000000-00	-
80 - LEAD 130MM YELLOW BDE-140164502.A1 140164502	£1.66	£1.99
81 - NO LONGER AVAILABLE BDE-000000-00.A17648 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A17649 000000-00	-
83 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17650 000000-00	-
84 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17651 000000-00	-
85 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17652 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A17653 000000-00	-
91 - FAN TYPE 1 BDE-140130501.A7 140130501	£1.66	£1.99
93 - NO LONGER AVAILABLE BDE-000000-00.A17654 000000-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A17655 000000-00	-
95 - NO LONGER AVAILABLE BDE-000000-00.A17656 000000-00	-
96 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A17657 000000-00	-
97 - NO LONGER AVAILABLE BDE-000000-00.A17658 000000-00	-

Attribute Name	Value
Brand	Elu
