Festool MFT/3 / 495314 Spare Parts

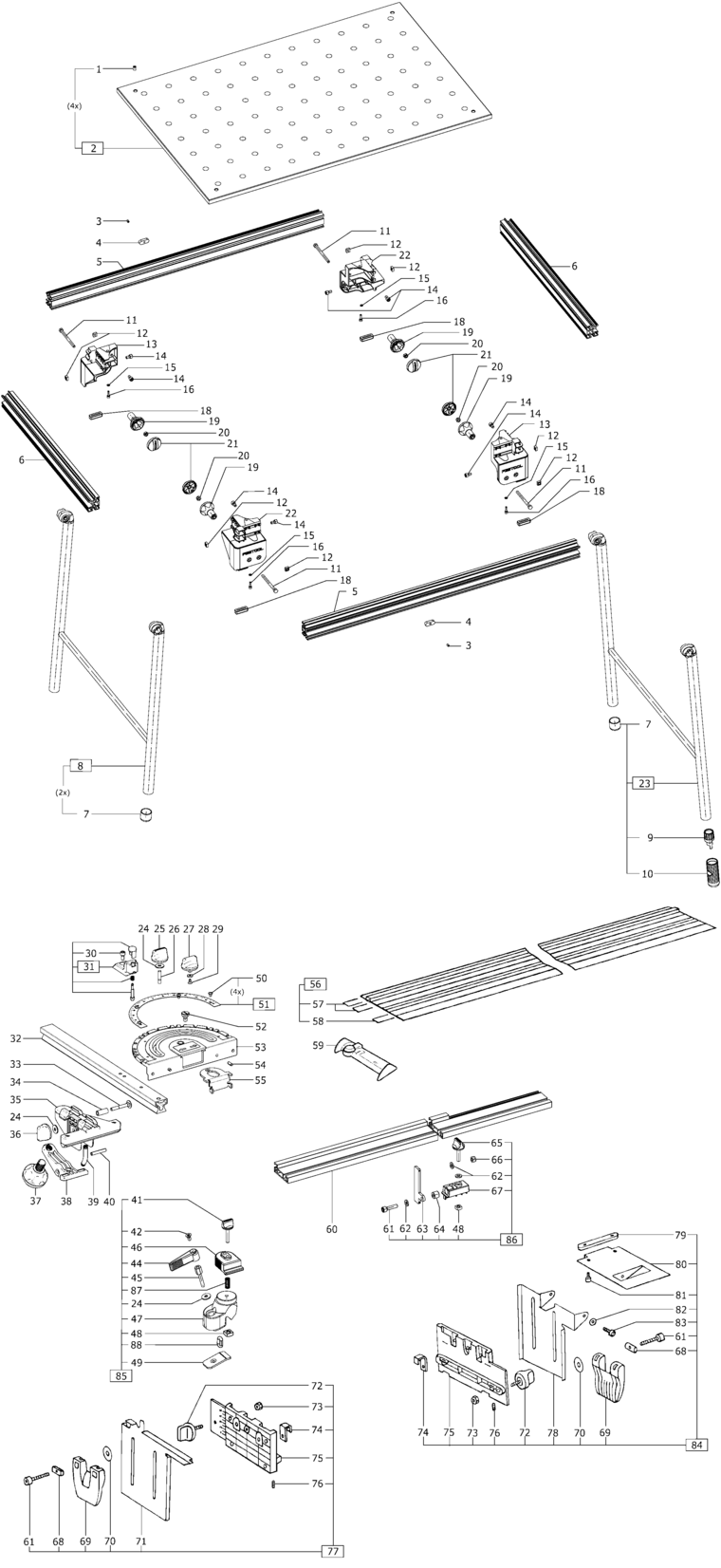

An exploded diagram and spare parts listing for the Festool MFT/3 / 495314

	Ex VAT	Inc VAT
1 - SLEEVE FSP-474925.A0 474925	£3.25	£3.90
2 - PERFORATED TOP FSP-495543.A0 495543	£122.90	£147.48
3 - THREADED PIN M6 X 10 FSP-772405.A0 772405	£2.00	£2.40
4 - FEATHER KEY FSP-437377.A1 437377	£5.99	£7.19
5 - PROFILE FSP-472863.A1 472863	£67.69	£81.23
6 - PROFILE FSP-10703229.A0 10703229	£48.70	£58.44
7 - RUBBER FOOT FSP-465163.A12 465163	£3.12	£3.75
8 - FOLDAWAY LEG FSP-494728.A0 494728	£72.55	£87.06
9 - ADJUSTMENT FSP-448178.A29 448178	£2.00	£2.40
10 - FOOT FSP-465883.A17 465883	£13.48	£16.18
11 - HEXAGON SCREW FSP-464713.A14 464713	£2.00	£2.40
12 - SQUARE NUT M8 FSP-219098.A8 219098	£2.00	£2.40
13 - ANGLE BASE FSP-472861.A3 472861	£31.83	£38.20
14 - CHEESE HEAD SCREW M8 X 14 FSP-228639.A5 228639	£2.00	£2.40
15 - SPRING DISC FSP-200765.A1 200765	£2.00	£2.40
16 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A20 228612	£2.00	£2.40
18 - RUBBER FOOT (4 PCS.) FSP-492255.A11 492255	£17.98	£21.57
19 - LOWER SECTION OF PISTOL FSP-492148.A2 492148	£4.72	£5.66
20 - HEXAGON NUT M8 FSP-200735.A60 200735	£2.00	£2.40
21 - UPPER SECTION OF PISTOL FSP-447534.A42 447534	£2.00	£2.40
22 - ANGLE BASE FSP-472860.A4 472860	£31.83	£38.20
23 - FOLDAWAY LEG FSP-494727.A0 494727	£75.59	£90.71
24 - WASHER 6.4 MM FSP-228546.A49 228546	£2.00	£2.40
25 - ROTARY KNOB FSP-440713.A17 440713	£2.64	£3.17
26 - STUD SCREW FSP-464525.A0 464525	£2.00	£2.40
27 - ROTARY KNOB FSP-487755.A41 487755	£9.03	£10.84
28 - WASHER FSP-448471.A36 448471	£3.62	£4.34
29 - FLAT HEAD SCREW M4 X 8 FSP-219043.A62 219043	£2.00	£2.40
30 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A14 200684	£2.00	£2.40
31 - SUPPORT FSP-489181.A12 489181	£30.82	£36.99
32 - PROFILE CS 50 FSP-464523.A7 464523	£30.68	£36.81
33 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A41 228534	£2.00	£2.40
34 - SPACER BUSH FSP-448066.A2 448066	£9.59	£11.51
35 - CLAMPING ELEMENT FSP-488433.A9 488433	£43.88	£52.66
36 - ROTARY KNOB M6 FSP-483350.A53 483350	£6.30	£7.56
37 - GRIP FSP-487893.A27 487893	£7.24	£8.69
38 - CLAMP SUPPORT FSP-10031568.A31 10031568	£14.60	£17.52
39 - PRESSURE SPRING FSP-448064.A2 448064	£2.00	£2.40
40 - SLEEVE 6 X 36 MM FSP-400289.A32 400289	£2.00	£2.40
41 - ROTARY KNOB M6 FSP-453067.A8 453067	£3.20	£3.84
42 - CHEESE-HEAD COUNTERSUNK SCREW M5 X 12 FSP-400090.A15 400090	£2.00	£2.40
44 - LEVER FSP-438944.A3 438944	£2.00	£2.40
45 - STUD SCREW FSP-451659.A8 451659	£2.00	£2.40
46 - CLAMP RIDER FSP-449200.A1 449200	£2.00	£2.40
47 - CLAMP RIDER FSP-474909.A0 474909	£6.06	£7.27
48 - SQUARE NUT M6 FSP-228566.A119 228566	£2.00	£2.40
49 - LUG SUPPORT FSP-474969.A0 474969	£8.68	£10.42
50 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A24 400348	£2.00	£2.40
51 - SCALE FSP-488156.A24 488156	£25.04	£30.05
52 - FLAT HEAD SCREW FSP-448065.A40 448065	£3.81	£4.57
53 - SWIVELING SEGMENT FSP-448014.A36 448014	£34.26	£41.11
54 - SLEEVE 5 X 12 MM FSP-228692.A15 228692	£2.00	£2.40
55 - CLAMPING PLATE FSP-10023711.A5 10023711	£4.44	£5.33
56 - GUIDE RAIL FSP-491504.A2 491504	£72.78	£87.33
57 - ADHESIVE CUSHION STRIP 10 M FSP-485724.A4 485724	£18.32	£21.99
58 - SPLINTER GUARD FSP-495207.A0 495207	£11.82	£14.18
59 - DEFLECTOR FSP-489759.A4 489759	£12.32	£14.79
60 - STOP PROFILE FSP-10703202.A0 10703202	£55.42	£66.50
61 - CHEESE HEAD SCREW M6 X 25 FSP-400477.A0 400477	£2.00	£2.40
62 - WASHER 6.4 MM FSP-200578.A60 200578	£2.00	£2.40
63 - LIMIT PLATE FSP-474735.A0 474735	£4.57	£5.48
64 - BUSH FSP-474741.A0 474741	£3.56	£4.27
65 - ROTARY KNOB M6 X 28 FSP-436420.A2 436420	£2.00	£2.40
66 - HEXAGON NUT M6 FSP-228541.A23 228541	£2.00	£2.40
67 - STOP SUPPORT FSP-474734.A0 474734	£2.48	£2.97
68 - BOLT FSP-448884.A0 448884	£6.90	£8.28
69 - CAM FSP-448833.A0 448833	£3.81	£4.57
70 - WASHER 6.4 X 25 X 1.25 MM FSP-400480.A0 400480	£2.00	£2.40
71 - SUPPORT FSP-441109.A4 441109	£15.52	£18.63
72 - ROTARY KNOB FSP-482110.A42 482110	£2.32	£2.78
73 - HEXAGON NUT M6 FSP-228689.A56 228689	£2.00	£2.40
74 - HOLDING PLATE FSP-474036.A0 474036	£6.39	£7.67
75 - PLATE FSP-448951.A0 448951	£9.59	£11.51
76 - THREADED PIN M5 X 10 FSP-772404.A5 772404	£2.00	£2.40
77 - SUPPORT UNIT FSP-497022.A0 497022	£43.62	£52.35
78 - BRACKET FSP-441108.A0 441108	£18.97	£22.76
79 - FEATHER KEY FSP-450592.A4 450592	£7.06	£8.47
80 - SHEET METAL FSP-450590.A0 450590	£14.38	£17.25
81 - CHEESE HEAD SCREW M6 X 10 FSP-228547.A8 228547	£2.00	£2.40
82 - SPRING DISC FSP-223862.A0 223862	£2.00	£2.40
83 - FLAT HEAD SCREW M5 X 4 FSP-203783.A2 203783	£2.00	£2.40
84 - SUPPORT UNIT FSP-497023.A0 497023	£59.08	£70.89
85 - ADDITIONAL CLAMP FSP-495541.A0 495541	£31.83	£38.20
86 - ADJUSTABLE STOP FSP-495542.A0 495542	£20.01	£24.01
87 - PRESSURE SPRING FSP-203284.A1 203284	£2.00	£2.40
88 - O-RING FSP-476013.A0 476013	£2.00	£2.40
9999 - TABLE PROFILE 2M FSP-496824.A0 496824	-
