Dewalt DW331 Type 1 Jigsaw Spare Parts

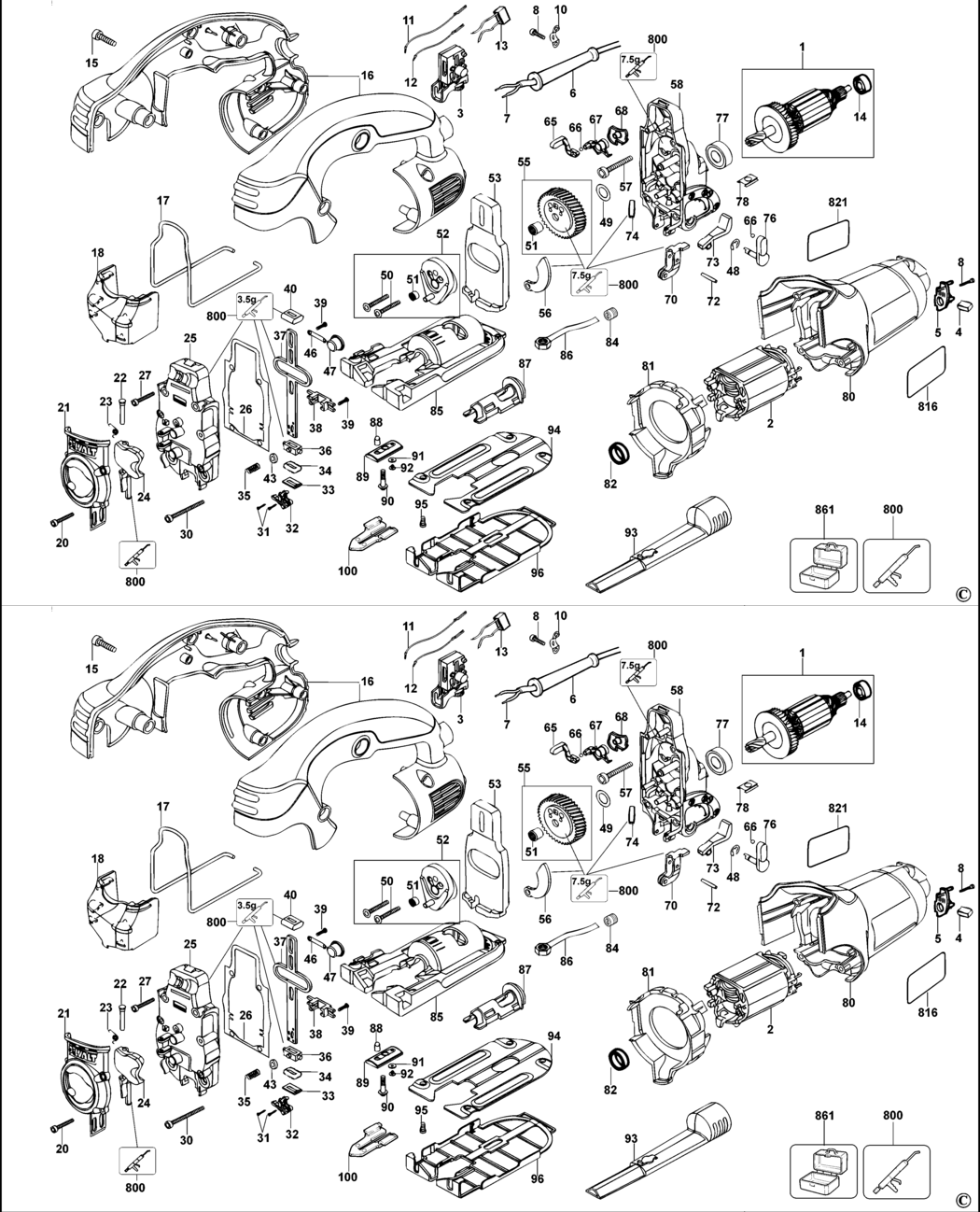

An exploded drawing and spare parts listing for the Dewalt DW331 Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - ARMATURE 115V LX BDE-589004-01 589004-01	£84.42	£101.30
1 - ARMATURE 230V GB BDE-N533628.A2 N533628	£58.69	£70.43
2 - FIELD 230V GB BDE-589006-00.A0 589006-00	£41.24	£49.49
2 - FIELD 115V LX BDE-589006-01.A1 589006-01	£41.24	£49.49
3 - SWITCH 115V LX BDE-582822-01.A0 582822-01	£47.08	£56.49
3 - SWITCH 220V GB BDE-582822-00 582822-00	£44.14	£52.97
4 - BRUSH PAIR 230V GB BDE-589016-00.A1 589016-00	£4.69	£5.63
4 - BRUSH PAIR 115V LX BDE-589016-01.A1 589016-01	£4.69	£5.63
5 - BRUSH HOLDER SA BDE-583696-01.A2 583696-01	£2.78	£3.34
5 - BRUSH HOLDER SA BDE-583696-01.A3 583696-01	£2.78	£3.34
6 - CORD PROTECTOR BDE-584090-00.A3 584090-00	£1.50	£1.80
6 - CORD PROTECTOR BDE-584090-00.A4 584090-00	£1.50	£1.80
7 - CORDSET LX BDE-330061-14.A41 330061-14	£93.62	£112.35
7 - CORDSET GB BDE-330060-28.A4 330060-28	£24.39	£29.27
8 - SCREW BDE-330065-06.A25 330065-06	£1.50	£1.80
8 - SCREW BDE-330065-06.A26 330065-06	£1.50	£1.80
10 - CORD CLAMP BDE-821070.A572 821070	£1.50	£1.80
10 - CORD CLAMP BDE-821070.A573 821070	£1.50	£1.80
11 - LEADWIRE Red GB BDE-1009195-00.A0 1009195-00	£1.50	£1.80
11 - CHOKE Red LX BDE-590091-00.A0 590091-00	£7.85	£9.42
12 - LEADWIRE Black GB BDE-572013-03 572013-03	£1.50	£1.80
12 - CHOKE Black LX BDE-590092-00.A1 590092-00	£7.85	£9.42
13 - CAPACITOR SA GB BDE-589030-00.A0 589030-00	£12.17	£14.60
13 - CAPACITOR LX BDE-949877-01.A51 949877-01	£1.50	£1.80
14 - BEARING BDE-330003-56.A7 330003-56	£7.18	£8.62
14 - BEARING BDE-330003-56.A8 330003-56	£7.18	£8.62
15 - SCREW BDE-330065-07.A103 330065-07	£1.50	£1.80
15 - SCREW BDE-330065-07.A104 330065-07	£1.50	£1.80
16 - HANDLE SA BDE-588997-00.A1 588997-00	£17.48	£20.97
16 - HANDLE SA BDE-588997-00.A2 588997-00	£17.48	£20.97
17 - GUARD BDE-581269-00.A12 581269-00	£10.85	£13.02
17 - GUARD BDE-581269-00.A13 581269-00	£10.85	£13.02
18 - SCREEN BDE-581239-01.A2 581239-01	£2.78	£3.34
18 - SCREEN BDE-581239-01.A3 581239-01	£2.78	£3.34
20 - SCREW BDE-324006-00.A45 324006-00	£1.50	£1.80
20 - SCREW BDE-324006-00.A46 324006-00	£1.50	£1.80
21 - CASTING BDE-581577-00.A2 581577-00	£12.17	£14.60
21 - CASTING BDE-581577-00.A3 581577-00	£12.17	£14.60
22 - PIN BDE-584627-00.A7 584627-00	£1.50	£1.80
22 - PIN BDE-584627-00.A8 584627-00	£1.50	£1.80
23 - SPRING BDE-581418-00.A7 581418-00	£1.50	£1.80
23 - SPRING BDE-581418-00.A8 581418-00	£1.50	£1.80
24 - ACTUATOR BDE-589055-00.A10 589055-00	£10.85	£13.02
24 - ACTUATOR BDE-589055-00.A11 589055-00	£10.85	£13.02
25 - GEARCASE SA BDE-N142823.A1 N142823	£34.00	£40.80
25 - GEARCASE SA BDE-N142823.A2 N142823	£34.00	£40.80
26 - GASKET BDE-N444301.A7 N444301	£1.50	£1.80
26 - GASKET BDE-N444301.A8 N444301	£1.50	£1.80
27 - SCREW BDE-330045-09.A14 330045-09	£1.50	£1.80
27 - SCREW BDE-330045-09.A15 330045-09	£1.50	£1.80
30 - SCREW BDE-330065-11.A60 330065-11	£1.50	£1.80
30 - SCREW BDE-330065-11.A61 330065-11	£1.50	£1.80
31 - BOLT BDE-582837-00.A5 582837-00	£1.50	£1.80
31 - BOLT BDE-582837-00.A6 582837-00	£1.50	£1.80
32 - BLADE CLAMP BDE-N127658.A12 N127658	£12.17	£14.60
33 - HOLDER BDE-582262-00.A3 582262-00	£1.50	£1.80
33 - HOLDER BDE-582262-00.A4 582262-00	£1.50	£1.80
34 - FELT SEAL BDE-582263-00.A21 582263-00	£1.50	£1.80
34 - FELT SEAL BDE-582263-00.A22 582263-00	£1.50	£1.80
35 - SPRING BDE-586646-00.A6 586646-00	£1.50	£1.80
35 - SPRING BDE-586646-00.A7 586646-00	£1.50	£1.80
36 - BEARING BDE-490330-00.A16 490330-00	£1.50	£1.80
36 - BEARING BDE-490330-00.A17 490330-00	£1.50	£1.80
37 - SHAFT BDE-589013-00.A5 589013-00	£16.03	£19.24
37 - SHAFT BDE-589013-00.A6 589013-00	£16.03	£19.24
38 - SUPPORT BEARING BDE-582260-00.A2 582260-00	£3.80	£4.56
38 - SUPPORT BEARING BDE-582260-00.A3 582260-00	£3.80	£4.56
39 - SCREW BDE-324006-00.A47 324006-00	£1.50	£1.80
39 - SCREW BDE-324006-00.A48 324006-00	£1.50	£1.80
40 - BEARING BDE-490329-00.A23 490329-00	£1.50	£1.80
40 - BEARING BDE-490329-00.A24 490329-00	£1.50	£1.80
43 - NO LONGER AVAILABLE BDE-000000-00.A25982 000000-00	-
43 - NO LONGER REQUIRED ON THIS UNIT BDE-000000-11.A2 000000-11	-
46 - CLAMP BDE-582261-00.A22 582261-00	£1.50	£1.80
46 - CLAMP BDE-582261-00.A23 582261-00	£1.50	£1.80
47 - DRIVE ROLLER BDE-582257-00.A23 582257-00	£7.18	£8.62
47 - DRIVE ROLLER BDE-582257-00.A24 582257-00	£7.18	£8.62
48 - CLIP BDE-571181-00.A9 571181-00	£1.50	£1.80
49 - WASHER BDE-582829-00.A5 582829-00	£1.50	£1.80
50 - CRANK KIT BDE-479403-00.A5 479403-00	£16.03	£19.24
50 - SCREW BDE-N127249.A11 N127249	£1.50	£1.80
50 - CRANK KIT BDE-479403-00.A4 479403-00	£16.03	£19.24
50 - SCREW BDE-N127249.A10 N127249	£1.50	£1.80
51 - BEARING NEEDLE BDE-330004-02.A65 330004-02	£1.50	£1.80
51 - BEARING NEEDLE BDE-330004-02.A66 330004-02	£1.50	£1.80
52 - CRANK KIT REQUIRES PART N527339 / ITEM 55 BDE-N527424.A6 N527424	£19.90	£23.88
53 - COUNTERWEIGHT BDE-N034837.A2 N034837	-
53 - COUNTERWEIGHT BDE-589012-00.A11 589012-00	£25.70	£30.84
55 - GEAR SA REQUIRES PART N527424 / ITEM 52 BDE-N527339.A1 N527339	£41.24	£49.49
56 - ACTUATOR BDE-581247-00.A11 581247-00	£4.69	£5.63
56 - ACTUATOR BDE-581247-00.A12 581247-00	£4.69	£5.63
57 - SCREW BDE-330019-15.A20 330019-15	£1.50	£1.80
57 - SCREW BDE-330019-15.A21 330019-15	£1.50	£1.80
58 - GEARCASE SA BDE-589011-00.A0 589011-00	£47.08	£56.49
58 - GEARCASE SA BDE-589011-00.A1 589011-00	£47.08	£56.49
65 - LEVER BDE-581255-05.A6 581255-05	£1.50	£1.80
65 - LEVER BDE-581255-05.A7 581255-05	£1.50	£1.80
66 - DETENT BDE-326467-00.A51 326467-00	£1.50	£1.80
66 - DETENT BDE-326467-00.A52 326467-00	£1.50	£1.80
67 - BODY BDE-582830-05.A5 582830-05	£1.50	£1.80
67 - BODY BDE-582830-05.A6 582830-05	£1.50	£1.80
68 - BAFFLE BDE-582831-00.A12 582831-00	£1.50	£1.80
68 - BAFFLE BDE-582831-00.A13 582831-00	£1.50	£1.80
70 - SUPPORT BRACKET BDE-589056-00.A6 589056-00	£18.91	£22.69
70 - SUPPORT BRACKET BDE-589056-00.A7 589056-00	£18.91	£22.69
72 - PIN BDE-330041-29.A17 330041-29	£1.50	£1.80
72 - PIN BDE-330041-29.A18 330041-29	£1.50	£1.80
73 - NOZZLE BDE-584450-00.A11 584450-00	£1.50	£1.80
73 - NOZZLE BDE-584450-00.A12 584450-00	£1.50	£1.80
74 - PIN BDE-330041-49.A11 330041-49	£1.50	£1.80
74 - PIN BDE-330041-49.A12 330041-49	£1.50	£1.80
76 - LEVER BDE-581257-00.A0 581257-00	£4.69	£5.63
76 - LEVER BDE-581257-00.A1 581257-00	£4.69	£5.63
77 - BEARING BALL BDE-330003-96.A7 330003-96	£4.69	£5.63
77 - BEARING BALL BDE-330003-96.A8 330003-96	£4.69	£5.63
78 - SPRING CLIP BDE-N089310.A5 N089310	£1.50	£1.80
78 - SPRING CLIP BDE-N089310.A6 N089310	£1.50	£1.80
80 - HOUSING MOTOR BDE-581241-00.A0 581241-00	£12.17	£14.60
80 - HOUSING MOTOR BDE-581241-00.A1 581241-00	£12.17	£14.60
81 - BAFFLE FAN BDE-581240-00.A2 581240-00	£1.50	£1.80
81 - BAFFLE FAN BDE-581240-00.A3 581240-00	£1.50	£1.80
82 - HOLDER BEARING BDE-930029-00.A1 930029-00	£1.50	£1.80
82 - HOLDER BEARING BDE-930029-00.A2 930029-00	£1.50	£1.80
84 - LEVER BDE-493248-00.A7 493248-00	£3.80	£4.56
84 - LEVER BDE-493248-00.A8 493248-00	£3.80	£4.56
85 - SHOE BDE-581263-00.A12 581263-00	£17.48	£20.97
85 - SHOE BDE-581263-00.A13 581263-00	£17.48	£20.97
86 - LEVER BDE-493248-00.A9 493248-00	£3.80	£4.56
86 - LEVER BDE-493248-00.A10 493248-00	£3.80	£4.56
87 - ADAPTOR BDE-581266-00.A12 581266-00	£1.88	£2.25
87 - ADAPTOR BDE-581266-00.A13 581266-00	£1.88	£2.25
88 - PLUNGER BDE-584686-00.A7 584686-00	£2.78	£3.34
88 - PLUNGER BDE-584686-00.A8 584686-00	£2.78	£3.34
89 - CLAMP BDE-496996-00.A7 496996-00	£3.30	£3.96
89 - CLAMP BDE-496996-00.A8 496996-00	£3.30	£3.96
90 - BOLT BDE-582826-00.A5 582826-00	£7.85	£9.42
90 - BOLT BDE-582826-00.A6 582826-00	£7.85	£9.42
91 - WASHER BDE-582828-00.A6 582828-00	£1.50	£1.80
91 - WASHER BDE-582828-00.A7 582828-00	£1.50	£1.80
92 - BOLT BDE-582827-00.A24 582827-00	£1.50	£1.80
92 - BOLT BDE-582827-00.A25 582827-00	£1.50	£1.80
93 - VACUUM ADAPTOR BDE-581281-00.A5 581281-00	£4.69	£5.63
93 - VACUUM ADAPTOR BDE-581281-00.A6 581281-00	£4.69	£5.63
94 - SOLE PLATE BDE-581264-00.A6 581264-00	£5.88	£7.06
94 - SOLE PLATE BDE-581264-00.A7 581264-00	£5.88	£7.06
95 - SCREW TORX BDE-N056875.A8 N056875	£1.50	£1.80
95 - SCREW TORX BDE-N056875.A9 N056875	£1.50	£1.80
96 - SOLE PLATE BDE-581268-00.A6 581268-00	£2.67	£3.20
96 - SOLE PLATE BDE-581268-00.A7 581268-00	£2.67	£3.20
100 - ANTI SPLINTER DEVICE BDE-402140-00.A32 402140-00	£1.82	£2.19
100 - ANTI SPLINTER DEVICE BDE-402140-00.A33 402140-00	£1.82	£2.19
800 - GREASE 90 GMS BDE-870889-02.A76 870889-02	£7.85	£9.42
800 - GREASE BDE-870889-03.A170 870889-03	£7.85	£9.42
816 - BRAND LABEL BDE-587464-00.A1 587464-00	£1.50	£1.80
816 - BRAND LABEL BDE-587464-00.A2 587464-00	£1.50	£1.80
821 - RATING PLATE GB BDE-N044920 N044920	£1.50	£1.80
821 - RATING PLATE LX BDE-N044921 N044921	£1.50	£1.80
861 - KITBOX BDE-329040-10.A3 329040-10	£44.14	£52.97
861 - KITBOX BDE-329040-10.A4 329040-10	£44.14	£52.97
