Fein FMT 250 (50/60Hz 220/230V) / 72294400230 Spare Parts

Fein FMT 250 ⡐/60Hz 220/230V) / 72294400230 Spare Parts

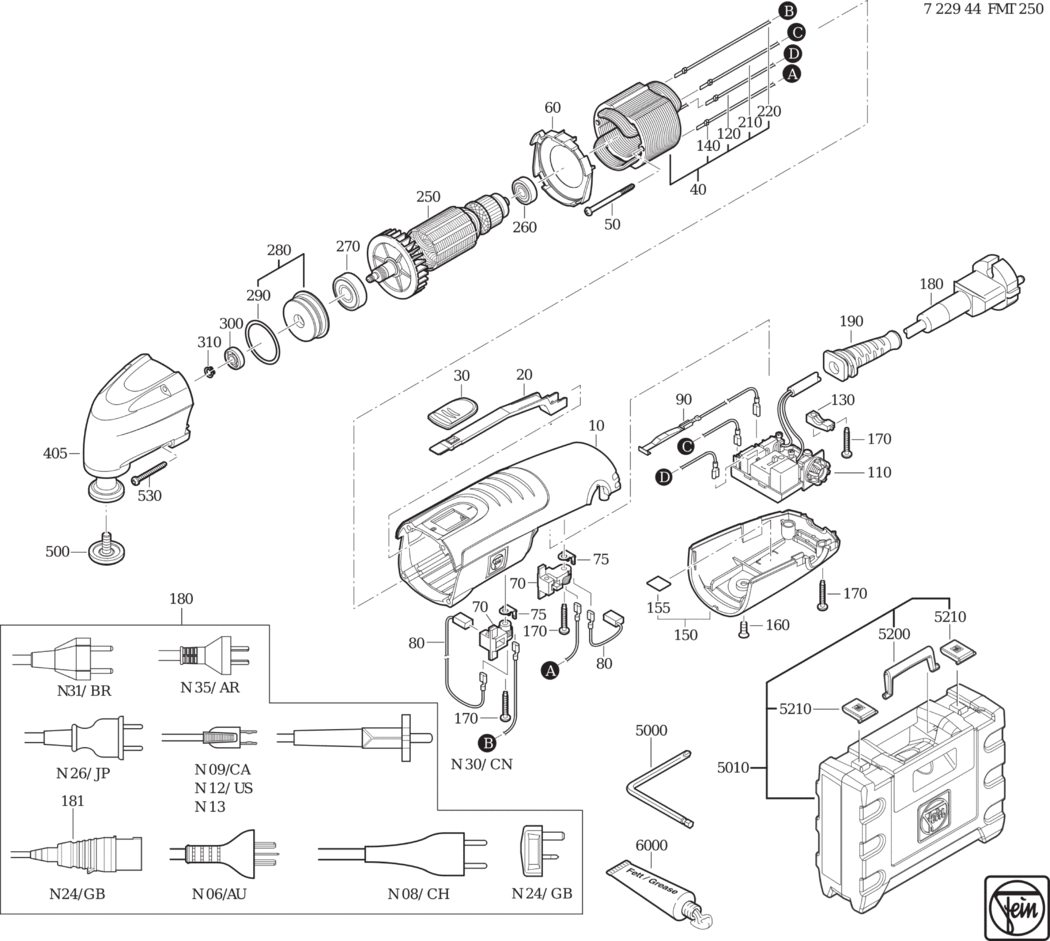

An exploded diagram and spare parts listing for the Fein FMT 250 (50/60Hz 220/230V) / 72294400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901177000.A8 31901177000	£38.45	£46.14
20 - CONTROL ROD FEI-32816066000.A14 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805212000.A4 32805212000	£2.94	£3.53
40 - STATOR FEI-51278002230.A2 51278002230	£70.33	£84.40
50 - SCREW FEI-43074005000.A31 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A41 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A63 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A76 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A56 30711129009	£6.73	£8.08
90 - CONTACT SPRING FEI-32803019010.A49 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A16 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A6 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A51 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A45 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A16 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A6 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A29 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A39 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707343017.A8 30707343017	£20.96	£25.15
190 - CABLE GROMMET FEI-31413229000.A7 31413229000	£2.25	£2.70
210 - CONNECTING CABLE FEI-30719644010.A7 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A44 30719643010	£1.60	£1.92
250 - ARMATURE FEI-53278001230.A6 53278001230	£88.65	£106.38
260 - GROOVED BALL BEARING FEI-41701001032.A11 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007038.A92 41701007038	£10.17	£12.20
280 - BUSH SET FEI-30508042010.A5 30508042010	£11.78	£14.13
290 - SEALING RING FEI-40612003003.A0 40612003003	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701000020.A31 41701000020	£13.58	£16.30
310 - CIRCLIP FEI-42616046003.A32 42616046003	£1.60	£1.92
405 - TOOL HEAD FEI-31508295010.A2 31508295010	£83.34	£100.01
500 - COUNTERSUNK SCREW FEI-33024069010.A0 33024069010	£15.52	£18.63
530 - SCREW FEI-43074004000.A19 43074004000	£1.60	£1.92
5000 - ALLEN KEY FEI-62907037003.A40 62907037003	£4.06	£4.87
5010 - EXTRACTOR HOOD FEI-33218151000.A13 33218151000	£6.03	£7.24
5010 - CARRYING CASE UNFILLED FEI-33901144010.A8 33901144010	£22.08	£26.49
5020 - FELT RING FEI-30601106007.A21 30601106007	£2.38	£2.86
5030 - ADAPTER FEI-30605112000.A0 30605112000	£6.71	£8.05
5040 - PIPE FEI-33218123000.A5 33218123000	-
5050 - HOLDER FEI-30232049000.A3 30232049000	£10.48	£12.57
5200 - HANDLE FEI-32125059000.A7 32125059000	£6.41	£7.69
5210 - WIRE CLAMP FEI-30232055000.A7 30232055000	£6.41	£7.69
5400 - ADAPTER HOSE FEI-30605110008.A15 30605110008	£2.37	£2.84
5410 - ADAPTER HOSE FEI-30605109006.A0 30605109006	£2.37	£2.84
5420 - HOSE SLEEVE FEI-30517029001.A8 30517029001	£6.26	£7.51
5430 - HOSE SLEEVE FEI-30517028007.A7 30517028007	£5.12	£6.15
5450 - SANDING PAD SET PERFORATED FEI-63806136220.A4 63806136220	£25.44	£30.53
5500 - DUST EXTRACTION SET FEI-92602092000.A14 92602092000	£70.78	£84.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A16 32160003014	-
9000 - OPERATING INSTRUCTIONS FMT250/FMT250Q FEI-34101201060.A3 34101201060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A399 34130054061	-
