Makita RBC320E Petrol Brushcutter Spare Parts

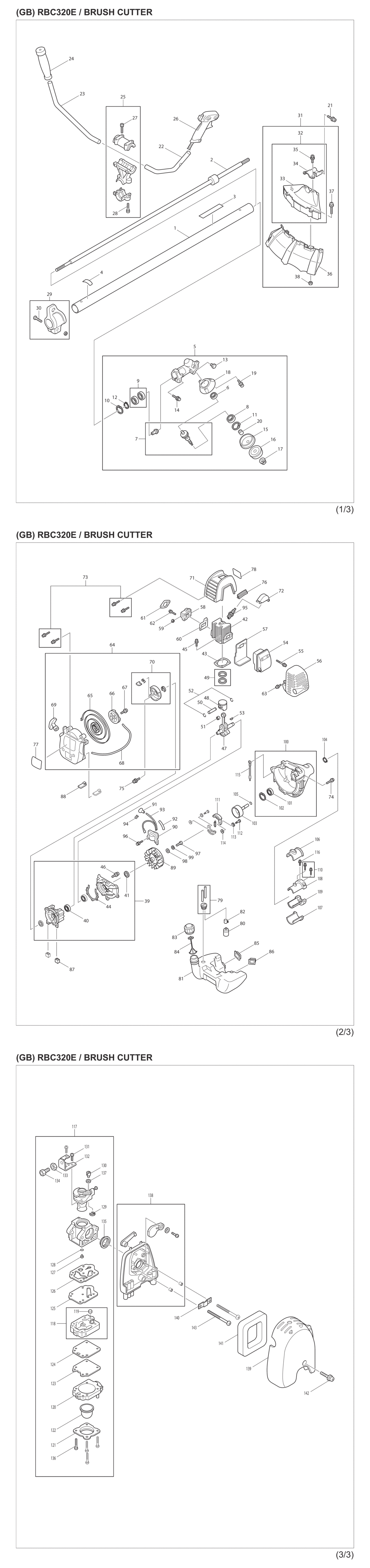

An exploded drawing and spare parts listing for the Makita RBC320E Petrol Brushcutter

	Ex VAT	Inc VAT
1 - SHAFT PIPE MS3200 MSP-6271009000.A0 6271009000	£168.72	£202.46
2-1 - SHAFT MS3200/RBC320/RBC3101 MSP-6271500802.A0 6271500802	£43.30	£51.96
3 - LABEL/CAUTION RBC320E MSP-6279510500 6279510500	£3.74	£4.49
4 - *LABEL/CAUTION RBC260LUMS32 MSP-6259514700.A0 6259514700	£4.06	£4.87
4-1 - LABEL/CAUTION EM2651LHEBH253 MSP-808723-2.A1 808723-2	£1.44	£1.73
5-2 - *GEAR CASE UNIT MS3200/RBC280 MSP-127021-8.A0 127021-8	£120.61	£144.73
7-1 - CUTTER SHAFT SET MS3200E MSP-6273013000.A3 6273013000	£64.94	£77.93
8 - BALL BEARING 6200DDU MS3200 MSP-0600109970.A2 0600109970	£12.79	£15.35
9-1 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A24 210049-4	£4.21	£5.05
11 - INNER SNAP RING RBC310/MS320 MSP-0031430000.A3 0031430000	£1.44	£1.73
12 - OUTER SNAPRING RBC310/MS3200E MSP-6253502600.A3 6253502600	£1.44	£1.73
13-1 - OIL BOLT M10 RBC230/RBC420E MSP-266671-5.A4 266671-5	£4.37	£5.24
14-1 - BOLT ASSY M6X30 RBC280/RBC31 MSP-0130069920.A3 0130069920	£1.44	£1.73
15 - *RECEIVE WASHER RBC310/RBC3101 MSP-6258503600.A2 6258503600	£30.96	£37.15
16 - *CLAMP WASHER RBC310/RBC3101 MSP-327196-5.A2 327196-5	£16.32	£19.58
17-1 - NUT SPRING WASHER RBC260L/U/E MSP-264018-7.A2 264018-7	£1.20	£1.44
18-1 - GUARD RBC310/RBC420E/RBC3101 MSP-412099-7.A5 412099-7	£3.90	£4.68
19-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A1 922213-2	£1.44	£1.73
20 - SPACER RBC310/RBC3101 MSP-6253501300.A1 6253501300	£5.62	£6.74
21-1 - BOLT ASSY M6x14 RBC410/420E MSP-0130069910.A0 0130069910	£1.44	£1.73
22 - HANDLE (RIGHT) MS3200E/RBC32 MSP-6274500600.A1 6274500600	£21.89	£26.27
23 - HANDLE (LEFT) MS3200E/RBC320 MSP-6274500700.A0 6274500700	£23.62	£28.34
24 - *GRIP RBC260L/U/RBC420E/MS420 MSP-6274501000.A2 6274501000	£9.82	£11.79
25-1 - HANDLE HOLDER ASSY MS3200E/RB MSP-6254030001 6254030001	£32.69	£39.23
26 - CONTROL LEVER ASSY MS3200E/RB MSP-6275008000.A1 6275008000	£78.50	£94.20
27-2 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A9 266805-0	£1.44	£1.73
28 - HEX SOCKET HEAD BOLT M5X30 R MSP-0119059940.A0 0119059940	£1.44	£1.73
29-1 - HANGER ASSY RBC3101 MSP-6277002000.A0 6277002000	£10.77	£12.92
30-2 - SCREW & WASHER ASSY DBC260L/U MSP-266788-4.A0 266788-4	£1.44	£1.73
31-2 - PROTECTOR ASSY RBC281/320E MSP-6278011002.A0 6278011002	£30.46	£36.55
32-2 - PROTECTOR ASSY MS3200E/RBC280 MSP-6278012002 6278012002	£30.96	£37.15
32-1 - *PROTECTOR ASSY MS3200E/RBC28 MSP-6278012001.A1 6278012001	£30.24	£36.29
34-1 - PROTECTOR CLAMP MS2800/RBC28 MSP-6278501000.A0 6278501000	£6.40	£7.68
36-2 - PROTECTOR RBC260L/UMS281 MSP-140424-9.A0 140424-9	£17.13	£20.56
37-1 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A12 911263-2	£1.44	£1.73
37 - PAN HD SCREW M5X40 EM4251/434 MSP-0043605400.A0 0043605400	£1.44	£1.73
38-1 - NUT M5 DBC260L/U/RBC3101 MSP-264035-7.A7 264035-7	£1.44	£1.73
39 - CRANK CASE MS3200/RBC32 MSP-5311007000.A0 5311007000	£136.08	£163.30
40-1 - BALL BEARING 6001C3 MS3200E MSP-210113-1.A0 210113-1	£12.48	£14.98
41-1 - OIL SEAL RBC221/251/MS3200E MSP-213628-7.A0 213628-7	£2.81	£3.37
42 - *CYLINDER RBC310/MS3200E/RBC3 MSP-5311500201.A2 5311500201	-
42-2 - CYLINDER RBC310/MS3200E/RBC31 MSP-319255-9.A1 319255-9	£84.04	£100.85
43 - CYLINDER GASKET MS3200E/RBC31 MSP-5311500301.A0 5311500301	£2.18	£2.62
44 - CRANK CASE GASKET MS3200 MSP-5311501200.A2 5311501200	£1.44	£1.73
45 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A6 0119059950	£1.44	£1.73
47 - CRANKCASE CO MS3200E/RBC320E MSP-5312007001.A0 5312007001	£134.64	£161.57
48-1 - *PISTON RBC310/320E/MS3200E MSP-5312500601.A1 5312500601	£32.69	£39.23
49 - PISTON RING RBC310/MS3200E MSP-5982500200.A1 5982500200	£5.62	£6.74
50 - PISTON PIN RBC310/MS3200E MSP-5312500400.A1 5312500400	£4.68	£5.62
51 - NEEDLE ROLLER BEARING RBC230/ MSP-0610089990.A4 0610089990	£7.49	£8.99
52-2 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A21 233976-8	£1.44	£1.73
53-1 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A14 254040-2	£4.06	£4.87
55 - SOCKET H BOLT M5X55 RBC320E/M MSP-0119059670.A3 0119059670	£3.90	£4.68
56 - MUFFLER COVER MS3200E/RBC320E MSP-5313503800.A2 5313503800	£10.77	£12.92
57 - MUFFLER GASKET MS3200E/RBC32 MSP-5313503600.A0 5313503600	£14.35	£17.22
58 - INSULATOR RBC310/320E MSP-5313500500.A2 5313500500	£5.92	£7.11
59-1 - NUT M5 EPH1000/RBL500/MH2556 MSP-264086-0.A1 264086-0	£1.44	£1.73
60 - INSULATOR GASKET MS3200/RBC31 MSP-5313502300.A1 5313502300	£1.44	£1.73
61-2 - SPACER GASKET RBC230/260/320E MSP-442177-9.A1 442177-9	£1.44	£1.73
63-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A5 266809-2	£1.44	£1.73
64 - REWIND STARTER MS3200/RBC320 MSP-5315012000.A0 5315012000	£59.92	£71.91
65 - SPIRAL SPRING RBC260/MS3200 MSP-5415003020.A2 5415003020	£12.79	£15.35
66 - REEL MS3200 MSP-5315007010.A0 5315007010	£12.01	£14.41
67 - SET SCREW MS3200 MSP-5315007020.A2 5315007020	£2.50	£3.00
68 - STARTER ROPE RBC221/251/MS32 MSP-5235024022.A1 5235024022	£12.17	£14.60
69-1 - STARTER KNOB EBH341U MSP-424317-1.A4 424317-1	£3.74	£4.49
70 - PULLEY STARTER RBC260/MS3200 MSP-5245007000.A2 5245007000	£19.58	£23.50
71 - CYLINDER COVER RBC281/230/32 MSP-5315503900.A0 5315503900	£25.20	£30.24
72 - PLUG COVER MS3200/RBC320E MSP-5317500700.A1 5317500700	£4.83	£5.80
74 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A0 0119059730	£1.44	£1.73
75 - BOLT ASSY RBC230/MS3200/HTR56 MSP-6202006000.A3 6202006000	£1.44	£1.73
76 - DAMPER MS3200/RBC320E MSP-5315504100.A1 5315504100	£3.59	£4.31
77 - LABEL/RBC320E MSP-6279510900 6279510900	£7.64	£9.17
78 - LABEL/TRADE MARK RBC201RBC3 MSP-6279505700.A2 6279505700	£4.83	£5.80
79 - TUBE MS3200E/RBC320E MSP-0851179972.A1 0851179972	£10.77	£12.92
80-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A12 163447-0	£3.42	£4.10
80-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A61 163447-0	£3.42	£4.10
81 - FUEL TANK MS3200/RBC280 MSP-5316502001.A1 5316502001	£35.86	£43.03
82-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A7 345920-4	£1.44	£1.73
83-2 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A14 452920-8	£8.58	£10.30
84-2 - STRAP ER2550/EBH341U MSP-140436-2.A3 140436-2	£3.96	£4.75
85-1 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A1 424102-2	£1.44	£1.73
86-1 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A14 424103-0	£1.44	£1.73
87-1 - DAMPER RBC230/320E/MS3200E/MH MSP-424446-0.A1 424446-0	£1.44	£1.73
88 - DAMPER MS3200/RBC320E MSP-5316503100.A1 5316503100	£3.28	£3.93
89 - FLYWHEEL MS3200/RBC320E MSP-5317010010.A2 5317010010	£77.11	£92.53
90 - COIL MS3200/RBC320E MSP-5317010020.A0 5317010020	£124.23	£149.08
91 - PLUG CAP MS3200/RBC320E/RBC31 MSP-5317010030.A3 5317010030	£14.51	£17.41
92 - INSULATOR MS3200E/RBC320E MSP-5317010040 5317010040	£2.81	£3.37
93 - CORD ASSY MS3200E/RBC320E MSP-5317010050 5317010050	£6.40	£7.68
94-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A42 324891-8	£1.44	£1.73
95-1 - SPARK PLUG EH561/RBC525E/MH25 MSP-168662-1.A7 168662-1	£29.38	£35.25
96 - BOLT M5X20 MS3200E MSP-0011705200.A1 0011705200	£1.44	£1.73
97 - BOLT M6X16 RBC 310 MSP-0016606160.A1 0016606160	£1.44	£1.73
99 - SPRING WASHER M6 RBC310/RBC42 MSP-0032006000.A10 0032006000	£1.44	£1.73
100 - CLUTCH CASE ASSY MS3200E/RBC3 MSP-6271004002.A1 6271004002	£71.44	£85.73
101 - *BALL BEARING 6201DDRBC260/31 MSP-0600129950.A4 0600129950	£11.39	£13.67
102 - *INNER SNAP RING RBC260/EM425 MSP-0031432000.A0 0031432000	£1.44	£1.73
102-1 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A59 962151-6	£1.44	£1.73
103 - CLUTCH DRUM MS3200/RBC32 MSP-6272002002.A1 6272002002	£34.28	£41.13
104-1 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A83 961052-5	£1.44	£1.73
105 - O RING MS3200/RBC320E MSP-0062610060.A1 0062610060	£1.44	£1.73
106 - PIPE DAMPER (1) MS3200E/RBC32 MSP-6271500105.A1 6271500105	£4.83	£5.80
107 - PIPE DAMPER (2) MS3200E/RBC32 MSP-6271500205.A1 6271500205	£4.37	£5.24
108 - PIPE BRACKET MS3200/RBC320E MSP-6271500301.A2 6271500301	£9.05	£10.86
109 - PIPE BRACKET 2 MS3200/RBC320E MSP-6271500401.A2 6271500401	£9.36	£11.23
110 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A7 0119059950	£1.44	£1.73
111 - CLUTCH SHOE MS3200 MSP-6272003000.A0 6272003000	£48.58	£58.29
113-1 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A13 267817-6	£1.44	£1.73
114 - WASHER MS3200/RBC320E MSP-6272500000.A1 6272500000	£1.44	£1.73
115 - *WIRE RBC201/MS20C/MS3200E/RB MSP-6165500201.A2 6165500201	£1.44	£1.73
116 - SOCKET HEAD BOLT M5X12 DBC26 MSP-0119059900.A7 0119059900	£1.44	£1.73
117 - CARBURETOR MS3200/RBC320E MSP-5316021000.A0 5316021000	£130.68	£156.82
118-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A2 140989-1	£43.30	£51.96
119-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A32 WJ00014070	£1.44	£1.73
120-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A9 140988-3	£14.20	£17.04
121-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A7 346270-0	£4.83	£5.80
122-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A13 424314-7	£4.83	£5.80
123-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A10 168767-7	£26.92	£32.31
124-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A7 442154-1	£3.59	£4.31
125-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A37 DA00001144	£14.21	£17.05
126-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A3 442172-9	£8.27	£9.92
127 - JET RBC230/310/MS3200E/RST25 MSP-5036002010.A2 5036002010	£8.58	£10.30
128-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A34 213538-8	£3.59	£4.31
129-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A31 257964-1	£2.81	£3.37
130-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A8 325922-6	£5.46	£6.55
131 - *THROTTLE COLLAR SCREW RBC420 MSP-5246001240.A5 5246001240	£2.18	£2.62
132-1 - BRACKET CABLE MS3200/RBC350/4 MSP-346491-4.A3 346491-4	£9.98	£11.98
133-1 - CABLE ADJUST NUT M6 EB7650TH MSP-264065-8.A6 264065-8	£1.44	£1.73
133 - *CABLE ADJUST NUT RBC230/260/ MSP-5316005450.A7 5316005450	£1.44	£1.73
134-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A7 326084-3	£10.30	£12.36
135-1 - RING PACKING RBC230/260/310 MSP-424444-4.A5 424444-4	£2.34	£2.81
136-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A29 266582-4	£1.44	£1.73
137-1 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A18 413140-9	£1.44	£1.73
138 - AIR CLEANER PLATE MS3200/RBC3 MSP-5313015000.A1 5313015000	£13.42	£16.10
139 - AIR CLEANER ASSY MS3200/RBC32 MSP-5313503200.A1 5313503200	£5.62	£6.74
140-1 - AIR CLEANER PLATE DBC260L/U MSP-346489-1.A1 346489-1	£2.81	£3.37
141-1 - AIR CLEANER ELEMENT RBC221/MH MSP-443167-5.A4 443167-5	£2.36	£2.83
142-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A4 266809-2	£1.44	£1.73
143 - SCREW M5X50 RBC260/310/320E MSP-0140059730.A1 0140059730	£1.44	£1.73
A01 - *BAND ASSY MS3200/RBC280/420E MSP-6417015003.A4 6417015003	£23.56	£28.27
A02-1 - CUSHION MS3200 MSP-6277500201.A2 6277500201	£42.48	£50.98
A03-1 - STAR BLADE 255-4T C31/C41/K41 MSP-B-14124.A1 B-14124	£13.31	£15.97
A04-1 - *CUTTER COVER SET DBC260/RBC42 MSP-6418027000.A1 6418027000	£6.55	£7.86
A05 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-6119019001.A2 6119019001	£9.73	£11.68
A05-1 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-195508-8.A0 195508-8	£3.63	£4.36
A06-1 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A17 783223-2	£1.20	£1.44
