Dewalt DW743 Type 4 Combination Saw Spare Parts

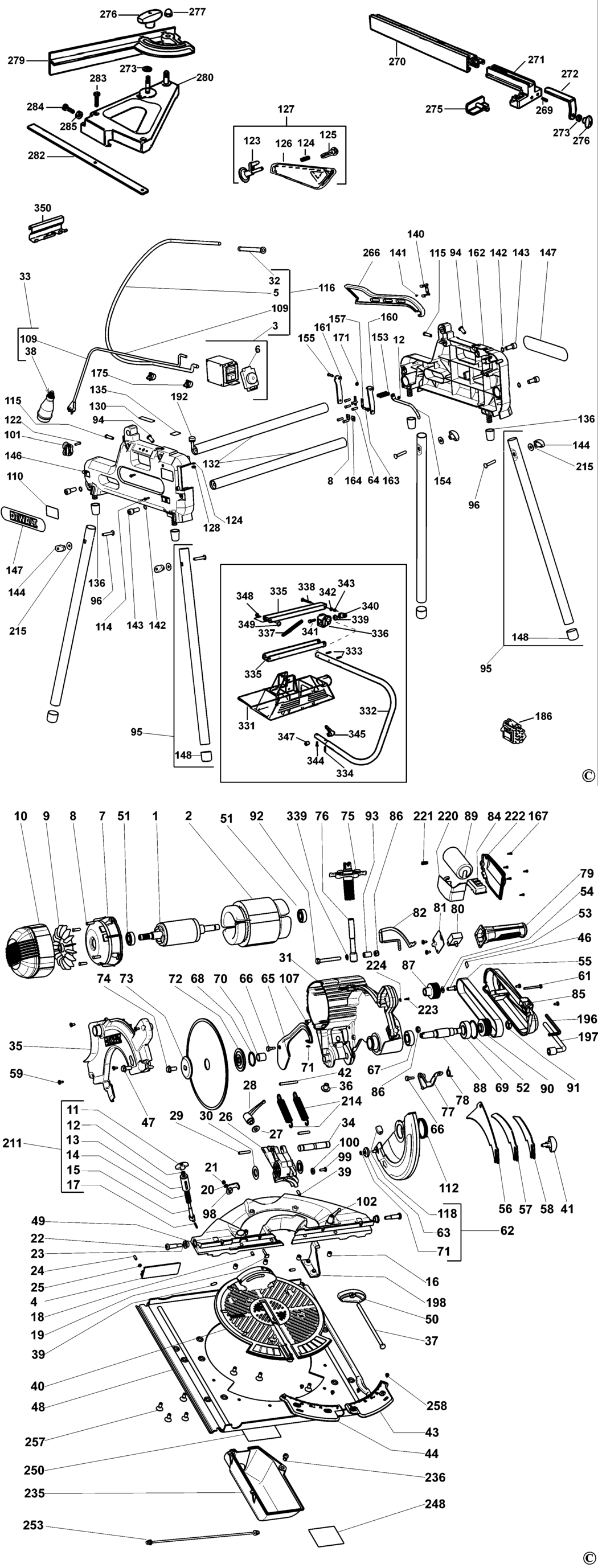

An exploded drawing and spare parts listing for the Dewalt DW743 Type 4 Combination Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE LX BDE-000000-00.A61962 000000-00	-
1 - ROTOR SA GB BDE-868397-01.A4 868397-01	-
2 - STATOR 230V GB BDE-868395-04.A3 868395-04	£232.38	£278.85
2 - STATOR 115V LX BDE-868395-06.A5 868395-06	£200.77	£240.92
3 - SWITCH SA LX BDE-868180-02.A3 868180-02	£60.94	£73.13
3 - SWITCH SA GB BDE-868180-03.A2 868180-03	£96.55	£115.86
4 - STOP PLATE BDE-869209-00.A2 869209-00	£7.85	£9.42
5 - MOTOR CABLE LX BDE-868179-01.A2 868179-01	£37.35	£44.82
5 - MOTOR CABLE GB BDE-868179-02.A1 868179-02	£45.14	£54.17
6 - SWITCH COVER BDE-N377168.A0 N377168	£14.57	£17.48
7 - END CAP BDE-861085-04.A0 861085-04	£23.75	£28.50
8 - SCREW BDE-330045-15.A147 330045-15	£1.50	£1.80
9 - FAN BDE-942413-02.A20 942413-02	£4.69	£5.63
10 - END CAP LX BDE-861036-02.A14 861036-02	£10.85	£13.02
10 - END CAP GB BDE-861036-02.A15 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A27 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A54 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A17 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A64 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A16 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A27 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A12 761065-00	£1.50	£1.80
18 - SCREW BDE-949853-03.A8 949853-03	£1.82	£2.19
19 - SCREW BDE-869212-00.A3 869212-00	£1.82	£2.19
20 - WASHER BDE-939625-00.A27 939625-00	£3.80	£4.56
21 - NUT STOP M5 BDE-860092-04.A7 860092-04	£1.50	£1.80
22 - BOLT BDE-616592-00.A10 616592-00	£7.85	£9.42
23 - BUSHING BDE-607182-00.A13 607182-00	£1.50	£1.80
24 - SCREW BDE-150075-00.A38 150075-00	£1.50	£1.80
25 - NUT BDE-860083-03.A432 860083-03	£1.50	£1.80
26 - SEGMENT BDE-869085-00.A5 869085-00	£37.35	£44.82
27 - WASHER M8 BDE-860073-03.A586 860073-03	£1.50	£1.80
28 - LEVER BDE-949884-01.A0 949884-01	£5.88	£7.06
29 - PIN BDE-869205-01.A3 869205-01	£1.50	£1.80
30 - WASHER BDE-148296-00.A79 148296-00	£1.50	£1.80
31 - HOUSING MOTOR BDE-869217-00.A5 869217-00	£140.47	£168.56
32 - PROTECTOR BDE-942277-00.A56 942277-00	£1.66	£1.99
33 - CABLE SA LX BDE-868181-08.A3 868181-08	£58.69	£70.43
34 - SPINDLE BDE-869087-00.A5 869087-00	£7.85	£9.42
35 - GUARD COVER BDE-869089-00.A0 869089-00	£17.48	£20.97
36 - GROMMET BDE-869123-00.A4 869123-00	£1.50	£1.80
37 - SCREW BDE-860085-32.A6 860085-32	£4.69	£5.63
38 - PLUG LX BDE-865975-00.A7 865975-00	£10.85	£13.02
39 - SCREW BDE-949743-01.A27 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-00.A3 869230-00	£110.62	£132.74
41 - KNOB BDE-861452-02.A2 861452-02	£1.50	£1.80
42 - PIN BDE-869205-00.A2 869205-00	£1.82	£2.19
43 - INSERT BDE-869179-00.A1 869179-00	£5.88	£7.06
44 - INSERT BDE-869179-01.A4 869179-01	£5.88	£7.06
46 - LABEL BDE-623289-00.A4 623289-00	£1.50	£1.80
47 - SCREW BDE-869198-00.A2 869198-00	£4.69	£5.63
48 - TABLE BDE-N060145.A3 N060145	£218.32	£261.98
49 - BACK FENCE BDE-869127-00.A3 869127-00	£84.42	£101.30
50 - CLAMP BDE-869224-00.A2 869224-00	£5.88	£7.06
51 - BEARING 6202 BDE-861721-15.A3 861721-15	£7.18	£8.62
52 - WASHER BDE-869090-00.A5 869090-00	£1.50	£1.80
53 - SCREW BDE-860085-28.A11 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A4 861983-01	£1.50	£1.80
55 - BELT BDE-869094-01.A1 869094-01	-
56 - RIVING KNIFE LX BDE-869096-00.A7 869096-00	£24.39	£29.27
56 - RIVING KNIFE GB BDE-869096-00.A8 869096-00	£24.39	£29.27
59 - SCREW BDE-330045-49.A50 330045-49	£1.50	£1.80
61 - SCREW BDE-869196-00.A3 869196-00	£1.50	£1.80
62 - LOWER GUARD SA BDE-868216-02.A2 868216-02	£30.08	£36.10
63 - ROLLER BDE-146774-00.A44 146774-00	£1.82	£2.19
64 - SCREW.TEMP BDE-860094-00.A36 860094-00	£1.50	£1.80
65 - LEVER SA BDE-869119-00.A5 869119-00	£12.17	£14.60
66 - SCREW BDE-N399933.A9 N399933	£1.50	£1.80
67 - BEARING BDE-330003-16.A4 330003-16	£3.80	£4.56
68 - CIRCLIP BDE-860079-05.A13 860079-05	£1.50	£1.80
69 - BEARING BDE-860155-08.A35 860155-08	£7.85	£9.42
70 - BUSH BDE-869116-00.A0 869116-00	£3.30	£3.96
71 - WASHER BDE-860077-01.A2 860077-01	£1.50	£1.80
72 - WASHER INNER CLAMP BDE-616319-00.A0 616319-00	£16.03	£19.24
73 - CLAMP OUTER BDE-604765-00.A43 604765-00	£5.88	£7.06
74 - BLADE BOLT BDE-869245-00.A54 869245-00	£3.54	£4.25
75 - WHEEL ADJUSTER BDE-869099-00.A0 869099-00	£14.57	£17.48
76 - ADJUSTER HEIGHT BDE-869115-00.A5 869115-00	£5.88	£7.06
77 - PLATE BDE-869118-00.A0 869118-00	£3.80	£4.56
78 - SPRING BDE-869188-00.A4 869188-00	£1.50	£1.80
79 - HANDLE BDE-869117-00.A5 869117-00	£7.18	£8.62
80 - SWITCH BDE-868182-01.A0 868182-01	£16.03	£19.24
81 - COVER BDE-869185-00.A5 869185-00	£1.50	£1.80
82 - LEAD SA LX BDE-942467-05.A2 942467-05	£7.18	£8.62
82 - LEAD SA GB BDE-942467-04.A3 942467-04	£7.18	£8.62
84 - TERMINAL BLOCK LX BDE-942508-00.A16 942508-00	£7.18	£8.62
84 - TERMINAL BLOCK GB BDE-869186-00.A0 869186-00	£4.69	£5.63
85 - COVER BELT BDE-869122-00.A1 869122-00	£10.85	£13.02
86 - NUT BDE-860092-05.A22 860092-05	£1.50	£1.80
87 - PULLEY BDE-869093-00.A1 869093-00	£11.87	£14.24
88 - SPINDLE BDE-869092-00.A3 869092-00	£18.91	£22.69
89 - CAPACITOR BDE-N497345-01.A2 N497345-01	£19.90	£23.88
90 - PULLEY BDE-869093-01.A0 869093-01	-
91 - NUT BDE-869221-00.A2 869221-00	£1.50	£1.80
92 - SCREW BDE-860086-13.A4 860086-13	£1.50	£1.80
93 - SPACER BDE-869222-00.A3 869222-00	£1.50	£1.80
94 - SCREW BDE-949701-05.A21 949701-05	£1.50	£1.80
95 - LEG SA BDE-869199-00.A2 869199-00	£17.48	£20.97
96 - SCREW BDE-949891-03.A18 949891-03	£1.50	£1.80
98 - PLATE BDE-863257-01.A3 863257-01	£1.50	£1.80
99 - SCREW BDE-861989-00.A8 861989-00	£1.50	£1.80
100 - BEARING BDE-949719-04.A19 949719-04	£3.30	£3.96
101 - CORD CLAMP LX BDE-605601-00.A15 605601-00	£1.50	£1.80
101 - CABLE CLAMP GB BDE-869064-00.A3 869064-00	£1.50	£1.80
102 - KNOB BDE-869058-01.A6 869058-01	£12.17	£14.60
107 - CAP BDE-861991-00.A4 861991-00	£1.50	£1.80
109 - CABLE LX BDE-868181-07.A1 868181-07	£41.24	£49.49
109 - CABLE GB BDE-868181-10.A1 868181-10	£45.14	£54.17
110 - RATING PLATE LX BDE-869124-01.A0 869124-01	£4.58	£5.49
110 - RATING PLATE GB BDE-869124-02.A1 869124-02	£4.58	£5.49
112 - SPRING BDE-861988-00.A4 861988-00	-
114 - SCREW BDE-860084-09.A17 860084-09	£1.50	£1.80
115 - SCREW BDE-860089-41.A2 860089-41	£1.50	£1.80
116 - SWITCH & CABLE SA LX BDE-869121-02.A2 869121-02	£126.63	£151.96
116 - SWITCH & CABLE SA GB BDE-869121-01.A1 869121-01	£113.07	£135.68
118 - BUFFER BDE-861095-01.A29 861095-01	£1.50	£1.80
122 - SCREW BDE-861090-00.A5 861090-00	£1.50	£1.80
123 - PIVOT BDE-N162670.A27 N162670	£3.80	£4.56
124 - SPRING BDE-941622-00.A17 941622-00	£1.50	£1.80
125 - SCREW BDE-860084-11.A50 860084-11	£1.50	£1.80
126 - GUARD UPPER BDE-N162669.A1 N162669	£17.48	£20.97
127 - GUARD SA BDE-N164678.A28 N164678	£38.80	£46.56
128 - NUT BDE-860083-14.A57 860083-14	£1.50	£1.80
130 - WARNING LABEL BDE-610710-00.A17 610710-00	£1.50	£1.80
132 - CROSS BRACE BDE-861074-01.A16 861074-01	£16.03	£19.24
135 - LABEL BDE-626191-00.A19 626191-00	£1.50	£1.80
136 - FOOT BDE-942375-00.A17 942375-00	£1.50	£1.80
140 - CLIP BDE-615994-00.A9 615994-00	£1.50	£1.80
141 - SCREW BDE-330045-05.A25 330045-05	£1.50	£1.80
142 - WASHER BDE-98197-08.A16 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A33 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A143 941756-00	£1.50	£1.80
146 - FRAME LH BDE-N156120.A5 N156120	£110.62	£132.74
147 - LABEL BDE-869125-00.A2 869125-00	£3.80	£4.56
148 - FOOT BDE-861073-00.A1 861073-00	£10.85	£13.02
153 - SPRING BDE-942522-00.A9 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A26 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A17 942185-00	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A2 942104-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A20 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A1 861070-00	£2.26	£2.71
162 - FRAME RH BDE-N156121.A0 N156121	£87.82	£105.39
163 - PIN BDE-942365-00.A25 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A1 949876-08	£1.50	£1.80
167 - SCREW BDE-860094-03.A226 860094-03	£1.50	£1.80
171 - WASHER M6 BDE-860073-07.A34 860073-07	£1.50	£1.80
175 - CABLE CLAMP BDE-861091-00.A27 861091-00	£1.50	£1.80
186 - CONTACT SA GB BDE-868538-00.A8 868538-00	£71.44	£85.73
186 - CONTACT SA LX BDE-868538-02.A0 868538-02	£43.02	£51.63
192 - FOOT BDE-941614-00.A40 941614-00	£1.50	£1.80
196 - WRENCH 6 MM BDE-860098-04.A23 860098-04	£1.50	£1.80
197 - WRENCH SPECIAL BDE-869181-00.A1 869181-00	£7.01	£8.41
198 - TABLE LATCH BDE-861063-00.A6 861063-00	£4.69	£5.63
211 - LOCKING PIN SA BDE-861084-00.A19 861084-00	£25.70	£30.84
214 - SPRING BDE-869086-00.A0 869086-00	£5.88	£7.06
215 - WASHER BDE-941602-00.A91 941602-00	£1.50	£1.80
220 - COVER BDE-868428-01.A3 868428-01	£2.26	£2.71
221 - GROMMET BDE-868431-00.A2 868431-00	£1.50	£1.80
222 - COVER BDE-868429-00.A6 868429-00	£2.26	£2.71
223 - SCREW.SPECIAL BDE-941812-00.A4 941812-00	£37.35	£44.82
224 - WASHER BDE-933652-00.A74 933652-00	£1.50	£1.80
235 - GUARD SA BDE-N060146.A1 N060146	£17.48	£20.97
236 - FASTENER BDE-868303-00.A7 868303-00	£3.80	£4.56
250 - LABEL BDE-861099-00.A15 861099-00	£1.50	£1.80
253 - CORD BDE-N060144.A2 N060144	£3.80	£4.56
257 - SCREW BDE-868256-00.A12 868256-00	£1.50	£1.80
258 - SCREW BDE-949795-01.A7 949795-01	£1.50	£1.80
266 - PUSHROD BDE-860610-01.A84 860610-01	£7.85	£9.42
269 - SCREW BDE-949743-03.A20 949743-03	£7.85	£9.42
270 - GUIDE BDE-942320-03.A5 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A21 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A21 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A587 860073-03	£1.50	£1.80
275 - BRACKET BDE-941819-01.A0 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A144 941756-00	£1.50	£1.80
277 - NUT BDE-860092-00.A90 860092-00	£1.50	£1.80
279 - FENCE BDE-941578-01.A8 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A17 942172-00	£12.17	£14.60
282 - RAIL BDE-942151-00.A13 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A6 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A104 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A152 860083-12	£1.50	£1.80
