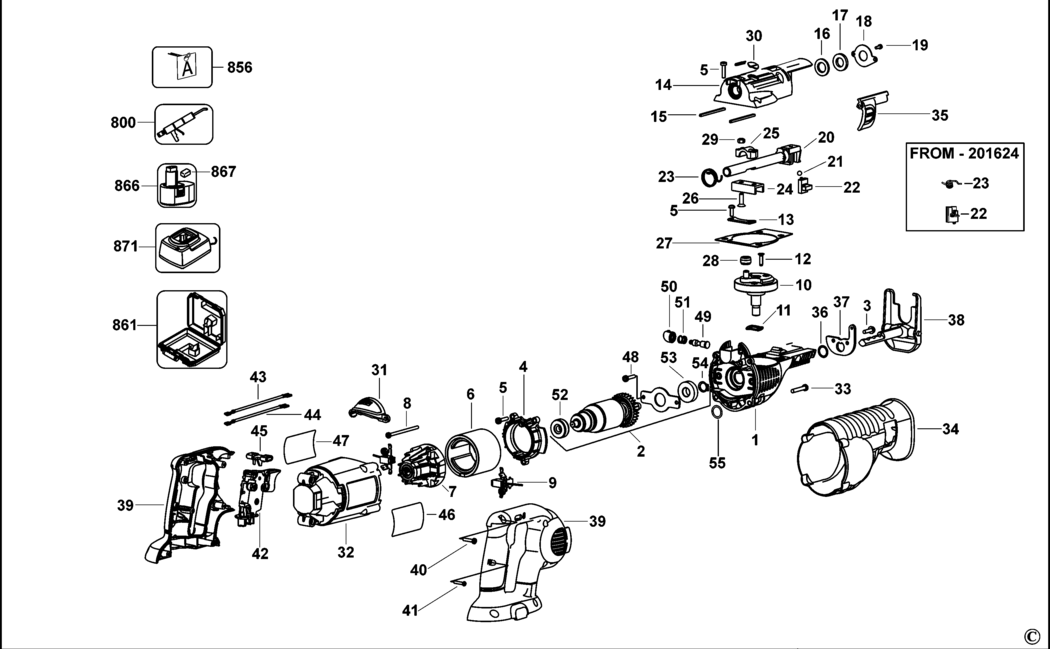

An exploded drawing and spare parts listing for the Dewalt DC385KB Type 2 Cordless Reciprocating Saw
Ex VAT Inc VAT
1 - GEARCASE SA INCL.495051 BDE-613138-00SV.A2 613138-00SV £47.08 £56.49
2 - ARMATURE SA BDE-617376-00SV.A0 617376-00SV £78.12 £93.74
3 - SCREW BDE-142940-00.A37 142940-00 £1.50 £1.80
4 - BAFFLE FAN BDE-613137-00.A5 613137-00 £3.22 £3.86
5 - SCREW BDE-613619-00.A9 613619-00 £1.50 £1.80
6 - MAGNET BDE-611202-00SV.A1 611202-00SV -
7 - SUPPORT BEARING BDE-N171820.A6 N171820 -
8 - SCREW BDE-330019-25.A24 330019-25 £1.50 £1.80
9 - BRUSHBOX SA BDE-610126-00.A13 610126-00 £7.85 £9.42
10 - GEAR & SPINDLE BDE-615940-00SV.A3 615940-00SV £41.24 £49.49
11 - WASHER SPECIAL BDE-619618-00.A7 619618-00 £1.50 £1.80
12 - SCREW BDE-622484-00.A3 622484-00 £1.50 £1.80
13 - SUPPORT PLATE BDE-621173-00.A9 621173-00 £1.50 £1.80
14 - GEARCASE COVER BDE-N027851SV.A7 N027851SV £34.00 £40.80
15 - STRIP BDE-621979-00.A1 621979-00 £1.50 £1.80
16 - SEAL BDE-618733-00.A0 618733-00 £1.50 £1.80
17 - FELT SEAL BDE-618477-00.A11 618477-00 £1.50 £1.80
18 - COVERPLATE BDE-N020720.A9 N020720 £1.50 £1.80
19 - SCREW BDE-330045-43.A15 330045-43 £1.50 £1.80
20 - SHAFT SA BDE-N026647.A12 N026647 £38.80 £46.56
21 - BALL BDE-000903-00.A17 000903-00 £12.17 £14.60
22 - SLIDER FROM 201624 BDE-N252639.A10 N252639 £7.85 £9.42
22 - SLIDER TO 201624 BDE-622647-00.A7 622647-00 £4.69 £5.63
23 - SPRING FROM 201624 BDE-N426742.A10 N426742 £1.50 £1.80
23 - SPRING TORSION TO 201624 BDE-622659-00.A9 622659-00 £1.50 £1.80
24 - SHAFT SA BDE-N026647.A11 N026647 £38.80 £46.56
25 - SADDLE BDE-617000-00.A0 617000-00 £3.30 £3.96
26 - SCREW BDE-622486-00.A3 622486-00 £1.50 £1.80
27 - GASKET BDE-N063272.A6 N063272 £1.50 £1.80
28 - BEARING BDE-N021857.A11 N021857 £9.41 £11.29
29 - LOCK NUT BDE-622485-00.A7 622485-00 £1.50 £1.80
30 - COVER BDE-621927-00.A0 621927-00 £1.50 £1.80
31 - INSERT BDE-621506-00.A1 621506-00 £3.70 £4.44
32 - HOUSING MOTOR BDE-613143-01.A2 613143-01 -
33 - SCREW BDE-330019-45.A19 330019-45 £1.50 £1.80
34 - BOOT BDE-N084697.A3 N084697 £10.85 £13.02
35 - LEVER BDE-617208-00SV.A0 617208-00SV £41.24 £49.49
36 - RING BDE-050049-00.A45 050049-00 £1.50 £1.80
37 - BRACKET BDE-617008-00.A3 617008-00 £1.50 £1.80
38 - SHOE SA BDE-623511-00SV.A6 623511-00SV £38.80 £46.56
39 - CLAMSHELL SET GB BDE-N104712.A3 N104712 £14.19 £17.03
39 - CLAMSHELL SET DC385KL BDE-N104712.A4 N104712 £14.19 £17.03
39 - CLAMSHELL SET DC385KB BDE-N104712.A5 N104712 £14.19 £17.03
40 - SCREW BDE-90611830.A129 90611830 £1.50 £1.80
41 - SCREW BDE-682211-00.A261 682211-00 £1.50 £1.80
42 - SWITCH BDE-152274-15.A4 152274-15 £58.69 £70.43
43 - LEAD BROWN BDE-617383-00.A0 617383-00 £1.78 £2.13
43 - LEAD SA GB BDE-N172278.A4 N172278 £7.85 £9.42
44 - LEAD SA GB BDE-N172278.A5 N172278 £7.85 £9.42
44 - LEAD PURPLE BDE-617384-00.A2 617384-00 £1.78 £2.13
45 - LEVER LOCK-OFF BDE-607100-00.A4 607100-00 £1.82 £2.19
46 - IDENTITY LABEL BDE-614878-00.A2 614878-00 £1.42 £1.70
47 - RATING PLATE GB BDE-N049692.A0 N049692 £1.42 £1.70
48 - SCREW BDE-330045-45.A72 330045-45 £1.50 £1.80
49 - LOCK PIN BDE-615983-00.A9 615983-00 £1.50 £1.80
50 - CAP BDE-617733-00.A5 617733-00 £1.50 £1.80
51 - SPRING BDE-618427-00.A7 618427-00 £1.50 £1.80
52 - BEARING & SEAL BDE-391032-00.A19 391032-00 £3.80 £4.56
53 - BEARING BDE-330003-64.A89 330003-64 £4.69 £5.63
54 - RETAINER BDE-696060-00.A43 696060-00 £1.50 £1.80
55 - FELT SEAL BDE-N275679.A1 N275679 £1.50 £1.80
800 - GREASE BDE-286436-00.A239 286436-00 £126.63 £151.96
861 - KITBOX BDE-N152704.A8 N152704 £44.14 £52.97
866 - BATTERY 18V - 2.6AH DC385KB GB BDE-1006628-00.A1 1006628-00 £108.20 £129.84
867 - SAFETY CAP BDE-608522-00.A24 608522-00 -
871 - CHARGER 7.2V - 18V DC385KB GB BDE-572576-00.A112 572576-00 £110.62 £132.74
