Dewalt DWE492 Type 20 Angle Grinder Spare Parts

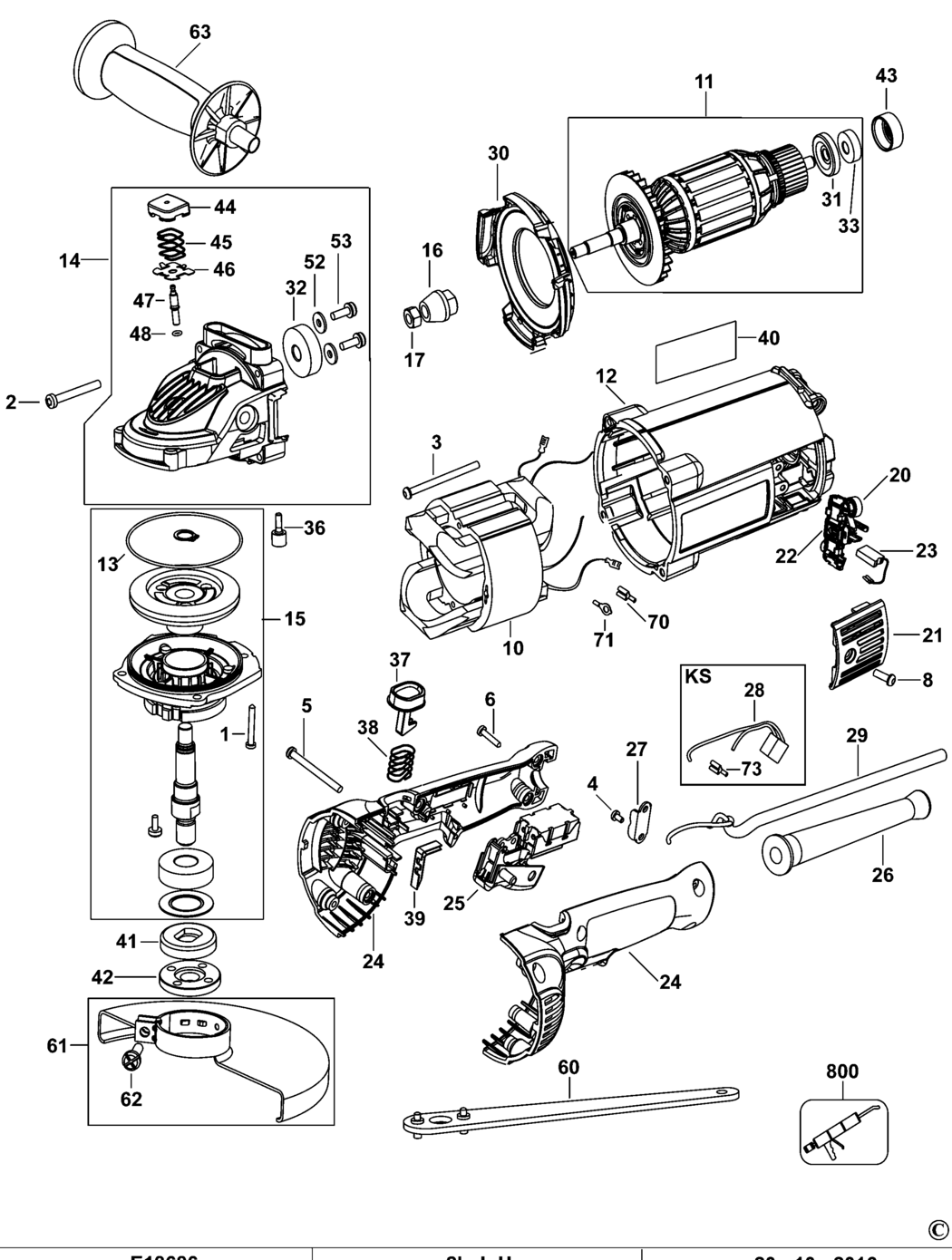

An exploded drawing and spare parts listing for the Dewalt DWE492 Type 20 Angle Grinder

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A40 330045-14	£1.50	£1.80
2 - SCREW BDE-330019-26.A58 330019-26	£1.50	£1.80
3 - SCREW BDE-330019-19.A61 330019-19	£1.50	£1.80
4 - SCREW.TEMP BDE-330019-11.A58 330019-11	£1.50	£1.80
5 - SCREW BDE-330019-18.A24 330019-18	£1.50	£1.80
6 - SCREW BDE-330019-32.A143 330019-32	£1.50	£1.80
8 - SCREW BDE-176951-00.A51 176951-00	£1.50	£1.80
12 - FIELD CASE BDE-393239-00.A1 393239-00	£18.91	£22.69
12 - FIELD CASE BDE-393239-01.A44 393239-01	£14.57	£17.48
13 - O RING BDE-397031-00.A21 397031-00	£1.50	£1.80
14 - GEARCASE SA BDE-N495149.A1 N495149	-
15 - GEARCASE COVER SA BDE-N497001 N497001	£58.70	£70.44
16 - PINION BDE-N407625.A3 N407625	£7.85	£9.42
17 - NUT BDE-330015-03.A16 330015-03	£1.50	£1.80
20 - BRUSH SPRING BDE-645650-00.A7 645650-00	£1.50	£1.80
21 - BRUSH COVER BDE-394387-00.A6 394387-00	£1.50	£1.80
21 - BRUSH COVER BDE-394387-01.A39 394387-01	£1.50	£1.80
22 - BRUSH HOLDER SA BDE-N410308.A8 N410308	£3.30	£3.96
22 - BRUSH HOLDER SA BDE-N410308.A9 N410308	£3.30	£3.96
23 - BRUSH PAIR BDE-N404514.A1 N404514	£7.85	£9.42
24 - HANDLE SA BDE-395184-00.A2 395184-00	£17.48	£20.97
25 - SWITCH SA BDE-N015071.A2 N015071	£14.57	£17.48
26 - CORD PROTECTOR BDE-N219433.A0 N219433	£1.50	£1.80
27 - CORD CLAMP BDE-604119-00.A27 604119-00	£1.50	£1.80
27 - CORD CLAMP BDE-N219432.A3 N219432	-
29 - CORDSET BDE-562226-81 562226-81	£12.17	£14.60
30 - BAFFLE FAN BDE-631350-00.A23 631350-00	£2.26	£2.71
31 - SHIELD BDE-393238-00.A96 393238-00	£1.50	£1.80
32 - BEARING BDE-N389509.A37 N389509	£3.80	£4.56
33 - BEARING BDE-N110359.A167 N110359	£3.75	£4.50
36 - SCREW BDE-N033051.A55 N033051	£1.50	£1.80
37 - BUTTON LOCK-OFF BDE-636503-00.A25 636503-00	£1.50	£1.80
38 - SPRING BDE-636502-00.A12 636502-00	£1.50	£1.80
39 - COVER BDE-N391190.A7 N391190	£1.50	£1.80
41 - INNER FLANGE BDE-403150-01.A58 403150-01	£4.69	£5.63
42 - OUTER FLANGE BDE-401678-05.A29 401678-05	£4.69	£5.63
43 - SLEEVE INSULATING BDE-609970-00.A65 609970-00	£1.50	£1.80
44 - CAP BDE-630553-00.A21 630553-00	£1.50	£1.80
45 - SPRING BDE-638328-00.A21 638328-00	£1.50	£1.80
46 - RETAINER BDE-635908-00.A17 635908-00	£1.50	£1.80
47 - PIN BDE-634589-00.A11 634589-00	£1.82	£2.19
47 - PIN BDE-N459860.A0 N459860	-
48 - O RING BDE-750831.A12 750831	£1.50	£1.80
49 - SLEEVE BEARING BDE-449852-00.A15 449852-00	-
52 - WASHER BDE-640591-00.A27 640591-00	£1.50	£1.80
53 - SCREW BDE-330045-67.A40 330045-67	£16.03	£19.24
60 - WRENCH PIN BDE-635261-00.A22 635261-00	£4.69	£5.63
61 - GUARD SA BDE-N419366.A4 N419366	£14.57	£17.48
62 - SCREW BDE-N082712.A6 N082712	£1.50	£1.80
63 - SIDE HANDLE BDE-651858-01.A12 651858-01	£7.18	£8.62
70 - TERMINAL BDE-612273-00.A31 612273-00	£1.50	£1.80
71 - TERMINAL BDE-610057-00.A35 610057-00	£1.50	£1.80
72 - SCREW BDE-330045-56.A0 330045-56	-
73 - TERMINAL BDE-53650-00.A14 53650-00	£1.50	£1.80
73 - SEAL BDE-607807-00.A0 607807-00	-
74 - BEARING BDE-605040-31.A3 605040-31	£5.88	£7.06
75 - SPINDLE BDE-637282-00.A0 637282-00	-
76 - GEARCASE COVER BDE-N495240.A0 N495240	-
77 - GEAR BDE-N407626 N407626	-
78 - RETAINER BDE-034109-00.A0 034109-00	£1.42	£1.70
800 - GREASE 50 GMS BDE-583534-00.A329 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
