Dewalt DW433 Type 2 Belt Sander Spare Parts

Home Details Reviews Delivery

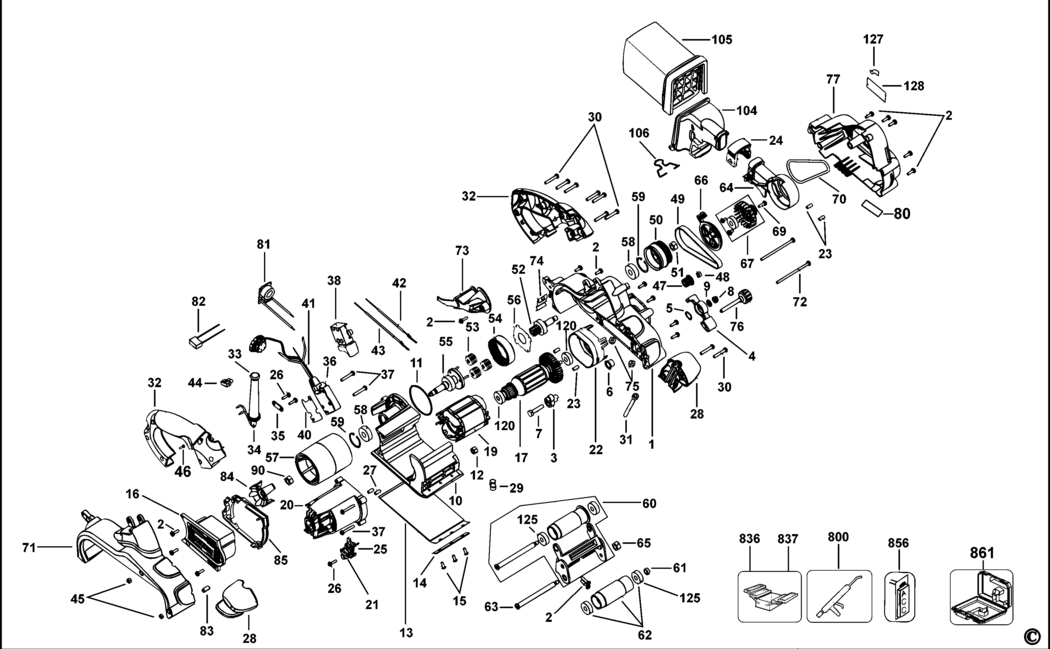

An exploded drawing and spare parts listing for the Dewalt DW433 Type 2 Belt Sander

	Ex VAT	Inc VAT
1 - GEARCASE INCL 120 121 BDE-398028-00.A0 398028-00	£69.63	£83.56
2 - SCREW BDE-330045-06.A67 330045-06	£1.66	£1.99
3 - SHAFT SA BDE-398097-00.A2 398097-00	£10.57	£12.68
4 - LEVER BDE-398050-00.A3 398050-00	£3.70	£4.44
5 - SPRING BDE-398074-00.A0 398074-00	£2.71	£3.25
6 - BUSHING BDE-398064-00.A0 398064-00	£1.66	£1.99
7 - SCREW BDE-98023-25.A3 98023-25	£1.66	£1.99
8 - NUT BDE-397893-00.A15 397893-00	£1.88	£2.26
9 - WASHER BDE-330016-02.A21 330016-02	£1.66	£1.99
10 - PLATEN BDE-393745-00.A0 393745-00	-
11 - O RING BDE-393758-00.A2 393758-00	£1.66	£1.99
12 - NUT BDE-398094-00.A2 398094-00	£1.66	£1.99
13 - BASE PLATE BDE-398080-00.A1 398080-00	-
14 - CLAMP BDE-398049-00.A0 398049-00	£1.66	£1.99
15 - SCREW BDE-153637-04.A2 153637-04	£1.66	£1.99
16 - COVER BDE-398065-00.A3 398065-00	£4.58	£5.49
17 - ARMATURE & FAN GB BDE-398076-01SV.A0 398076-01SV	-
17 - ARMATURE SA LX BDE-398076-00.A1 398076-00	£59.41	£71.29
19 - FIELD LX BDE-402051-03SV.A0 402051-03SV	£58.69	£70.43
19 - FIELD GB BDE-402051-04SV.A2 402051-04SV	-
20 - FIELDCASE BDE-393742-00.A0 393742-00	£7.85	£9.42
21 - BRUSH 230V GB BDE-398045-01.A2 398045-01	£8.08	£9.70
21 - BRUSH 230V LX BDE-398045-01.A3 398045-01	£8.08	£9.70
22 - BAFFLE BDE-393747-00.A0 393747-00	£3.80	£4.56
23 - DAMPER BDE-949638-02.A64 949638-02	£1.66	£1.99
24 - COLLAR BDE-398105-00.A1 398105-00	£1.66	£1.99
25 - BRUSH HOLDER BDE-398108-00.A1 398108-00	£19.40	£23.28
26 - SCREW BDE-176951-00.A4 176951-00	£1.66	£1.99
27 - PLUG BDE-072412-00.A3 072412-00	£1.66	£1.99
28 - HANDLE BDE-398036-00.A3 398036-00	-
29 - ROLLER BDE-615509-00.A2 615509-00	£1.66	£1.99
30 - SCREW BDE-330019-14.A57 330019-14	£1.66	£1.99
31 - LOCKING SCREW BDE-398098-00.A1 398098-00	£1.66	£1.99
32 - HANDLE & COVER BDE-398117-00.A0 398117-00	£14.19	£17.03
33 - CORD PROTECTOR BDE-N542553.A351 N542553	£3.92	£4.70
34 - CORDSET LX BDE-330061-25.A1 330061-25	£78.95	£94.74
34 - CORDSET (M/PLUG) GB GB BDE-330060-89 330060-89	£43.02	£51.63
35 - CORD CLAMP BDE-380414-00.A21 380414-00	-
36 - CONTROL MODULE SA GB BDE-N033987.A0 N033987	£78.95	£94.74
36 - CONTROL MODULE SA LX BDE-N033988 N033988	£107.82	£129.39
37 - SCREW BDE-330045-07.A31 330045-07	£1.66	£1.99
38 - SWITCH BDE-619242-00.A2 619242-00	£19.90	£23.88
40 - PAD BDE-609468-00.A4 609468-00	£2.87	£3.44
41 - WIRE LATE 2004 ONWARDS GB BDE-619714-00.A0 619714-00	-
41 - WIRE LATE 2004 ONWARDS LX BDE-619714-00.A1 619714-00	-
42 - LEAD WHITE BDE-398078-00.A2 398078-00	£7.01	£8.41
43 - LEAD WHITE BDE-398078-01.A1 398078-01	£7.01	£8.41
44 - TERMINAL BLOCK BDE-398100-00.A2 398100-00	£1.66	£1.99
45 - NUT M4 BDE-330015-01.A5 330015-01	£1.66	£1.99
46 - SCREW BDE-150036-01.A1 150036-01	£1.66	£1.99
47 - DRIVE PULLEY BDE-393741-00.A3 393741-00	-
48 - NUT BDE-330015-04.A13 330015-04	£1.66	£1.99
49 - BELT DRIVE BDE-398029-00.A3 398029-00	£15.01	£18.01
50 - PULLEY BDE-398030-00.A0 398030-00	£19.90	£23.88
51 - NUT BDE-330015-09.A3 330015-09	£1.66	£1.99
52 - SHAFT SA BDE-398096-00.A1 398096-00	-
53 - GEAR BDE-393753-00.A2 393753-00	£1.66	£1.99
54 - GEAR BDE-393755-00.A1 393755-00	£2.21	£2.65
55 - SHAFT SA BDE-N190571 N190571	-
56 - PLATE BDE-393759-00.A1 393759-00	£5.72	£6.87
57 - DRIVE PULLEY BDE-N152124 N152124	£55.30	£66.36
58 - BEARING BALL BDE-330003-63.A0 330003-63	£8.08	£9.70
59 - CIRCLIP BDE-385244-00.A5 385244-00	£1.66	£1.99
60 - YOKE SA BDE-640257-00.A1 640257-00	£55.30	£66.36
61 - SPACER BDE-398068-00.A0 398068-00	£1.66	£1.99
62 - ROLLER BDE-614545-00.A1 614545-00	£23.75	£28.50
63 - SHAFT BDE-398039-00.A0 398039-00	£3.70	£4.44
64 - SHROUD LX BDE-393752-01.A0 393752-01	-
64 - SHROUD GB BDE-393752-01.A1 393752-01	-
65 - NUT BDE-606899-00.A3 606899-00	£1.66	£1.99
66 - BAFFLE BDE-393746-00.A3 393746-00	£3.80	£4.56
67 - FAN BDE-393743-00.A3 393743-00	£16.52	£19.82
69 - SCREW BDE-330045-13.A38 330045-13	£1.66	£1.99
70 - O RING BDE-393749-01.A3 393749-01	£7.40	£8.88
71 - FRAME GB BDE-398027-01.A0 398027-01	£45.88	£55.06
71 - FRAME LX BDE-398027-01.A1 398027-01	£45.88	£55.06
72 - SCREW BDE-613099-00.A3 613099-00	£1.66	£1.99
73 - BAFFLE BDE-398083-00.A1 398083-00	£2.21	£2.65
74 - CLIP BDE-398079-00.A2 398079-00	£1.66	£1.99
75 - NUT BDE-330015-02.A4 330015-02	£1.66	£1.99
76 - KNOB BDE-398070-00.A3 398070-00	-
77 - BELT COVER GB BDE-398071-01.A0 398071-01	£25.05	£30.06
77 - BELT COVER LX BDE-398071-01.A1 398071-01	£25.05	£30.06
80 - RATING PLATE LX BDE-N154274 N154274	£2.71	£3.25
80 - RATING PLATE GB BDE-N154276 N154276	-
81 - POTENTIOMETER SA GB BDE-398107-00.A2 398107-00	£41.24	£49.49
81 - PCB LX BDE-398109-00.A1 398109-00	£23.75	£28.50
82 - CAPACITOR BDE-398111-00.A0 398111-00	£11.87	£14.24
83 - PIN BDE-617084-00.A2 617084-00	£1.66	£1.99
84 - CAP BDE-606902-00.A3 606902-00	£5.88	£7.06
85 - BAFFLE BDE-636658-00.A1 636658-00	£1.78	£2.13
90 - NUT BDE-N131017 N131017	£1.66	£1.99
104 - HOLDER BDE-398082-00.A2 398082-00	-
105 - FRAME BDE-398072-00.A3 398072-00	-
106 - CLIP BDE-617085-00.A1 617085-00	£3.70	£4.44
120 - BEARING BDE-330003-60.A192 330003-60	£2.87	£3.44
125 - BEARING BDE-330003-60.A193 330003-60	£2.87	£3.44
127 - LABEL BDE-398115-00.A3 398115-00	£1.66	£1.99
128 - WARNING LABEL LX BDE-N060667.A0 N060667	£1.66	£1.99
128 - WARNING LABEL GB BDE-N060667.A1 N060667	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A749 870889-02	£8.08	£9.70
836 - S.T.ROLLER REMOVER BDE-559648-99.A0 559648-99	£24.39	£29.27
837 - S.T.ROLLER REMOVER BDE-559649-99.A3 559649-99	£25.70	£30.84
856 - BELT 80 GRIT BDE-340608-01.A2 340608-01	£5.72	£6.87
