Dewalt DW716E Type 2 Mitre Saw Spare Parts

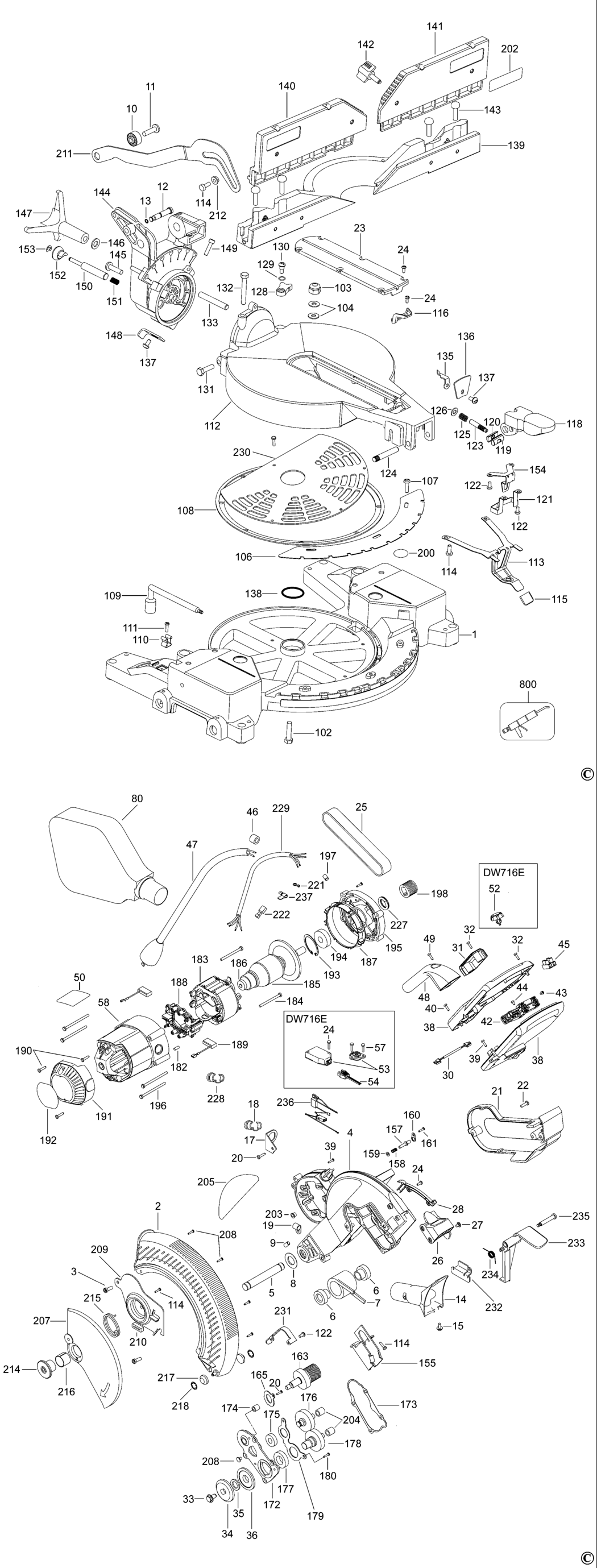

An exploded drawing and spare parts listing for the Dewalt DW716E Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-626389-01.A4 626389-01	£174.63	£209.56
2 - GUARD LOWER BDE-618231-01.A16 618231-01	£24.39	£29.27
3 - SCREW BDE-394589-01.A41 394589-01	£1.66	£1.99
4 - ARM BDE-626402-01.A2 626402-01	-
5 - SHAFT BDE-146751-00.A31 146751-00	£3.30	£3.96
6 - SPACER BDE-146732-00.A16 146732-00	£1.66	£1.99
7 - SPRING TORSION BDE-N039405.A2 N039405	£23.75	£28.50
8 - WASHER BDE-148296-00.A60 148296-00	£1.66	£1.99
9 - SCREW BDE-150075-00.A51 150075-00	£1.66	£1.99
10 - BUSH BDE-385756-01.A9 385756-01	£1.66	£1.99
11 - SCREW BDE-330045-32.A43 330045-32	£1.66	£1.99
12 - LOCKING PIN BDE-387130-00.A49 387130-00	£4.69	£5.63
13 - SEAL BDE-34158-00.A0 34158-00	£1.66	£1.99
14 - DUST DEFLECTOR BDE-391336-00.A6 391336-00	£2.26	£2.71
15 - SCREW BDE-153460-00.A20 153460-00	£1.66	£1.99
17 - BRACKET BDE-394643-00.A2 394643-00	£2.78	£3.34
18 - BUSHING BDE-33821-00.A13 33821-00	£1.66	£1.99
19 - CABLE CLAMP BDE-398443-00.A20 398443-00	£1.66	£1.99
20 - SCREW BDE-330045-49.A66 330045-49	£1.66	£1.99
21 - BELT COVER BDE-623355-00.A1 623355-00	£14.57	£17.48
22 - SCREW BDE-330045-14.A50 330045-14	£1.66	£1.99
23 - PLATE BDE-146726-02.A18 146726-02	£7.85	£9.42
24 - SCREW BDE-330045-05.A69 330045-05	£1.66	£1.99
25 - BELT BDE-153555-00.A14 153555-00	£19.90	£23.88
26 - COVER BDE-N026930.A7 N026930	£3.80	£4.56
27 - SCREW BDE-385915-02.A23 385915-02	£1.66	£1.99
28 - COVER BDE-618269-00.A2 618269-00	£1.66	£1.99
30 - CABLE SA BDE-N467585.A6 N467585	£9.41	£11.29
31 - COVER BDE-618270-00.A12 618270-00	£2.78	£3.34
32 - SCREW BDE-330019-32.A144 330019-32	£1.66	£1.99
33 - BLADE BOLT BDE-869245-00.A80 869245-00	£3.54	£4.25
34 - CLAMP OUTER BDE-604765-00.A35 604765-00	£5.88	£7.06
35 - ADAPTOR BDE-604770-00.A10 604770-00	£3.80	£4.56
36 - WASHER INNER CLAMP BDE-645000-00.A14 645000-00	£14.57	£17.48
38 - HANDLE SA BDE-N502790.A1 N502790	£25.70	£30.84
39 - SCREW BDE-330045-15.A130 330045-15	£1.66	£1.99
40 - SCREW BDE-330045-18.A15 330045-18	£1.66	£1.99
42 - SWITCH BDE-N548978V.A10 N548978V	£19.90	£23.88
43 - SCREW BDE-384127-01.A90 384127-01	£1.66	£1.99
44 - SCREW BDE-330019-12.A55 330019-12	£1.66	£1.99
45 - TERMINAL BLOCK BDE-393520-00.A31 393520-00	£5.88	£7.06
46 - BUSH BDE-388414-01.A14 388414-01	£1.66	£1.99
47 - CORDSET GB BDE-330060-91.A7 330060-91	£51.90	£62.28
47 - CORDSET LX BDE-N045586.A5 N045586	£51.90	£62.28
48 - HANDLE BDE-N083060.A2 N083060	£7.85	£9.42
49 - SCREW BDE-330019-22.A26 330019-22	£1.66	£1.99
50 - RATING PLATE LX BDE-N046309 N046309	£1.66	£1.99
50 - RATING PLATE GB BDE-N046310 N046310	£1.66	£1.99
52 - KNOB BDE-392131-00.A13 392131-00	£1.66	£1.99
53 - CONTROL MODULE SA GB BDE-N033994.A10 N033994	£93.62	£112.35
53 - CONTROL MODULE SA LX BDE-628744-01.A7 628744-01	£76.16	£91.39
54 - LEAD SA BDE-622950-00.A9 622950-00	£34.00	£40.80
57 - SCREW BDE-330019-03.A170 330019-03	£1.66	£1.99
58 - FIELDCASE BDE-391317-00.A37 391317-00	£12.17	£14.60
80 - DUSTBAG BDE-147734-06.A12 147734-06	£16.03	£19.24
102 - SCREW BDE-98025-35.A13 98025-35	£1.66	£1.99
103 - LOCK NUT BDE-N044739.A19 N044739	£1.66	£1.99
104 - WASHER BDE-153792-00.A24 153792-00	£1.66	£1.99
106 - DETENT BDE-391292-01.A12 391292-01	£30.08	£36.10
107 - SCREW BDE-604410-00.A26 604410-00	£1.66	£1.99
108 - PLATE BDE-391353-00.A6 391353-00	£14.57	£17.48
109 - WRENCH SPECIAL BDE-N040940.A8 N040940	£9.41	£11.29
110 - HOLDER BDE-391358-01.A49 391358-01	£1.66	£1.99
111 - SCREW BDE-330045-06.A150 330045-06	£1.66	£1.99
112 - TABLE BDE-636305-00.A1 636305-00	-
113 - SPRING BDE-N173259.A3 N173259	£7.18	£8.62
114 - SCREW.SPECIAL BDE-330045-23.A123 330045-23	£1.66	£1.99
115 - COVER BDE-148611-00.A31 148611-00	£1.66	£1.99
116 - POINTER BDE-398693-00.A15 398693-00	£1.66	£1.99
118 - LEVER LOCK BDE-649430-00.A9 649430-00	£7.18	£8.62
119 - NUT BDE-621321-00.A5 621321-00	£1.66	£1.99
120 - NUT BDE-621322-00.A6 621322-00	£1.82	£2.19
121 - PLATE BDE-630693-00.A3 630693-00	£3.80	£4.56
122 - SCREW BDE-330045-13.A61 330045-13	£1.66	£1.99
123 - ROD BDE-626610-00.A4 626610-00	£4.69	£5.63
124 - PIN BDE-626611-00.A10 626611-00	£4.69	£5.63
125 - SPRING BDE-58698-00.A12 58698-00	£1.66	£1.99
126 - WASHER BDE-330016-03.A3 330016-03	£1.66	£1.99
128 - PAWL BDE-391347-00.A14 391347-00	£1.66	£1.99
129 - WASHER BDE-153655-00.A42 153655-00	£1.66	£1.99
130 - SCREW BDE-153639-00.A14 153639-00	£1.66	£1.99
131 - SCREW BDE-153797-01.A1 153797-01	£1.66	£1.99
132 - SCREW BDE-153797-02.A6 153797-02	£1.66	£1.99
133 - STUD BDE-146760-02.A16 146760-02	£1.66	£1.99
135 - POINTER BDE-391345-00.A6 391345-00	£1.66	£1.99
136 - DUST DEFLECTOR BDE-393570-00.A4 393570-00	£1.66	£1.99
137 - SCREW BDE-330045-55.A93 330045-55	£1.66	£1.99
138 - RING BDE-49787-00.A10 49787-00	£1.66	£1.99
139 - FENCE BDE-626395-01.A2 626395-01	£84.42	£101.30
140 - FENCE LH BDE-626396-04SV.A3 626396-04SV	£84.42	£101.30
141 - FENCE RH BDE-626397-03.A2 626397-03	£44.14	£52.97
142 - KNOB LOWER BDE-147107-02.A42 147107-02	£2.26	£2.71
143 - SCREW BDE-098105-03.A9 098105-03	£3.80	£4.56
144 - TRUNION BDE-5140103-70.A6 5140103-70	£45.14	£54.17
145 - SCREW BDE-330045-33.A21 330045-33	£1.66	£1.99
146 - WASHER BDE-330016-04.A51 330016-04	£1.66	£1.99
147 - HANDLE BDE-391344-00.A2 391344-00	£7.85	£9.42
148 - STOP PLATE BDE-391350-00.A5 391350-00	£1.66	£1.99
149 - SCREW BDE-391346-00.A9 391346-00	£1.66	£1.99
150 - PIN BDE-391348-00.A1 391348-00	£7.18	£8.62
151 - SPRING BDE-167785-00.A9 167785-00	£1.66	£1.99
152 - KNOB BDE-391349-00.A6 391349-00	£1.66	£1.99
153 - RING BDE-060325-01.A1 060325-01	£1.66	£1.99
154 - PLATE BDE-629175-00.A2 629175-00	£2.78	£3.34
155 - GUARD REAR BDE-618190-00.A9 618190-00	£7.18	£8.62
157 - LOCKING PIN BDE-153561-00.A22 153561-00	£1.66	£1.99
158 - SPRING BDE-448176-00.A22 448176-00	£1.66	£1.99
159 - WASHER BDE-153559-00.A11 153559-00	£1.66	£1.99
160 - PLATE BDE-393071-00.A16 393071-00	£1.66	£1.99
161 - SCREW BDE-330045-45.A18 330045-45	£1.66	£1.99
163 - PINION SA BDE-N027131SV.A11 N027131SV	£115.77	£138.92
165 - RETAINING PLATE BDE-618244-00.A12 618244-00	£1.66	£1.99
172 - GEARCASE INCL 174 BDE-653809-01.A11 653809-01	£12.17	£14.60
173 - GASKET BDE-391315-00.A2 391315-00	£2.78	£3.34
174 - BEARING NEEDLE BDE-391616-00.A39 391616-00	£4.69	£5.63
175 - BEARING BDE-605040-20.A117 605040-20	£4.69	£5.63
176 - GEAR SA BDE-NA135793.A8 NA135793	£44.14	£52.97
177 - BEARING BALL BDE-330003-66.A38 330003-66	£14.57	£17.48
178 - SPINDLE & GEAR BDE-N086159.A11 N086159	£25.70	£30.84
179 - BEARING PLATE BDE-391310-00.A2 391310-00	£1.82	£2.19
180 - SCREW BDE-98094-13.A6 98094-13	£1.66	£1.99
182 - PLUG BDE-145312-00.A80 145312-00	£1.66	£1.99
183 - FIELD GB BDE-391318-01SV.A7 391318-01SV	-
183 - FIELD 115V LX BDE-391318-00SV.A10 391318-00SV	-
184 - SCREW BDE-330019-19.A55 330019-19	£1.66	£1.99
185 - ARMATURE SA INCL 186193194198 GB BDE-N093107.A5 N093107	£157.49	£188.99
185 - NO LONGER AVAILABLE INCL 186193194198 LX BDE-000000-00.A63660 000000-00	-
186 - BEARING BDE-330003-60.A9 330003-60	£2.78	£3.34
187 - BAFFLE FAN BDE-391375-00.A32 391375-00	-
188 - BRUSH PLATE BDE-389512-01.A20 389512-01	£16.03	£19.24
189 - BRUSH & LEAD GB BDE-381028-08.A13 381028-08	£7.18	£8.62
189 - BRUSH & LEAD LX BDE-381028-08.A14 381028-08	£7.18	£8.62
190 - SCREW BDE-330019-13.A159 330019-13	£1.66	£1.99
191 - END CAP BDE-391933-00.A52 391933-00	£4.69	£5.63
192 - NO LONGER AVAILABLE BDE-000000-00.A63661 000000-00	-
193 - CIRCLIP BDE-144803-00.A98 144803-00	£1.66	£1.99
194 - BEARING BALL BDE-605040-32.A20 605040-32	£7.92	£9.50
195 - MOUNTING BRACKET BDE-391282-00.A3 391282-00	£16.03	£19.24
196 - SCREW BDE-98094-55.A21 98094-55	£1.66	£1.99
197 - SCREW BDE-394034-00.A39 394034-00	£1.66	£1.99
198 - DRIVE PULLEY BDE-N004510.A5 N004510	£7.85	£9.42
200 - LABEL BDE-394976-00.A28 394976-00	£1.82	£2.19
202 - LABEL BDE-395301-00.A24 395301-00	£1.66	£1.99
203 - INSERT BDE-148608-00.A29 148608-00	£1.66	£1.99
204 - BEARING BDE-386780-00.A3 386780-00	£2.26	£2.71
205 - LABEL BDE-393706-00.A10 393706-00	£1.66	£1.99
207 - GUARD PLATE BDE-N020603.A2 N020603	£12.17	£14.60
208 - SCREW BDE-385915-01.A1 385915-01	£1.66	£1.99
209 - PLATE BDE-N041973.A4 N041973	£10.85	£13.02
210 - BUMPER BDE-146768-00.A11 146768-00	£1.66	£1.99
211 - LINK BDE-391314-00.A10 391314-00	£7.85	£9.42
212 - BUSH BDE-146740-01.A15 146740-01	£3.80	£4.56
214 - FSO KIT BDE-N390418.A25 N390418	£7.85	£9.42
215 - SPRING BDE-661454-00.A35 661454-00	£1.66	£1.99
216 - SLEEVE BDE-148295-00.A20 148295-00	£1.66	£1.99
217 - ROLLER BDE-625825-00.A21 625825-00	£1.66	£1.99
218 - RING BDE-142273-00.A31 142273-00	£1.66	£1.99
221 - TERMINAL BDE-395716-00.A27 395716-00	£1.66	£1.99
222 - TERMINAL BDE-450212-00.A16 450212-00	£2.78	£3.34
227 - RING BDE-153783-00.A16 153783-00	£1.66	£1.99
228 - BUSHING BDE-605155-00.A26 605155-00	£1.66	£1.99
229 - MOTOR CABLE BDE-618276-00.A12 618276-00	£16.03	£19.24
230 - COVER BDE-391355-00.A5 391355-00	£15.63	£18.76
231 - GUARD BDE-623957-00.A10 623957-00	£3.80	£4.56
232 - PLATE BDE-393791-00.A7 393791-00	£1.66	£1.99
233 - LEVER LOCK BDE-391925-00.A5 391925-00	-
234 - SPRING BDE-386196-00.A58 386196-00	£1.66	£1.99
235 - BOLT BDE-152852-00.A22 152852-00	£1.82	£2.19
236 - LEAD SA BDE-618159-00.A3 618159-00	£17.48	£20.97
237 - TERMINAL BDE-145332-00.A25 145332-00	£1.66	£1.99
800 - GREASE BDE-429698-00.A58 429698-00	£84.42	£101.30
800 - GREASE BDE-93488-00.A73 93488-00	£17.48	£20.97
