Dewalt DW716E Type 1 Mitre Saw Spare Parts

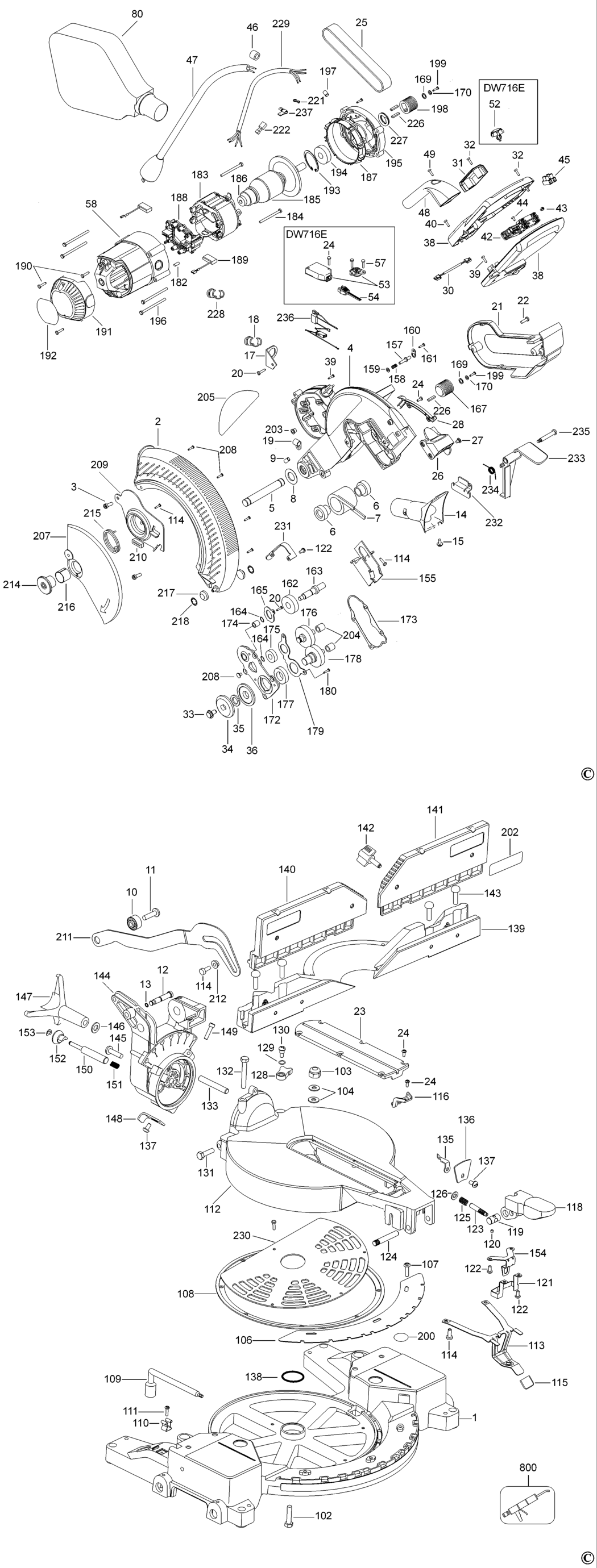

An exploded drawing and spare parts listing for the Dewalt DW716E Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-626389-01.A1 626389-01	£174.63	£209.56
2 - GUARD LOWER BDE-618231-01.A11 618231-01	£24.39	£29.27
3 - SCREW BDE-394589-01.A29 394589-01	£1.50	£1.80
4 - ARM BDE-626402-01.A5 626402-01	-
5 - SHAFT BDE-146751-00.A22 146751-00	£3.30	£3.96
6 - SPACER BDE-146732-00.A31 146732-00	£1.50	£1.80
7 - SPRING TORSION BDE-N039405.A0 N039405	£23.75	£28.50
8 - WASHER BDE-148296-00.A74 148296-00	£1.50	£1.80
9 - SCREW BDE-150075-00.A36 150075-00	£1.50	£1.80
10 - BUSH BDE-385756-01.A12 385756-01	£1.50	£1.80
11 - SCREW BDE-330045-32.A59 330045-32	£1.50	£1.80
12 - LOCKING PIN BDE-387130-00.A27 387130-00	£4.69	£5.63
13 - SEAL BDE-34158-00.A6 34158-00	£1.50	£1.80
14 - DUST DEFLECTOR BDE-391336-00.A3 391336-00	£2.26	£2.71
15 - SCREW BDE-153460-00.A24 153460-00	£1.50	£1.80
17 - BRACKET BDE-394643-00.A6 394643-00	£2.78	£3.34
18 - BUSHING BDE-33821-00.A10 33821-00	£1.50	£1.80
19 - CABLE CLAMP BDE-398443-00.A12 398443-00	£1.50	£1.80
20 - SCREW BDE-330045-49.A48 330045-49	£1.50	£1.80
21 - BELT COVER BDE-623355-00.A4 623355-00	£14.57	£17.48
22 - SCREW BDE-330045-14.A16 330045-14	£1.50	£1.80
23 - PLATE BDE-146726-02.A11 146726-02	£7.85	£9.42
24 - SCREW BDE-330045-05.A30 330045-05	£1.50	£1.80
25 - BELT BDE-153555-00.A12 153555-00	£19.90	£23.88
26 - COVER BDE-N026930.A5 N026930	£3.80	£4.56
27 - SCREW BDE-385915-02.A13 385915-02	£1.50	£1.80
28 - COVER BDE-618269-00.A8 618269-00	£1.42	£1.70
30 - CABLE SA BDE-N467585.A15 N467585	£9.41	£11.29
31 - COVER BDE-618270-00.A6 618270-00	£2.78	£3.34
32 - SCREW BDE-330019-32.A183 330019-32	£1.50	£1.80
33 - BLADE BOLT BDE-869245-00.A52 869245-00	£3.54	£4.25
34 - CLAMP OUTER BDE-604765-00.A44 604765-00	£5.88	£7.06
35 - ADAPTOR BDE-604770-00.A8 604770-00	£3.80	£4.56
36 - WASHER INNER CLAMP BDE-645000-00.A8 645000-00	£14.57	£17.48
38 - HANDLE SA BDE-N502790.A5 N502790	£25.70	£30.84
39 - SCREW BDE-330045-15.A151 330045-15	£1.50	£1.80
40 - SCREW BDE-330045-18.A5 330045-18	£1.50	£1.80
42 - SWITCH BDE-N548978V.A5 N548978V	£19.90	£23.88
43 - SCREW BDE-384127-01.A70 384127-01	£1.50	£1.80
44 - SCREW BDE-330019-12.A43 330019-12	£1.50	£1.80
45 - TERMINAL BLOCK BDE-393520-00.A20 393520-00	£5.88	£7.06
46 - BUSH BDE-388414-01.A0 388414-01	£1.50	£1.80
47 - CORDSET GB BDE-330060-91.A11 330060-91	£51.90	£62.28
47 - CORDSET LX BDE-N045586.A10 N045586	£51.90	£62.28
48 - HANDLE BDE-N083060.A6 N083060	£7.85	£9.42
49 - SCREW BDE-330019-22.A37 330019-22	£1.50	£1.80
52 - KNOB BDE-392131-00.A18 392131-00	£1.50	£1.80
53 - CONTROL MODULE SA STATIC SENSITIVE LX BDE-628744-01.A4 628744-01	£76.16	£91.39
53 - CONTROL MODULE SA STATIC SENSATIVE GB BDE-N033994.A14 N033994	£93.62	£112.35
54 - LEAD SA BDE-622950-00.A5 622950-00	£34.00	£40.80
57 - SCREW BDE-330019-03.A136 330019-03	£1.50	£1.80
58 - FIELDCASE BDE-391317-00.A31 391317-00	£12.17	£14.60
80 - DUSTBAG BDE-147734-06.A26 147734-06	£16.03	£19.24
102 - SCREW BDE-98025-35.A8 98025-35	£1.50	£1.80
103 - LOCK NUT BDE-N044739.A15 N044739	£1.50	£1.80
104 - WASHER BDE-153792-00.A34 153792-00	£1.50	£1.80
106 - DETENT BDE-391292-01.A8 391292-01	£30.08	£36.10
107 - SCREW BDE-604410-00.A16 604410-00	£1.50	£1.80
108 - PLATE BDE-391353-00.A3 391353-00	£14.57	£17.48
109 - WRENCH SPECIAL BDE-608563-01.A4 608563-01	£7.18	£8.62
110 - HOLDER BDE-391358-01.A62 391358-01	£1.50	£1.80
111 - SCREW BDE-330045-06.A182 330045-06	£1.50	£1.80
112 - TABLE BDE-626393-00.A1 626393-00	£119.32	£143.19
113 - SPRING BDE-626608-00.A0 626608-00	£7.18	£8.62
114 - SCREW.SPECIAL BDE-330045-23.A110 330045-23	£1.50	£1.80
115 - COVER BDE-148611-00.A18 148611-00	£1.50	£1.80
116 - POINTER BDE-398693-00.A19 398693-00	£1.50	£1.80
118 - LEVER LOCK BDE-649430-00.A11 649430-00	£7.18	£8.62
119 - PIN BDE-628272-00.A0 628272-00	£1.82	£2.19
120 - SCREW BDE-628804-00.A1 628804-00	£1.50	£1.80
121 - PLATE BDE-630693-00.A4 630693-00	£3.80	£4.56
122 - SCREW BDE-330045-13.A48 330045-13	£1.50	£1.80
123 - ROD BDE-626610-00.A6 626610-00	£4.69	£5.63
124 - PIN BDE-626611-00.A8 626611-00	£4.69	£5.63
125 - SPRING BDE-58698-00.A21 58698-00	£1.50	£1.80
126 - WASHER BDE-330016-03.A25 330016-03	£1.50	£1.80
128 - PAWL BDE-391347-00.A0 391347-00	£1.50	£1.80
129 - WASHER BDE-153655-00.A57 153655-00	£1.50	£1.80
130 - SCREW BDE-153639-00.A30 153639-00	£1.50	£1.80
131 - SCREW BDE-153797-01.A4 153797-01	£1.50	£1.80
132 - SCREW BDE-153797-02.A3 153797-02	£1.50	£1.80
133 - STUD BDE-146760-02.A19 146760-02	£1.50	£1.80
135 - POINTER BDE-391345-00.A0 391345-00	£1.50	£1.80
136 - DUST DEFLECTOR BDE-393570-00.A1 393570-00	£1.50	£1.80
137 - SCREW BDE-330045-55.A67 330045-55	£1.50	£1.80
138 - RING BDE-49787-00.A13 49787-00	£1.50	£1.80
139 - FENCE BDE-626395-01.A5 626395-01	£84.42	£101.30
140 - FENCE LH BDE-626396-04SV.A0 626396-04SV	£84.42	£101.30
141 - FENCE RH BDE-626397-03.A5 626397-03	£44.14	£52.97
142 - KNOB LOWER BDE-147107-02.A47 147107-02	£2.26	£2.71
143 - SCREW BDE-098105-03.A21 098105-03	£3.80	£4.56
144 - TRUNION BDE-5140103-70.A1 5140103-70	£45.14	£54.17
145 - SCREW BDE-330045-33.A32 330045-33	£1.50	£1.80
146 - WASHER BDE-330016-04.A31 330016-04	£1.50	£1.80
147 - HANDLE BDE-391344-00.A8 391344-00	£7.85	£9.42
148 - STOP PLATE BDE-391350-00.A11 391350-00	£1.50	£1.80
149 - SCREW BDE-391346-00.A24 391346-00	£1.50	£1.80
150 - PIN BDE-391348-00.A7 391348-00	£7.18	£8.62
151 - SPRING BDE-167785-00.A14 167785-00	£1.50	£1.80
152 - KNOB BDE-391349-00.A0 391349-00	£1.50	£1.80
153 - RING BDE-060325-01.A6 060325-01	£1.50	£1.80
154 - PLATE BDE-629175-00.A5 629175-00	£2.78	£3.34
155 - GUARD REAR BDE-618190-00.A17 618190-00	£7.18	£8.62
157 - LOCKING PIN BDE-153561-00.A4 153561-00	£1.50	£1.80
158 - SPRING BDE-448176-00.A27 448176-00	£1.50	£1.80
159 - WASHER BDE-153559-00.A2 153559-00	£1.50	£1.80
160 - PLATE BDE-393071-00.A1 393071-00	£1.50	£1.80
161 - SCREW BDE-330045-45.A7 330045-45	£1.50	£1.80
162 - BEARING BDE-605040-33.A12 605040-33	£5.88	£7.06
163 - PULLEY SA BDE-N105443.A5 N105443	£51.90	£62.28
164 - RETAINER BDE-153752-00.A11 153752-00	£1.50	£1.80
165 - RETAINING PLATE BDE-618244-00.A7 618244-00	£1.50	£1.80
167 - PULLEY BDE-153796-00.A4 153796-00	£10.85	£13.02
169 - WASHER BDE-153782-00.A16 153782-00	£1.50	£1.80
170 - WASHER BDE-098198-05.A20 098198-05	£1.50	£1.80
172 - GEARCASE INCL 174 BDE-653809-01.A18 653809-01	£12.17	£14.60
173 - GASKET BDE-391315-00.A17 391315-00	£2.78	£3.34
174 - BEARING NEEDLE BDE-391616-00.A17 391616-00	£4.69	£5.63
175 - BEARING BDE-605040-20.A146 605040-20	£4.69	£5.63
176 - GEAR SA BDE-NA135793.A17 NA135793	£44.14	£52.97
177 - BEARING BALL BDE-330003-66.A21 330003-66	£14.57	£17.48
178 - SPINDLE & GEAR BDE-N086159.A2 N086159	£25.70	£30.84
179 - BEARING PLATE BDE-391310-00.A14 391310-00	£1.82	£2.19
180 - SCREW BDE-98094-13.A15 98094-13	£1.50	£1.80
182 - PLUG BDE-145312-00.A43 145312-00	£1.50	£1.80
183 - FIELD 115V LX BDE-391318-00SV.A0 391318-00SV	-
183 - FIELD GB BDE-391318-01SV.A19 391318-01SV	-
184 - SCREW BDE-330019-19.A37 330019-19	£1.50	£1.80
185 - NO LONGER AVAILABLE LX BDE-000000-00.A28204 000000-00	-
185 - ARMATURE SA GB BDE-N093107.A13 N093107	£157.49	£188.99
186 - BEARING BDE-330003-60.A59 330003-60	£2.78	£3.34
187 - BAFFLE FAN BDE-391375-00.A19 391375-00	-
188 - BRUSH PLATE BDE-389512-01.A9 389512-01	£16.03	£19.24
189 - BRUSH & LEAD GB BDE-381028-08.A33 381028-08	£7.18	£8.62
189 - BRUSH & LEAD LX BDE-381028-08.A34 381028-08	£7.18	£8.62
190 - SCREW BDE-330019-13.A124 330019-13	£1.50	£1.80
191 - END CAP BDE-391933-00.A26 391933-00	£4.69	£5.63
192 - NO LONGER AVAILABLE BDE-000000-00.A28205 000000-00	-
193 - CIRCLIP BDE-144803-00.A62 144803-00	£1.50	£1.80
194 - BEARING BALL BDE-605040-32.A16 605040-32	£7.92	£9.50
195 - MOUNTING BRACKET BDE-391282-00.A14 391282-00	£16.03	£19.24
196 - SCREW BDE-98094-55.A31 98094-55	£1.50	£1.80
197 - SCREW BDE-394034-00.A25 394034-00	£1.50	£1.80
198 - DRIVE PULLEY BDE-153554-00.A2 153554-00	£10.85	£13.02
199 - SCREW BDE-153778-00.A4 153778-00	£1.50	£1.80
200 - LABEL BDE-394976-00.A4 394976-00	£1.82	£2.19
202 - LABEL BDE-395301-00.A1 395301-00	£1.50	£1.80
203 - INSERT BDE-148608-00.A1 148608-00	£1.50	£1.80
204 - BEARING BDE-386780-00.A31 386780-00	£2.26	£2.71
205 - LABEL BDE-393706-00.A1 393706-00	£1.50	£1.80
207 - GUARD PLATE BDE-618194-01.A1 618194-01	£12.17	£14.60
208 - SCREW BDE-385915-01.A17 385915-01	£1.50	£1.80
209 - PLATE BDE-621037-00.A8 621037-00	£7.18	£8.62
210 - BUMPER BDE-146768-00.A8 146768-00	£1.66	£1.99
211 - LINK BDE-391314-00.A6 391314-00	£7.85	£9.42
212 - BUSH BDE-146740-01.A31 146740-01	£3.80	£4.56
214 - RETAINING PLATE BDE-146750-03.A30 146750-03	£2.78	£3.34
215 - SPRING BDE-661454-00.A18 661454-00	£1.58	£1.90
216 - SLEEVE BDE-148295-00.A23 148295-00	£1.66	£1.99
217 - ROLLER BDE-625825-00.A29 625825-00	£1.66	£1.99
218 - RING BDE-142273-00.A42 142273-00	£1.50	£1.80
221 - TERMINAL BDE-395716-00.A12 395716-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A6 450212-00	£2.78	£3.34
226 - KEY BDE-153638-00.A11 153638-00	£1.82	£2.19
227 - RING BDE-153783-00.A4 153783-00	£1.50	£1.80
228 - BUSHING BDE-605155-00.A2 605155-00	£1.66	£1.99
229 - MOTOR CABLE BDE-618276-00.A6 618276-00	£16.03	£19.24
230 - COVER BDE-391355-00.A14 391355-00	£15.63	£18.76
231 - GUARD BDE-623957-00.A6 623957-00	£3.80	£4.56
232 - PLATE BDE-393791-00.A13 393791-00	£1.50	£1.80
233 - LEVER LOCK BDE-391925-00.A4 391925-00	-
234 - SPRING BDE-386196-00.A27 386196-00	£1.66	£1.99
235 - BOLT BDE-152852-00.A31 152852-00	£1.82	£2.19
236 - LEAD SA BDE-618159-00.A7 618159-00	£17.48	£20.97
237 - TERMINAL BDE-145332-00.A33 145332-00	£1.50	£1.80
800 - GREASE BDE-429698-00.A3 429698-00	£84.42	£101.30
800 - GREASE BDE-93488-00.A47 93488-00	£17.48	£20.97
