Metabo Base CARRIER SYSTEM UK220/PK200 / 0910018450 11 / - Spare Parts

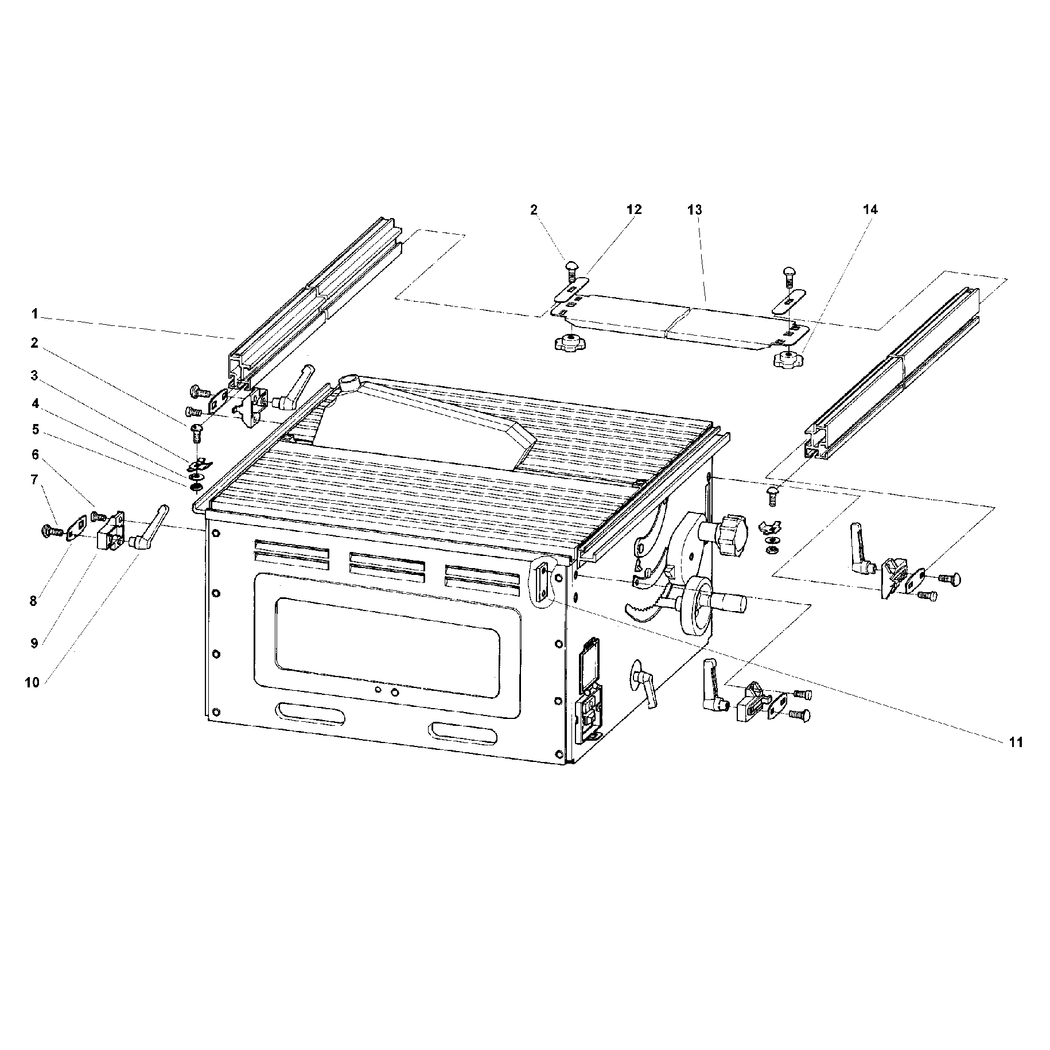

An exploded diagram and spare parts listing for the Metabo Base CARRIER SYSTEM UK220/PK200 / 0910018450 11 / -

	Ex VAT	Inc VAT
1 - CROSSMEMBER EXTRUSION 1180 MM MET-1383222385.A4 1383222385	-
3 - POSITIONING PLATE BL 2 99X33 MET-1482222486.A4 1482222486	£3.20	£3.84
4 - WASHER MET-141150130.A3 141150130	£1.50	£1.80
5 - FLANGE NUT MET-6209114230.A123 6209114230	£1.50	£1.80
6 - CAP SCREW MET-6121023081.A10 6121023081	£1.50	£1.80
7 - TRUSS HEAD SCREW MET-6110031325.A16 6110031325	£1.50	£1.80
8 - CLAMPING PLATE BL 2 99X18 MET-1382222217.A1 1382222217	£3.20	£3.84
9 - BRACKET MET-1380222201.A1 1380222201	£8.37	£10.04
10 - CLAMPING LEVER MET-7006072385.A18 7006072385	£8.37	£10.04
11 - FASTENING STRAP FL 16X5X48 /2XM6 MET-1482222788.A1 1482222788	£5.62	£6.75
12 - GUIDE PLATE FLIPSTOP MET-1392201587.A33 1392201587	£1.50	£1.80
13 - CONNECTING STRUT BL 2X95X626 MET-1382222772.A1 1382222772	-
14 - STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT MET-7000025458.A0 7000025458	£3.20	£3.84

Attribute Name	Value
Brand	Metabo
