Metabo Base CARRIER SYSTEM UK220/PK200 / 0910018450 10 / - Spare Parts

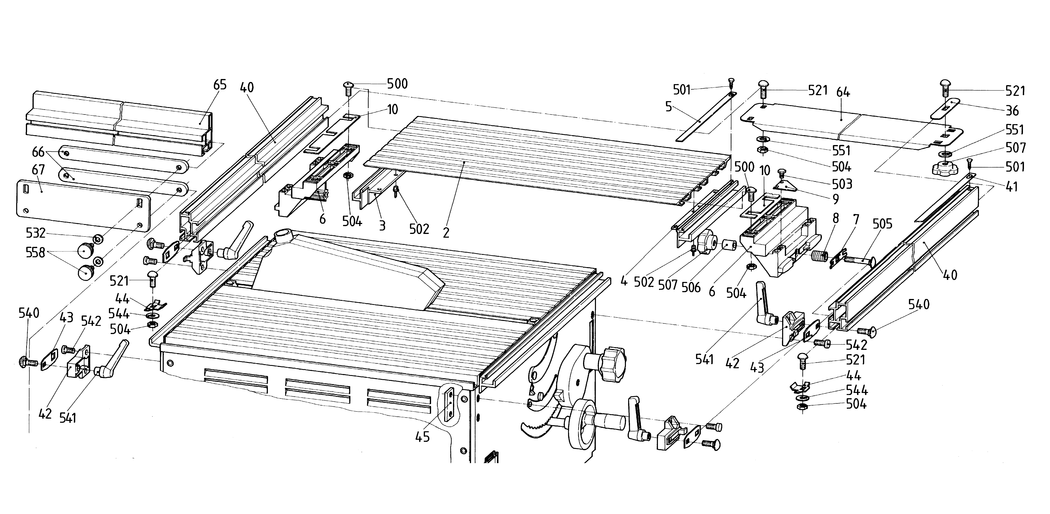

An exploded diagram and spare parts listing for the Metabo Base CARRIER SYSTEM UK220/PK200 / 0910018450 10 / -

	Ex VAT	Inc VAT
36 - GUIDE PLATE FLIPSTOP MET-1392201587.A29 1392201587	£1.50	£1.80
40 - CROSSMEMBER EXTRUSION 1180 MM MET-1383222385.A3 1383222385	-
41 - SCALE 0 165X13X603 32 MET-1142222376.A1 1142222376	£30.06	£36.07
42 - BRACKET MET-1380222201.A0 1380222201	£8.37	£10.04
43 - CLAMPING PLATE BL 2 99X18 MET-1382222217.A3 1382222217	£3.20	£3.84
44 - POSITIONING PLATE BL 2 99X33 MET-1482222486.A6 1482222486	£3.20	£3.84
45 - FASTENING STRAP FL 16X5X48 /2XM6 MET-1482222788.A3 1482222788	£5.62	£6.75
501 - FILLISTER HEAD SCREW MET-6172091014.A79 6172091014	£1.50	£1.80
504 - FLANGE NUT MET-6209114230.A122 6209114230	£1.50	£1.80
521 - CUP SQUARE NECK SCREW MET-6110000594.A6 6110000594	£1.50	£1.80
540 - TRUSS HEAD SCREW MET-6110031325.A17 6110031325	£1.50	£1.80
541 - CLAMPING LEVER MET-7006072385.A16 7006072385	£8.37	£10.04
542 - CAP SCREW MET-6121023081.A9 6121023081	£1.50	£1.80
544 - WASHER MET-141150130.A4 141150130	£1.50	£1.80
