Bostitch TU-216-80-E Type REV 0 Stapler Spare Parts

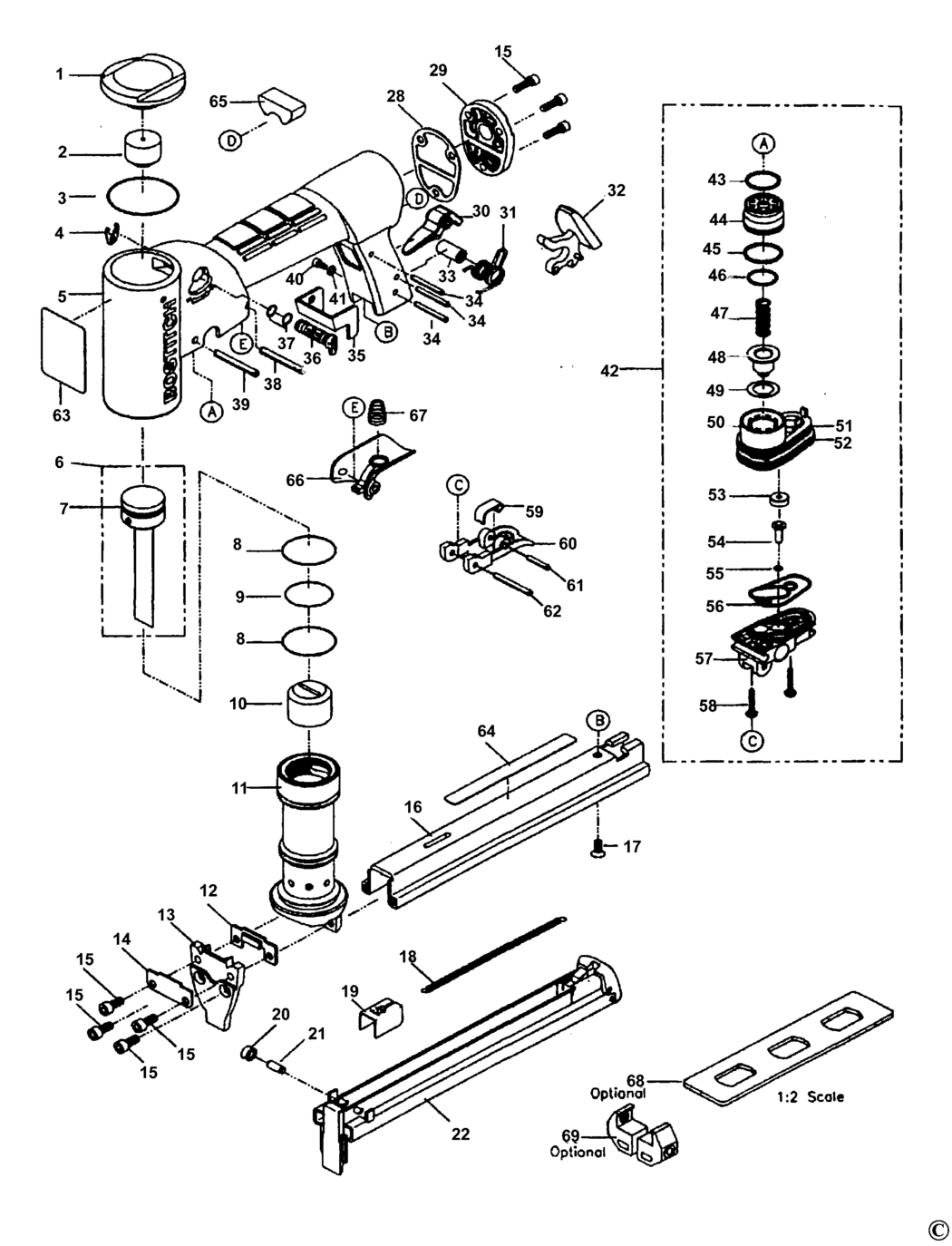

An exploded drawing and spare parts listing for the Bostitch TU-216-80-E Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - KIT BDE-P2140001200-MP.A10 P2140001200-MP	£3.80	£4.56
2 - BUMPER BDE-174289.A22 174289	£1.50	£1.80
3 - O RING BDE-100353.A8 100353	£1.50	£1.80
4 - RETAINER BDE-174290.A2 174290	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A97315 000000-00	-
6 - DRIVER SA BDE-177715.A2 177715	£12.17	£14.60
7 - O RING BDE-1FP0018.A8 1FP0018	£1.50	£1.80
8 - O RING BDE-174309.A10 174309	£1.50	£1.80
9 - O RING BDE-174310.A23 174310	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A97316 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A97317 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A97318 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A97319 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A97320 000000-00	-
15 - BOLT BDE-174306.A28 174306	£1.50	£1.80
16 - NO LONGER AVAILABLE BDE-000000-00.A97321 000000-00	-
17 - SCREW BDE-174307.A3 174307	£1.50	£1.80
18 - SPRING BDE-174291.A15 174291	£1.50	£1.80
19 - PUSHER BDE-177723.A4 177723	£1.50	£1.80
20 - ROLLER BDE-174293.A19 174293	£1.50	£1.80
21 - PIN BDE-177740.A12 177740	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A97322 000000-00	-
28 - GASKET BDE-174295.A25 174295	£1.50	£1.80
29 - END CAP BDE-174296.A6 174296	£3.30	£3.96
30 - LATCH BDE-174297.A22 174297	£1.50	£1.80
31 - SPRING TORSION BDE-174301.A2 174301	£1.50	£1.80
32 - LATCH BDE-P2140001966 P2140001966	-
33 - SPRING BDE-174302.A24 174302	£1.50	£1.80
34 - PIN BDE-174303.A3 174303	£1.50	£1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A97323 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A97324 000000-00	-
37 - O RING BDE-174311.A7 174311	£1.50	£1.80
38 - PIN BDE-174304.A24 174304	£1.50	£1.80
40 - SCREW BDE-MSC4070-10.A5 MSC4070-10	£1.50	£1.80
41 - WASHER SPRING BDE-1D104.A5 1D104	£1.50	£1.80
42 - VALVE BDE-TVA13.A5 TVA13	£14.57	£17.48
43 - O RING BDE-S06A001600.A9 S06A001600	-
44 - VALVE BDE-174278.A13 174278	£5.88	£7.06
45 - O RING BDE-174312.A24 174312	£1.50	£1.80
46 - O RING BDE-102163.A24 102163	£12.17	£14.60
47 - SPRING COMPRESSION BDE-174280.A16 174280	£1.50	£1.80
48 - SEAL BDE-174279.A14 174279	£1.50	£1.80
49 - WASHER BDE-174281.A15 174281	£7.85	£9.42
50 - HOUSING BDE-174277.A13 174277	£3.80	£4.56
51 - O RING BDE-108467.A5 108467	£7.85	£9.42
52 - O RING BDE-100817.A31 100817	£1.50	£1.80
53 - SEAL BDE-174282.A11 174282	£1.50	£1.80
54 - SHAFT BDE-174283.A13 174283	£1.50	£1.80
55 - O RING BDE-174313.A8 174313	£1.50	£1.80
56 - SEAL BDE-174284.A14 174284	£1.50	£1.80
57 - HOUSING BDE-174276.A11 174276	£1.50	£1.80
58 - SCREW BDE-174285.A13 174285	£1.50	£1.80
59 - TRIGGER BDE-174269.A34 174269	£2.26	£2.71
60 - TRIGGER BDE-174269.A35 174269	£2.26	£2.71
61 - TRIGGER BDE-174269.A36 174269	£2.26	£2.71
62 - PIN BDE-S0803020000.A3 S0803020000	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A97325 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A97326 000000-00	-
65 - MUFFLER BDE-174266.A13 174266	£1.82	£2.19
66 - WRENCH SPECIAL BDE-174322.A6 174322	£7.85	£9.42
67 - GAUGE BDE-174267.A14 174267	£5.88	£7.06
68 - GAUGE BDE-174267.A15 174267	£5.88	£7.06

Attribute Name	Value
Brand	Bostitch
