Bostitch TU-216-71-E Type REV 0 Stapler Spare Parts

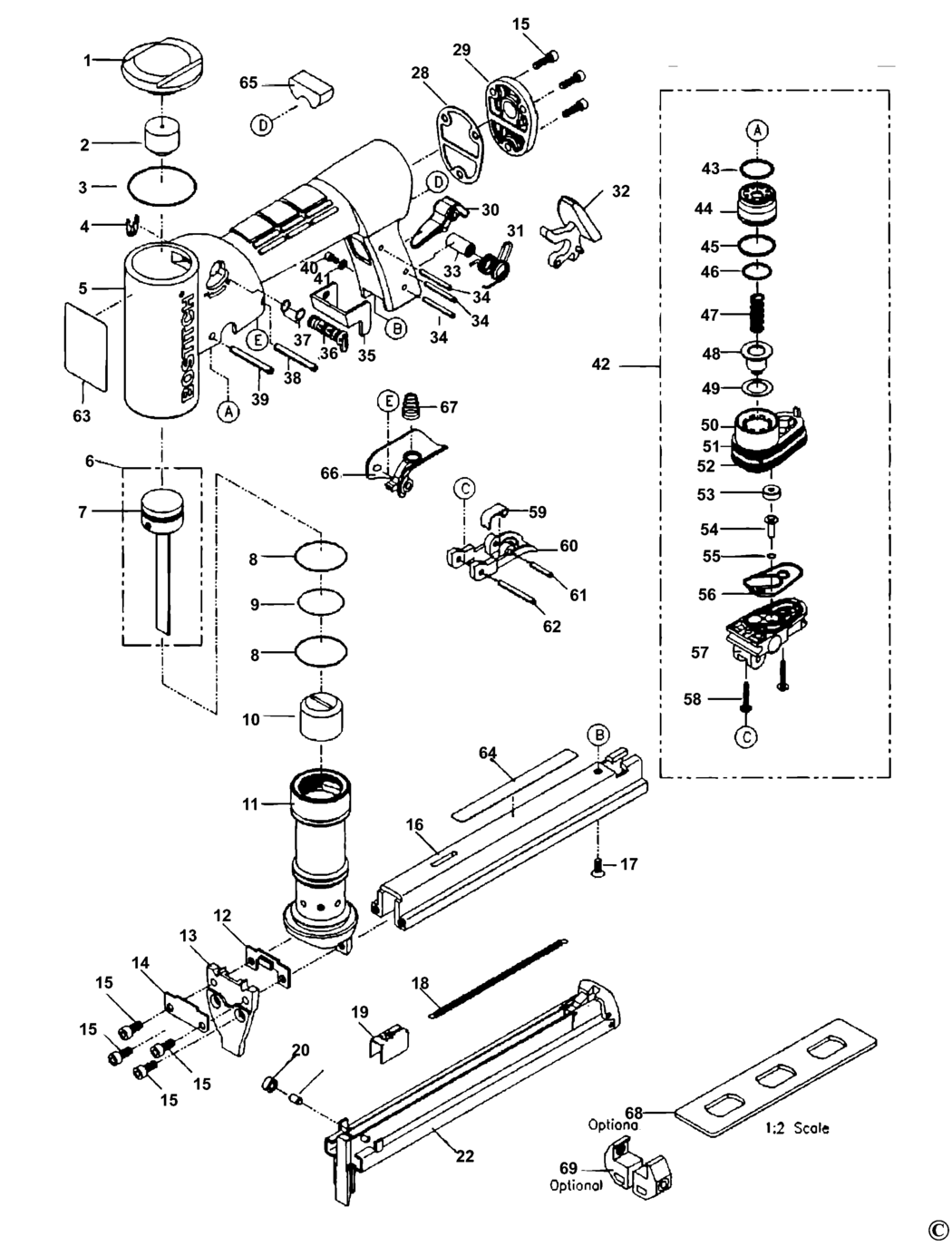

An exploded drawing and spare parts listing for the Bostitch TU-216-71-E Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A97287 000000-00	-
2 - BUMPER BDE-174289.A18 174289	£1.50	£1.80
3 - O RING BDE-100353.A10 100353	£1.50	£1.80
4 - RETAINER BDE-174290.A6 174290	£1.50	£1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A97288 000000-00	-
7 - O RING BDE-1FP0018.A4 1FP0018	£1.50	£1.80
8 - O RING BDE-174309.A8 174309	£1.50	£1.80
9 - O RING BDE-174310.A25 174310	£1.50	£1.80
10 - KIT BDE-P2140001200-MP.A13 P2140001200-MP	£3.80	£4.56
11 - NO LONGER AVAILABLE BDE-000000-00.A97289 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A97290 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A97291 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A97292 000000-00	-
15 - BOLT BDE-174306.A26 174306	£1.50	£1.80
16 - NO LONGER AVAILABLE BDE-000000-00.A97293 000000-00	-
17 - SCREW BDE-174307.A5 174307	£1.50	£1.80
18 - SPRING BDE-174291.A12 174291	£1.50	£1.80
19 - PUSHER BDE-174292.A1 174292	£1.50	£1.80
20 - ROLLER BDE-174293.A17 174293	£1.50	£1.80
21 - PIN BDE-174294.A1 174294	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A97294 000000-00	-
28 - GASKET BDE-174295.A23 174295	£1.50	£1.80
29 - END CAP BDE-174296.A8 174296	£3.30	£3.96
30 - LATCH BDE-174297.A20 174297	£1.50	£1.80
31 - SPRING TORSION BDE-174301.A3 174301	£1.50	£1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A97298 000000-00	-
33 - SPRING BDE-174302.A23 174302	£1.50	£1.80
34 - PIN BDE-174303.A4 174303	£1.50	£1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A97295 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A97296 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A97297 000000-00	-
38 - PIN BDE-174304.A23 174304	£1.50	£1.80
39 - PIN BDE-174305.A5 174305	£1.50	£1.80
40 - SCREW BDE-MSC4070-10.A3 MSC4070-10	£1.50	£1.80
41 - WASHER SPRING BDE-1D104.A8 1D104	£1.50	£1.80
42 - VALVE BDE-TVA13.A7 TVA13	£14.57	£17.48
43 - O RING BDE-S06A001600.A11 S06A001600	-
44 - VALVE BDE-174278.A11 174278	£5.88	£7.06
45 - O RING BDE-174312.A26 174312	£1.50	£1.80
46 - O RING BDE-102163.A26 102163	£12.17	£14.60
47 - SPRING COMPRESSION BDE-174280.A14 174280	£1.50	£1.80
49 - WASHER BDE-174281.A17 174281	£7.85	£9.42
50 - HOUSING BDE-174277.A15 174277	£3.80	£4.56
51 - O RING BDE-108467.A2 108467	£7.85	£9.42
52 - O RING BDE-100817.A28 100817	£1.50	£1.80
53 - SEAL BDE-174282.A9 174282	£1.50	£1.80
54 - SHAFT BDE-174283.A17 174283	£1.50	£1.80
55 - O RING BDE-174313.A5 174313	£1.50	£1.80
56 - SEAL BDE-174284.A10 174284	£1.50	£1.80
57 - HOUSING BDE-174276.A10 174276	£1.50	£1.80
58 - SCREW BDE-174285.A15 174285	£1.50	£1.80
59 - TRIGGER BDE-174269.A43 174269	£2.26	£2.71
60 - TRIGGER BDE-174269.A44 174269	£2.26	£2.71
61 - TRIGGER BDE-174269.A45 174269	£2.26	£2.71
62 - PIN BDE-S0803020000.A1 S0803020000	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A97299 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A97300 000000-00	-
65 - MUFFLER BDE-174266.A15 174266	£1.82	£2.19
66 - WRENCH SPECIAL BDE-174322.A8 174322	£7.85	£9.42
67 - GAUGE BDE-174267.A13 174267	£5.88	£7.06
68 - CAP BDE-174323.A15 174323	£10.85	£13.02
70 - TRIGGER BDE-174269.A37 174269	£2.26	£2.71
71 - NO LONGER AVAILABLE BDE-000000-00.A97301 000000-00	-
