Makita DTD129RMJ Cordless Impact Driver Spare Parts

Home Details Reviews Delivery

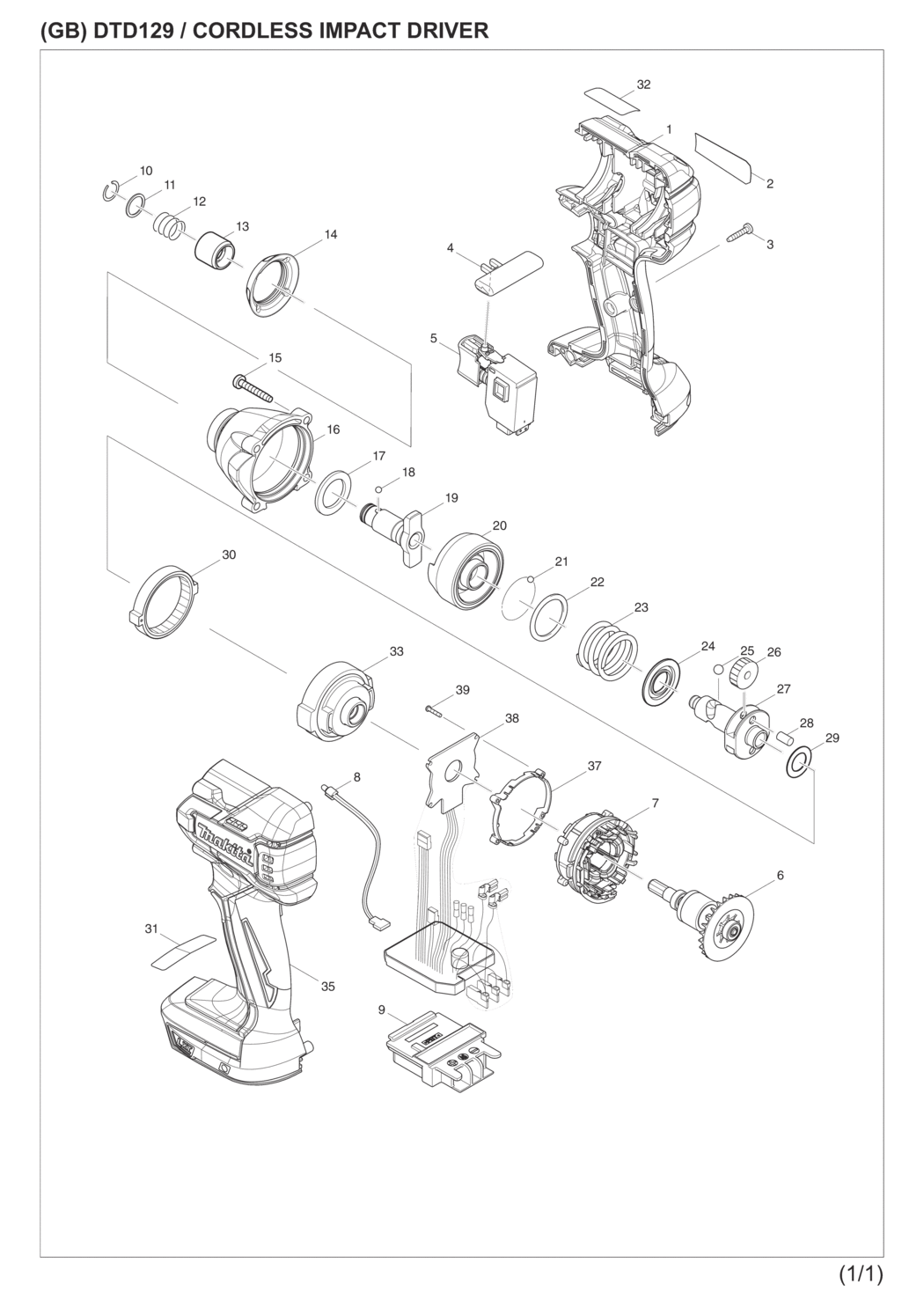

An exploded drawing and spare parts listing for the Makita DTD129RMJ Cordless Impact Driver

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A518 263005-3	£1.66	£1.99
1-1 - HOUSING SET BTD129 MSP-187455-7.A12 187455-7	£14.96	£17.95
1 - HOUSING SET BTD129 MSP-187455-7.A13 187455-7	£14.96	£17.95
1-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A519 263005-3	£1.66	£1.99
2 - NAME PLATE DTD129 MSP-815A11-6.A3 815A11-6	£1.66	£1.99
3 - TAPPING SCREW 3X16 TD126/DUM MSP-266429-2.A5 266429-2	£1.66	£1.99
4 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A13 419041-9	£1.66	£1.99
5 - SWITCH C3JW-2B BDF4569/BTD129 MSP-650689-0.A2 650689-0	£16.17	£19.40
6 - ROTOR BTD129 MSP-619303-7.A2 619303-7	£16.17	£19.40
7 - STATOR BTD129 MSP-629959-8.A0 629959-8	£11.05	£13.26
8 - LED CIRCUIT BDF459/BTD129/BHP MSP-620163-2.A13 620163-2	£10.14	£12.17
9 - TERMINAL DHP480/DDF480/DFL650 MSP-643860-3.A46 643860-3	£4.55	£5.46
10 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A11 231951-8	£1.66	£1.99
11 - NARROW WASHER 12 TD126/DTD154 MSP-267085-1.A26 267085-1	£1.66	£1.99
12 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A101 233005-7	£1.66	£1.99
13 - SLEEVE 6916FD-6980FD/TD126 MSP-324420-7.A5 324420-7	£2.49	£2.99
14 - BUMPER BTD129 MSP-424513-1.A2 424513-1	£1.66	£1.99
15 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A75 266374-1	£1.66	£1.99
16 - HAMMER CASE BTD129 MSP-141633-3.A0 141633-3	£9.49	£11.39
17 - NYLON WASHER 19 BTD134/TD126 MSP-261151-6.A19 261151-6	£1.66	£1.99
18-1 - STEEL BALL 3.5 TD126 MSP-216040-0.A1 216040-0	£1.66	£1.99
18 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A87 216001-0	£1.66	£1.99
19 - ANVIL M BTD129Z/TD126 MSP-326188-1.A4 326188-1	£7.54	£9.05
20 - HAMMER MT690/691D/TD126 MSP-326110-8.A1 326110-8	£9.75	£11.70
21 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A88 216001-0	£1.66	£1.99
21-1 - STEEL BALL 3.5 TD126 MSP-216040-0.A0 216040-0	£1.66	£1.99
22 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A10 267175-0	£1.66	£1.99
23 - COMPRESSION SPRING 24 BTD134/ MSP-233430-2.A4 233430-2	£2.49	£2.99
24 - CUP WASHER 14 BTP130/TD126 MSP-267766-7.A21 267766-7	£1.66	£1.99
25 - STEEL BALL 5.6/DTW285 MSP-216041-8.A56 216041-8	£1.66	£1.99
25-1 - STEEL BALL 5.6 TD126/DTD154 MSP-216041-8.A18 216041-8	£1.66	£1.99
26-1 - SPUR GEAR 22 BTD134/136/132/1 MSP-227362-3.A16 227362-3	£2.49	£2.99
27 - SPINDLE MT690/691D/TD126 MSP-326109-3.A6 326109-3	£11.96	£14.35
28 - PIN 5 BTD134LF10/TD126 MSP-256253-1.A17 256253-1	£1.66	£1.99
29 - FLAT WASHER 12 TD126/6916-691 MSP-267212-0.A19 267212-0	£1.66	£1.99
30 - INTERNAL GEAR 51 MT690/TD126 MSP-227279-0.A0 227279-0	£1.66	£1.99
33 - INTERNAL GEAR CASE BTD12 MSP-141693-5.A4 141693-5	£3.25	£3.90
35-1 - HOUSING SET BTD129 MSP-187455-7.A10 187455-7	£14.96	£17.95
35 - HOUSING SET BTD129 MSP-187455-7.A15 187455-7	£14.96	£17.95
35-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A886 263005-3	£1.66	£1.99
35 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A963 263005-3	£1.66	£1.99
37 - SUPPORT DHP480/DDF480 MSP-687464-1.A11 687464-1	£1.66	£1.99
38 - CONTROLLER BTD129 MSP-620161-6.A2 620161-6	£88.12	£105.75
39 - PAN HD TAPPIMG SCREW 2X10 MSP-266786-8.A3 266786-8	£1.66	£1.99
A01 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A54 251314-2	£1.66	£1.99
A02 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A59 346317-0	£1.93	£2.32
A03 - DC18RC COMPACT CHARGER MSP-*DC18RC.A145 *DC18RC	-
A04-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A67 197265-4	£173.82	£208.58
A05 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A112 450128-8	£1.20	£1.44
A06 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A120 453974-8	£2.49	£2.99
A06 - STACKING CASE TYPE 2 157MM MSP-821550-0.A18 821550-0	£33.99	£40.79
A07 - MAKPAC TRAY TYPE 2 BTD/BTP/DTW MSP-837670-0.A5 837670-0	£7.34	£8.81
A08 - LABEL/PLASTIC CASE DTD129 MSP-802K23-8 802K23-8	£2.49	£2.99
A09 - LABEL/INDICATION DTD129 MSP-802K35-1 802K35-1	£2.49	£2.99

Attribute Name	Value
Brand	Makita
