Festool KA-KS 120 / 494335 Spare Parts

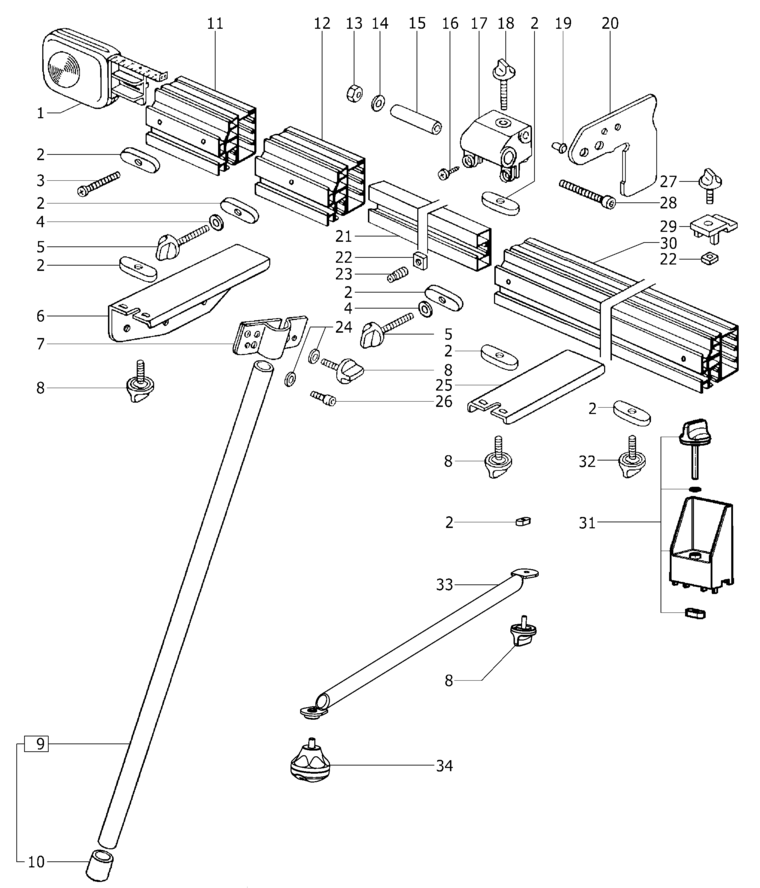

An exploded diagram and spare parts listing for the Festool KA-KS 120 / 494335

	Ex VAT	Inc VAT
1 - TAPE MEASURE FSP-494329.A1 494329	£63.96	£76.75
2 - FEATHER KEY FSP-451630.A4 451630	£4.23	£5.08
3 - RAISED-HEAD SCREW M6 X 40 FSP-400523.A3 400523	£2.00	£2.40
4 - WASHER FSP-402935.A32 402935	£2.00	£2.40
5 - ROTARY KNOB M6 FSP-453067.A2 453067	£3.20	£3.84
6 - SHEET METAL FSP-437672.A2 437672	£37.42	£44.90
7 - PIPE CLAMP FSP-439771.A5 439771	£9.91	£11.89
8 - ROTARY KNOB FSP-482110.A2 482110	£2.32	£2.78
9 - SUPPORTING TUBE FSP-494323.A1 494323	£26.38	£31.66
10 - RUBBER FOOT FSP-437674.A4 437674	£2.00	£2.40
11 - STOP PROFILE FSP-453064.A2 453064	£31.50	£37.80
12 - NO LONGER AVAILABLE FSP-00000.A3894 00000	-
13 - HEXAGON NUT M6 FSP-228541.A51 228541	£2.00	£2.40
14 - WASHER 6.4 MM FSP-200578.A98 200578	£2.00	£2.40
15 - AXLE FSP-451132.A2 451132	£7.23	£8.68
16 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A212 219031	£2.00	£2.40
17 - ADJUSTABLE STOP FSP-451130.A3 451130	£3.80	£4.56
18 - ROTARY KNOB M6 FSP-451659.A6 451659	£2.00	£2.40
19 - PRESSURE CLAMPING ELEMENT FSP-400287.A20 400287	£4.89	£5.87
20 - STOP FSP-451133.A3 451133	£8.68	£10.42
21 - PIPE FSP-453020.A2 453020	£48.12	£57.74
22 - SQUARE NUT M6 FSP-228566.A30 228566	£2.00	£2.40
23 - THREADED PIN M6 X 10 FSP-772405.A15 772405	£2.00	£2.40
24 - WASHER 6.4 MM FSP-228546.A109 228546	£2.00	£2.40
25 - SHEET METAL FSP-437671.A3 437671	£17.97	£21.56
26 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A56 200684	£2.00	£2.40
27 - ROTARY KNOB M6 FSP-438320.A5 438320	£10.02	£12.03
28 - CHEESE HEAD SCREW M6 X 55 FSP-400501.A4 400501	£2.00	£2.40
29 - MEASURING TAPE CLAMP FSP-451128.A1 451128	£2.00	£2.40
30 - STOP PROFILE FSP-453065.A2 453065	£91.08	£109.30
31 - STOP ANGLE FSP-494322.A2 494322	£22.55	£27.06
32 - ROTARY KNOB M6 FSP-474205.A0 474205	£3.38	£4.05
33 - STRUT FSP-495535.A0 495535	£32.06	£38.47
34 - GRIP FSP-488045.A0 488045	£7.76	£9.31
