Fein ASte 638 (50Hz 110V) / 72341524110 Spare Parts

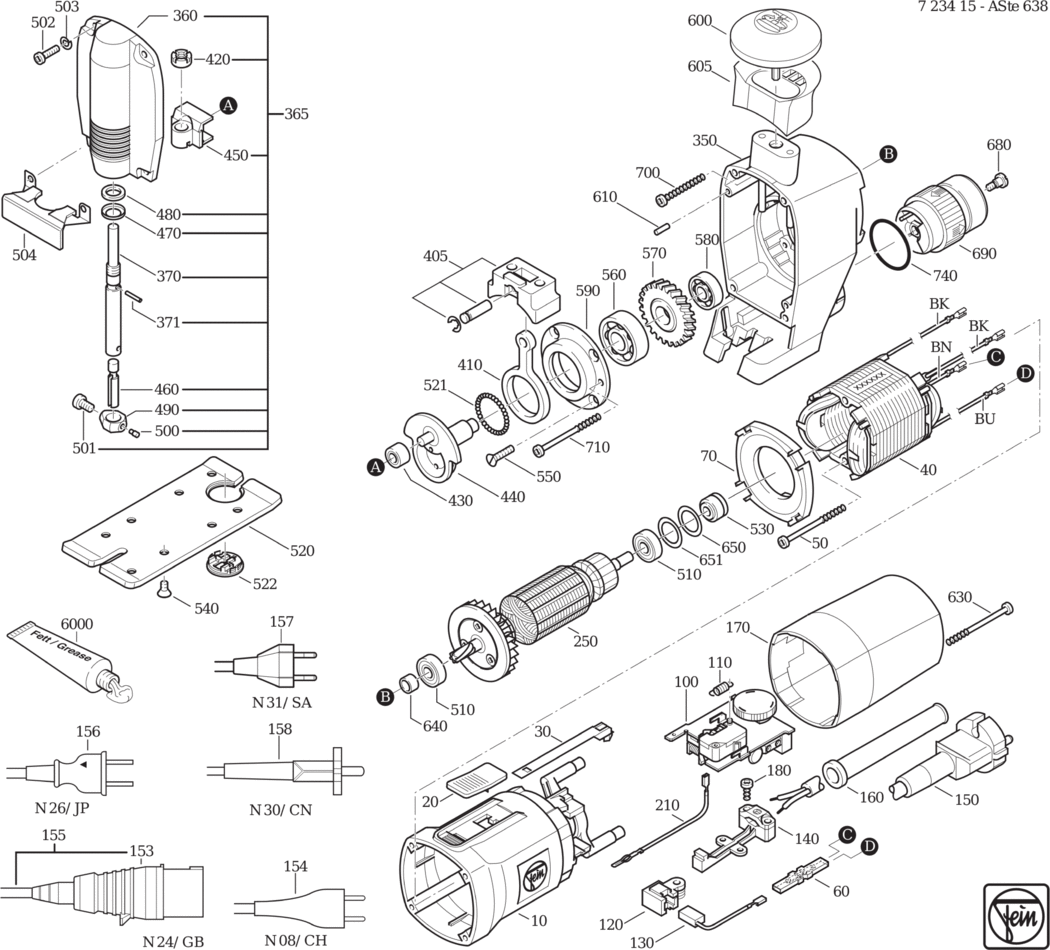

An exploded diagram and spare parts listing for the Fein ASte 638 (50Hz 110V) / 72341524110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901093000.A2 31901093000	£37.91	£45.49
20 - SLIDE SWITCH FEI-32805128003.A1 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816049000.A9 32816049000	£5.60	£6.72
40 - STATOR 100-120V 50/60HZ FEI-51271009110.A1 51271009110	-
50 - SCREW FEI-43070004001.A59 43070004001	£1.60	£1.92
60 - CONNECTOR FEI-30717224000.A1 30717224000	-
70 - AIR GUIDE RING FEI-31428075007.A25 31428075007	£4.18	£5.01
100 - SPEED SETTING SWITCH FEI-30762241026.A0 30762241026	-
110 - SPIRAL SPRING FEI-30902040004.A7 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A17 30712086011	£8.42	£10.11
130 - CARBON BRUSH (SOLD SINGLY) FEI-30711128005.A4 30711128005	£12.18	£14.62
140 - CABLE CLAMPING PIECE FEI-32431036008.A24 32431036008	£3.75	£4.50
153 - PLUG CEE 16A/110V FEI-30728288004.A22 30728288004	£14.25	£17.10
155 - CABLE WITH PLUG FEI-30707409018.A1 30707409018	-
160 - CABLE GROMMET FEI-31413007007.A1 31413007007	£1.60	£1.92
170 - COVER FEI-31201072014.A3 31201072014	£13.28	£15.94
180 - SCREW FEI-43070001006.A107 43070001006	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340024.A2 30719340024	£3.04	£3.65
250 - ARMATURE FEI-53268002117.A1 53268002117	-
350 - GEARBOX HOUSING FEI-31209029002.A1 31209029002	£154.02	£184.83
360 - COVER FEI-32429104006.A7 32429104006	£89.38	£107.25
365 - COVER FEI-32429104015.A2 32429104015	£302.89	£363.47
370 - PLUNGER FEI-30109054008.A0 30109054008	£107.02	£128.42
371 - CLAMPING SLEEVE FEI-40238007005.A37 40238007005	£1.60	£1.92
405 - N.A. FEI-32714091000.A7 32714091000	-
410 - CON ROD FEI-32714042000.A2 32714042000	£80.49	£96.59
420 - NUT FEI-42007047005.A7 42007047005	£8.38	£10.05
430 - NEEDLE BEARING FEI-41706017004.A9 41706017004	-
440 - ECCENTRIC SHAFT FEI-33405017007.A7 33405017007	£133.23	£159.88
450 - LINK FEI-32714041007.A7 32714041007	£94.54	£113.45
460 - BOLT FEI-30217181009.A0 30217181009	£21.52	£25.82
470 - CAP FEI-32435041008.A6 32435041008	£1.60	£1.92
480 - FELT RING FEI-30601057007.A1 30601057007	£1.60	£1.92
490 - CLAMPING RING FEI-32607038001.A9 32607038001	£35.88	£43.06
500 - SET SCREW FEI-43019055990.A8 43019055990	£1.60	£1.92
501 - CYLINDER HEAD SCREW FEI-43033008058.A1 43033008058	£1.60	£1.92
502 - FILLISTER HEAD SCREW FEI-43041030049.A9 43041030049	-
503 - SPRING WASHER FEI-42445001044.A28 42445001044	£1.60	£1.92
504 - CHIPPING PROTECTOR FEI-32714088007.A2 32714088007	£9.43	£11.32
510 - GROOVED BALL BEARING FEI-41701001260.A99 41701001260	£7.11	£8.53
520 - PLATE FEI-32714089001.A2 32714089001	£46.42	£55.70
521 - BALL FEI-41708013003.A13 41708013003	-
522 - PLATE FEI-31428102007.A1 31428102007	£3.95	£4.74
530 - BUSH FEI-31428076019.A1 31428076019	£26.78	£32.14
540 - COUNTERSUNK SCREW FEI-43069001045.A11 43069001045	£1.60	£1.92
550 - COUNTERSUNK SCREW FEI-43069004040.A0 43069004040	-
560 - GROOVED BALL BEARING FEI-41701213011.A2 41701213011	£8.92	£10.70
570 - GEAR-WHEEL FEI-33657031001.A9 33657031001	£50.53	£60.64
580 - GROOVED BALL BEARING FEI-41701004015.A14 41701004015	£6.83	£8.20
590 - BEARING PLATE FEI-32419109006.A7 32419109006	£40.98	£49.17
600 - HANDLE FEI-32119091003.A3 32119091003	£15.95	£19.14
605 - RECESSED HANDLE FEI-31428113000.A2 31428113000	£5.10	£6.12
610 - STRAIGHT PIN FEI-40201024000.A8 40201024000	-
630 - SCREW FEI-43070004001.A53 43070004001	£1.60	£1.92
640 - SEALING RING FEI-32612052002.A2 32612052002	£5.35	£6.42
650 - DISC FEI-32624034022.A17 32624034022	£1.60	£1.92
651 - DISC FEI-32624034038.A24 32624034038	£1.60	£1.92
680 - FLAT HEADED SCREW FEI-43013043044.A4 43013043044	-
690 - SLIDER FEI-31428090007.A8 31428090007	£7.17	£8.60
700 - SCREW FEI-43070005005.A6 43070005005	-
710 - SCREW FEI-43070012008.A5 43070012008	£1.60	£1.92
740 - SEALING RING FEI-40612143008.A5 40612143008	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A263 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A151 34130054061	-
