Makita HR5000K Rotary Hammer Spare Parts

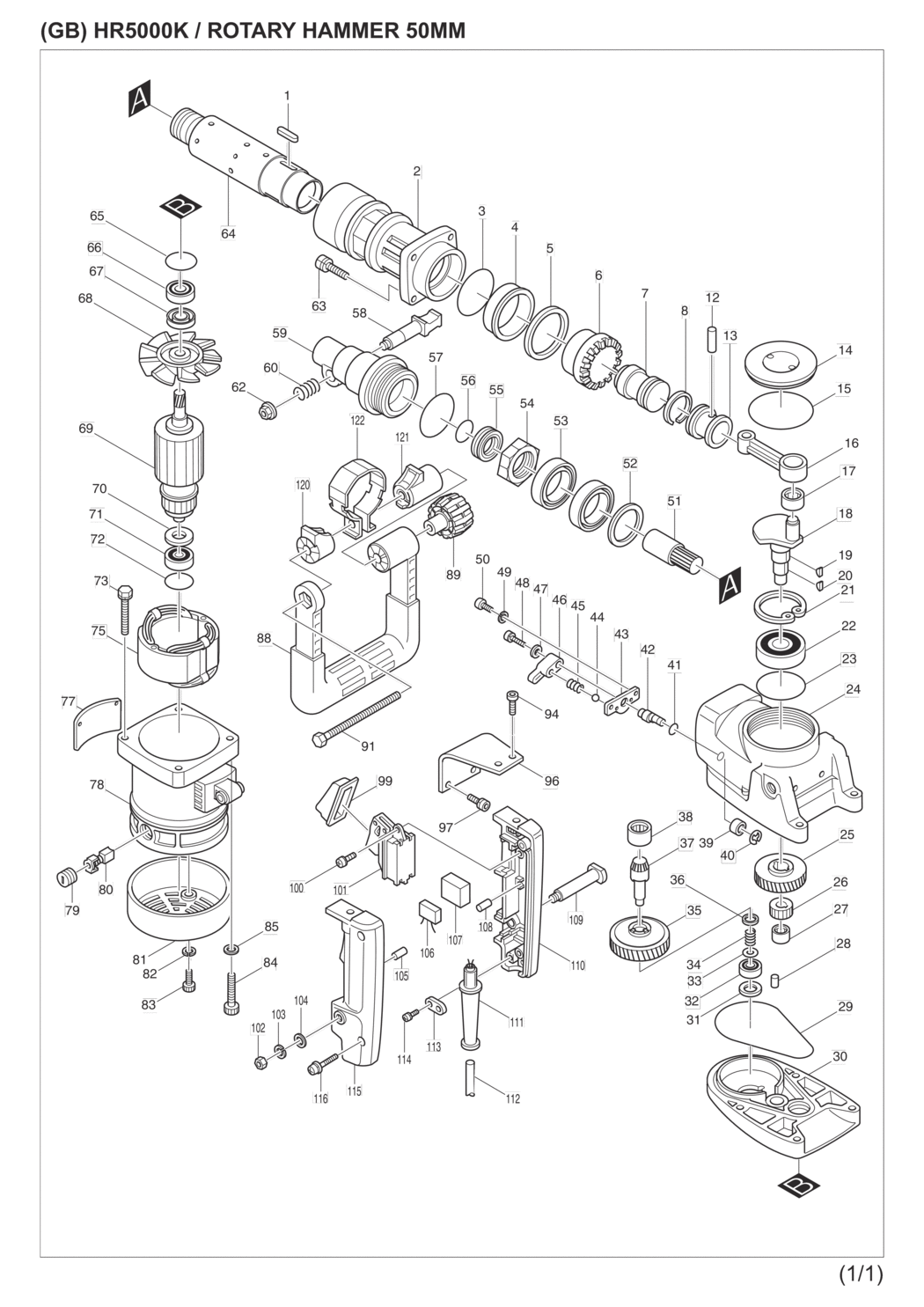

An exploded drawing and spare parts listing for the Makita HR5000K Rotary Hammer

	Ex VAT	Inc VAT
2-1 - BARREL HR5000K MSP-316068-9 316068-9	£102.82	£123.38
3 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A10 213707-1	£1.44	£1.73
4 - PLANE BEARING 52 HR5000K MSP-214653-1 214653-1	£30.96	£37.15
5 - FLAT WASHER 52 HR5000K MSP-267044-5 267044-5	£5.92	£7.11
6 - SPIRAL BEVEL GEAR 41 HR5000K MSP-221380-3 221380-3	£43.60	£52.32
7-1 - STRIKER HR5000K MSP-323751-1 323751-1	£20.30	£24.36
8 - PISTON RING 40 HM1200K MSP-412049-2.A0 412049-2	£18.72	£22.46
8-1 - O RING 32 HR5000K MSP-213481-1.A0 213481-1	£1.44	£1.73
10-1 - O RING 32 HR5000K MSP-213481-1.A1 213481-1	£1.44	£1.73
10 - PISTON RING 40 HM1200K MSP-412049-2.A1 412049-2	£18.72	£22.46
12 - PIN 10 HM1200K/HR5000K MSP-256120-0.A1 256120-0	£4.37	£5.24
13 - PISTON HM1200K MSP-321441-0.A0 321441-0	£21.89	£26.27
13-1 - PISTON HM1200K/HR5000K MSP-323750-3 323750-3	£21.89	£26.27
14-3 - CRANK CAP HM1200K/HR5000K MSP-414218-1.A0 414218-1	£21.89	£26.27
14-2 - LABEL/CAUTION FOR 414218-1 MSP-810712-5.A6 810712-5	£1.44	£1.73
15 - O RING 71 HM1200K MSP-213754-2.A2 213754-2	£2.50	£3.00
16 - CONNECTING ROD HM1200K/HR5000 MSP-315419-3.A0 315419-3	£29.38	£35.25
17 - NEEDLE BEARING 1516 HM1200K/H MSP-212208-6.A0 212208-6	£18.72	£22.46
18 - CRANK SHAFT HR5000K MSP-153176-3 153176-3	£37.44	£44.93
18 - INNER SLEEVE 1216 HR5000K MSP-216114-7 216114-7	£9.20	£11.04
19 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A26 254001-2	£1.44	£1.73
20 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A27 254001-2	£1.44	£1.73
21 - RETAINING RING R-52 HM1200K MSP-962251-2.A1 962251-2	£2.18	£2.62
22-1 - BALL BEARING 6304LLU HR5000K/ MSP-211327-5.A0 211327-5	£7.49	£8.99
23 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A13 213656-2	£1.44	£1.73
24 - CRANK HOUSING HR5000 MSP-157868-6 157868-6	£72.82	£87.39
25 - HELICAL GEAR 41 HR5000K MSP-221761-1 221761-1	£32.69	£39.23
26 - SPUR GEAR 24 HR5000K MSP-221957-4 221957-4	£12.48	£14.98
27 - NEEDLE BEARING 1212 HR5000K MSP-212113-7.A1 212113-7	£10.30	£12.36
28 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A841 263005-3	£1.44	£1.73
29-2 - SEAL RING HR5000K MSP-421690-0 421690-0	£1.44	£1.73
30 - GEAR HOUSING HR5000K MSP-157867-8.A0 157867-8	£42.48	£50.98
30-1 - GEAR HOUSING HR5000K MSP-157867-8.A1 157867-8	£42.48	£50.98
31 - BLUE NARROW WASHER 16 HR5000 MSP-253787-5 253787-5	£1.44	£1.73
32 - BALL BEARING 638 HR5000K MSP-210004-6 210004-6	£7.49	£8.99
33 - BLUE WASHER 8 HR5000K MSP-253865-1.A3 253865-1	£1.44	£1.73
34 - COMPRESSION SPRING 12 HR5000K MSP-231446-1 231446-1	£1.44	£1.73
35 - TORQUE LIMITER CO HR5000K MSP-150009-3 150009-3	£121.22	£145.46
36 - *THIN WASHER 10 5600D MSP-253310-6.A1 253310-6	£1.44	£1.73
37 - GEAR HR5000K MSP-153174-7 153174-7	£72.82	£87.39
38 - NEEDLE BEARING 2216 HR3850 MSP-212359-5.A0 212359-5	£15.26	£18.31
39 - NEEDLE BEARING 609 6906 9035 MSP-212011-5.A0 212011-5	£7.02	£8.42
40 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A72 961011-9	£1.44	£1.73
41 - O RING 10 BFS440/BFR540/550 MSP-213055-8.A10 213055-8	£1.44	£1.73
42 - CHANGE SHAFT HR5000K MSP-322187-1 322187-1	£18.72	£22.46
43 - PLATE HR3850 MSP-342786-3.A1 342786-3	£1.44	£1.73
44 - STEEL BALL 4.8 TW100D/TD0101F MSP-216002-8.A12 216002-8	£1.44	£1.73
45 - COMPRESSION SPRING 3 MSP-231317-2.A0 231317-2	£1.44	£1.73
46 - CHANGE LEVER HR3850/HR5000K MSP-410331-3.A0 410331-3	£1.44	£1.73
47 - FLAT WASHER 4 DIN125-A AN711 MSP-941052-1.A6 941052-1	£1.44	£1.73
49 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A41 253427-5	£1.44	£1.73
50 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A36 922212-4	£1.44	£1.73
51 - IMPACT BOLT HR5000K MSP-322157-0 322157-0	£54.65	£65.58
52 - FLAT WASHER 43 HR5000K MSP-267043-7 267043-7	£2.50	£3.00
53-1 - BALL BEARING 6907 HR4000C MSP-211469-5.A1 211469-5	£21.89	£26.27
54-1 - BI-HEX NUT M34-41 HR5000K MSP-252119-3 252119-3	£12.95	£15.54
55-1 - X RING 31.5 HR5000K MSP-213471-4.A0 213471-4	£21.89	£26.27
56 - O RING 30 HR3850K MSP-213419-6.A1 213419-6	£7.18	£8.61
57 - O RING 55 HR5000K/HK0500 MSP-213663-5.A1 213663-5	£2.50	£3.00
58 - TOOL RETAINER HM1200K MSP-331132-5.A0 331132-5	£27.65	£33.18
59-3 - TOOL HOLDER HR5000K MSP-322861-1 322861-1	£136.08	£163.30
60 - COMPRESSION SPRING 15 HM1200 MSP-231281-7.A1 231281-7	£1.44	£1.73
62-1 - FULL HEX NUT M8-13 MSP-252046-4.A1 252046-4	£1.44	£1.73
63 - HEX SOCKET HD BOLT M8 X 30 MSP-922451-6.A2 922451-6	£1.44	£1.73
64-2 - CYLINDER LINER 40 HR5000K MSP-152396-6 152396-6	£121.22	£145.46
65 - O RING 32 DA4031/4157KB/5903R MSP-213459-4.A7 213459-4	£2.18	£2.62
66-1 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A1 211129-9	£10.14	£12.17
67 - OIL SEAL 14 HR3520 MSP-213160-1.A2 213160-1	£10.77	£12.92
68 - FAN 94 HR3850 MSP-241634-2.A0 241634-2	£8.42	£10.11
70-1 - INSULATION WASHER HM1200K/HM1 MSP-681635-2.A6 681635-2	£1.44	£1.73
71-1 - BALL BEARING 6200LLB MSP-211066-7.A26 211066-7	£5.92	£7.11
71-2 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A24 211087-9	£9.67	£11.61
72 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A15 213406-5	£1.44	£1.73
73-1 - HEX HD SCREW M5 X 55 HR5000K MSP-265346-3 265346-3	£1.44	£1.73
75G1 - FIELD 240V HR5000K MSP-524834-2 524834-2	£42.48	£50.98
75F - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A52 654502-4	£1.44	£1.73
75F - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A75 654020-2	£1.44	£1.73
75G - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A100 654020-2	£1.44	£1.73
75G1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A102 654020-2	£1.44	£1.73
75G - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A51 654502-4	£1.44	£1.73
75F1 - FIELD ASSY 110V HR5000K MSP-524831-8 524831-8	£42.48	£50.98
75F1 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A79 654502-4	£1.44	£1.73
75G1 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A96 654502-4	£1.44	£1.73
75F1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A67 654020-2	£1.44	£1.73
76 - RIVET 0-5 9402/1806B MSP-953106-2.A10 953106-2	£1.44	£1.73
77 - NAME PLATE HR5000K MSP-855984-5 855984-5	£1.44	£1.73
78-2 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A18 643653-8	£3.74	£4.49
78-2 - MOTOR HOUSING HR5000K MSP-159054-5 159054-5	£54.65	£65.58
78-2 - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A3 913206-0	£1.44	£1.73
79-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A26 643650-4	£1.44	£1.73
79 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A67 643650-4	£1.44	£1.73
80 - CARBON BRUSH CB-155 (TIB143) MSP-181048-2.A3 181048-2	£12.32	£14.79
81 - REAR COVER HM1200K/HR3850 MSP-284055-5.A0 284055-5	£10.92	£13.10
82 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A40 253427-5	£1.44	£1.73
83-1 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A12 922221-3	£1.44	£1.73
83 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A18 922222-1	£1.44	£1.73
84 - CAP HD SCREW M6X55 HR3850K MSP-922376-4.A3 922376-4	£1.44	£1.73
85 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A5 941151-9	£1.44	£1.73
87A - SPLIT COTTER PIN 3-20 BS1574 MSP-952257-8.A1 952257-8	£1.44	£1.73
88A2 - SIDE HANDLE HR5000K MSP-416061-4 416061-4	£21.89	£26.27
89A1 - WING NUT M8 HM1100C/HM1200K MSP-252640-2.A7 252640-2	£5.92	£7.11
89A - WING NUT M10 HR5000K MSP-259020-3 259020-3	£9.05	£10.86
90A - M10 SPRING RING DIN128 LS800D MSP-942251-8.A5 942251-8	£1.44	£1.73
91A1 - HEX HD BOLT M8X150/HR5212C MSP-265439-6.A1 265439-6	£2.18	£2.62
91A - SET BOLT M10 X 20 HR5000K MSP-265902-9 265902-9	£5.92	£7.11
92A - SPLIT COTTER PIN 3-20 BS1574 MSP-952257-8.A0 952257-8	£1.44	£1.73
93A - GRIP 38 HR5000K/HM1303B MSP-273492-8.A0 273492-8	£5.56	£6.67
94-1 - CAP HD SCREW M6X14 MSP-922316-2.A0 922316-2	£1.44	£1.73
96-1 - CUSHION PLATE HR3850 NEW MSP-343754-9.A0 343754-9	£5.46	£6.55
97-2 - CAP HD SCREW M5X25 HM1100C MSP-265914-2.A0 265914-2	£1.44	£1.73
99 - DUST COVER FOR HANDLE COMPLET MSP-421265-5.A3 421265-5	£2.34	£2.81
100 - PAN HEAD SCREW M4X16 8406C MSP-911129-6.A2 911129-6	£1.44	£1.73
101-1 - SWITCH C3D-H-MS 8900N/HM120 MSP-651145-3.A1 651145-3	£32.69	£39.23
102 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A6 931302-2	£1.44	£1.73
103 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A36 253428-3	£1.44	£1.73
104 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A6 941151-9	£1.44	£1.73
105 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A113 263002-9	£1.44	£1.73
106B1 - NOISE SUPPRESSOR 110V MSP-645253-0.A59 645253-0	£4.99	£5.99
106A1 - NOISE SUPPRESSOR 110V MSP-645253-0.A60 645253-0	£4.99	£5.99
107B - SPONGE SHEET RP1110C/8406/362 MSP-685722-9.A6 685722-9	£1.44	£1.73
108 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A112 263002-9	£1.44	£1.73
109 - HANDLE SHAFT HM1200K/HR3850 MSP-321210-9.A1 321210-9	£2.34	£2.81
110-1 - HANDLE SET HR5000K MSP-182077-8.A5 182077-8	£18.72	£22.46
111B - CORD GUARD 12-90 110V 9029 MSP-682506-6.A11 682506-6	£1.44	£1.73
111C - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A8 682540-6	£1.44	£1.73
111B1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A52 682505-8	£1.44	£1.73
111C1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A55 682505-8	£1.44	£1.73
112G1 - POWER SUPPLY CORD 1.00-2-5.0 MSP-692541-6.A2 692541-6	£27.50	£33.00
112H1 - POWER SUPPLY CORD PC5000/01C MSP-695237-8.A0 695237-8	£32.69	£39.23
113C1 - STRAIN RELIEF-A MSP-687000-3.A2 687000-3	£1.44	£1.73
113D - STRAIN RELIEF HK1820L/3601B MSP-687031-2.A16 687031-2	£1.44	£1.73
113C - STRAIN RELIEF (110V) HM1400K MSP-687034-6.A0 687034-6	£10.77	£12.92
114 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A1 911133-5	£1.44	£1.73
115-1 - HANDLE SET HR5000K MSP-182077-8.A4 182077-8	£18.72	£22.46
116 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A34 911243-8	£1.44	£1.73
117 - RUBBER RING 9 6MM HMO810 MSP-262051-3.A2 262051-3	£5.46	£6.55
118 - RUBBER RING 9 3MM HMO810 MSP-262052-1.A3 262052-1	£2.65	£3.18
119 - SLEEVE 6 HMO810 MSP-257636-8.A1 257636-8	£2.18	£2.62
122 - SIDE HANDLE 62 HR5000K MSP-151768-2 151768-2	£17.13	£20.56
400A1 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A9 163467-4	£1.47	£1.76
400A1 - LATCH/PLASTIC CASE 150676-4) MSP-416401-6.A14 416401-6	£1.20	£1.44
400A1 - MAKITA LOGO LEBEL 4112HS MSP-819145-1.A9 819145-1	£1.44	£1.73
400A1 - PLASTIC CASE HR5000K/HR3850K MSP-150582-3.A0 150582-3	£40.17	£48.20
401 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A50 783202-0	£1.20	£1.44
404 - GRIP 32 FOR HR3520 MSP-273472-4.A1 273472-4	£15.07	£18.08
