Fein ASse 636-2 b Kinetik (50Hz 230V) / 72107700220 Spare Parts

Fein ASse 636-2 b Kinetik ⡐Hz 230V) / 72107700220 Spare Parts

Home Details Reviews Delivery

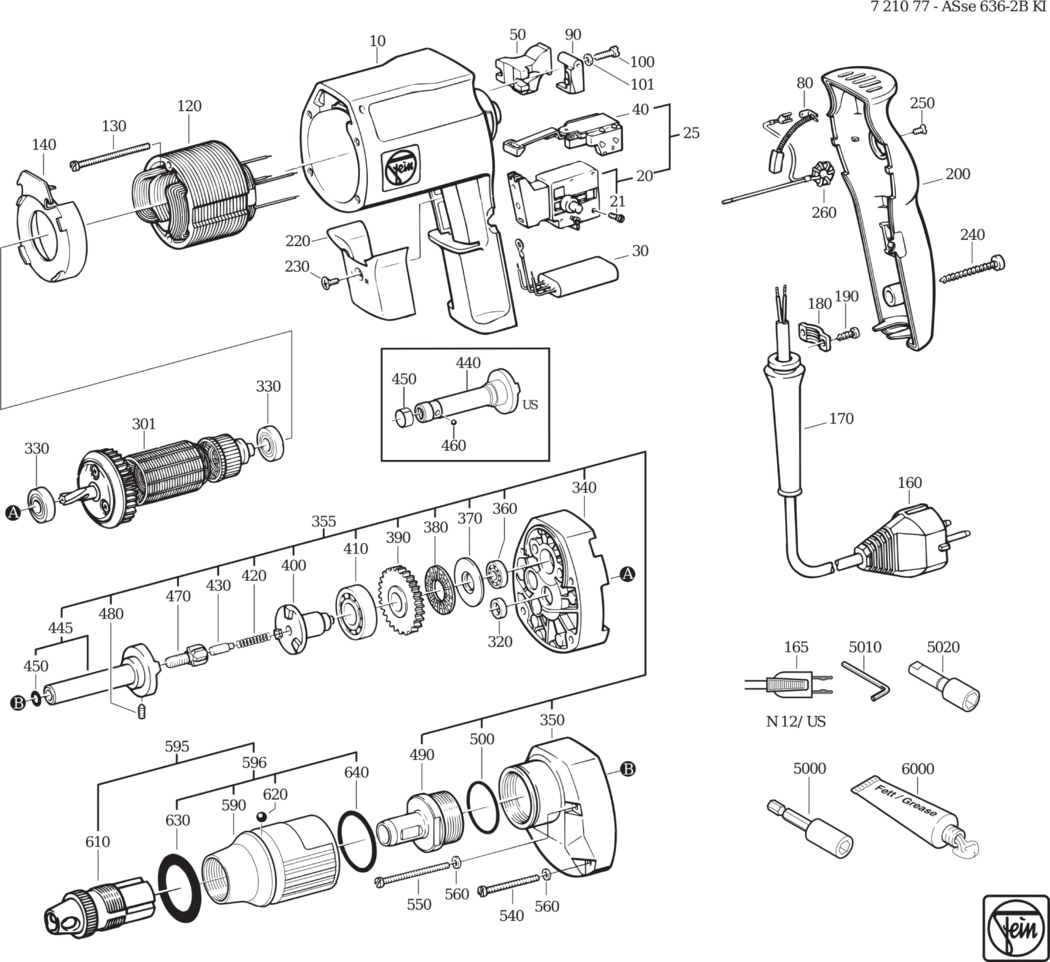

An exploded diagram and spare parts listing for the Fein ASse 636-2 b Kinetik (50Hz 230V) / 72107700220

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117015.A4 31901117015	£110.27	£132.32
20 - SWITCH FEI-30701228002.A7 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A41 43013052033	£1.60	£1.92
25 - SWITCH FEI-30701228011.A4 30701228011	£64.73	£77.68
30 - CAPACITOR FEI-30722161013.A30 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A16 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A18 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A19 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A33 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A3 43002014998	-
101 - CIRCLIP FEI-42443002992.A18 42443002992	£1.60	£1.92
120 - STATOR FEI-51203027224.A0 51203027224	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A22 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A28 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707263019.A12 30707263019	£19.80	£23.76
170 - CABLE GROMMET FEI-31413142009.A5 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A42 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A5 43046002005	-
200 - COVER FEI-31201066005.A28 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A9 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A41 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A31 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A56 43066002992	£1.60	£1.92
260 - RING CORE CHOKE FEI-30764065010.A6 30764065010	£3.54	£4.25
301 - ARMATURE 50HZ220V FEI-53203014226.A0 53203014226	-
320 - SEALING RING FEI-32612084001.A29 32612084001	£3.44	£4.13
330 - GROOVED BALL BEARING FEI-41701001172.A85 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506307001.A1 31506307001	£38.48	£46.18
350 - GEARBOX HOUSING FEI-31508225004.A3 31508225004	£43.53	£52.24
355 - GEARBOX HOUSING FEI-31508225029.A1 31508225029	-
360 - GROOVED BALL BEARING FEI-41701202018.A146 41701202018	£6.92	£8.30
370 - DISC FEI-32415042004.A10 32415042004	£10.18	£12.21
380 - NEEDLE CAGE FEI-41715029009.A29 41715029009	£5.91	£7.09
390 - GEAR-WHEEL FEI-33657107009.A2 33657107009	£51.41	£61.69
400 - DOG CLUTCH SHAFT FEI-33408020004.A5 33408020004	£54.66	£65.59
410 - GROOVED BALL BEARING FEI-41701010010.A37 41701010010	£8.58	£10.30
420 - SPIRAL SPRING FEI-30901232008.A16 30901232008	£1.60	£1.92
430 - BOLT FEI-30220028005.A15 30220028005	£4.22	£5.06
445 - TOOL HOLDER FEI-30104100012.A5 30104100012	-
450 - SEALING RING FEI-40612112007.A3 40612112007	£1.60	£1.92
470 - SCREW FEI-33022034001.A19 33022034001	£4.24	£5.09
480 - SET SCREW FEI-43058002044.A16 43058002044	-
490 - BUSH FEI-31603014004.A2 31603014004	£51.46	£61.75
500 - SEALING RING FEI-40612093004.A62 40612093004	£1.60	£1.92
540 - CYLINDER HEAD SCREW FEI-43002021992.A6 43002021992	£1.60	£1.92
550 - CYLINDER HEAD SCREW FEI-43002024997.A20 43002024997	£1.60	£1.92
560 - CIRCLIP FEI-42443002992.A16 42443002992	£1.60	£1.92
590 - SLEEVE FEI-30505061004.A12 30505061004	-
595 - STOP SLEEVE FEI-32127057023.A6 32127057023	-
596 - STOP SLEEVE FEI-30505061013.A1 30505061013	-
610 - STOP SLEEVE FEI-32127057008.A17 32127057008	£34.42	£41.31
620 - BALL FEI-41708019004.A4 41708019004	£1.60	£1.92
630 - SEALING RING FEI-40612071009.A42 40612071009	£3.89	£4.67
640 - SEALING RING FEI-40612068004.A1 40612068004	-
5000 - INSERT FEI-62712109012.A3 62712109012	-
5010 - ALLEN KEY SW2 FEI-62907029006.A24 62907029006	£3.29	£3.95
5020 - TOOL HOLDER Ã˜ 7 MM WITH EXTERNAL FLAT FEI-60110004018.A0 60110004018	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A310 32160003014	-
