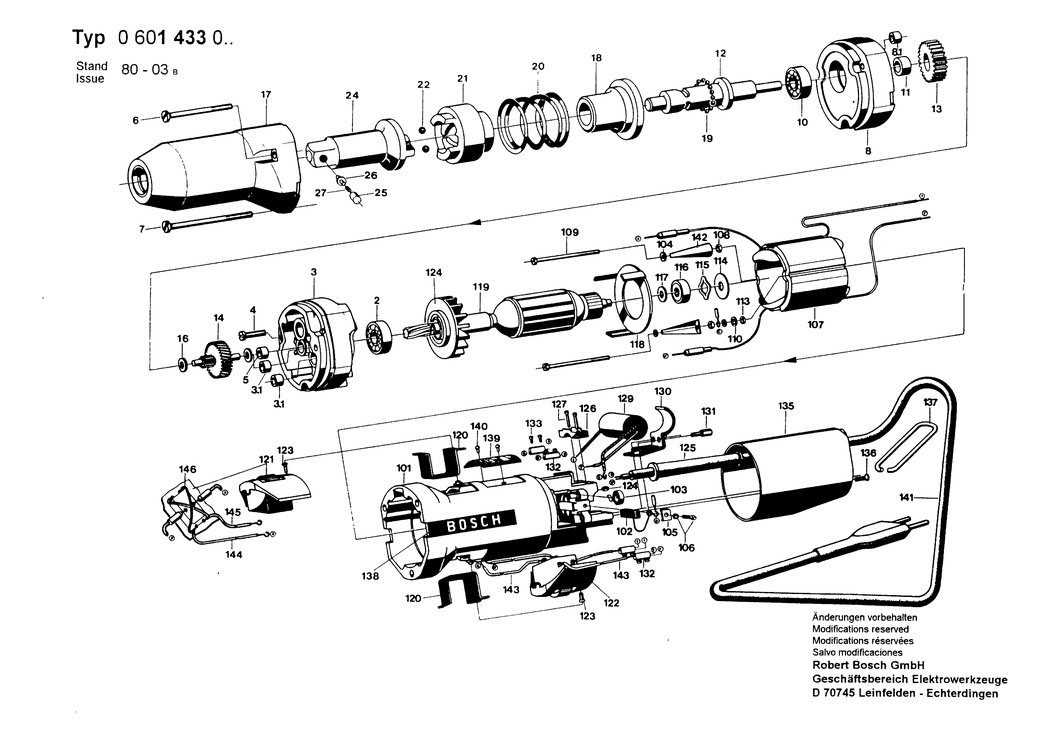

2 - GROOVE BALL BEARING dia9 MM
BSD-2600905003.A35
2600905003
|
-
|
|
|
|
3 - INTERMEDIATE BEARING
BSD-2605820012.A0
2605820012
|
-
|
|
|
|
3 - BUSHING
BSD-2600300058.A24
2600300058
|
-
|
|
|
|
4 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A748
2910021125
|
£1.75
|
£2.10
|
|
|
5 - BEARING SLEEVE
BSD-2600300044.A9
2600300044
|
-
|
|
|
|
6 - SOCKET HEAD CAP SCREW DIN 84-BM4x45-5.8
BSD-2910011140.A6
2910011140
|
-
|
|
|
|
7 - SOCKET HEAD CAP SCREW DIN 84-B 4x60-5.8
BSD-2910011146.A1
2910011146
|
-
|
|
|
|
8 - INTERMEDIATE BEARING
BSD-3605820061.A22
3605820061
|
-
|
|
|
|
8 - BUSHING
BSD-2600300058.A23
2600300058
|
-
|
|
|
|
10 - GROOVE BALL BEARING
BSD-3600900026.A5
3600900026
|
£5.26
|
£6.31
|
|
|
11 - SHIM WASHER
BSD-2600200006.A0
2600200006
|
-
|
|
|
|
12 - DRIVE SHAFT
BSD-2603124004.A0
2603124004
|
-
|
|
|
|
13 - TOOTHED GEAR Z=37
BSD-2606316046.A6
2606316046
|
-
|
|
|
|
14 - TOOTHED SHAFT Z= 9/33
BSD-2606308907.A1
2606308907
|
-
|
|
|
|
16 - SHIM 0.50 MM
BSD-2600100613.A75
2600100613
|
£1.75
|
£2.10
|
|
|
17 - SPINDLE BEARING
BSD-3605806118.A12
3605806118
|
-
|
|
|
|
18 - BUSHING
BSD-1600521005.A5
1600521005
|
-
|
|
|
|
19 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A275
1903230004
|
£2.27
|
£2.72
|
|
|
20 - COMPRESSION SPRING
BSD-1604619011.A1
1604619011
|
-
|
|
|
|
21 - STRIKER
BSD-1608710025.A21
1608710025
|
-
|
|
|
|
22 - BALL DIN 5401-5 G28
BSD-1903230009.A474
1903230009
|
£1.84
|
£2.21
|
|
|
24 - COUPLING HALF
BSD-1606455052.A16
1606455052
|
-
|
|
|
|
25 - GUIDE SLEEVE
BSD-1600506009.A16
1600506009
|
£7.72
|
£9.27
|
|
|
26 - DETENT PIN
BSD-1603124085.A21
1603124085
|
£3.91
|
£4.69
|
|
|
27 - COMPRESSION SPRING
BSD-1604611019.A19
1604611019
|
£2.94
|
£3.53
|
|
|
101 - MOTOR HOUSING
BSD-2605108033.A0
2605108033
|
-
|
|
|
|
102 - CARBON-BRUSH SET
BSD-2604320905.A90
2604320905
|
-
|
|
|
|
103 - SPIRAL SPRING
BSD-2604652000.A124
2604652000
|
-
|
|
|
|
104 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A28
2916011005
|
£1.84
|
£2.21
|
|
|
105 - CLAMPING SADDLE
BSD-2601321005.A84
2601321005
|
-
|
|
|
|
106 - SOCKET HEAD CAP SCREW
BSD-2603410010.A196
2603410010
|
-
|
|
|
|
107 - POLE SHOE 110V
BSD-2604220227.A0
2604220227
|
-
|
|
|
|
108 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A110
2915011003
|
£1.84
|
£2.21
|
|
|
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A59
2910011074
|
£1.84
|
£2.21
|
|
|
110 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A111
2916690001
|
-
|
|
|
|
113 - HEX NUT DIN 439-BM 3
BSD-2915051103.A24
2915051103
|
£1.84
|
£2.21
|
|
|
114 - SHIM
BSD-2600100699.A79
2600100699
|
£1.84
|
£2.21
|
|
|
115 - SHIM
BSD-2600150002.A68
2600150002
|
-
|
|
|
|
116 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A58
1900905015
|
£30.42
|
£36.51
|
|
|
117 - SHIM 0.3 MM
BSD-2600100612.A59
2600100612
|
£2.61
|
£3.13
|
|
|
118 - SEAL RING
BSD-2600113019.A13
2600113019
|
£2.80
|
£3.36
|
|
|
119 - ARMATURE WITH FAN 115V
BSD-2604010322.A2
2604010322
|
-
|
|
|
|
120 - INSULATING PART
BSD-2601322002.A71
2601322002
|
£1.75
|
£2.10
|
|
|
121 - CHANGE-OVER SWITCH
BSD-2607200044.A13
2607200044
|
-
|
|
|
|
122 - SWITCH
BSD-2607200045.A1
2607200045
|
-
|
|
|
|
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8
BSD-2910501048.A0
2910501048
|
-
|
|
|
|
124 - FAN
BSD-2606610038.A34
2606610038
|
-
|
|
|
|
125 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A576
2600703011
|
£2.94
|
£3.53
|
|
|
125 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A634
2600703012
|
£2.94
|
£3.53
|
|
|
125 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A579
2600703013
|
£2.74
|
£3.29
|
|
|
126 - CABLE CLIP
BSD-2601035005.A32
2601035005
|
£1.84
|
£2.21
|
|
|
127 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A537
2910211011
|
£1.84
|
£2.21
|
|
|
129 - SUPPRESSION FILTER
BSD-2607329048.A65
2607329048
|
-
|
|
|
|
130 - FASTENING CLAMP
BSD-2601301002.A82
2601301002
|
£2.16
|
£2.59
|
|
|
131 - HEX SCREW
BSD-2603527004.A74
2603527004
|
£1.84
|
£2.21
|
|
|
132 - CONNECTING TERMINAL
BSD-2604490003.A14
2604490003
|
-
|
|
|
|
133 - SOCKET HEAD CAP SCREW
BSD-2603410009.A0
2603410009
|
£1.32
|
£1.58
|
|
|
135 - HOUSING COVER
BSD-3600508023.A58
3600508023
|
£14.08
|
£16.89
|
|
|
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A97
2910501084
|
-
|
|
|
|
137 - SUSPENSION LOOP
BSD-1604682003.A7
1604682003
|
-
|
|
|
|
138 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A182
2601007003
|
-
|
|
|
|
139 - NAMEPLATE
BSD-160111A3H3.A4022
160111A3H3
|
£2.74
|
£3.29
|
|
|
140 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A11
2917724031
|
-
|
|
|
|
142 - CABLE CLIP
BSD-2601099015.A27
2601099015
|
£1.75
|
£2.10
|
|
|
143 - CABLE
BSD-2604411061.A16
2604411061
|
-
|
|
|
|
144 - CONNECTING CABLE
BSD-2604411037.A14
2604411037
|
-
|
|
|
|
145 - CABLE
BSD-2604411064.A7
2604411064
|
-
|
|
|
|
146 - CONNECTING CABLE
BSD-2604411505.A41
2604411505
|
-
|
|
|
