Fein SCT 5-40 UX (50Hz 110V) / 72131424110 Spare Parts

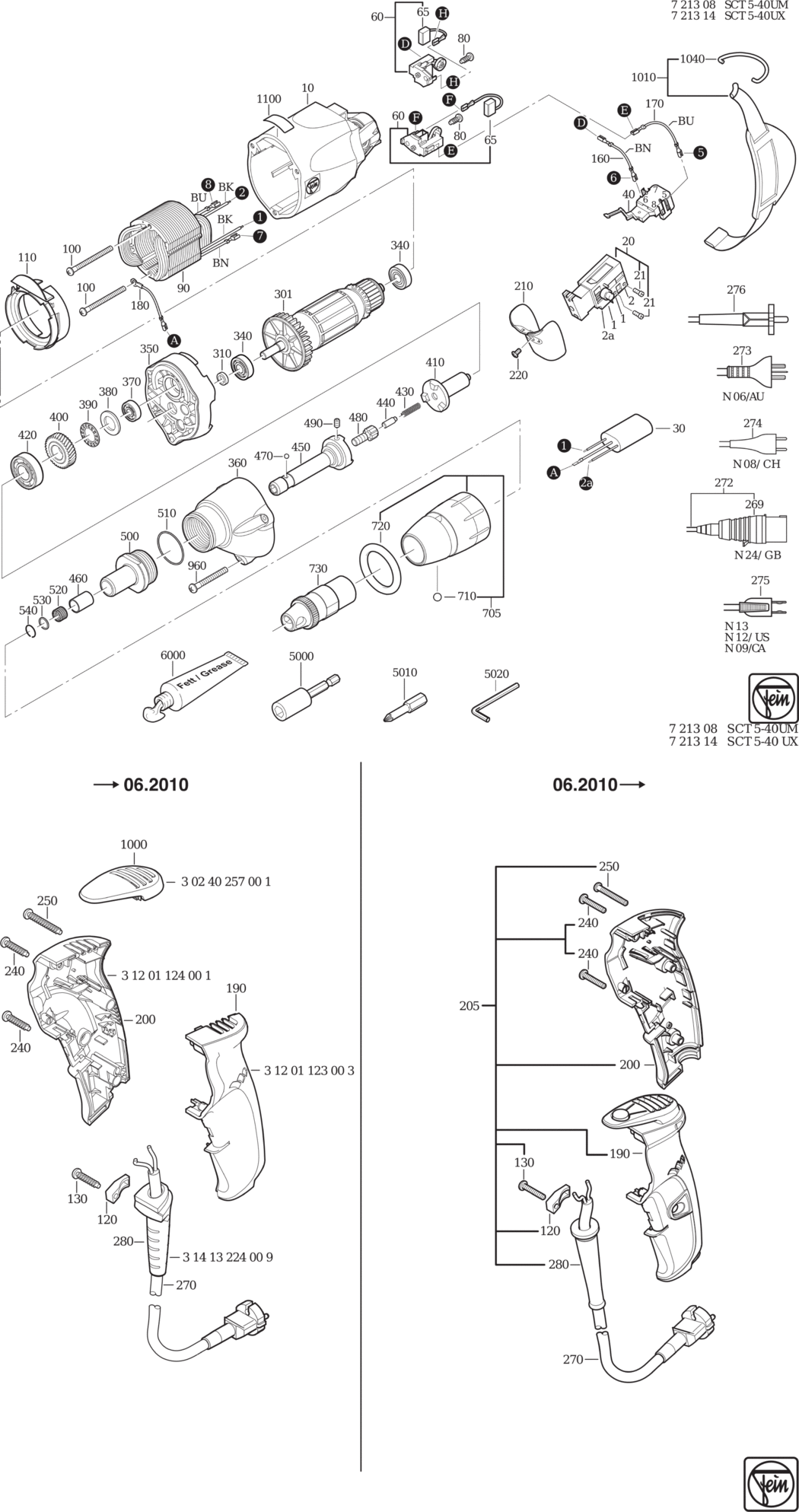

An exploded diagram and spare parts listing for the Fein SCT 5-40 UX (50Hz 110V) / 72131424110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A45 31901138011	£39.65	£47.58
20 - SPEED SETTING SWITCH FEI-30701234002.A34 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A3 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A51 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A46 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089023.A4 30712089023	£29.69	£35.63
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A1 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A54 43070018009	£1.60	£1.92
90 - STATOR FEI-51274004117.A26 51274004117	£84.31	£101.17
100 - SCREW FEI-43070014000.A45 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A44 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A42 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A98 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719565016.A16 30719565016	£2.32	£2.79
170 - CONNECTING CABLE FEI-30719566019.A7 30719566019	£2.32	£2.79
180 - CONNECTING CABLE FEI-30719630014.A13 30719630014	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201136010.A11 31201136010	-
200 - HANDLE HALF SHELL FEI-31201137000.A18 31201137000	£20.52	£24.63
205 - HANDLE REPAIR-SET FEI-31201136030.A15 31201136030	£29.96	£35.95
210 - SWITCH PUSHBUTTON FEI-32805191002.A34 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A21 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A41 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A56 43070007002	£1.60	£1.92
269 - PLUG CEE 16A/110V FEI-30728288004.A39 30728288004	£14.25	£17.10
272 - CABLE WITH PLUG FEI-30707404015.A0 30707404015	-
280 - CABLE GROMMET FEI-31413233000.A23 31413233000	£2.60	£3.12
300 - SEAL FEI-30610041000.A26 30610041000	-
301 - ARMATURE Z=5 100-120V 50/60HZ FEI-53274019110.A24 53274019110	£117.40	£140.88
310 - SEALING RING FEI-32612063005.A33 32612063005	£8.12	£9.74
340 - GROOVED BALL BEARING FEI-41701001260.A87 41701001260	£7.11	£8.53
350 - INTERMEDIATE GEAR BOX FEI-31506367005.A6 31506367005	-
360 - GEARBOX HOUSING FEI-31508251002.A4 31508251002	-
370 - GROOVED BALL BEARING FEI-41701202018.A104 41701202018	£6.92	£8.30
380 - DISC FEI-32415042004.A13 32415042004	£10.18	£12.21
390 - NEEDLE CAGE FEI-41715029009.A32 41715029009	£5.91	£7.09
400 - GEAR-WHEEL Z=43 FEI-33657170007.A2 33657170007	-
410 - DOG CLUTCH SHAFT FEI-33408020004.A10 33408020004	£54.66	£65.59
420 - GROOVED BALL BEARING FEI-41701010010.A54 41701010010	£8.58	£10.30
430 - SPIRAL SPRING FEI-30901232008.A5 30901232008	£1.60	£1.92
440 - BOLT FEI-30220028005.A8 30220028005	£4.22	£5.06
450 - TOOL HOLDER FEI-30104136000.A0 30104136000	-
460 - SLEEVE FEI-30503151006.A8 30503151006	£6.65	£7.98
470 - BALL FEI-41708014001.A35 41708014001	£1.60	£1.92
480 - SCREW FEI-33022034001.A11 33022034001	£4.24	£5.09
490 - SET SCREW FEI-43058002044.A10 43058002044	-
500 - BUSH FEI-31603045005.A9 31603045005	£37.70	£45.24
510 - SEALING RING FEI-40612093004.A86 40612093004	£1.60	£1.92
520 - SPIRAL SPRING FEI-30901362001.A10 30901362001	£1.60	£1.92
530 - RING FEI-32601274004.A8 32601274004	£4.96	£5.95
540 - CIRCLIP FEI-42615147001.A20 42615147001	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A5 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A24 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A26 40612071009	£3.89	£4.67
730 - SLEEVE FEI-32127068000.A7 32127068000	£33.28	£39.93
960 - SCREW FEI-43072010009.A31 43072010009	£1.60	£1.92
1010 - HOLDER FEI-63901011059.A6 63901011059	-
1040 - SUSPENSION DEVICE FEI-30232046008.A8 30232046008	-
5000 - TOOL HOLDER Â¼ EXTERNAL HEXAGON FEI-60510215003.A11 60510215003	£40.12	£48.15
5010 - BIT Â¼ HEXAGON HEAD FEI-62712109034.A0 62712109034	£16.55	£19.86
5020 - ALLEN KEY SW2 FEI-62907029006.A29 62907029006	£3.29	£3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A476 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A53 34130054061	-
