Bosch GOF 900 ACE / 0601614732 / CH 230 Volt Spare Parts

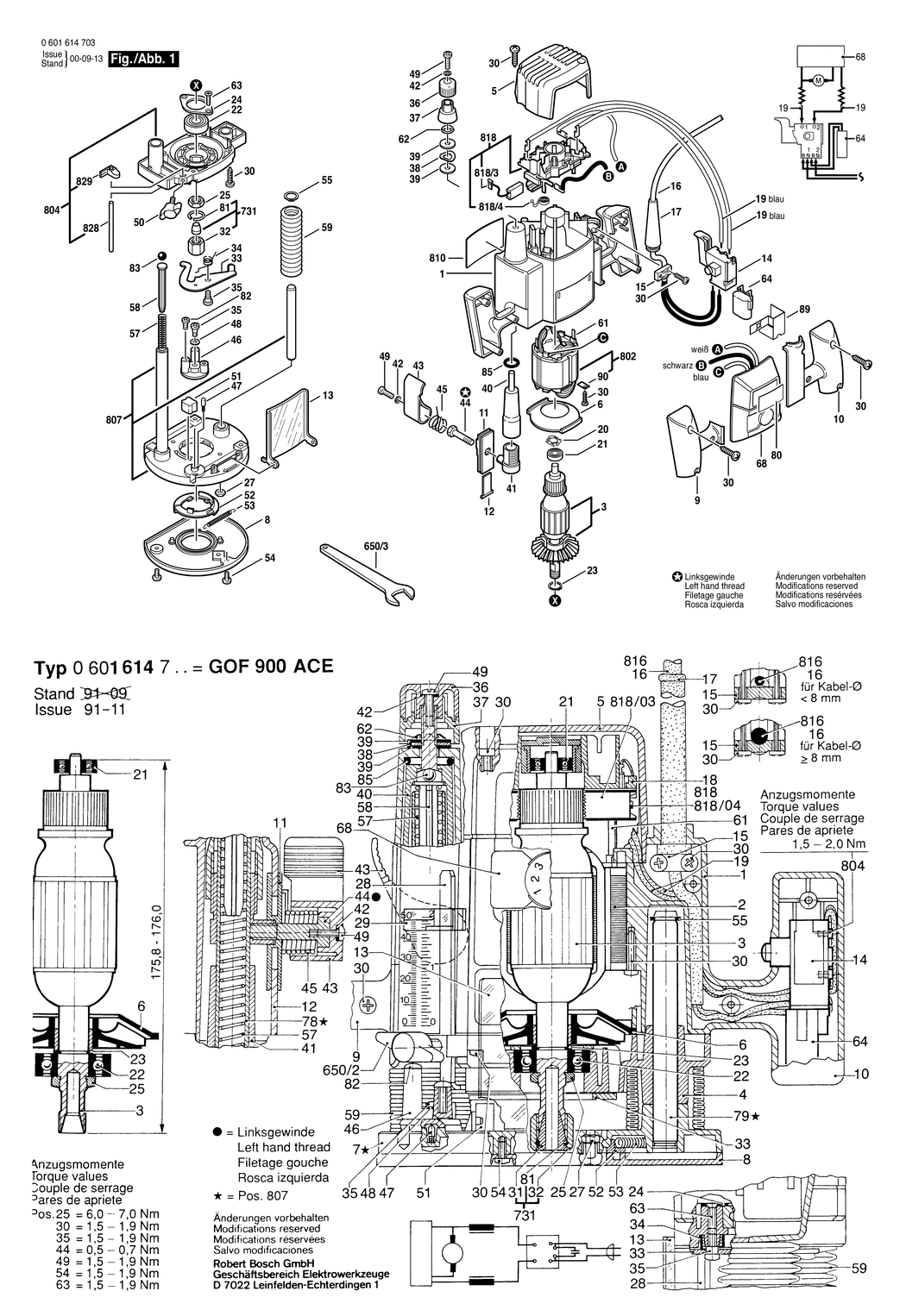

An exploded drawing and listing for the Bosch GOF 900 ACE / 0601614732 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108581.A2 3605108581	£23.86	£28.63
3 - ARMATURE 230-240V BSD-3604010501.A1 3604010501	-
5 - HOUSING COVER BSD-3605500595.A5 3605500595	£8.49	£10.19
6 - AIR-DEFLECTOR RING BSD-3600590507.A4 3600590507	-
8 - INTERMEDIATE PLATE BSD-3600190520.A11 3600190520	-
9 - HANDLE COVER LT BSD-3605133526.A6 3605133526	£8.49	£10.19
10 - HANDLE COVER RT BSD-3605133528.A9 3605133528	£10.10	£12.12
11 - INSERT BSD-3601010519.A31 3601010519	£2.52	£3.02
12 - INSERT BSD-3601010517.A4 3601010517	£2.52	£3.02
13 - CHIP DEFLECTOR BSD-2610912599.A7 2610912599	-
14 - ON-OFF SWITCH BSD-1607000231.A138 1607000231	£18.96	£22.75
15 - CABLE CLIP BSD-2601035001.A2946 2601035001	£1.75	£2.10
16 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07 RN-F BSD-3604460541.A14 3604460541	-
17 - GROMMET dia7.4 MM BSD-3600703509.A7 3600703509	-
19 - CONNECTING CABLE BSD-3604445718.A11 3604445718	-
20 - SPRING WASHER BSD-2610992432.A6 2610992432	£2.33	£2.80
21 - GROOVE BALL BEARING BSD-2610913173.A14 2610913173	£14.72	£17.67
22 - BALL BEARING BSD-3600905510.A15 3600905510	£6.61	£7.93
23 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A55 2916650006	£1.75	£2.10
24 - RETAINING PLATE BSD-3600034505.A15 3600034505	£3.72	£4.47
25 - HEX NUT M15 BSD-3603300501.A9 3603300501	£4.26	£5.11
27 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A137 2915011005	£1.75	£2.10
30 - TAPPING SCREW BSD-2610910566.A44 2610910566	£1.32	£1.58
32 - UNION NUT BSD-3603301524.A3 3603301524	£7.78	£9.33
33 - SWING-PLATE BSD-3601021509.A4 3601021509	£8.67	£10.41
34 - TORSION SPRING BSD-3604651502.A30 3604651502	£2.33	£2.80
35 - SHOULDER SCREW M4 BSD-3603415556.A13 3603415556	£2.33	£2.80
36 - KNOB BSD-3603231539.A34 3603231539	£2.33	£2.80
37 - INDICATOR RING BSD-3600209500.A5 3600209500	£3.80	£4.56
38 - SPRING WASHER BSD-3600100528.A9 3600100528	£1.95	£2.34
39 - WASHER BSD-3600100527.A33 3600100527	£2.52	£3.02
40 - ADJUSTING SLEEVE BSD-3600360507.A2 3600360507	-
41 - LOCKING PIECE BSD-3600400507.A28 3600400507	£2.80	£3.36
42 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A866 2916690003	£1.75	£2.10
43 - LOCKING LEVER BSD-3602000510.A35 3602000510	£2.61	£3.13
44 - LOCK BOLT BSD-3603450503.A10 3603450503	£5.01	£6.01
45 - LOCK SPRING BSD-3604651503.A10 3604651503	£2.33	£2.80
46 - DEPTH-GAUGE BSD-2610997191.A40 2610997191	£13.41	£16.09
47 - RATCHET CAP BSD-2600590006.A566 2600590006	£1.75	£2.10
48 - SPRING WASHER BSD-3916060500.A12 3916060500	£1.75	£2.10
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H BSD-2910641122.A51 2910641122	£2.16	£2.59
50 - WING SCREW M6x20 MM BSD-1613480008.A410 1613480008	£1.75	£2.10
51 - KNOB BSD-3603211501.A6 3603211501	£2.61	£3.13
52 - LOCKING RING BSD-3600240500.A5 3600240500	£5.58	£6.70
53 - EXTENSION SPRING BSD-3604648504.A17 3604648504	-
54 - SCREW BSD-2610915161.A20 2610915161	-
55 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A14 2916650003	£1.75	£2.10
57 - COMPRESSION SPRING BSD-3604613508.A2 3604613508	£2.33	£2.80
58 - GUIDE PIECE BSD-3603120502.A27 3603120502	£2.52	£3.02
59 - BELLOWS BSD-2610990698.A9 2610990698	£10.82	£12.99
61 - BLADE TERMINAL BSD-1604477005.A31 1604477005	£2.61	£3.13
62 - RETAINING SNAP RING BSD-3604680502.A10 3604680502	£2.33	£2.80
63 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A72 2910871122	-
64 - SUPPRESSION FILTER BSD-1617328025.A40 1617328025	£5.58	£6.70
68 - SPEED GOVERNOR 230-240V BSD-3607233501.A6 3607233501	£102.57	£123.08
80 - REFERENCE PLATE BSD-3601119815.A1 3601119815	£2.33	£2.80
81 - RETAINING RING BSD-2916540007.A2 2916540007	£1.75	£2.10
82 - SOCKET HEAD CAP SCREW BSD-3603410504.A19 3603410504	£2.52	£3.02
83 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A496 1903230007	£1.75	£2.10
85 - O-RING BSD-3600210507.A2 3600210507	£2.33	£2.80
89 - SET RING BSD-2610996090.A27 2610996090	-
90 - TAB WASHER BSD-1601030022.A494 1601030022	£1.75	£2.10
650/3 - SINGLE-HEAD ENG. WRENCH SW19 BSD-1907950511.A68 1907950511	£11.78	£14.13
731 - COLLET 8 MM BSD-2608570102.A11 2608570102	£24.99	£29.99
731 - COLLET 6 MM BSD-2608570100.A13 2608570100	£24.99	£29.99
802 - FIELD 230-240V BSD-2610907797.A0 2610907797	-
804 - FAN HOUSING BSD-2610907867.A10 2610907867	-
807 - BASE PLATE BSD-3605702581.A9 3605702581	£51.22	£61.47
810 - NAMEPLATE BSD-3601119779.A2 3601119779	-
818 - BRUSH HOLDER BSD-3604336511.A9 3604336511	£24.45	£29.34
818/3 - CARBON-BRUSH SET BSD-3604321513.A5 3604321513	£13.12	£15.75
818/4 - SPRING BSD-3604652501.A38 3604652501	£3.72	£4.47
828 - ROD BSD-2610907864.A20 2610907864	£11.30	£13.56
829 - POINTER BSD-2610907865.A3 2610907865	£10.10	£12.12

Attribute Name	Value
Brand	Bosch
