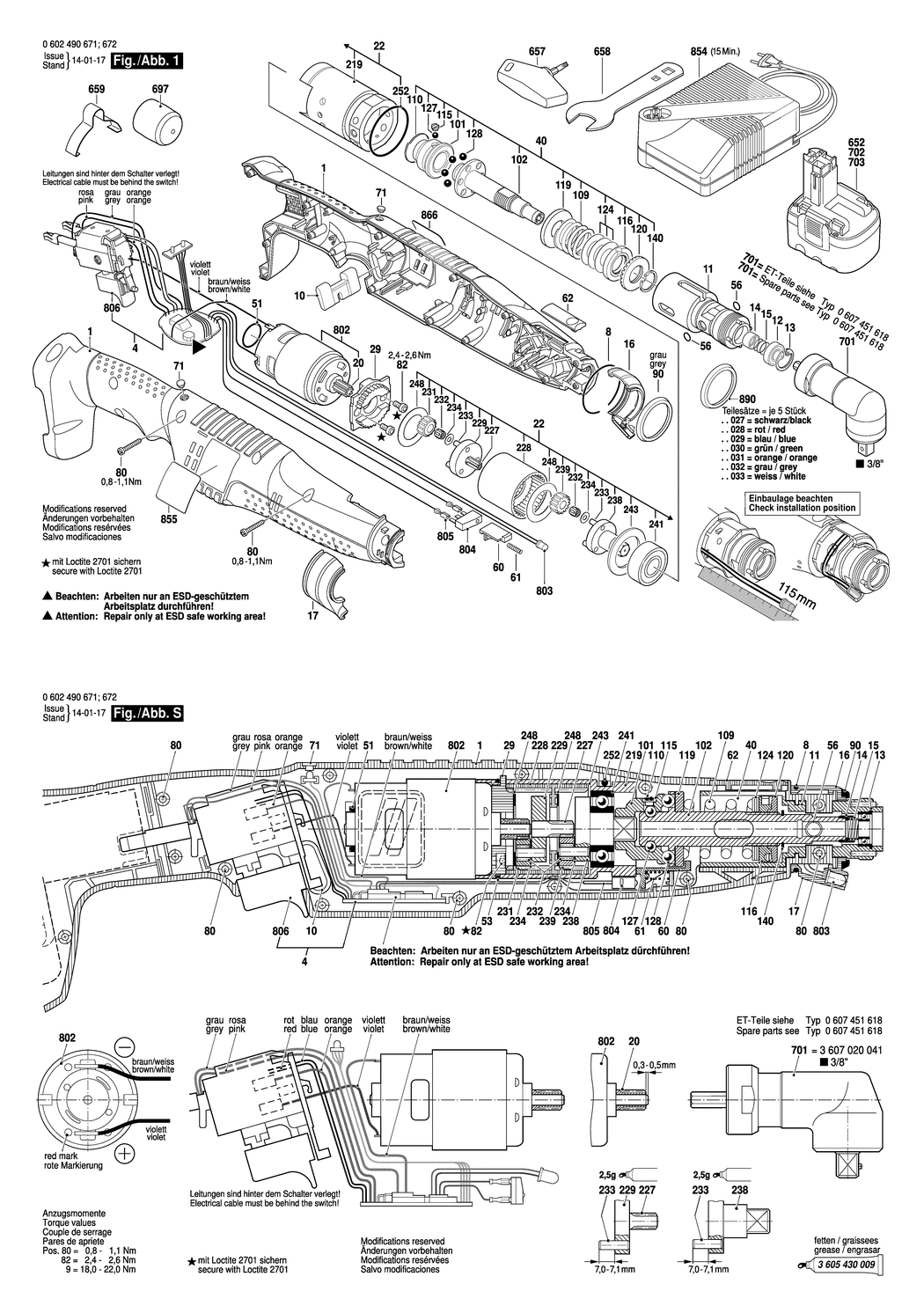

1 - HOUSING SECTION
BSD-3605105025.A0
3605105025
|
£102.57
|
£123.08
|
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200109.A1
3607200109
|
£431.32
|
£517.59
|
|
|
8 - RETAINING RING
BSD-3600224064.A10
3600224064
|
£4.26
|
£5.11
|
|
|
10 - SWITCH SLIDE
BSD-3601099003.A78
3601099003
|
£2.80
|
£3.36
|
|
|
11 - ANGLE FLANGE
BSD-3605700170.A5
3605700170
|
£81.81
|
£98.17
|
|
|
12 - GROOVE BALL BEARING
BSD-1280905004.A71
1280905004
|
£33.22
|
£39.87
|
|
|
13 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A1
2916660003
|
£1.75
|
£2.10
|
|
|
14 - SLEEVE
BSD-3600423004.A10
3600423004
|
£5.58
|
£6.70
|
|
|
15 - COMPRESSION SPRING
BSD-3604611037.A16
3604611037
|
£5.57
|
£6.68
|
|
|
16 - LED-HOLDER
BSD-3605105023.A0
3605105023
|
£10.10
|
£12.12
|
|
|
17 - LED-HOLDER
BSD-3605105024.A11
3605105024
|
£10.61
|
£12.73
|
|
|
20 - PINION
BSD-3606300137.A4
3606300137
|
£50.80
|
£60.96
|
|
|
22 - PLANETARY GEAR TRAIN
BSD-3607030426.A1
3607030426
|
£264.25
|
£317.10
|
|
|
29 - INTERMEDIATE FLANGE
BSD-3605805038.A6
3605805038
|
£13.12
|
£15.75
|
|
|
40 - ASSEMBLY KIT
BSD-3607031578.A1
3607031578
|
£306.65
|
£367.98
|
|
|
51 - O-RING 15x3 MM
BSD-1900210114.A4
1900210114
|
£2.74
|
£3.29
|
|
|
56 - O-RING 6.0x1.5 MM
BSD-3600210130.A6
3600210130
|
£2.61
|
£3.13
|
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A8
3601923022
|
£5.30
|
£6.36
|
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A58
3604611022
|
£3.72
|
£4.47
|
|
|
62 - PUSHER
BSD-3601923029.A11
3601923029
|
£5.30
|
£6.36
|
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A77
3604460132
|
£2.94
|
£3.53
|
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A820
2603490018
|
£1.75
|
£2.10
|
|
|
82 - MICROENCAPSULATED SCREW DIN 912 M 4x8-8.8
BSD-2914555131.A6
2914555131
|
£2.16
|
£2.59
|
|
|
90 - RING
BSD-3600106020.A2
3600106020
|
£4.26
|
£5.11
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A775
3601119236
|
£3.91
|
£4.69
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445044.A1
3606445044
|
£135.25
|
£162.30
|
|
|
102 - OUTPUT SHAFT
BSD-3603124025.A6
3603124025
|
£120.11
|
£144.13
|
|
|
109 - COMPRESSION SPRING
BSD-3604619015.A2
3604619015
|
£6.52
|
£7.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A0
3604601001
|
£2.16
|
£2.59
|
|
|
115 - SEALING PLATE
BSD-3600001000.A82
3600001000
|
£2.80
|
£3.36
|
|
|
116 - SETTING RING
BSD-3600134015.A0
3600134015
|
£31.64
|
£37.97
|
|
|
119 - SUPPORT DISC
BSD-3600190039.A7
3600190039
|
£21.68
|
£26.01
|
|
|
120 - CATCH DISK
BSD-3603344052.A0
3603344052
|
£31.64
|
£37.97
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A84
3600101002
|
£2.16
|
£2.59
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A418
1903230009
|
£1.84
|
£2.21
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A285
1903230011
|
£2.74
|
£3.29
|
|
|
140 - SPRING RETAINING RING DIN471-15x1-FST
BSD-2916659006.A7
2916659006
|
£1.75
|
£2.10
|
|
|
219 - GEAR HOUSING
BSD-3605806216.A1
3605806216
|
£71.84
|
£86.21
|
|
|
227 - PINION
BSD-3606300138.A1
3606300138
|
£59.53
|
£71.44
|
|
|
228 - RING GEAR Z=42
BSD-3606334054.A41
3606334054
|
£10.10
|
£12.12
|
|
|
229 - CARRIER
BSD-3606337210.A2
3606337210
|
£22.76
|
£27.31
|
|
|
231 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A40
3606316075
|
£14.08
|
£16.89
|
|
|
232 - NEEDLE-ROLLER CAGE
BSD-3600913006.A40
3600913006
|
£7.72
|
£9.27
|
|
|
233 - NEEDLE ROLLER
BSD-3603201047.A7
3603201047
|
£1.84
|
£2.21
|
|
|
234 - SHIM 0.20 MM
BSD-2600100586.A33
2600100586
|
£1.84
|
£2.21
|
|
|
238 - PLANETARY-GEAR CARRIER
BSD-3606337211.A2
3606337211
|
£39.13
|
£46.96
|
|
|
239 - CYLINDRICAL GEAR
BSD-3606316111.A17
3606316111
|
£22.60
|
£27.12
|
|
|
241 - GROOVE BALL BEARING
BSD-3600905045.A23
3600905045
|
£16.41
|
£19.69
|
|
|
243 - STOP DISC
BSD-3600102021.A64
3600102021
|
£3.72
|
£4.47
|
|
|
248 - STOP DISC
BSD-3600101040.A42
3600101040
|
£2.16
|
£2.59
|
|
|
252 - O-RING 37.69x3.53 MM
BSD-3600210128.A10
3600210128
|
£5.30
|
£6.36
|
|
|
652 - SLIDE-IN ACCU PACKAGE 14.4V.2.0Ah.NiCd
BSD-2607335263.A10
2607335263
|
-
|
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A146
3607950027
|
£15.65
|
£18.78
|
|
|
658 - SINGLE-HEAD ENG. WRENCH
BSD-3601376007.A38
3601376007
|
£10.61
|
£12.73
|
|
|
659 - SUSPENSION LOOP
BSD-3601923017.A20
3601923017
|
£22.76
|
£27.31
|
|
|
697 - PROTECTIVE CAP 25.4x25.4 MM
BSD-3608872557.A26
3608872557
|
£2.80
|
£3.36
|
|
|
701 - ANGLE SCREWDRIVER HEAD
BSD-3607020041.A6
3607020041
|
£1006.71
|
£1208.05
|
|
|
702 - SLIDE-IN ACCU PACKAGE
BSD-2607335881.A0
2607335881
|
£161.73
|
£194.08
|
|
|
703 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah
BSD-2607335655.A19
2607335655
|
£167.68
|
£201.22
|
|
|
802 - DC MOTOR 14.4V
BSD-3607031579.A5
3607031579
|
£120.11
|
£144.13
|
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3609202980.A0
3609202980
|
£22.76
|
£27.31
|
|
|
804 - MICROSWITCH
BSD-3609202762.A41
3609202762
|
£28.59
|
£34.31
|
|
|
805 - PLUG SET
BSD-3609202766.A50
3609202766
|
£6.85
|
£8.22
|
|
|
806 - SWITCH
BSD-3607200083.A30
3607200083
|
£62.51
|
£75.01
|
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A156
2607225027
|
£126.12
|
£151.34
|
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A16
2607225029
|
£92.47
|
£110.96
|
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A131
2607225031
|
£98.11
|
£117.73
|
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A15
2607225033
|
-
|
|
|
|
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN.
BSD-2607225035.A113
2607225035
|
-
|
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A89
2607224435
|
£120.11
|
£144.13
|
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A15
2607225039
|
£84.64
|
£101.57
|
|
|
855 - NAMEPLATE
BSD-16070312AD.A0
16070312AD
|
£4.26
|
£5.11
|
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119302.A0
3601119302
|
£6.52
|
£7.83
|
|
|
890 - PARTS SET
BSD-3600106027.A46
3600106027
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106028.A22
3600106028
|
£21.52
|
£25.83
|
|
|
890 - PARTS SET
BSD-3600106029.A46
3600106029
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106030.A22
3600106030
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106031.A46
3600106031
|
£23.86
|
£28.63
|
|
|
890 - PARTS SET
BSD-3600106032.A22
3600106032
|
£21.68
|
£26.01
|
|
|
890 - PARTS SET
BSD-3600106033.A46
3600106033
|
£21.52
|
£25.83
|
|
