Bosch GBH 12-52 DV / 3611B66160 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

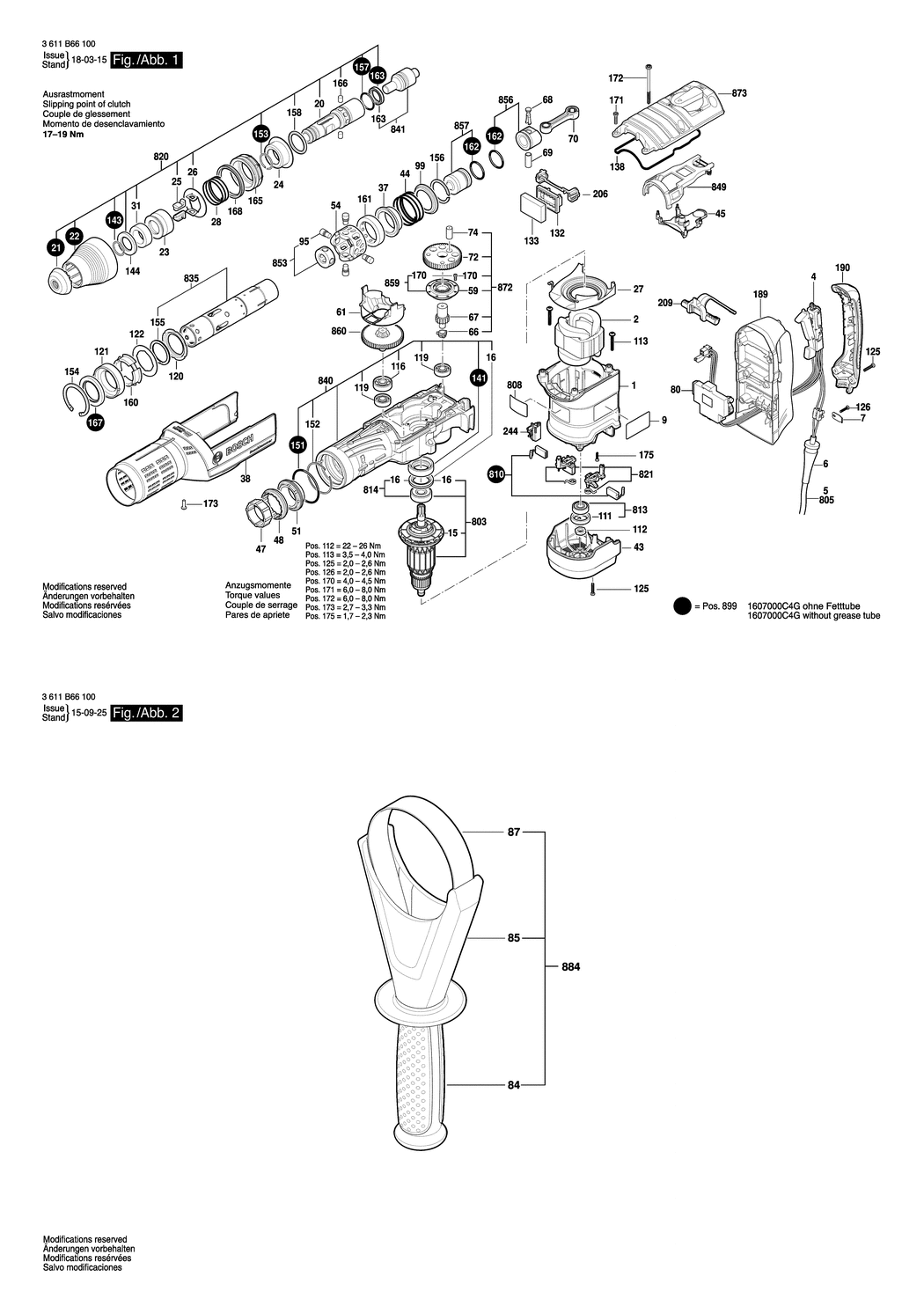

An exploded drawing and listing for the Bosch GBH 12-52 DV / 3611B66160 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108172.A10 1615108172	£39.13	£46.96
2 - FIELD BSD-160422023R.A0 160422023R	£75.79	£90.95
4 - SWITCH BSD-1617200130.A14 1617200130	£39.17	£47.00
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A15 1604460201	£37.27	£44.72
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A36 1610703053	£2.74	£3.29
7 - FASTENING CLAMP BSD-1601302018.A142 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C065.A3 160111C065	£2.74	£3.29
15 - FAN BSD-1616610114.A5 1616610114	£12.04	£14.45
16 - CLAMP RING BSD-1600A0015D.A6 1600A0015D	£2.61	£3.13
20 - TOOLHOLDER BSD-1618597105.A6 1618597105	£135.25	£162.30
21 - PROTECTIVE CAP BSD-1600A001XC.A8 1600A001XC	£5.57	£6.68
22 - PROTECTION SLEEVE BSD-1610591054.A10 1610591054	£8.67	£10.41
23 - STOP SLEEVE BSD-1610520007.A11 1610520007	£12.64	£15.17
24 - HEADED BUSH BSD-1610500026.A2 1610500026	£5.87	£7.04
25 - STOPPING DEVICE BSD-1612300025.A31 1612300025	£9.11	£10.93
26 - INDEXING DISK BSD-1610290027.A32 1610290027	£3.91	£4.69
27 - AIR-DEFLECTOR RING BSD-1600591056.A10 1600591056	£2.80	£3.36
28 - COMPRESSION SPRING BSD-1614621017.A2 1614621017	£3.72	£4.47
31 - DAMPING RING BSD-1610290123.A2 1610290123	£3.91	£4.69
37 - CONTROL BUSHING BSD-1610322019.A11 1610322019	£6.85	£8.22
38 - COVERING HOOD BSD-1600A004BM.A0 1600A004BM	£27.23	£32.68
43 - BRUSH-COVER BSD-1615500447.A9 1615500447	£11.30	£13.56
44 - COMPRESSION SPRING BSD-1614621016.A10 1614621016	£3.91	£4.69
45 - HOLDING-DOWN-APPLIANCE BSD-1610591053.A2 1610591053	£2.16	£2.59
47 - GEAR SLEEVE BSD-1610300082.A3 1610300082	£7.72	£9.27
48 - CLUTCH SLEEVE BSD-1619990179.A7 1619990179	£10.10	£12.12
51 - CROWN GEAR BSD-1616333053.A7 1616333053	£81.81	£98.17
54 - SPACER TUBE BSD-1600A00218.A1 1600A00218	£4.48	£5.37
59 - BEARING PEDESTAL BSD-1615805079.A10 1615805079	£12.64	£15.17
61 - GREASE DISTRIBUTOR BSD-1600A0015E.A5 1600A0015E	£4.48	£5.37
66 - RUBBER RING BSD-1600210246.A4 1600210246	£2.27	£2.72
67 - ECCENTRIC SHAFT BSD-1600A000XS.A4 1600A000XS	£16.41	£19.69
68 - PICKUP CLIP BSD-1600A0015F.A7 1600A0015F	£1.84	£2.21
69 - PISTON PIN BSD-1613100040.A4 1613100040	£2.27	£2.72
70 - CONNECTING ROD BSD-1600A001Y6.A11 1600A001Y6	£22.76	£27.31
72 - ECCENTRIC COG WHEEL BSD-1616317622.A5 1616317622	£27.23	£32.68
74 - ECCENTRIC BOLT BSD-1600A000XT.A8 1600A000XT	£5.57	£6.68
80 - SPEED GOVERNOR BSD-1607233461.A0 1607233461	£85.90	£103.08
80 - SPEED GOVERNOR BSD-1607233460.A1 1607233460	£75.79	£90.95
84 - AUXILIARY HANDLE BSD-160202507H.A426 160202507H	£11.87	£14.24
85 - SUPPORT CLAMP BSD-1618040097.A7 1618040097	£8.67	£10.41
87 - CLAMPING BAND BSD-1611316038.A2 1611316038	£8.67	£10.41
95 - DRIVING PIN BSD-1613120025.A7 1613120025	£5.30	£6.36
99 - SUPPORTING DISC BSD-1600A005BD.A6 1600A005BD	£7.36	£8.83
111 - BUSHING BSD-1615801027.A4 1615801027	£5.57	£6.68
112 - HEX NUT BSD-1613300009.A8 1613300009	£2.27	£2.72
113 - TORX OVAL-HEAD SCREW BSD-160343507A.A8 160343507A	£1.84	£2.21
116 - GROOVE BALL BEARING 12x37x12 BSD-1600905035.A16 1600905035	£10.61	£12.73
119 - GROOVE BALL BEARING BSD-1600900041.A3 1600900041	£5.30	£6.36
120 - SPACER BUSHING BSD-1610190078.A3 1610190078	£5.87	£7.04
121 - PLAIN BEARING BSD-1615805080.A2 1615805080	£14.91	£17.89
122 - SPACER RING BSD-1610290122.A10 1610290122	£2.80	£3.36
125 - TORX OVAL-HEAD SCREW BSD-1613435040.A7 1613435040	£2.27	£2.72
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1028 2603490023	£1.84	£2.21
132 - COVER BSD-160550044M.A5 160550044M	£1.75	£2.10
133 - FELT BSD-1610205016.A10 1610205016	£2.27	£2.72
138 - SEALING FRAME BSD-1611015065.A10 1611015065	£5.57	£6.68
141 - SHAFT SEAL BSD-1610290119.A2 1610290119	£4.26	£5.11
143 - RETAINING RING BSD-1614601071.A7 1614601071	£2.27	£2.72
144 - SUPPORTING DISC BSD-1610101023.A16 1610101023	£3.72	£4.47
151 - O-RING BSD-1610210236.A6 1610210236	£1.75	£2.10
152 - RETAINING RING BSD-1614601022.A6 1614601022	£2.74	£3.29
153 - RETAINING RING DIN 7993-A32 BSD-2916540018.A179 2916540018	£3.91	£4.69
154 - SPRING RETAINING RING DIN 472-68x2.5MM BSD-2916660040.A4 2916660040	£2.16	£2.59
155 - SPRING RETAINING RING BSD-1614601080.A5 1614601080	£1.84	£2.21
156 - SPRING RETAINING RING BSD-160015001V.A10 160015001V	£2.94	£3.53
157 - O-RING BSD-1610210238.A6 1610210238	£1.84	£2.21
158 - RUBBER RING BSD-1610210239.A6 1610210239	£1.84	£2.21
160 - DAMPING RING BSD-1610210240.A6 1610210240	£2.94	£3.53
161 - DAMPING RING BSD-1610210241.A6 1610210241	£13.78	£16.54
162 - O-RING BSD-1610210237.A6 1610210237	£2.94	£3.53
163 - SEAL RING BSD-1610210242.A6 1610210242	£13.78	£16.54
165 - SEAL FASTENER BSD-1600A000XU.A3 1600A000XU	£2.61	£3.13
166 - CYLINDRICAL ROLLER BSD-1613200022.A5 1613200022	£1.84	£2.21
167 - ROTARY SHAFT LIP SEAL BSD-1610290124.A8 1610290124	£10.61	£12.73
168 - SEAL RING BSD-1600A001XD.A5 1600A001XD	£2.94	£3.53
170 - TORX SOCKET BUTTON SCREW BSD-1600A0015H.A7 1600A0015H	£1.75	£2.10
171 - TORX SOCKET BUTTON SCREW BSD-1613414026.A28 1613414026	£2.74	£3.29
172 - TORX OVAL-HEAD SCREW BSD-1613435041.A22 1613435041	£1.75	£2.10
173 - TORX OVAL-HEAD SCREW M5x20 BSD-1613490024.A12 1613490024	£1.75	£2.10
175 - TORX OVAL-HEAD SCREW BSD-160343507D.A5 160343507D	£1.84	£2.21
189 - HANDLE BSD-161513213B.A1 161513213B	£23.86	£28.63
190 - HANDLE COVER BSD-1615500438.A11 1615500438	£17.22	£20.67
206 - RETAINING PART BSD-1612386007.A7 1612386007	£1.75	£2.10
209 - CONTROL LEVER BSD-1600A002ST.A2 1600A002ST	£3.72	£4.47
244 - PLUG HOUSING BSD-1600A0013J.A7 1600A0013J	£1.84	£2.21
691 - CARRYING CASE BSD-1615438705.A10 1615438705	£62.51	£75.01
803 - ARMATURE ASSEMBLY BSD-1607000C55.A0 1607000C55	£251.67	£302.00
808 - NAMEPLATE BSD-160111A3H5.A415 160111A3H5	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-1607000C56.A1 1607000C56	£28.59	£34.31
813 - GROOVE BALL BEARING BSD-1607000C40.A7 1607000C40	£25.05	£30.06
814 - GROOVE BALL BEARING BSD-1607000C41.A5 1607000C41	£31.64	£37.97
820 - TOOL HOLDER SET BSD-1607000C42.A7 1607000C42	£218.41	£262.09
821 - BRUSH HOLDER BSD-1607000C5J.A0 1607000C5J	£31.64	£37.97
835 - HAMMER PIPE BSD-1607000C43.A4 1607000C43	£156.22	£187.46
840 - IMPACT MECHANISM HOUSING BSD-1607000C44.A8 1607000C44	£264.25	£317.10
841 - STRIKER PIN BSD-1607000C45.A4 1607000C45	£57.14	£68.57
849 - CONTROL FORK BSD-1607000C46.A8 1607000C46	£13.12	£15.75
853 - GUIDE BUSHING BSD-1607000C47.A4 1607000C47	£50.80	£60.96
856 - HAMMER PISTON BSD-1607000C48.A8 1607000C48	£31.64	£37.97
857 - STRIKER BSD-1607000C49.A4 1607000C49	£42.84	£51.41
859 - BEARING PEDESTAL BSD-1607000C4A.A8 1607000C4A	£35.42	£42.51
860 - SPUR WHEEL CLUTCH BSD-1607000C4B.A4 1607000C4B	£142.02	£170.42
872 - ECCENTRIC BSD-1607000C4C.A8 1607000C4C	£98.57	£118.28
873 - HOUSING COVER BSD-1607000C4D.A4 1607000C4D	£54.42	£65.30
884 - AUXILIARY HANDLE BSD-1607000C4E.A8 1607000C4E	£37.27	£44.72
899 - SERVICE PACKAGE BSD-1607000C57.A0 1607000C57	£72.18	£86.62
