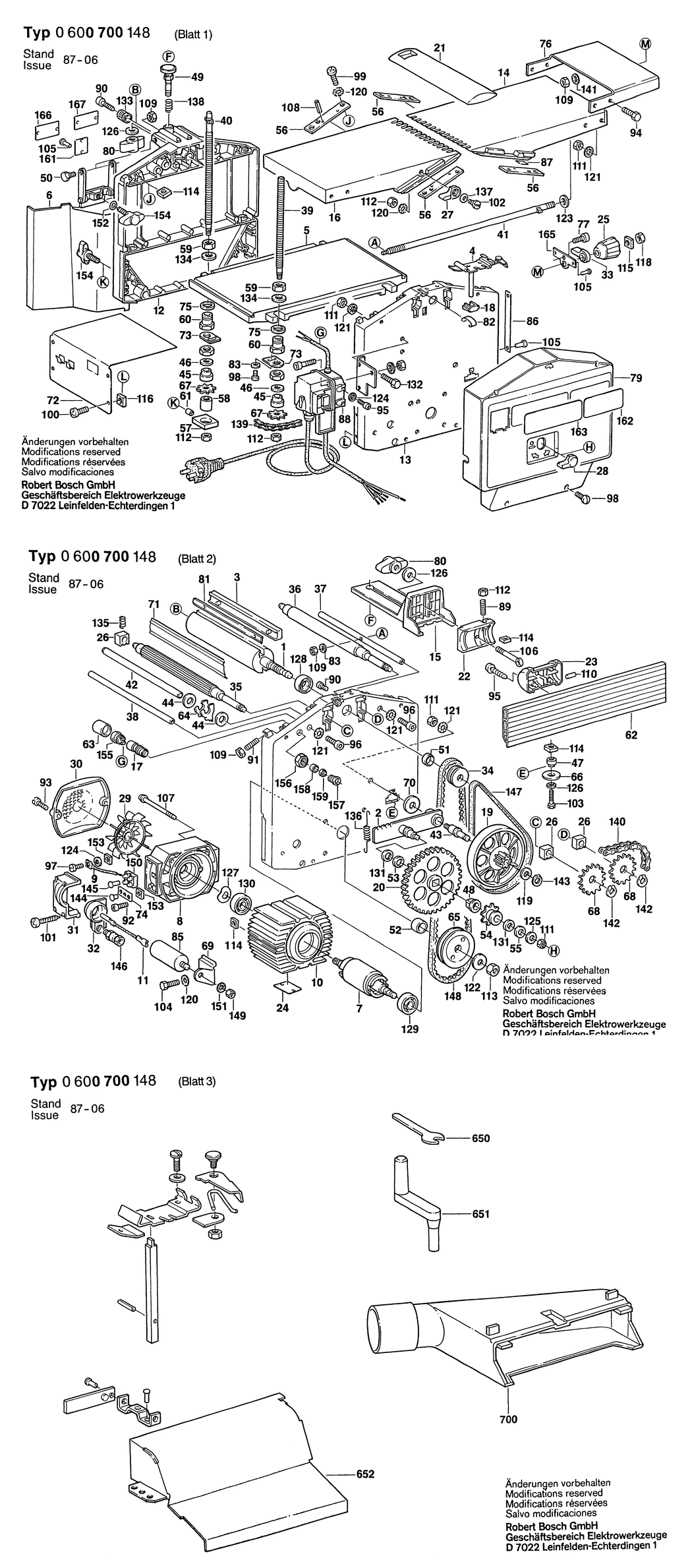

1 - PLANER SHAFT
BSD-1609202053.A0
1609202053
|
-
|
|
|
|
2 - TENSIONING LEVER
BSD-1609202054.A0
1609202054
|
-
|
|
|
|
3 - CLAMPING JAWS
BSD-1609202023.A6
1609202023
|
-
|
|
|
|
4 - GUIDE PIECE
BSD-1609202141.A0
1609202141
|
-
|
|
|
|
4/70 - SHOULDER SCREW
BSD-1609202138.A0
1609202138
|
-
|
|
|
|
5 - PLANING TABLE
BSD-1609202024.A0
1609202024
|
-
|
|
|
|
6 - COVERING HOOD
BSD-1609202055.A0
1609202055
|
-
|
|
|
|
7 - ROTOR
BSD-1609202026.A6
1609202026
|
-
|
|
|
|
8 - BEARING HOUSING
BSD-1609202027.A0
1609202027
|
-
|
|
|
|
9 - EARTH CONDUCTOR
BSD-1609202051.A6
1609202051
|
-
|
|
|
|
10 - STATOR 230V
BSD-1609202028.A6
1609202028
|
-
|
|
|
|
11 - CONNECTING CABLE
BSD-1609202052.A0
1609202052
|
-
|
|
|
|
12 - REAR HOUSING SECTION
BSD-1609202166.A0
1609202166
|
-
|
|
|
|
13 - FRONT HOUSING
BSD-1609202167.A0
1609202167
|
-
|
|
|
|
14 - TABLE TOP
BSD-1609202168.A0
1609202168
|
-
|
|
|
|
15 - STRIKER BAR
BSD-1609202164.A3
1609202164
|
-
|
|
|
|
16 - TABLE TOP
BSD-1609202169.A0
1609202169
|
-
|
|
|
|
17 - SWITCH SUPPORT
BSD-1609202111.A0
1609202111
|
-
|
|
|
|
18 - MOUNTING SHANK
BSD-1609202112.A0
1609202112
|
-
|
|
|
|
19 - PULLEY
BSD-1609202173.A0
1609202173
|
-
|
|
|
|
20 - TOOTHED GEAR
BSD-1609202156.A0
1609202156
|
-
|
|
|
|
21 - PROTECTIVE COVER
BSD-1609202158.A0
1609202158
|
-
|
|
|
|
22 - SWIVEL BEARING
BSD-1609202143.A6
1609202143
|
-
|
|
|
|
23 - SWIVEL HEAD
BSD-1609202144.A0
1609202144
|
-
|
|
|
|
24 - NAMEPLATE
BSD-1601110544.A0
1601110544
|
-
|
|
|
|
25 - STAR KNOB
BSD-1609202067.A6
1609202067
|
-
|
|
|
|
26 - BEARING SLEEVE
BSD-1609202068.A0
1609202068
|
-
|
|
|
|
27 - TENSIONING LEVER
BSD-1609202069.A6
1609202069
|
-
|
|
|
|
28 - TENSIONING LEVER
BSD-1609202113.A0
1609202113
|
-
|
|
|
|
29 - FAN
BSD-1609202145.A6
1609202145
|
-
|
|
|
|
30 - FAN COVER
BSD-1609202146.A0
1609202146
|
-
|
|
|
|
31 - COVERING HOOD
BSD-1609202147.A6
1609202147
|
-
|
|
|
|
32 - CAPACITOR HOLDER
BSD-1609202070.A0
1609202070
|
-
|
|
|
|
33 - TENSIONING LEVER
BSD-1609202114.A0
1609202114
|
-
|
|
|
|
34 - PULLEY
BSD-1609202071.A6
1609202071
|
-
|
|
|
|
35 - DRAW-IN ROLL
BSD-1609202148.A0
1609202148
|
-
|
|
|
|
36 - FEED ROLL
BSD-1609202149.A6
1609202149
|
-
|
|
|
|
37 - STRUT
BSD-1609202072.A0
1609202072
|
-
|
|
|
|
38 - STRUT
BSD-1609202073.A6
1609202073
|
-
|
|
|
|
39 - THREADED SPINDLE
BSD-1609202074.A0
1609202074
|
-
|
|
|
|
40 - THREADED SPINDLE
BSD-1609202075.A6
1609202075
|
-
|
|
|
|
41 - THREADED SPINDLE
BSD-1609202115.A0
1609202115
|
-
|
|
|
|
42 - RETAINING PIN
BSD-1609202116.A0
1609202116
|
-
|
|
|
|
43 - AXLE
BSD-1609202078.A1
1609202078
|
-
|
|
|
|
44 - SPACER SLEEVE
BSD-1609202117.A0
1609202117
|
-
|
|
|
|
45 - BUSHING
BSD-1609202080.A1
1609202080
|
-
|
|
|
|
46 - PLAIN WASHER
BSD-1609202089.A5
1609202089
|
-
|
|
|
|
47 - TENSIONING ROLLER
BSD-1609202082.A1
1609202082
|
-
|
|
|
|
48 - HEADED BUSH
BSD-1609202118.A0
1609202118
|
-
|
|
|
|
49 - LOCK SCREW
BSD-1609202083.A5
1609202083
|
-
|
|
|
|
50 - SHOULDER SCREW
BSD-1609202119.A0
1609202119
|
-
|
|
|
|
51 - SPACER RING
BSD-1609202081.A5
1609202081
|
-
|
|
|
|
52 - SPACER SLEEVE
BSD-1609202084.A1
1609202084
|
-
|
|
|
|
53 - PLAIN WASHER
BSD-1609202120.A0
1609202120
|
-
|
|
|
|
54 - SPROCKET WHEEL
BSD-1609202121.A0
1609202121
|
-
|
|
|
|
55 - PLAIN WASHER
BSD-1609202056.A0
1609202056
|
-
|
|
|
|
56 - GUIDE RAIL
BSD-1609202088.A1
1609202088
|
-
|
|
|
|
57 - CLAMPING PIECE
BSD-1609202122.A0
1609202122
|
-
|
|
|
|
58 - DRIVE BUSHING
BSD-1609202123.A0
1609202123
|
-
|
|
|
|
59 - HEX NUT
BSD-1609202086.A1
1609202086
|
-
|
|
|
|
60 - SPINDLE NUT
BSD-1609202087.A5
1609202087
|
-
|
|
|
|
61 - PRESSURE SPINDLE
BSD-1609202124.A0
1609202124
|
-
|
|
|
|
62 - END STOP
BSD-1609202150.A0
1609202150
|
-
|
|
|
|
63 - COVER
BSD-1609202125.A0
1609202125
|
-
|
|
|
|
64 - SAFETY CATCH
BSD-1609202126.A0
1609202126
|
-
|
|
|
|
65 - PULLEY
BSD-1609202152.A1
1609202152
|
-
|
|
|
|
66 - TENSIONING ROLLER
BSD-1609202092.A1
1609202092
|
-
|
|
|
|
67 - SPROCKET WHEEL
BSD-1609202093.A5
1609202093
|
-
|
|
|
|
69 - GUSSET
BSD-1609202095.A1
1609202095
|
-
|
|
|
|
70 - PLAIN WASHER
BSD-1609202079.A5
1609202079
|
-
|
|
|
|
71 - GUIDE-PLATE
BSD-1609202153.A5
1609202153
|
-
|
|
|
|
73 - TAB WASHER
BSD-1609202096.A5
1609202096
|
-
|
|
|
|
75 - PLAIN WASHER
BSD-1609202139.A0
1609202139
|
-
|
|
|
|
76 - TABLE TOP
BSD-1609202170.A0
1609202170
|
-
|
|
|
|
77 - STUD BOLT
BSD-1609202127.A0
1609202127
|
-
|
|
|
|
79 - PROTECTIVE COVER
BSD-1609202171.A0
1609202171
|
-
|
|
|
|
80 - WING NUT M6
BSD-1603339006.A287
1603339006
|
£2.64
|
£3.17
|
|
|
82 - LEAF SPRING
BSD-1609202128.A0
1609202128
|
-
|
|
|
|
83 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A103
2916011011
|
£1.75
|
£2.10
|
|
|
85 - MOTOR CAPACITOR
BSD-1609202098.A6
1609202098
|
-
|
|
|
|
86 - SCALE
BSD-1609202099.A0
1609202099
|
-
|
|
|
|
87 - REFERENCE PLATE
BSD-1601110532.A3
1601110532
|
-
|
|
|
|
88 - ON-OFF SWITCH
BSD-1609202155.A0
1609202155
|
-
|
|
|
|
89 - SET SCREW DIN 916-M6x25-45H
BSD-2912061203.A0
2912061203
|
-
|
|
|
|
90 - THREAD-FORMING TAP. SCREW DIN 7500 CM 5x8
BSD-2914411056.A11
2914411056
|
-
|
|
|
|
91 - SET SCREW DIN 913-M5x20-45H
BSD-2912041162.A7
2912041162
|
-
|
|
|
|
92 - SOCKET HEAD CAP SCREW
BSD-1609202047.A0
1609202047
|
-
|
|
|
|
93 - OVAL-HEAD SCREW M5x15 MM
BSD-1609201870.A6
1609201870
|
-
|
|
|
|
94 - HEX SCREW DIN 933 8x16-8.8
BSD-2911061238.A5
2911061238
|
-
|
|
|
|
95 - TAPPING SCREW DIN 7981 ST 3.9x19-F-H
BSD-2910611420.A11
2910611420
|
-
|
|
|
|
96 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8
BSD-2910141242.A167
2910141242
|
£1.84
|
£2.21
|
|
|
97 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A79
2910110118
|
£1.84
|
£2.21
|
|
|
98 - THREAD-FORMING TAP. SCREW DIN 7500-M5x10MM
BSD-2914411257.A3
2914411257
|
-
|
|
|
|
99 - OVAL-HEAD SCREW M6x20 DIN 7985-4.8
BSD-2910641201.A4
2910641201
|
-
|
|
|
|
100 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A151
2603410048
|
£1.84
|
£2.21
|
|
|
101 - TAPPING SCREW DIN 7981-ST 3.9x45-F-H
BSD-2910611494.A2
2910611494
|
-
|
|
|
|
103 - HEX SCREW M 6x20 DIN 933-8.8
BSD-2911061201.A9
2911061201
|
-
|
|
|
|
104 - HEX SCREW DIN 933-M 6x16-8.8
BSD-2911061197.A10
2911061197
|
-
|
|
|
|
105 - ROUND-HEAD GROOVED PIN 2x4 DIN 1476 ST
BSD-2917721032.A4
2917721032
|
-
|
|
|
|
106 - EYE BOLT M6
BSD-1609202030.A6
1609202030
|
-
|
|
|
|
107 - COLLAR SCREW M5x133 MM
BSD-1609202106.A6
1609202106
|
-
|
|
|
|
108 - SET SCREW
BSD-1609202327.A3
1609202327
|
-
|
|
|
|
109 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A266
2915011006
|
-
|
|
|
|
110 - STRAIGHT PIN DIN 7-3h6x20-ST
BSD-2917621149.A5
2917621149
|
-
|
|
|
|
111 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A243
2915011009
|
£2.74
|
£3.29
|
|
|
112 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A6
2915011007
|
-
|
|
|
|
113 - HEX NUT
BSD-1609202050.A0
1609202050
|
-
|
|
|
|
114 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A7
2915011007
|
-
|
|
|
|
115 - SQUARE NUT DIN 562-M8-04
BSD-2915121007.A6
2915121007
|
£1.84
|
£2.21
|
|
|
116 - PARTS SET
BSD-2609201067.A9
2609201067
|
-
|
|
|
|
118 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A242
2915011009
|
£2.74
|
£3.29
|
|
|
119 - PLAIN WASHER
BSD-1609202033.A0
1609202033
|
-
|
|
|
|
120 - LOCKING WASHER dia6 MM
BSD-1609202031.A0
1609202031
|
-
|
|
|
|
121 - LOCKING WASHER dia8 MM
BSD-1609202032.A6
1609202032
|
-
|
|
|
|
122 - PLAIN WASHER DIN 125-A15-ST
BSD-2916011022.A3
2916011022
|
£1.84
|
£2.21
|
|
|
123 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A68
2916011016
|
£1.84
|
£2.21
|
|
|
124 - LOCKING WASHER dia4 MM
BSD-1609202034.A6
1609202034
|
-
|
|
|
|
125 - PLAIN WASHER DIN 9021-B 8.4-ST
BSD-2916011895.A13
2916011895
|
£1.84
|
£2.21
|
|
|
126 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A4
2916011884
|
-
|
|
|
|
127 - SPRING WASHER
BSD-1609202035.A0
1609202035
|
-
|
|
|
|
128 - GROOVE BALL BEARING 15x35x11
BSD-1900905279.A25
1900905279
|
£11.87
|
£14.24
|
|
|
129 - GROOVE BALL BEARING DIN 625-6302-2 Z
BSD-1609202036.A6
1609202036
|
-
|
|
|
|
130 - GROOVE BALL BEARING 17x40x12
BSD-1900905281.A64
1900905281
|
£33.22
|
£39.87
|
|
|
131 - NEEDLE-ROLLER ASSEMBLY
BSD-1609202058.A0
1609202058
|
-
|
|
|
|
132 - HEX SCREW DIN 933-M8x25-8.8
BSD-2911061244.A2
2911061244
|
-
|
|
|
|
133 - NOZZLE SOCKET
BSD-1609202037.A0
1609202037
|
-
|
|
|
|
134 - SHIM RING
BSD-1609202038.A6
1609202038
|
-
|
|
|
|
135 - COMPRESSION SPRING
BSD-1609202107.A0
1609202107
|
-
|
|
|
|
136 - EXTENSION SPRING
BSD-1609202108.A6
1609202108
|
-
|
|
|
|
137 - DISC SPRING DIN 2093-A16 GR 1
BSD-2916160055.A4
2916160055
|
-
|
|
|
|
138 - COMPRESSION SPRING
BSD-1609202109.A0
1609202109
|
-
|
|
|
|
139 - LINK CHAIN
BSD-1609202040.A6
1609202040
|
-
|
|
|
|
140 - PARTS SET
BSD-1609202359.A3
1609202359
|
-
|
|
|
|
141 - LOCKING WASHER dia5 MM
BSD-1609202066.A0
1609202066
|
-
|
|
|
|
142 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A42
2916650003
|
£1.75
|
£2.10
|
|
|
143 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A228
2916650001
|
£2.74
|
£3.29
|
|
|
145 - ROUND-HEAD GROOVED PIN 3x18 MM
BSD-1609202048.A5
1609202048
|
-
|
|
|
|
146 - COMPRESSION GLAND
BSD-1609202043.A0
1609202043
|
-
|
|
|
|
147 - FLAT BELT 22x3x625 MM
BSD-1609202044.A6
1609202044
|
-
|
|
|
|
148 - V-BELT 9.5x850 MM
BSD-1609202045.A0
1609202045
|
-
|
|
|
|
149 - HEX NUT DIN 439-B M12-04
BSD-2915051119.A0
2915051119
|
-
|
|
|
|
150 - SOCKET-TERMINAL STRIP
BSD-1609202046.A6
1609202046
|
-
|
|
|
|
151 - SERRATED LOCK-WASHER DIN 6798-A12.5-FST
BSD-2916070013.A3
2916070013
|
-
|
|
|
|
152 - O-RING
BSD-1609202057.A0
1609202057
|
-
|
|
|
|
153 - SQUARE NUT DIN 562-M4-04
BSD-2915121004.A0
2915121004
|
-
|
|
|
|
154 - WING SCREW M6
BSD-1603480018.A116
1603480018
|
£2.27
|
£2.72
|
|
|
155 - PUSH-BUTTON
BSD-1609202059.A0
1609202059
|
-
|
|
|
|
156 - TRANSPORT CASE
BSD-1609202060.A0
1609202060
|
-
|
|
|
|
157 - PRESSURE SCREW
BSD-1609202061.A0
1609202061
|
-
|
|
|
|
158 - SEAL RING
BSD-1609202062.A0
1609202062
|
-
|
|
|
|
159 - ADAPTOR PLATE
BSD-1609202063.A0
1609202063
|
-
|
|
|
|
161 - REFERENCE PLATE
BSD-1601110543.A0
1601110543
|
-
|
|
|
|
162 - NAMEPLATE
BSD-1601107030.A0
1601107030
|
-
|
|
|
|
163 - REFERENCE PLATE
BSD-1601107031.A0
1601107031
|
-
|
|
|
|
165 - REFERENCE PLATE
BSD-1601107029.A0
1601107029
|
-
|
|
|
|
166 - MANUFACTURER'S NAMEPLATE
BSD-1601110542.A3
1601110542
|
-
|
|
|
|
167 - REFERENCE PLATE
BSD-1601110541.A3
1601110541
|
-
|
|
|
|
650 - SINGLE-HEAD ENG. WRENCH
BSD-2607950504.A77
2607950504
|
£2.64
|
£3.17
|
|
|
651 - CRANK HANDLE
BSD-1609201884.A8
1609201884
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A195
1607000228
|
£23.86
|
£28.63
|
|
