Bosch GSR 12 VE-2 / 0601951555 / EU 12 Volt Spare Parts

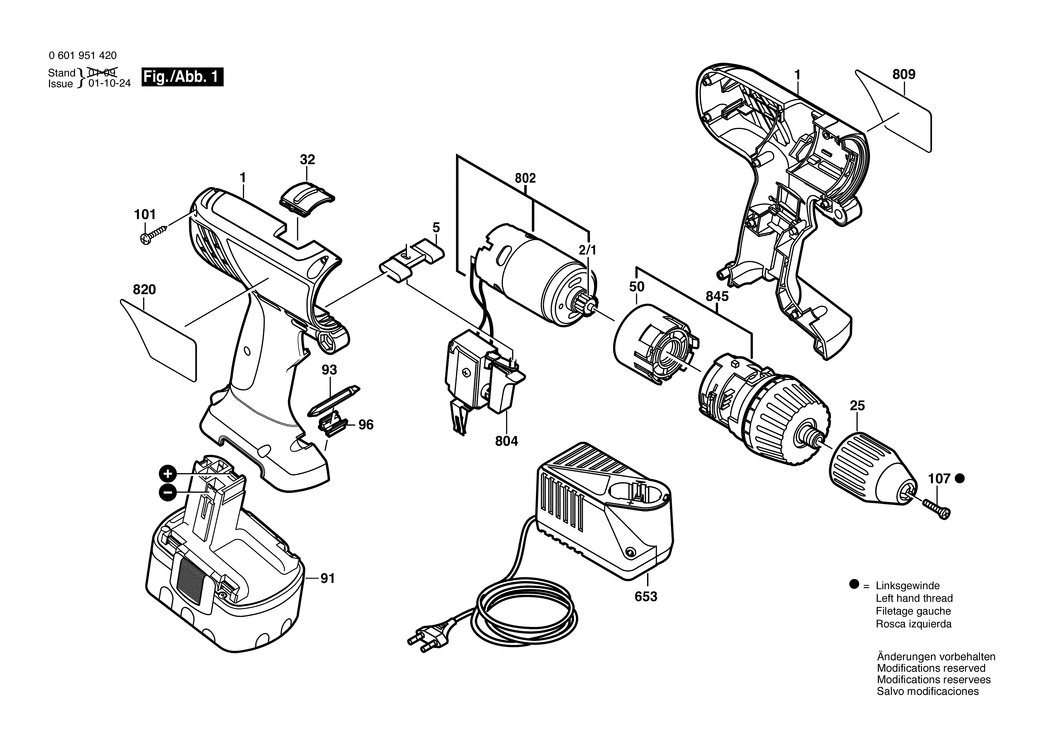

An exploded drawing and listing for the Bosch GSR 12 VE-2 / 0601951555 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105027.A11 2605105027	£19.45	£23.34
2/1 - PINION BSD-2606316188.A28 2606316188	£2.16	£2.59
5 - ADJUSTING SLIDE BSD-2601099085.A46 2601099085	-
25 - KEYLESS CHUCK BSD-2608572160.A24 2608572160	-
32 - ADJUSTING SLIDE BSD-2601099086.A27 2601099086	£2.16	£2.59
50 - INTERMEDIATE FLANGE BSD-2605719901.A33 2605719901	-
93 - SCREWDRIVER BLADE BSD-2608521018.A57 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A49 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A582 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW BSD-2603421008.A64 2603421008	£1.75	£2.10
802 - DC MOTOR 12V BSD-2607022876.A3 2607022876	£88.07	£105.68
804 - ON-OFF SWITCH BSD-2607200421.A8 2607200421	£48.38	£58.06
809 - MANUFACTURER'S NAMEPLATE GSR 12 PROFI BSD-2601116544.A9 2601116544	£4.26	£5.11
809 - MANUFACTURER'S NAMEPLATE GSR 1200 BSD-2601116987.A0 2601116987	-
820 - NAMEPLATE BSD-2601116137.A1 2601116137	£4.26	£5.11
845 - PLANETARY GEAR TRAIN BSD-2606200917.A3 2606200917	£81.81	£98.17
899 - BATT-OPER SCREWDRIVER BSD-0601951520.A3 0601951520	-
