Bosch GCM 8 SDE / 3601M19270 / GB 230 Volt Spare Parts

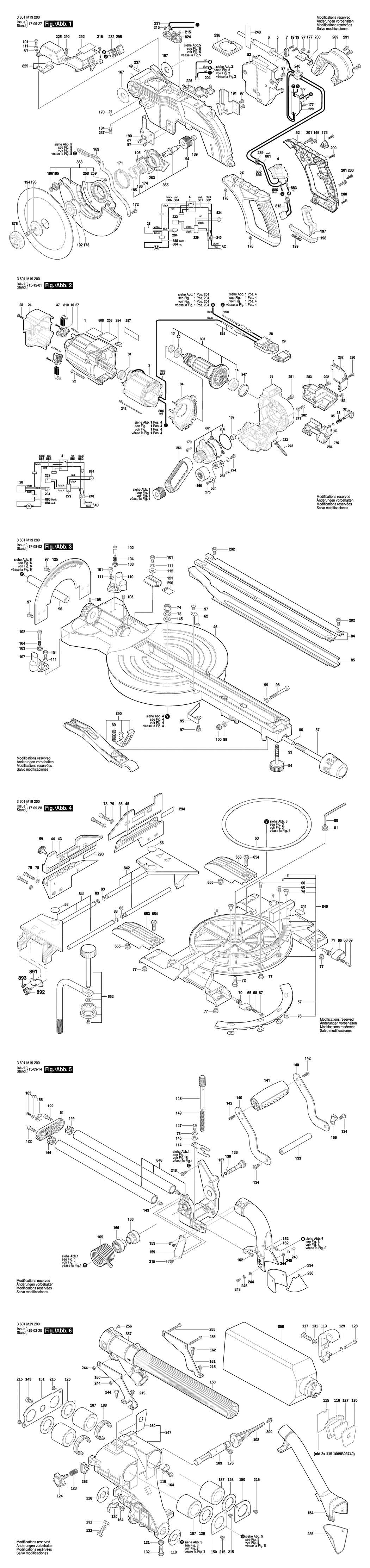

An exploded drawing and listing for the Bosch GCM 8 SDE / 3601M19270 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609B05273.A0 1609B05273	£14.91	£17.89
2 - FIELD 230V BSD-1619P04474.A11 1619P04474	£33.74	£40.49
4 - ON-OFF SWITCH BSD-1609B04211.A16 1609B04211	£12.04	£14.45
5 - POWER SUPPLY CORD GB 3m 2x1mm H05 RN-F BSD-1609B00378.A3 1609B00378	£16.41	£19.69
6 - CORD GUARD BSD-1609BP7095.A1 1609BP7095	£1.75	£2.10
7 - CABLE CLIP BSD-1609B00821.A5 1609B00821	£1.75	£2.10
13 - BALL BEARING BSD-1609B04083.A12 1609B04083	£2.61	£3.13
14 - BALL BEARING BSD-1609B05383.A1 1609B05383	£7.36	£8.83
16 - BRUSH HOLDER BSD-1619P06212.A26 1619P06212	£8.67	£10.41
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A11 1619P03833	£1.75	£2.10
22 - SCREW M5x50 BSD-1609B04055.A0 1609B04055	£1.75	£2.10
24 - END CAP BSD-1609B05275.A0 1609B05275	£1.75	£2.10
25 - SPECIAL SCREW BSD-1609B00921.A7 1609B00921	£1.75	£2.10
27 - RIGHT ANGLE PLUG BSD-1619P06213.A0 1619P06213	£2.40	£2.88
28 - SPEED GOVERNOR BSD-1609B05288.A0 1609B05288	£31.64	£37.97
29 - COVER BSD-1609B05293.A0 1609B05293	£1.75	£2.10
30 - SEALING WASHER BSD-1609B04071.A20 1609B04071	£1.75	£2.10
31 - RUBBER RING BSD-1609B04072.A0 1609B04072	£1.75	£2.10
32 - LOCKING PIN BSD-1609B04049.A0 1609B04049	£1.75	£2.10
33 - COMPRESSION SPRING BSD-1609B04050.A1 1609B04050	£1.75	£2.10
34 - BAFFLE BSD-1609B05271.A1 1609B05271	£1.75	£2.10
35 - CLIP BSD-1609B04051.A0 1609B04051	£1.75	£2.10
36 - MITRE FENCE BSD-1609B04184.A2 1609B04184	£21.52	£25.83
37 - SCREW BSD-1609B04208.A20 1609B04208	£1.75	£2.10
38 - GEAR BOX BSD-1609B04031.A1 1609B04031	£33.74	£40.49
43 - MITRE FENCE BSD-1609B04183.A4 1609B04183	£21.52	£25.83
44 - MITRE FENCE BSD-1609B04182.A2 1609B04182	£21.52	£25.83
45 - MITRE FENCE BSD-1609B04185.A2 1609B04185	£16.41	£19.69
46 - TABLE BSD-1609B03735.A1 1609B03735	£93.88	£112.65
49 - ARM BSD-1609B04030.A0 1609B04030	£59.53	£71.44
51 - END CAP BSD-1609B03746.A0 1609B03746	£6.52	£7.83
52 - SWITCH HANDLE BSD-1609B04009.A4 1609B04009	£21.52	£25.83
53 - JUNCTION BOX BSD-1609B05277.A0 1609B05277	£4.26	£5.11
54 - PULLEY BSD-1609B04035.A0 1609B04035	£8.67	£10.41
56 - WARNING PLATE BSD-1609B00708.A4 1609B00708	£1.75	£2.10
57 - DETENT PLATE BSD-1609B03704.A4 1609B03704	£7.36	£8.83
59 - KNURLED SCREW BSD-1609B05382.A0 1609B05382	£1.75	£2.10
60 - SCREW BSD-1609B03711.A7 1609B03711	£1.75	£2.10
61 - PLAIN WASHER BSD-1609B00863.A0 1609B00863	£1.75	£2.10
62 - POINTER BSD-1609B00717.A4 1609B00717	£1.75	£2.10
63 - WEAR PLATE BSD-1609B03714.A1 1609B03714	£4.26	£5.11
65 - LOCKING LEVER BSD-1609B00232.A11 1609B00232	£1.75	£2.10
66 - LOCKING LEVER BSD-1609B00233.A7 1609B00233	£1.75	£2.10
67 - SHOULDER SCREW BSD-1609B00236.A11 1609B00236	£1.75	£2.10
68 - COMPRESSION SPRING BSD-1609B00237.A11 1609B00237	£1.75	£2.10
69 - SHOULDER SCREW BSD-1609B00238.A11 1609B00238	£1.75	£2.10
70 - LOCK SCREW BSD-1609B01435.A11 1609B01435	£1.75	£2.10
71 - LOCK SCREW BSD-1609B01436.A0 1609B01436	£1.75	£2.10
72 - BOLT BSD-1609B05203.A13 1609B05203	£1.75	£2.10
73 - WASHER BSD-1609B00670.A5 1609B00670	£1.75	£2.10
74 - LOCK NUT BSD-1609B00704.A19 1609B00704	£1.75	£2.10
75 - SPECIAL SCREW BSD-1609B04067.A1 1609B04067	£1.75	£2.10
76 - SPECIAL NUT BSD-1609B04069.A1 1609B04069	£1.75	£2.10
77 - RUBBER BUSHING BSD-1609B00705.A6 1609B00705	£1.75	£2.10
78 - SCREW BSD-1609B03722.A1 1609B03722	£1.75	£2.10
79 - WASHER BSD-1609B00669.A25 1609B00669	£1.75	£2.10
80 - RUBBER RING BSD-1609BP7098.A1 1609BP7098	£1.75	£2.10
81 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A17 1609BP7026	£2.80	£3.36
83 - END CLIP BSD-1609B01992.A4 1609B01992	£1.75	£2.10
84 - SUPPORT PLATE BSD-1609B03717.A8 1609B03717	£6.52	£7.83
85 - DUST TRAY BSD-1609B03718.A1 1609B03718	£2.61	£3.13
86 - ROD BSD-1609B04080.A6 1609B04080	£5.58	£6.70
87 - KNOB BSD-1609B04079.A14 1609B04079	£7.36	£8.83
89 - COMPRESSION SPRING BSD-1609B03721.A8 1609B03721	£1.75	£2.10
93 - CONTACT STRAP BSD-1609BP7341.A15 1609BP7341	£1.75	£2.10
94 - SUPPORTING FOOT BSD-1609B03727.A19 1609B03727	£2.16	£2.59
95 - WEAR PLATE BSD-1609B03729.A1 1609B03729	£1.75	£2.10
96 - PIVOT SHAFT BSD-1609B04108.A20 1609B04108	£4.26	£5.11
97 - SCREW BSD-1609B04086.A0 1609B04086	£2.16	£2.59
98 - SCREW BSD-1609B03723.A19 1609B03723	£1.75	£2.10
99 - PLAIN WASHER BSD-1609B01324.A20 1609B01324	£1.75	£2.10
100 - NUT BSD-1609B01949.A9 1609B01949	£1.75	£2.10
101 - SHOULDER SCREW BSD-1609B01462.A11 1609B01462	£1.75	£2.10
102 - SHOULDER SCREW BSD-1609B01463.A8 1609B01463	£1.75	£2.10
103 - SLIDING BLOCK BSD-1609B01464.A3 1609B01464	£1.75	£2.10
104 - COMPRESSION SPRING BSD-1609B01479.A10 1609B01479	£1.75	£2.10
105 - SET SCREW BSD-1609BP7143.A1 1609BP7143	£1.75	£2.10
106 - SCREW BSD-1609B05391.A1 1609B05391	£1.75	£2.10
107 - DETENT BSD-1609B03760.A1 1609B03760	£11.30	£13.56
108 - CONTROL LEVER BSD-1609B03733.A9 1609B03733	£4.26	£5.11
109 - SHAFT BSD-1609B03734.A0 1609B03734	£14.91	£17.89
110 - DETENT BSD-1609B03761.A1 1609B03761	£6.52	£7.83
111 - WASHER BSD-1609B01668.A0 1609B01668	£1.75	£2.10
112 - WASHER BSD-1609B00675.A18 1609B00675	£1.75	£2.10
113 - LOCKING ELEMENT BSD-1609B03738.A8 1609B03738	£12.04	£14.45
114 - STOP PLATE BSD-1609B03739.A1 1609B03739	£1.75	£2.10
115 - LEAF SPRING BSD-1609B05370.A0 1609B05370	-
116 - LOCK PLATE BSD-1609B03741.A9 1609B03741	£2.61	£3.13
117 - ADJUSTING BOLT BSD-1609B03742.A12 1609B03742	£1.75	£2.10
118 - WEAR PLATE BSD-1609B01457.A18 1609B01457	£1.75	£2.10
119 - POINTER BSD-1609B03756.A0 1609B03756	£1.75	£2.10
120 - POINTER BSD-1609B03759.A1 1609B03759	£1.75	£2.10
121 - DETENT PLATE BSD-1609B03743.A1 1609B03743	£2.16	£2.59
122 - HEX SOCKET HEAD CAP SCREW BSD-1609B03749.A0 1609B03749	£1.75	£2.10
123 - CONTACT STRAP BSD-1609BP7343.A7 1609BP7343	£1.75	£2.10
124 - KNOB BSD-1609B03755.A20 1609B03755	£1.75	£2.10
125 - SCALE PLATE BSD-1609B04054.A1 1609B04054	£16.41	£19.69
126 - FELT WASHER BSD-1609B03763.A13 1609B03763	£1.75	£2.10
127 - FRICTION PLATE BSD-1609B03770.A9 1609B03770	£7.36	£8.83
128 - SHAFT BSD-1609B00370.A27 1609B00370	£1.75	£2.10
129 - RETAINING RING BSD-1609B00690.A23 1609B00690	£1.75	£2.10
130 - FRICTION PLATE BSD-1609B03773.A2 1609B03773	£7.36	£8.83
131 - HEX NUT BSD-1609B01041.A8 1609B01041	£1.75	£2.10
132 - STOP BOLT BSD-1609B03776.A15 1609B03776	£1.75	£2.10
133 - PIVOT PIN BSD-1609B03771.A0 1609B03771	£6.52	£7.83
134 - SHOULDER SCREW BSD-1609B03779.A19 1609B03779	£1.75	£2.10
136 - DETENT PIN BSD-1609B03767.A7 1609B03767	£2.80	£3.36
137 - CLIP BSD-1609B03757.A2 1609B03757	£1.75	£2.10
138 - O-RING BSD-1609B00601.A22 1609B00601	£1.75	£2.10
140 - HANDLE PLATE BSD-1609B03745.A9 1609B03745	£2.80	£3.36
141 - CARRYING HANDLE BSD-1609B03747.A9 1609B03747	£11.30	£13.56
142 - TAPPING SCREW BSD-1609B03768.A2 1609B03768	£1.75	£2.10
143 - SLIDE STOP BSD-1609B03753.A0 1609B03753	£1.75	£2.10
144 - SPECIAL NUT BSD-1609B03752.A20 1609B03752	£3.72	£4.47
145 - SPRING WASHER BSD-1609B00660.A21 1609B00660	£1.75	£2.10
146 - COVER BSD-1609B04200.A7 1609B04200	£1.75	£2.10
147 - SHOULDER SCREW BSD-1609B03795.A3 1609B03795	£1.75	£2.10
148 - KNOB BSD-1609B00382.A7 1609B00382	£5.30	£6.36
149 - COMPRESSION SPRING BSD-1609B00417.A21 1609B00417	£1.75	£2.10
150 - RETAINING PLATE BSD-1609B03765.A7 1609B03765	£1.75	£2.10
151 - RETAINING PLATE BSD-1609B03766.A13 1609B03766	£1.75	£2.10
152 - DUST EXTRACTION BSD-1609B03750.A9 1609B03750	£8.67	£10.41
153 - SET SCREW BSD-1609B03777.A8 1609B03777	£1.75	£2.10
154 - DUST EXTRACTION BSD-1609B03751.A0 1609B03751	£8.67	£10.41
155 - CABLE CLIP BSD-1609B01512.A16 1609B01512	£1.75	£2.10
156 - CABLE CLIP BSD-1609B00339.A6 1609B00339	£2.16	£2.59
158 - VACUUM HOSE BSD-1609B03782.A3 1609B03782	£11.02	£13.23
159 - SUPPORT BRACKET BSD-1609B03783.A6 1609B03783	£1.75	£2.10
160 - SUPPORT BRACKET BSD-1609B05324.A0 1609B05324	£2.61	£3.13
161 - SUPPORT BRACKET BSD-1609B05325.A1 1609B05325	£2.61	£3.13
162 - SCREW BSD-1609B00623.A24 1609B00623	£1.75	£2.10
163 - THREAD-FORMING SCREW BSD-1609B01168.A20 1609B01168	£1.75	£2.10
164 - SCREW BSD-1609B01690.A22 1609B01690	£1.75	£2.10
165 - TORSION SPRING BSD-1609B02209.A11 1609B02209	£13.12	£15.75
166 - SLEEVE BSD-1609B02222.A12 1609B02222	£1.75	£2.10
167 - WEAR PLATE BSD-1609B01602.A4 1609B01602	£1.75	£2.10
169 - LINKAGE BSD-1609B04001.A8 1609B04001	£12.04	£14.45
170 - COVER BSD-1609B04002.A12 1609B04002	£1.75	£2.10
171 - SPRING BSD-1609B04004.A8 1609B04004	£1.75	£2.10
172 - SCREW BSD-1609BP7145.A20 1609BP7145	£1.75	£2.10
173 - SPRING CLIP BSD-1609B05251.A1 1609B05251	£1.75	£2.10
174 - BALL BEARING BSD-1609B01255.A0 1609B01255	£5.58	£6.70
175 - COVER BSD-1609B05290.A0 1609B05290	£1.75	£2.10
176 - SCREW AND WASHER ASSEMBLY BSD-1609B05396.A0 1609B05396	£1.75	£2.10
177 - SCREW BSD-1609B01667.A3 1609B01667	£1.75	£2.10
178 - LOCK NUT BSD-1609B00974.A20 1609B00974	£1.75	£2.10
179 - HEX SOCKET HEAD CAP SCREW BSD-1609B05390.A1 1609B05390	£1.75	£2.10
184 - NUT BSD-1609BT4033.A11 1609BT4033	£1.75	£2.10
185 - SPRING RETAINING RING BSD-1609BP7068.A20 1609BP7068	£1.75	£2.10
186 - WASHER BSD-1609BP7050.A20 1609BP7050	£2.61	£3.13
187 - BALL BEARING BSD-1609B03774.A18 1609B03774	£12.04	£14.45
188 - SPACER BSD-1609B03780.A6 1609B03780	£1.75	£2.10
189 - NEEDLE BEARING BSD-1609B05351.A0 1609B05351	£2.16	£2.59
190 - DEFLECTOR BSD-1609B04017.A8 1609B04017	£4.26	£5.11
191 - DEFLECTOR BSD-1609B04028.A14 1609B04028	£6.52	£7.83
192 - CLAMPING FLANGE BSD-1609B04018.A12 1609B04018	£7.36	£8.83
193 - CLAMPING FLANGE BSD-1609B06289.A8 1609B06289	£8.49	£10.19
194 - FLANGE BOLT BSD-1609B05364.A0 1609B05364	£2.71	£3.25
195 - WHEEL BSD-1609B04020.A12 1609B04020	£1.75	£2.10
196 - QUICK-LOCK BSD-1609B00458.A17 1609B00458	£1.75	£2.10
197 - TRIGGER BSD-1609B04029.A3 1609B04029	£1.75	£2.10
198 - LOCKING BAR BSD-1609B04021.A4 1609B04021	£1.75	£2.10
199 - COMPRESSION SPRING BSD-1609B04022.A12 1609B04022	£1.75	£2.10
200 - TAPPING SCREW BSD-1609B00637.A34 1609B00637	£1.75	£2.10
201 - SCREW BSD-1609B00973.A0 1609B00973	£1.75	£2.10
202 - SCREW BSD-1609B00627.A23 1609B00627	£2.16	£2.59
203 - LABEL BSD-1609B05308.A0 1609B05308	£1.75	£2.10
204 - CONNECTOR BSD-1609B00430.A13 1609B00430	£1.75	£2.10
215 - SCREW BSD-1609B01561.A20 1609B01561	£1.75	£2.10
225 - COVER BSD-1609B05278.A1 1609B05278	£2.80	£3.36
226 - COVER BSD-1609B05274.A1 1609B05274	£1.75	£2.10
229 - PRINTED CIRCUIT BOARD BSD-1609B05311.A1 1609B05311	£18.96	£22.75
230 - COVER BSD-1609B05291.A1 1609B05291	£1.75	£2.10
231 - WIRE BSD-1609B05310.A0 1609B05310	£2.61	£3.13
232 - SWITCH BSD-1609B05392.A1 1609B05392	£4.26	£5.11
233 - ADJUSTING NUT BSD-1609B04227.A25 1609B04227	£1.75	£2.10
234 - RUBBER LIP BSD-1609B03791.A6 1609B03791	£2.38	£2.85
235 - RUBBER LIP BSD-1609B03792.A3 1609B03792	£2.38	£2.85
236 - RUBBER STRIP BSD-1609B04220.A20 1609B04220	£2.02	£2.42
237 - SET SCREW BSD-1609B04205.A20 1609B04205	£1.75	£2.10
238 - RUBBER STRIP BSD-1609B04222.A0 1609B04222	£2.38	£2.85
239 - RING BSD-1609B05354.A0 1609B05354	£1.75	£2.10
240 - CONNECTION BLOCK BSD-1609BP7059.A12 1609BP7059	£1.75	£2.10
241 - WARNING LABEL BSD-1609B04111.A2 1609B04111	£2.61	£3.13
242 - CLIP BSD-1609B05329.A0 1609B05329	£1.75	£2.10
243 - SCREW BSD-1609B00633.A36 1609B00633	£1.75	£2.10
244 - NUT BSD-1609B00691.A8 1609B00691	£2.16	£2.59
245 - PLAIN WASHER BSD-1609B04225.A0 1609B04225	£1.75	£2.10
246 - SHOULDER SCREW BSD-1609B05201.A8 1609B05201	£1.75	£2.10
247 - RUBBER RING BSD-1609BP7096.A1 1609BP7096	£1.75	£2.10
248 - CABLE TAPE BSD-1609B01538.A2 1609B01538	£1.75	£2.10
252 - COVER BSD-1609B05298.A12 1609B05298	£1.75	£2.10
254 - SEALING RUBBER BSD-1609B05366.A0 1609B05366	£1.75	£2.10
255 - SCREW BSD-1609B05270.A7 1609B05270	£1.75	£2.10
256 - RIVET BSD-1609B05359.A5 1609B05359	-
257 - MANUFACTURER'S NAMEPLATE BSD-1609B05309.A1 1609B05309	£1.75	£2.10
258 - HUB BSD-1609B05289.A1 1609B05289	£4.26	£5.11
259 - RIVET BSD-1609B00724.A2 1609B00724	£1.75	£2.10
260 - PLATE BSD-1609B05296.A1 1609B05296	£1.75	£2.10
263 - DOWEL PIN BSD-1609B04046.A1 1609B04046	£1.75	£2.10
264 - BELT BSD-1609B04034.A1 1609B04034	£21.52	£25.83
265 - SUPPORT BRACKET BSD-2610022082.A0 2610022082	£1.75	£2.10
270 - PLAIN WASHER BSD-1609B01372.A1 1609B01372	£1.75	£2.10
271 - PLAIN WASHER BSD-1609B01375.A0 1609B01375	£1.75	£2.10
273 - SET SCREW BSD-1609B05365.A1 1609B05365	£1.75	£2.10
274 - SCREW BSD-1609B02178.A2 1609B02178	£1.75	£2.10
275 - SCREW BSD-1609B01664.A15 1609B01664	£1.75	£2.10
282 - COVER BSD-1609B05272.A1 1609B05272	£1.75	£2.10
283 - COVER BSD-1609B05276.A1 1609B05276	£1.75	£2.10
284 - COVER BSD-1609B05312.A0 1609B05312	£1.75	£2.10
286 - O-RING BSD-1609B05320.A1 1609B05320	£1.75	£2.10
289 - ADAPTER BSD-2610022058.A1 2610022058	£16.41	£19.69
290 - SCREW BSD-1609B05353.A1 1609B05353	£1.75	£2.10
291 - SOCKET HEAD CAP SCREW BSD-2610948616.A1 2610948616	£1.75	£2.10
292 - WARNING LABEL BSD-1609B02126.A1 1609B02126	£2.61	£3.13
293 - WARNING LABEL BSD-1609B05386.A0 1609B05386	£1.75	£2.10
294 - WARNING LABEL BSD-1609B05387.A1 1609B05387	£1.75	£2.10
295 - SWITCH COVER BSD-1609B05398.A1 1609B05398	£1.75	£2.10
296 - LABEL BSD-1609B05399.A0 1609B05399	£1.75	£2.10
300 - SCREW BSD-1609B01665.A0 1609B01665	£1.75	£2.10
652 - CLAMP BSD-1609B04224.A20 1609B04224	£18.96	£22.75
653 - EXTENSION STAND BSD-1609B05350.A1 1609B05350	£3.72	£4.47
654 - SCREW BSD-1609B05380.A0 1609B05380	£2.16	£2.59
655 - RUBBER BUSHING BSD-1609B00705.A11 1609B00705	£1.75	£2.10
803 - ARMATURE ASSEMBLY 230V BSD-1609B05299.A1 1609B05299	£54.42	£65.30
808 - NAMEPLATE BSD-1609BN0140.A0 1609BN0140	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1609B06661.A14 1609B06661	£16.41	£19.69
812 - SUPPRESSION CAPACITOR BSD-1609B05362.A0 1609B05362	£1.75	£2.10
824 - LASER BSD-1609B01726.A2 1609B01726	£21.52	£25.83
825 - DUST-PROTECTION COVER BSD-1609B04127.A8 1609B04127	£10.10	£12.12
840 - BASE BSD-1609B05363.A1 1609B05363	£81.81	£98.17
841 - FEED TABLE BSD-1609B04128.A0 1609B04128	£21.68	£26.01
842 - FEED TABLE BSD-1609B05388.A0 1609B05388	£37.73	£45.28
847 - PIVOT BSD-1609B04123.A4 1609B04123	£59.53	£71.44
848 - YOKE BSD-1609B03788.A4 1609B03788	£81.81	£98.17
855 - OUTPUT SHAFT BSD-1609B05367.A1 1609B05367	£23.86	£28.63
856 - DUST BAG BSD-1609B05010.A4 1609B05010	£8.74	£10.49
857 - DUST EXTRACTION BSD-1609B05371.A1 1609B05371	£3.72	£4.47
861 - TRANSMISSION SHAFT BSD-1609B05368.A0 1609B05368	£31.64	£37.97
866 - ROLLER ASSEMBLY BSD-1609B05384.A1 1609B05384	£14.91	£17.89
868 - LOWER GUARD BSD-1609B05369.A1 1609B05369	£12.04	£14.45
876 - KNOB BSD-1609B05323.A1 1609B05323	£14.91	£17.89
881 - CONNECTING WIRE BSD-1609B05313.A1 1609B05313	-
882 - CONNECTING WIRE BSD-1609B05314.A0 1609B05314	-
883 - CONNECTING WIRE BSD-1609B05315.A1 1609B05315	-
884 - CONNECTING WIRE BSD-1609B05316.A0 1609B05316	-
885 - CONNECTING WIRE BSD-1609B05317.A1 1609B05317	-
886 - CONNECTING WIRE BSD-1609B05318.A0 1609B05318	-
890 - LEVER BSD-1609B05340.A8 1609B05340	£4.26	£5.11
891 - STOP PLATE BSD-1609B02365.A9 1609B02365	£2.29	£2.75
892 - SCREW BSD-1609B00263.A17 1609B00263	£2.16	£2.59
893 - SCREW BSD-1609B00678.A29 1609B00678	£1.75	£2.10

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 8 SDE / 3601M19270 / GB 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
