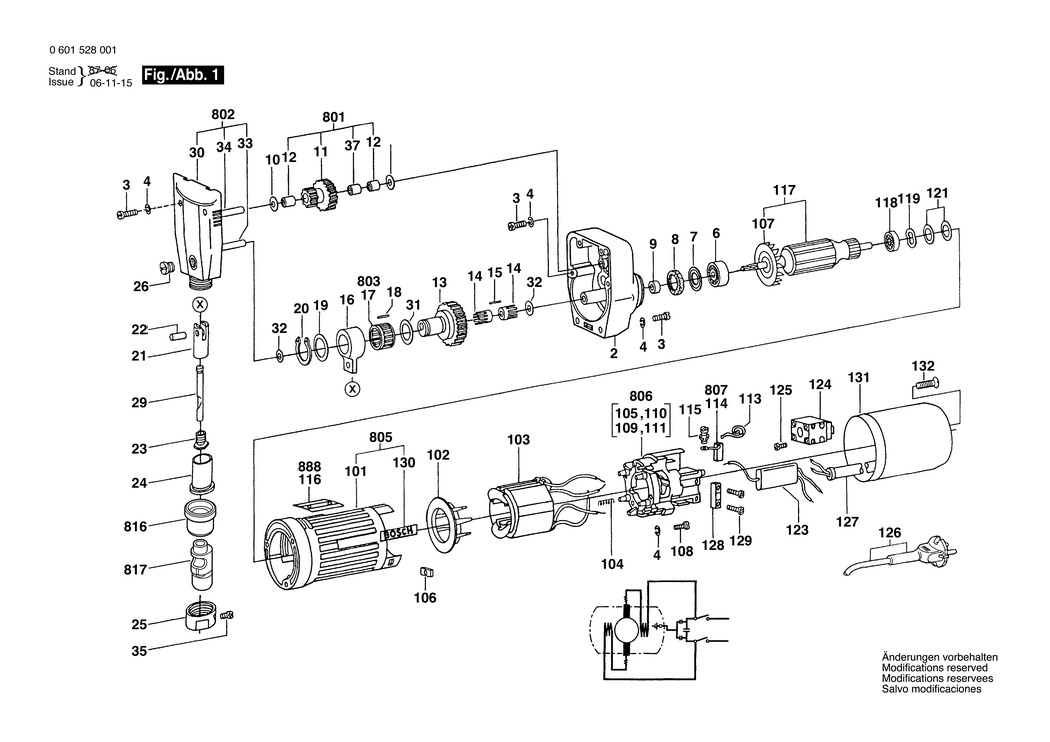

2 - BEARING FLANGE
BSD-2605700015.A4
2605700015
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A662
2910021122
|
£2.16
|
£2.59
|
|
|
4 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A34
2916690003
|
£1.75
|
£2.10
|
|
|
6 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A59
1900900270
|
-
|
|
|
|
7 - CUPPED WASHER
BSD-2600500008.A201
2600500008
|
-
|
|
|
|
8 - FELT DISC
BSD-2600108020.A191
2600108020
|
-
|
|
|
|
9 - RECEPTACLE
BSD-2600400020.A123
2600400020
|
-
|
|
|
|
10 - SHIM 0.5 MM
BSD-2600100628.A160
2600100628
|
£1.75
|
£2.10
|
|
|
12 - NEEDLE BEARING
BSD-2600914004.A20
2600914004
|
£4.26
|
£5.11
|
|
|
13 - CYLINDRICAL GEAR Z=58
BSD-2606300016.A4
2606300016
|
-
|
|
|
|
14 - NEEDLE-ROLLER CAGE
BSD-2600913033.A19
2600913033
|
-
|
|
|
|
15 - NEEDLE ROLLER 2x7.8 G 2 DIN 5402
BSD-1903201000.A2
1903201000
|
-
|
|
|
|
16 - BEARING HOUSING
BSD-2602001006.A19
2602001006
|
-
|
|
|
|
18 - NEEDLE ROLLER 2x9.8 G2 DIN 5402
BSD-1903201001.A5
1903201001
|
-
|
|
|
|
19 - SHIM 0.8 MM
BSD-2600102029.A20
2600102029
|
-
|
|
|
|
20 - SPRING RETAINING RING 22x1.2 DIN 471
BSD-2916650012.A24
2916650012
|
-
|
|
|
|
21 - POWER PISTON
BSD-2603104001.A10
2603104001
|
£54.42
|
£65.30
|
|
|
22 - BEARING BOLT
BSD-2603100003.A40
2603100003
|
£2.61
|
£3.13
|
|
|
23 - HOLLOW BOLT
BSD-2603455006.A28
2603455006
|
£2.80
|
£3.36
|
|
|
24 - BUSHING
BSD-2600422005.A3
2600422005
|
£18.96
|
£22.75
|
|
|
25 - UNION NUT
BSD-2603314016.A6
2603314016
|
-
|
|
|
|
26 - SCREW PLUG
BSD-2603463001.A3
2603463001
|
-
|
|
|
|
29 - NIBBLING PUNCH
BSD-2608639013.A12
2608639013
|
£24.49
|
£29.39
|
|
|
31 - SHIM
BSD-2600102028.A2
2600102028
|
-
|
|
|
|
32 - SHIM 0.5 MM
BSD-2600100563.A4
2600100563
|
-
|
|
|
|
33 - BEARING BOLT
BSD-2603100032.A19
2603100032
|
-
|
|
|
|
34 - BEARING BOLT
BSD-2603100031.A3
2603100031
|
-
|
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM5x6-5.8
BSD-2910011148.A18
2910011148
|
£1.75
|
£2.10
|
|
|
37 - INSULATING BUSHING
BSD-2600309003.A4
2600309003
|
-
|
|
|
|
102 - COVER DISC
BSD-2600522009.A43
2600522009
|
-
|
|
|
|
103 - POLE SHOE 110V
BSD-2604220250.A4
2604220250
|
-
|
|
|
|
104 - COMPRESSION SPRING
BSD-2604611024.A142
2604611024
|
£2.16
|
£2.59
|
|
|
106 - SQUARE NUT M4
BSD-2603320001.A1
2603320001
|
£1.75
|
£2.10
|
|
|
107 - FAN
BSD-2606610013.A29
2606610013
|
-
|
|
|
|
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A293
2910021125
|
£1.75
|
£2.10
|
|
|
113 - SPIRAL SPRING
BSD-2604652000.A16
2604652000
|
-
|
|
|
|
115 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A161
2914501011
|
£1.75
|
£2.10
|
|
|
117 - ARMATURE WITH FAN 110V
BSD-2604010315.A0
2604010315
|
-
|
|
|
|
118 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A53
1900905019
|
£14.91
|
£17.89
|
|
|
119 - SHIM
BSD-2600150003.A197
2600150003
|
£2.16
|
£2.59
|
|
|
121 - SHIM
BSD-2601101655.A3
2601101655
|
-
|
|
|
|
121 - SHIM
BSD-2601101656.A3
2601101656
|
-
|
|
|
|
121 - SHIM
BSD-2601101657.A3
2601101657
|
-
|
|
|
|
124 - ON-OFF SWITCH
BSD-2607200048.A25
2607200048
|
-
|
|
|
|
125 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A195
2603410001
|
£1.75
|
£2.10
|
|
|
127 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A195
2600703011
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1317
2600703012
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A151
2600703013
|
£2.61
|
£3.13
|
|
|
128 - CABLE CLIP
BSD-2601035001.A334
2601035001
|
£1.75
|
£2.10
|
|
|
129 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1632
2910211019
|
£1.75
|
£2.10
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A96
1601110013
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508028.A2
2600508028
|
-
|
|
|
|
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A91
2910601020
|
-
|
|
|
|
801 - CYLINDRICAL GEAR
BSD-2606328903.A1
2606328903
|
-
|
|
|
|
802 - GEAR HOUSING
BSD-2605806919.A3
2605806919
|
-
|
|
|
|
803 - NEEDLE-ROLLER BEARING
BSD-2600910002.A2
2600910002
|
-
|
|
|
|
805 - GEAR HOUSING
BSD-2607010003.A18
2607010003
|
-
|
|
|
|
806 - COMMUTATOR END SHIELD
BSD-2607010004.A41
2607010004
|
-
|
|
|
|
807 - CARBON-BRUSH SET
BSD-2604320902.A199
2604320902
|
-
|
|
|
|
816 - LOWER DIE RING
BSD-3608639030.A5
3608639030
|
£21.68
|
£26.01
|
|
|
817 - LOWER DIE
BSD-2608639003.A3
2608639003
|
£81.81
|
£98.17
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1139
160111A3H3
|
£2.61
|
£3.13
|
|
