Bosch BEST 100 CE / 0601588761 / EU 230 Volt Spare Parts

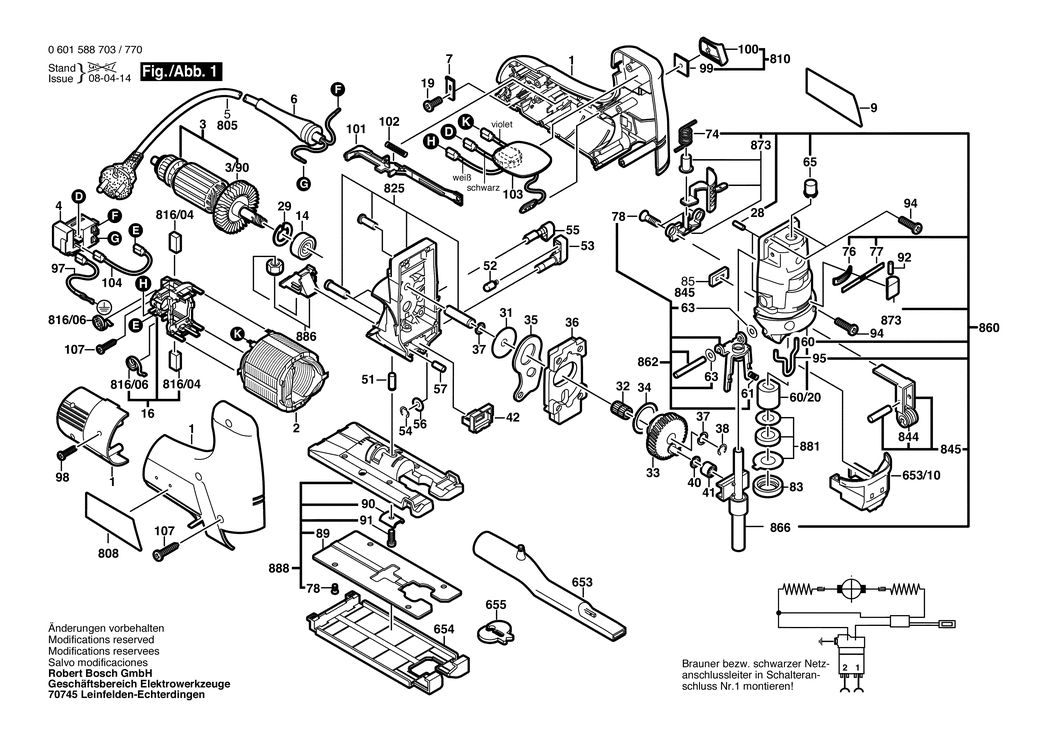

An exploded drawing and listing for the Bosch BEST 100 CE / 0601588761 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104696.A1 2605104696	-
2 - FIELD 230-240V BSD-2604220584.A49 2604220584	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604011115.A20 2604011115	-
3/90 - FAN BSD-2606610089.A100 2606610089	£5.30	£6.36
4 - SWITCH BSD-2607200345.A17 2607200345	£27.31	£32.77
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A546 1607000386	£21.52	£25.83
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A347 2600703017	£2.61	£3.13
7 - FASTENING CLAMP BSD-2601302011.A3 2601302011	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601117176.A1 2601117176	-
14 - BALL BEARING 9x24x7 BSD-2600905095.A181 2600905095	£12.04	£14.45
16 - BRUSH PLATE BSD-2605807082.A17 2605807082	£27.23	£32.68
19 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A113 2603490021	£1.75	£2.10
28 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A179 1903201042	£2.16	£2.59
29 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A199 2916660008	£2.16	£2.59
31 - SHIM 0.5 MM BSD-2600101048.A117 2600101048	£1.75	£2.10
32 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A124 2600913040	£5.58	£6.70
33 - ECCENTRIC COG WHEEL BSD-2606320101.A34 2606320101	£27.23	£32.68
34 - SHIM 0.5 MM BSD-2600102614.A40 2600102614	£1.32	£1.58
35 - FORK LEVER BSD-2601923010.A59 2601923010	£2.52	£3.02
36 - COUNTERWEIGHT BSD-2601098032.A43 2601098032	£14.91	£17.89
37 - SHIM 0.3 MM BSD-2600101047.A60 2600101047	£1.75	£2.10
38 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A112 2916080909	£1.75	£2.10
40 - INTERMEDIATE RING BSD-2600200038.A51 2600200038	£1.75	£2.10
41 - NEEDLE BEARING BSD-2600917900.A52 2600917900	£8.67	£10.41
42 - AIR ELIMINATOR BSD-2602305048.A25 2602305048	£1.32	£1.58
51 - BEARING BOLT BSD-2603105053.A48 2603105053	£1.75	£2.10
52 - RATCHET CAP BSD-2600590006.A433 2600590006	£1.75	£2.10
53 - ROTARY KNOB BSD-2602026063.A38 2602026063	£3.34	£4.01
54 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A52 2916080908	£1.75	£2.10
55 - ROTARY KNOB BSD-2602026065.A22 2602026065	£2.16	£2.59
56 - SHIM 0.3 MM BSD-2600100607.A373 2600100607	£1.75	£2.10
57 - STRAIGHT PIN 17.35+0.1 MM BSD-2603100069.A37 2603100069	£1.75	£2.10
60 - GEAR COVER BSD-2605808081.A38 2605808081	-
60/20 - BUSHING BSD-2600301037.A12 2600301037	£1.75	£2.10
61 - COMPRESSION SPRING BSD-2604610042.A70 2604610042	£2.33	£2.80
63 - SHIM BSD-2600101095.A65 2600101095	£1.75	£2.10
65 - SEAL BSD-2601015064.A40 2601015064	£2.33	£2.80
74 - TORSION SPRING BSD-2604651011.A18 2604651011	£2.80	£3.36
76 - SEAL BSD-2601015065.A25 2601015065	£2.33	£2.80
77 - COVER PLATE BSD-2601016079.A12 2601016079	£5.30	£6.36
78 - THREAD-FORMING TAP. SCREW BSD-2603421014.A50 2603421014	£1.75	£2.10
83 - RETAINING SNAP RING BSD-2600202037.A27 2600202037	£2.52	£3.02
85 - SEALING PLATE BSD-2601015057.A34 2601015057	£3.80	£4.56
89 - WORK BOARD BSD-2601098082.A36 2601098082	-
90 - PROFILE BEADING BSD-2601030022.A40 2601030022	£2.61	£3.13
91 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A325 2910141197	£1.75	£2.10
92 - SLOTTED SPRING PIN 2x6 DIN 1481 BSD-2917760034.A20 2917760034	£1.75	£2.10
94 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A265 2603410049	£1.75	£2.10
95 - PROTECTING COVER BSD-2603101046.A16 2603101046	£1.75	£2.10
97 - EARTH CONDUCTOR BSD-2604448211.A10 2604448211	£1.75	£2.10
98 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A749 2603490018	£1.75	£2.10
99 - DUST PROTECTION BSD-2601010062.A8 2601010062	£2.61	£3.13
100 - SWITCH HANDLE BSD-2602026066.A15 2602026066	-
101 - ADJUSTING SLIDE BSD-2601099072.A16 2601099072	£3.34	£4.01
102 - COMPRESSION SPRING BSD-2604611033.A67 2604611033	£2.16	£2.59
103 - SPEED GOVERNOR 230V BSD-2607230042.A13 2607230042	-
104 - CONNECTING CABLE L=63 MM BSD-2604448104.A27 2604448104	£2.33	£2.80
107 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A773 2603490024	£1.75	£2.10
653 - SUCTION NOZZLE BSD-2609994851.A3 2609994851	-
653/10 - COVERING HOOD BSD-2605510159.A34 2605510159	£1.95	£2.34
654 - PAD BSD-2608000184.A49 2608000184	-
655 - SPLINTERING PROTECTOR BSD-2601016065.A172 2601016065	£5.30	£6.36
656 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A825 1907950006	£4.26	£5.11
808 - REFERENCE PLATE BSD-2601117179.A0 2601117179	-
810 - SWITCH HANDLE BSD-2602026902.A19 2602026902	-
816/04 - CARBON-BRUSH SET BSD-2604320914.A56 2604320914	-
816/06 - SPIRAL SPRING BSD-1604652013.A200 1604652013	£1.75	£2.10
825 - GEAR HOUSING BSD-2605806896.A32 2605806896	£46.82	£56.18
844 - ROLLER SET BSD-2600326904.A28 2600326904	-
845 - ROLLER LEVER BSD-2601321904.A39 2601321904	-
860 - GEAR COVER BSD-2605808927.A40 2605808927	£103.14	£123.77
862 - GUIDE BRACKET BSD-2601322900.A46 2601322900	-
866 - LIFTING ROD BSD-2600780911.A40 2600780911	-
873 - HOLDING PLATE BSD-2601990906.A25 2601990906	£9.49	£11.39
881 - SEAL KIT BSD-2600290902.A28 2600290902	£3.34	£4.01
886 - FAN COVER BSD-2605500908.A19 2605500908	-
888 - BASE PLATE BSD-2608000920.A36 2608000920	-
