Bosch GBH 3-28 E / 0611239741 / GB 110 Volt Spare Parts

Bosch GBH 3-28 E / 0611239741 / GB 110 Volt Spare Parts
Home Details Reviews Delivery

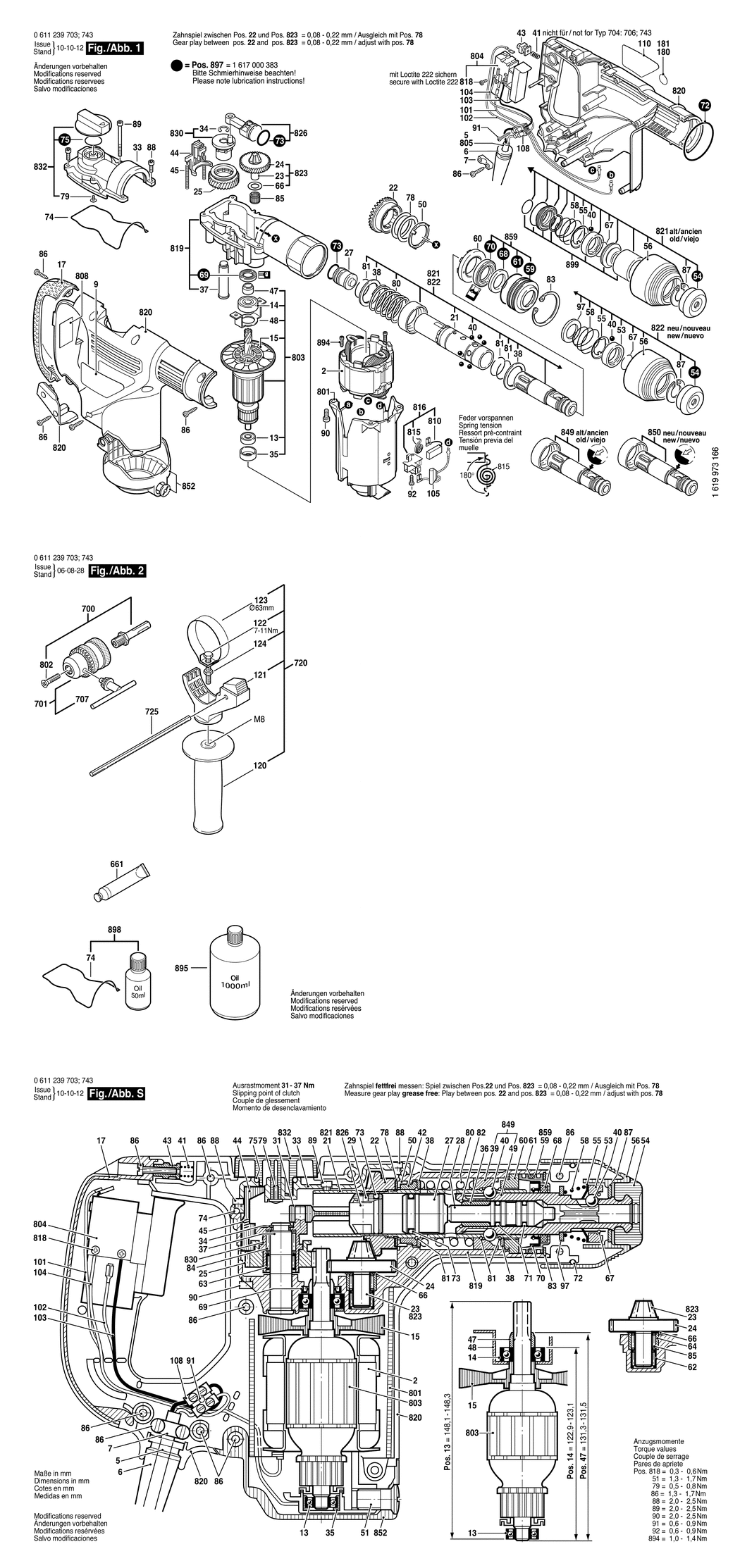

An exploded drawing and listing for the Bosch GBH 3-28 E / 0611239741 / GB 110 Volt
Ex VAT Inc VAT
2 - FIELD 110-120V BSD-1614220148.A1 1614220148 £27.23 £32.68
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07RN-F BSD-1614460060.A9 1614460060 -
6 - GROMMET dia8.7-dia9.6x76 MM BSD-2600703019.A19 2600703019 £2.61 £3.13
7 - CABLE CLIP BSD-1611035005.A98 1611035005 £2.16 £2.59
13 - BALL BEARING 7x19x6 BSD-2600905032.A1771 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 10x26x8 BSD-1610905036.A30 1610905036 £7.36 £8.83
15 - FAN BSD-1616610088.A12 1616610088 £2.80 £3.36
17 - FLAP GRIP BSD-1615132075.A2 1615132075 £7.36 £8.83
21 - PIPE BSD-1615806047.A3 1615806047 £40.80 £48.96
22 - CROWN GEAR Z=31 BSD-1616333038.A12 1616333038 £31.64 £37.97
23 - PINION Z=6 BSD-1616333039.A9 1616333039 £16.41 £19.69
24 - CYLINDRICAL GEAR BSD-1616312005.A12 1616312005 £12.04 £14.45
25 - ECCENTRIC COG WHEEL Z=31 BSD-1616317061.A18 1616317061 £19.45 £23.34
27 - STRIKER BSD-1610311016.A6 1610311016 £13.12 £15.75
33 - GEAR COVER BSD-1615808082.A0 1615808082 £13.12 £15.75
34 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A125 2916080910 £2.16 £2.59
35 - INTERMEDIATE RING BSD-1600502023.A2 1600502023 £2.16 £2.59
37 - ECCENTRIC SHAFT BSD-1613123004.A9 1613123004 £12.04 £14.45
38 - SUPPORTING DISC BSD-1610202018.A2 1610202018 £7.36 £8.83
40 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A575 1903230013 £2.16 £2.59
41 - COMPRESSION SPRING BSD-3604618008.A9 3604618008 £2.16 £2.59
43 - SCREW BUSHING BSD-1610390043.A11 1610390043 £1.75 £2.10
44 - CONTROL FORK BSD-1611329019.A18 1611329019 £2.80 £3.36
45 - COMPRESSION SPRING BSD-1614611016.A12 1614611016 £1.75 £2.10
47 - INNER RING BSD-1610250010.A11 1610250010 £5.58 £6.70
48 - FIXING PLATE BSD-1611329020.A3 1611329020 £2.61 £3.13
50 - FRICTION WASHER BSD-1610290059.A3 1610290059 £1.75 £2.10
53 - THRUST RING BSD-1610422018.A10 1610422018 £6.52 £7.83
54 - PROTECTIVE CAP L=13 MM BSD-1610508039.A17 1610508039 £5.58 £6.70
55 - HOLDING PLATE BSD-1610190040.A17 1610190040 £2.61 £3.13
56 - PROTECTION SLEEVE BSD-1610499042.A2 1610499042 £3.72 £4.47
58 - COMPRESSION SPRING BSD-1614615004.A3 1614615004 £2.61 £3.13
59 - SEALING SLEEVE BSD-1610314003.A20 1610314003 £2.61 £3.13
60 - PLAIN BEARING BSD-1615190087.A3 1615190087 £2.52 £3.02
61 - O-RING 39.0x3.0 MM BSD-1610210156.A12 1610210156 £1.75 £2.10
66 - SUPPORT DISC 0.5 MM BSD-1610100612.A18 1610100612 £1.75 £2.10
67 - RETAINING RING BSD-1614601032.A9 1614601032 £1.75 £2.10
68 - FELT WASHER BSD-1610205008.A20 1610205008 £1.75 £2.10
69 - ROTARY SHAFT LIP SEAL BSD-1610283031.A11 1610283031 £4.26 £5.11
70 - ROTARY SHAFT LIP SEAL BSD-1610283032.A10 1610283032 £6.52 £7.83
72 - O-RING 52.0x3.0 MM BSD-1610210157.A9 1610210157 £1.75 £2.10
73 - O-RING 17.0x3.0 MM BSD-1610210121.A20 1610210121 £2.61 £3.13
74 - SEALING FRAME BSD-1611014002.A16 1611014002 £3.72 £4.47
75 - O-RING 19.0x2.5 MM BSD-1610210155.A9 1610210155 £1.75 £2.10
78 - SHIM 0.3 MM BSD-1610102051.A1 1610102051 £1.75 £2.10
78 - SHIM 0.4 MM BSD-1610102052.A20 1610102052 £1.75 £2.10
78 - SHIM 0.5 MM BSD-1610102053.A1 1610102053 £1.75 £2.10
79 - OVAL-HEAD SCREW BSD-1928491082.A10 1928491082 £1.75 £2.10
80 - COMPRESSION SPRING BSD-1614615003.A20 1614615003 £3.72 £4.47
81 - RETAINING RING BSD-1614601033.A10 1614601033 £1.75 £2.10
83 - SPRING RETAINING RING BSD-1614601036.A18 1614601036 £1.75 £2.10
85 - NEEDLE-ROLLER ASSEMBLY BSD-1610913015.A12 1610913015 £2.80 £3.36
86 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A149 2603490023 £1.75 £2.10
87 - BACKUP RING BSD-1610209006.A8 1610209006 £1.75 £2.10
88 - HEX SOCKET HEAD CAP SCREW BSD-1613414016.A19 1613414016 £1.75 £2.10
89 - HEX SOCKET HEAD CAP SCREW BSD-1613414017.A9 1613414017 £1.75 £2.10
90 - HEX SOCKET HEAD CAP SCREW DIN 7984-M5x12-8.8 BSD-2910131154.A27 2910131154 £1.75 £2.10
91 - TAPPING SCREW DIN 7983-ST-2.9x19 BSD-2912401008.A27 2912401008 £1.75 £2.10
92 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A595 2910211005 £1.75 £2.10
97 - FRICTION WASHER BSD-1610102025.A3 1610102025 £2.16 £2.59
101 - CONNECTING CABLE L=360 MM BSD-1614449012.A2 1614449012 £3.72 £4.47
102 - CONNECTING CABLE L=220 MM BSD-1614431028.A27 1614431028 £2.61 £3.13
103 - CONNECTING CABLE L=180 MM BSD-1614437017.A27 1614437017 £2.61 £3.13
104 - CONNECTING CABLE BSD-1614437018.A1 1614437018 £4.26 £5.11
105 - CONNECTING CABLE BSD-1614449013.A3 1614449013 £2.52 £3.02
108 - CONNECTING TERMINAL BSD-1611091003.A19 1611091003 -
108 - CONNECTING TERMINAL BSD-1611091006.A2 1611091006 £1.75 £2.10
120 - AUXILIARY HANDLE BSD-160202507H.A137 160202507H £11.30 £13.56
121 - SUPPORT CLAMP BSD-1618040073.A11 1618040073 £3.34 £4.01
122 - HEX SCREW M 8x40 MM BSD-1613450017.A28 1613450017 £1.75 £2.10
123 - CLAMPING BAND dia 63 MM BSD-1611316018.A1 1611316018 £2.80 £3.36
124 - HEX NUT ISO-4035-M8-05 BSD-2915051180.A27 2915051180 £1.75 £2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A57 1615430010 £6.52 £7.83
700 - DRILL CHUCK SHANK BSD-1617000132.A47 1617000132 £16.84 £20.21
701 - CHUCK BSD-1608571088.A149 1608571088 £27.23 £32.68
707 - CHUCK WRENCH SG2 BSD-2607950007.A657 2607950007 £6.52 £7.83
720 - AUXILIARY HANDLE dia 63 MM BSD-2602025112.A6 2602025112 £14.15 £16.98
725 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A17 1613001009 £3.72 £4.47
801 - INSULATING HOUSING BSD-1615108103.A11 1615108103 £12.04 £14.45
802 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A273 2603421229 £1.75 £2.10
803 - ARMATURE WITH FAN 110-120V BSD-1614010706.A3 1614010706 £72.18 £86.62
804 - SWITCH BSD-2607200577.A4 2607200577 -
808 - NAMEPLATE BSD-160111A3H5.A43 160111A3H5 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014139.A2 1617014139 £14.91 £17.89
815 - SPIRAL SPRING BSD-1614652003.A2 1614652003 £1.75 £2.10
816 - BRUSH HOLDER BSD-1617000397.A1 1617000397 £18.96 £22.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2862 2603410001 £1.75 £2.10
819 - GEAR HOUSING BSD-1617000382.A10 1617000382 £48.38 £58.06
820 - HOUSING SECTION BSD-1615104016.A12 1615104016 £27.23 £32.68
821 - TOOLHOLDER BSD-1618598221.A1 1618598221 £116.15 £139.38
822 - TOOLHOLDER BSD-1618598248.A10 1618598248 £156.22 £187.46
823 - PINION BSD-1617016009.A0 1617016009 £31.64 £37.97
826 - HAMMER PISTON BSD-1618700085.A10 1618700085 £14.91 £17.89
830 - ECCENTRIC BSD-1612210118.A19 1612210118 £37.27 £44.72
832 - CLAMP HANDLE BSD-1612026090.A11 1612026090 £3.34 £4.01
849 - TOOL HOLDING FIXTURE BSD-1618598220.A10 1618598220 £88.07 £105.68
850 - TOOL HOLDING FIXTURE BSD-1618598249.A2 1618598249 £80.61 £96.73
852 - BRUSH-COVER BSD-1615500310.A9 1615500310 £8.67 £10.41
859 - SEALING SLEEVE BSD-1610314004.A2 1610314004 £10.10 £12.12
894 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A433 2603435015 £2.16 £2.59
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A97 1615430019 £59.53 £71.44
897 - WEAR AND TEAR PART SET BSD-1617000383.A12 1617000383 £18.96 £22.75
898 - OIL RESERVOIR 50 ML BSD-1615437509.A26 1615437509 £11.30 £13.56
899 - WEAR AND TEAR PART SET BSD-1617000V76.A9 1617000V76 £11.30 £13.56
