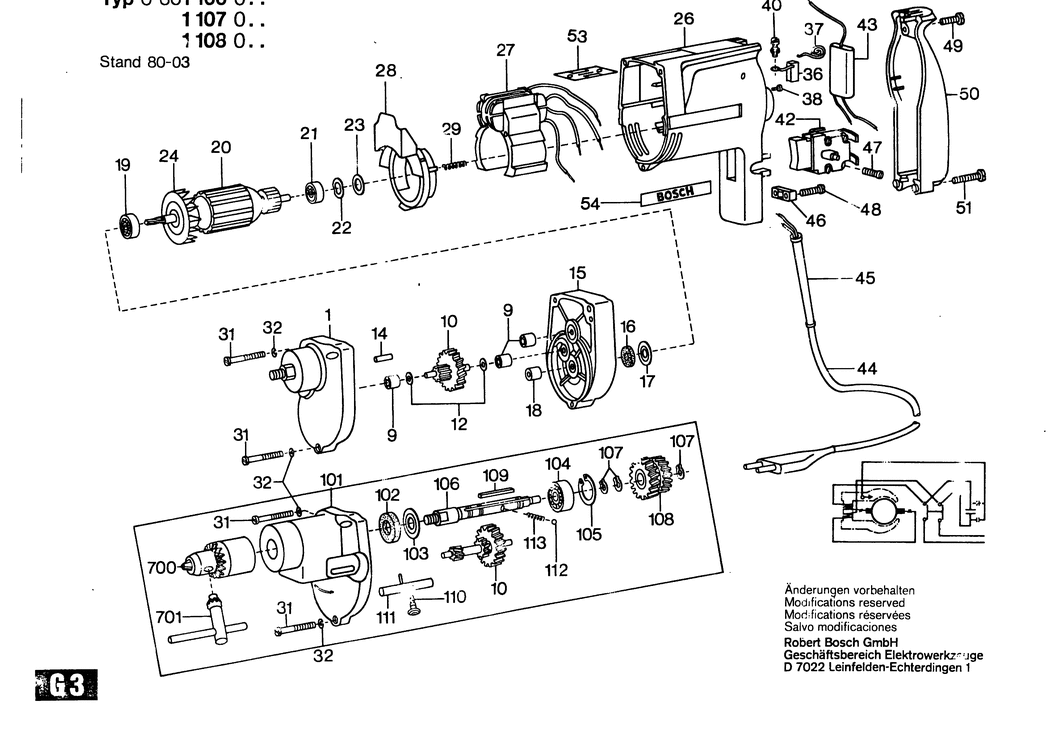

1 - GEAR HOUSING
BSD-2605806900.A12
2605806900
|
-
|
|
|
|
9 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A244
2600914010
|
£2.80
|
£3.36
|
|
|
10 - SPINDLE WITH GEAR Z= 13/41
BSD-2606100042.A0
2606100042
|
-
|
|
|
|
12 - SHIM 0.3 MM
BSD-2600100607.A512
2600100607
|
£1.66
|
£1.99
|
|
|
14 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A270
1903201042
|
£1.95
|
£2.34
|
|
|
15 - FLANGED BEARING
BSD-2605700901.A2
2605700901
|
-
|
|
|
|
16 - FELT DISC
BSD-2600108000.A100
2600108000
|
-
|
|
|
|
17 - CUPPED WASHER
BSD-2600500080.A6
2600500080
|
-
|
|
|
|
18 - SEAL BUSHING
BSD-2600300049.A134
2600300049
|
-
|
|
|
|
19 - BALL BEARING 8x22x7
BSD-1900905029.A93
1900905029
|
£21.52
|
£25.83
|
|
|
20 - ARMATURE WITH FAN 110-115V
BSD-2604010296.A2
2604010296
|
-
|
|
|
|
21 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A191
1900905019
|
£14.91
|
£17.89
|
|
|
22 - SHIM
BSD-2600150003.A154
2600150003
|
£1.95
|
£2.34
|
|
|
23 - SHIM 0.2 MM
BSD-2600101655.A101
2600101655
|
-
|
|
|
|
23 - SHIM 0.3 MM
BSD-2600101656.A80
2600101656
|
-
|
|
|
|
23 - SHIM 0.5 MM
BSD-2600101657.A101
2600101657
|
-
|
|
|
|
24 - FAN
BSD-2606610013.A83
2606610013
|
-
|
|
|
|
26 - MOTOR HOUSING
BSD-2605104900.A31
2605104900
|
-
|
|
|
|
27 - POLE SHOE 110-115V
BSD-2604222219.A2
2604222219
|
-
|
|
|
|
28 - COVER DISC
BSD-2601328016.A1
2601328016
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A80
2604611026
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A180
2910021134
|
£1.66
|
£1.99
|
|
|
32 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A726
2916690003
|
£1.66
|
£1.99
|
|
|
36 - CARBON-BRUSH SET
BSD-2604320902.A93
2604320902
|
-
|
|
|
|
37 - SPIRAL SPRING
BSD-2604652000.A181
2604652000
|
-
|
|
|
|
38 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A65
2910211004
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW
BSD-2603410010.A274
2603410010
|
-
|
|
|
|
42 - ON-OFF SWITCH
BSD-2607200043.A58
2607200043
|
-
|
|
|
|
42 - ON-OFF SWITCH
BSD-2607200066.A6
2607200066
|
-
|
|
|
|
43 - SUPPRESSION FILTER
BSD-2607329051.A65
2607329051
|
-
|
|
|
|
44 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A545
1607000227
|
£23.86
|
£28.63
|
|
|
45 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A516
2600703011
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A717
2600703012
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A510
2600703013
|
£2.33
|
£2.80
|
|
|
46 - CABLE CLIP
BSD-2601035001.A2661
2601035001
|
£1.66
|
£1.99
|
|
|
47 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A35
2603410023
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A44
2910211019
|
£1.66
|
£1.99
|
|
|
49 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A579
2910211020
|
£1.66
|
£1.99
|
|
|
50 - HOUSING COVER
BSD-2605132005.A39
2605132005
|
-
|
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A10
2910211021
|
£1.66
|
£1.99
|
|
|
53 - NAMEPLATE
BSD-160111A3H3.A4313
160111A3H3
|
£2.33
|
£2.80
|
|
|
54 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A157
2601007003
|
-
|
|
|
|
101 - GEAR HOUSING
BSD-2605806208.A11
2605806208
|
-
|
|
|
|
102 - SEALING DISK
BSD-2600108031.A7
2600108031
|
-
|
|
|
|
103 - CUPPED WASHER
BSD-2600500012.A20
2600500012
|
-
|
|
|
|
104 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A16
1900900270
|
-
|
|
|
|
105 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A70
2916660010
|
£1.66
|
£1.99
|
|
|
106 - DRILLING SPINDLE
BSD-2603122030.A11
2603122030
|
-
|
|
|
|
107 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A243
2916650001
|
£1.66
|
£1.99
|
|
|
108 - TOOTHED GEAR Z=37/31
BSD-2606328035.A15
2606328035
|
-
|
|
|
|
109 - FLAT KEY
BSD-2602300025.A14
2602300025
|
-
|
|
|
|
110 - PUSH-BUTTON
BSD-2603231006.A67
2603231006
|
-
|
|
|
|
111 - SWITCHING PIN
BSD-2603103015.A13
2603103015
|
-
|
|
|
|
112 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A191
1903230006
|
£1.95
|
£2.34
|
|
|
113 - COMPRESSION SPRING
BSD-2604611025.A36
2604611025
|
£2.80
|
£3.36
|
|
|
700 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A32
1608571020
|
-
|
|
|
|
700 - KEYLESS CHUCK dia 0-8 MM.3/8.
BSD-1608572012.A47
1608572012
|
-
|
|
|
|
701 - CHUCK WRENCH SG2
BSD-2607950007.A837
2607950007
|
£6.52
|
£7.83
|
|
|
703 - SUSPENSION LOOP
BSD-3604720004.A61
3604720004
|
£2.80
|
£3.36
|
|
