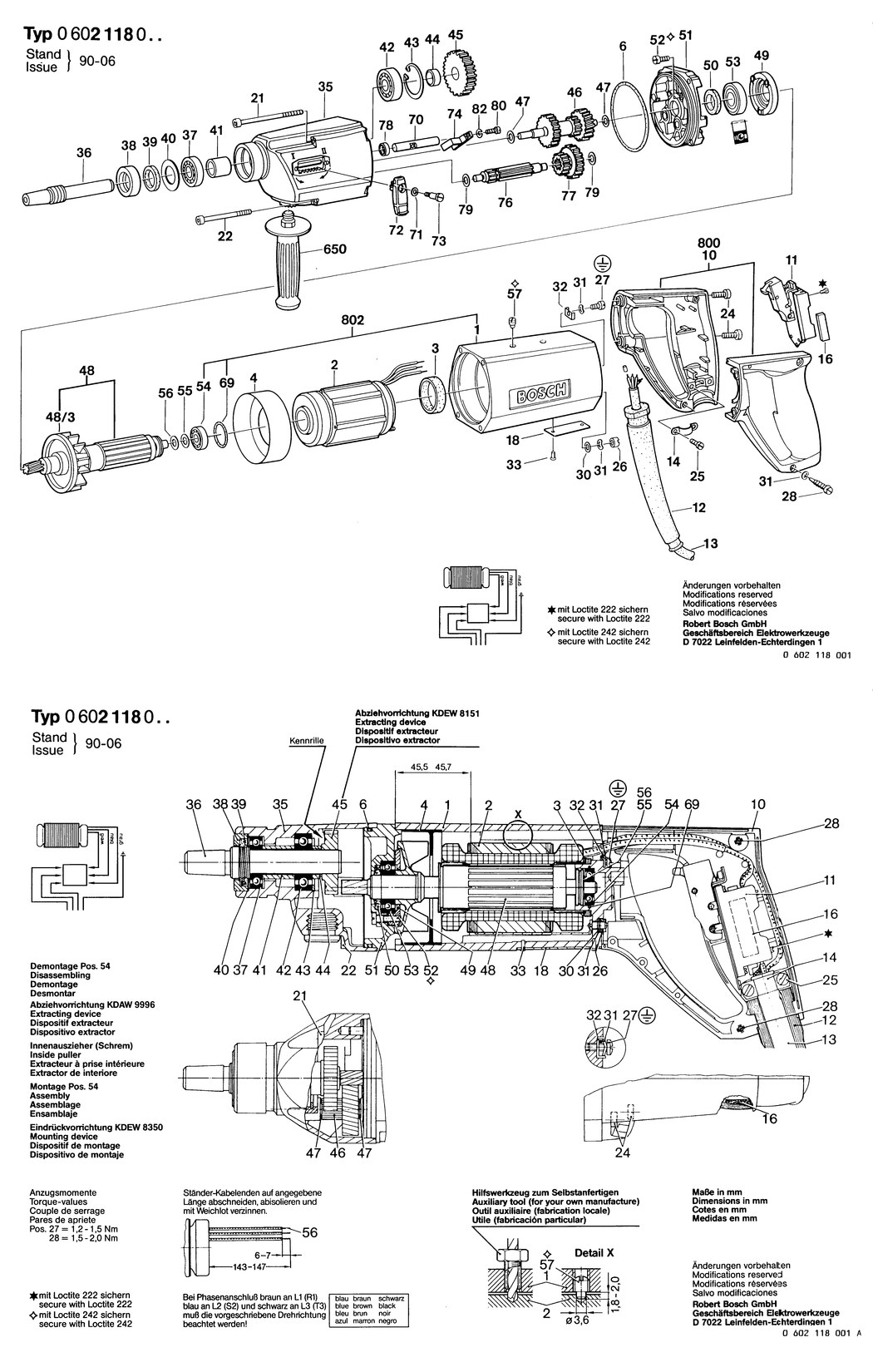

2 - STATOR 42V/200HZ
BSD-1604229155.A0
1604229155
|
-
|
|
|
|
3 - SEAL RING
BSD-1600209006.A34
1600209006
|
£2.80
|
£3.36
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209003.A37
1600209003
|
£8.13
|
£9.76
|
|
|
6 - O-RING 66.0x3.0 MM
BSD-1600210005.A136
1600210005
|
£2.80
|
£3.36
|
|
|
11 - SWITCH
BSD-1607200038.A118
1607200038
|
£54.42
|
£65.30
|
|
|
12 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A331
1600703009
|
£5.58
|
£6.70
|
|
|
13 - POWER SUPPLY CORD
BSD-1604421012.A2
1604421012
|
-
|
|
|
|
14 - FASTENING CLAMP
BSD-1601303003.A198
1601303003
|
£2.16
|
£2.59
|
|
|
16 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A470
1602381001
|
-
|
|
|
|
18 - NAMEPLATE
BSD-3601106053.A340
3601106053
|
£5.30
|
£6.36
|
|
|
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x55-8.8
BSD-2910141176.A34
2910141176
|
£1.75
|
£2.10
|
|
|
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A24
2910141172
|
£1.75
|
£2.10
|
|
|
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A105
2910141158
|
£1.75
|
£2.10
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A112
2910021116
|
£2.16
|
£2.59
|
|
|
26 - SLOTTED ROUND NUT DIN 546-M4x3.5
BSD-2915161006.A18
2915161006
|
-
|
|
|
|
27 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A68
2910110122
|
£1.75
|
£2.10
|
|
|
28 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A150
2910211220
|
-
|
|
|
|
30 - PLAIN WASHER 4.3 DIN 433-ST
BSD-2916011009.A36
2916011009
|
-
|
|
|
|
31 - SPRING WASHER dia4.2 MM
BSD-3600150006.A460
3600150006
|
£2.61
|
£3.13
|
|
|
32 - CLAMPING SADDLE
BSD-3601321001.A570
3601321001
|
£3.72
|
£4.47
|
|
|
33 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A731
3603133001
|
£2.61
|
£3.13
|
|
|
35 - SPINDLE BEARING
BSD-1605806253.A4
1605806253
|
-
|
|
|
|
36 - DRILLING SPINDLE
BSD-1603124039.A45
1603124039
|
-
|
|
|
|
37 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A11
1900900201
|
-
|
|
|
|
38 - RETAINING SNAP RING
BSD-3607030355.A6
3607030355
|
£18.96
|
£22.75
|
|
|
39 - SEALING DISK
BSD-1600108000.A51
1600108000
|
-
|
|
|
|
40 - SHIM 0.5 MM
BSD-1600102003.A44
1600102003
|
£1.75
|
£2.10
|
|
|
41 - SPACER BUSHING
BSD-1600300026.A29
1600300026
|
-
|
|
|
|
42 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A97
1900900303
|
-
|
|
|
|
43 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A544
2916660014
|
£1.75
|
£2.10
|
|
|
44 - SPACER BUSHING
BSD-1600200018.A10
1600200018
|
-
|
|
|
|
45 - CYLINDRICAL GEAR Z=39
BSD-1606317046.A1
1606317046
|
-
|
|
|
|
46 - SPINDLE WITH GEAR Z=29/20/29
BSD-1606100027.A4
1606100027
|
-
|
|
|
|
47 - SHIM 0.5 MM
BSD-1600100631.A155
1600100631
|
£1.75
|
£2.10
|
|
|
48 - ROTOR WITHOUT WINDING
BSD-3604080057.A11
3604080057
|
£283.50
|
£340.20
|
|
|
48/3 - FAN
BSD-3606610010.A97
3606610010
|
£4.26
|
£5.11
|
|
|
49 - CONICAL SPRING WASHER
BSD-1600501025.A33
1600501025
|
£33.74
|
£40.49
|
|
|
50 - SEALING DISK
BSD-1600108030.A27
1600108030
|
£3.72
|
£4.47
|
|
|
51 - BEARING FLANGE
BSD-1605820135.A10
1605820135
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A171
2910021125
|
£1.75
|
£2.10
|
|
|
53 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A40
2600905013
|
-
|
|
|
|
54 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A72
1610900025
|
£16.41
|
£19.69
|
|
|
54 - BALL BEARING 7x22x7
BSD-1900905018.A1024
1900905018
|
£18.96
|
£22.75
|
|
|
55 - SHIM 0.10 MM
BSD-1420100023.A72
1420100023
|
-
|
|
|
|
56 - SHIM 0.2 MM
BSD-1600100632.A170
1600100632
|
£1.75
|
£2.10
|
|
|
57 - SET SCREW
BSD-1603402002.A34
1603402002
|
£1.75
|
£2.10
|
|
|
57 - SHIM
BSD-1710100040.A23
1710100040
|
-
|
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A1
3600210016
|
£1.75
|
£2.10
|
|
|
70 - ADJUSTING BOLT
BSD-1603104005.A45
1603104005
|
-
|
|
|
|
71 - SHIM 0.2 MM
BSD-1420100620.A73
1420100620
|
£1.32
|
£1.58
|
|
|
72 - CONTROL LEVER
BSD-1602026026.A17
1602026026
|
-
|
|
|
|
73 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A41
1603413005
|
£2.52
|
£3.02
|
|
|
74 - FORK LEVER
BSD-1601336002.A6
1601336002
|
-
|
|
|
|
76 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A11
1606309036
|
-
|
|
|
|
77 - SPINDLE WITH GEAR Z=22/31
BSD-1606328064.A0
1606328064
|
-
|
|
|
|
78 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A56
1600283003
|
£4.26
|
£5.11
|
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A154
1600100631
|
£1.75
|
£2.10
|
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A172
2910021125
|
£1.75
|
£2.10
|
|
|
82 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A545
2916690003
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A779
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A200
1602025030
|
£18.96
|
£22.75
|
|
|
800 - HANDLE
BSD-3605133011.A0
3605133011
|
-
|
|
|
|
802 - MOTOR HOUSING
BSD-3605102040.A36
3605102040
|
£218.41
|
£262.09
|
|
