Bosch GSH 5 CE / 3611C21070 / GB 230 Volt Spare Parts

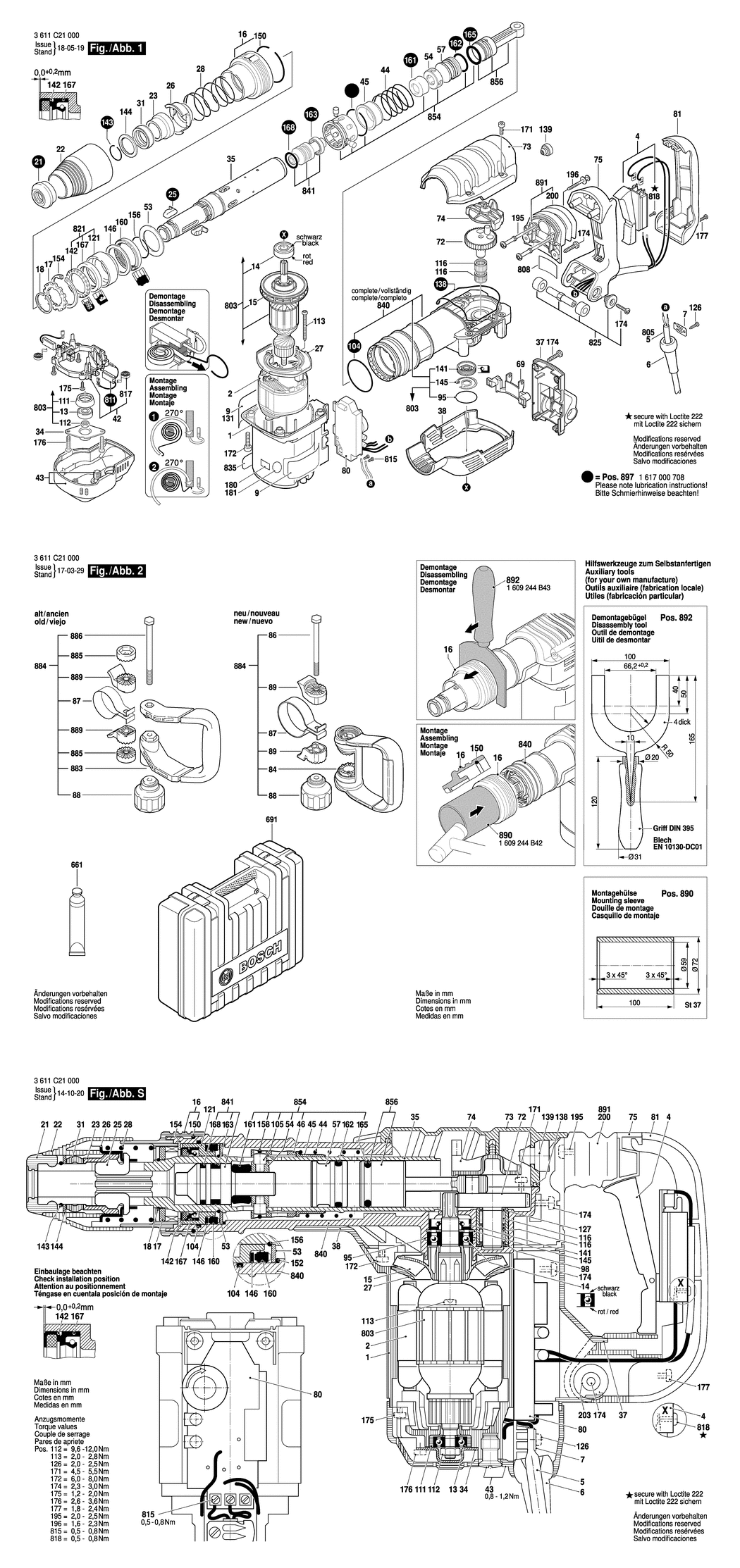

An exploded drawing and listing for the Bosch GSH 5 CE / 3611C21070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102161.A1 1615102161	£27.23	£32.68
2 - FIELD 220-240V BSD-1614220123.A20 1614220123	£40.80	£48.96
4 - SWITCH BSD-1617200102.A4 1617200102	£31.64	£37.97
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460348.A16 1604460348	£27.23	£32.68
6 - GROMMET dia8.7-dia9.6x66 MM BSD-1600703035.A3 1600703035	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A112 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U2.A3 160111C0U2	£2.61	£3.13
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A85 1610900026	£12.04	£14.45
14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A37 1610905028	£16.41	£19.69
15 - FAN BSD-1616610090.A3 1616610090	£12.04	£14.45
16 - RATCHET SLEEVE BSD-1610499055.A3 1610499055	£7.36	£8.83
17 - CATCH DISK BSD-1610241000.A3 1610241000	£3.72	£4.47
18 - RETAINING RING BSD-1614601030.A19 1614601030	£2.61	£3.13
21 - PROTECTIVE CAP BSD-1610508038.A35 1610508038	£8.13	£9.76
22 - PROTECTION SLEEVE BSD-1610591030.A13 1610591030	£5.30	£6.36
23 - STOP SLEEVE BSD-1610520001.A3 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300036.A9 1612300036	£13.12	£15.75
26 - INDEXING DISK BSD-1610290076.A25 1610290076	£6.52	£7.83
27 - AIR-DEFLECTOR RING BSD-1610591028.A13 1610591028	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A137 1614621000	£2.80	£3.36
31 - DAMPING RING BSD-1610290049.A53 1610290049	£2.80	£3.36
34 - FLANGE BSD-1610516013.A41 1610516013	£1.75	£2.10
35 - HAMMER PIPE BSD-1615806214.A4 1615806214	£89.79	£107.75
37 - BEARING PEDESTAL BSD-1615500390.A1 1615500390	£8.67	£10.41
38 - COVERING HOOD BSD-1615190158.A1 1615190158	£7.36	£8.83
42 - BRUSH HOLDER BSD-1614336085.A4 1614336085	£37.27	£44.72
43 - FAN COVER BSD-1615500410.A3 1615500410	£13.12	£15.75
44 - COMPRESSION SPRING BSD-1614621007.A3 1614621007	£2.80	£3.36
45 - CONTROL BUSHING BSD-1610499064.A3 1610499064	£16.41	£19.69
53 - SUPPORT DISC BSD-1610102054.A18 1610102054	£3.72	£4.47
54 - GUIDE BUSHING BSD-1610231001.A8 1610231001	£12.04	£14.45
57 - STRIKER BSD-1618710089.A4 1618710089	£21.68	£26.01
69 - RETAINING BRACKET BSD-1610099005.A4 1610099005	£2.16	£2.59
72 - ECCENTRIC COG WHEEL Z=43 BSD-1616317083.A3 1616317083	-
73 - HOUSING COVER BSD-16055002D0.A3 16055002D0	£33.45	£40.14
74 - HOLDING-DOWN-APPLIANCE BSD-1600A0073C.A3 1600A0073C	£3.72	£4.47
75 - HANDLE BSD-1615132118.A3 1615132118	£48.38	£58.06
80 - SPEED GOVERNOR BSD-1617233049.A1 1617233049	£72.18	£86.62
81 - HANDLE COVER BSD-1615132088.A32 1615132088	£21.68	£26.01
84 - AUXILIARY HANDLE BSD-160202508D.A1 160202508D	£18.96	£22.75
86 - HEX SCREW BSD-2911021267.A34 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1611316022.A10 1611316022	£10.10	£12.12
88 - STAR KNOB M8 BSD-1619P16922.A49 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A00748.A34 1600A00748	£2.80	£3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A8 1610210173	£2.16	£2.59
104 - O-RING 55.0x2.0 MM BSD-1610210095.A57 1610210095	£2.61	£3.13
111 - BUSHING BSD-1610290064.A35 1610290064	£1.75	£2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A41 1613300008	£2.61	£3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A360 1613435009	£1.75	£2.10
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A4 1610913029	£4.26	£5.11
121 - BUSHING BSD-1610328018.A21 1610328018	£14.91	£17.89
126 - SCREW 4x16 BSD-2603490022.A467 2603490022	£1.75	£2.10
131 - MANUFACTURER'S NAMEPLATE BSD-161111C21N.A3 161111C21N	-
138 - SEALING FRAME BSD-1611015050.A19 1611015050	£9.47	£11.36
139 - PLUG BSD-1610508050.A8 1610508050	£2.61	£3.13
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A34 1610290066	£10.10	£12.12
142 - ROTARY SHAFT LIP SEAL BSD-1610290061.A17 1610290061	£5.58	£6.70
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A75 1614601021	£7.36	£8.83
144 - SUPPORTING DISC BSD-1610251006.A47 1610251006	£5.58	£6.70
145 - SPRING RETAINING RING BSD-1610119012.A57 1610119012	£2.61	£3.13
146 - SHIM BSD-1610113012.A3 1610113012	£2.80	£3.36
150 - RETAINING RING BSD-1614601041.A19 1614601041	£1.75	£2.10
154 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A96 2916660024	£5.30	£6.36
156 - RETAINING RING BSD-1610224009.A8 1610224009	£1.75	£2.10
160 - DAMPING RING BSD-1610210172.A19 1610210172	£6.52	£7.83
161 - DAMPING RUBBER BSD-1610290093.A8 1610290093	£1.75	£2.10
162 - O-RING 24.5x4.0 MM BSD-1610210203.A5 1610210203	£8.13	£9.76
163 - SEAL RING BSD-1610290065.A27 1610290065	£8.13	£9.76
165 - O-RING 25.0x4.0 MM BSD-1610210153.A17 1610210153	£7.36	£8.83
167 - ROTARY SHAFT LIP SEAL BSD-1610290062.A5 1610290062	£3.72	£4.47
168 - O-RING 22.0x3.0 MM BSD-1610210144.A63 1610210144	£5.30	£6.36
171 - TORX OVAL-HEAD SCREW M5x16-TORX.T25 BSD-1613435014.A20 1613435014	£2.16	£2.59
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A24 1613435013	£2.16	£2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A68 1613435012	£2.16	£2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A470 2912401018	£1.75	£2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A69 1613435012	£2.16	£2.59
177 - TAPPING SCREW ST3.9x32 BSD-1603435051.A13 1603435051	£1.95	£2.34
195 - TORX OVAL-HEAD SCREW BSD-1613490015.A3 1613490015	£2.61	£3.13
196 - SCREW AND WASHER ASSEMBLY BSD-1613435019.A11 1613435019	£1.75	£2.10
200 - BELLOWS BSD-1610284000.A3 1610284000	£10.10	£12.12
661 - GREASE TUBE 30 ML BSD-1615430010.A232 1615430010	£6.52	£7.83
803 - ARMATURE 220-240V BSD-1614011098.A26 1614011098	£103.14	£123.77
808 - NAMEPLATE BSD-160111A3H5.A321 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014144.A3 1617014144	£21.52	£25.83
811 - CARBON-BRUSH SET 10 x 1 617 014 144 BSD-1607000492.A3 1607000492	£120.11	£144.13
815 - SOCKET HEAD CAP SCREW BSD-1609271281.A29 1609271281	£1.75	£2.10
817 - SPIRAL SPRING BSD-1614652004.A58 1614652004	£7.36	£8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A89 2910011082	£1.75	£2.10
821 - BUSHING BSD-1617000835.A21 1617000835	£21.68	£26.01
825 - BEARING SHAFT BSD-1617000706.A3 1617000706	£12.04	£14.45
835 - REFERENCE PLATE BSD-1611110H20.A3 1611110H20	£3.72	£4.47
840 - IMPACT MECHANISM HOUSING BSD-1617000898.A3 1617000898	£120.11	£144.13
841 - STRIKER PIN BSD-1617000899.A3 1617000899	£40.80	£48.96
854 - GUIDE BUSHING BSD-1617000707.A3 1617000707	£23.86	£28.63
856 - HAMMER PISTON BSD-1617000A00.A3 1617000A00	£21.52	£25.83
883 - AUXILIARY HANDLE BSD-1615132109.A12 1615132109	£23.86	£28.63
884 - AUXILIARY HANDLE BSD-1602025097.A3 1602025097	£40.80	£48.96
885 - CATCH DISK BSD-1610190053.A33 1610190053	£2.49	£2.99
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A19 2911011270	£4.26	£5.11
889 - CLAMPING PIECE BSD-1618040084.A12 1618040084	£2.80	£3.36
890 - MOUNTING SLEEVE BSD-1609244B42.A1 1609244B42	-
891 - SPRING PACK BSD-1617000A26.A3 1617000A26	£23.86	£28.63
892 - BOW BSD-1609244B43.A21 1609244B43	-
895 - GREASE TUBE 225 ML BSD-1615430015.A17 1615430015	£37.27	£44.72
897 - WEAR AND TEAR PART SET BSD-1617000708.A3 1617000708	£45.67	£54.80
691 - CARRYING CASE BSD-16054381CC.A8 16054381CC	£45.67	£54.80
