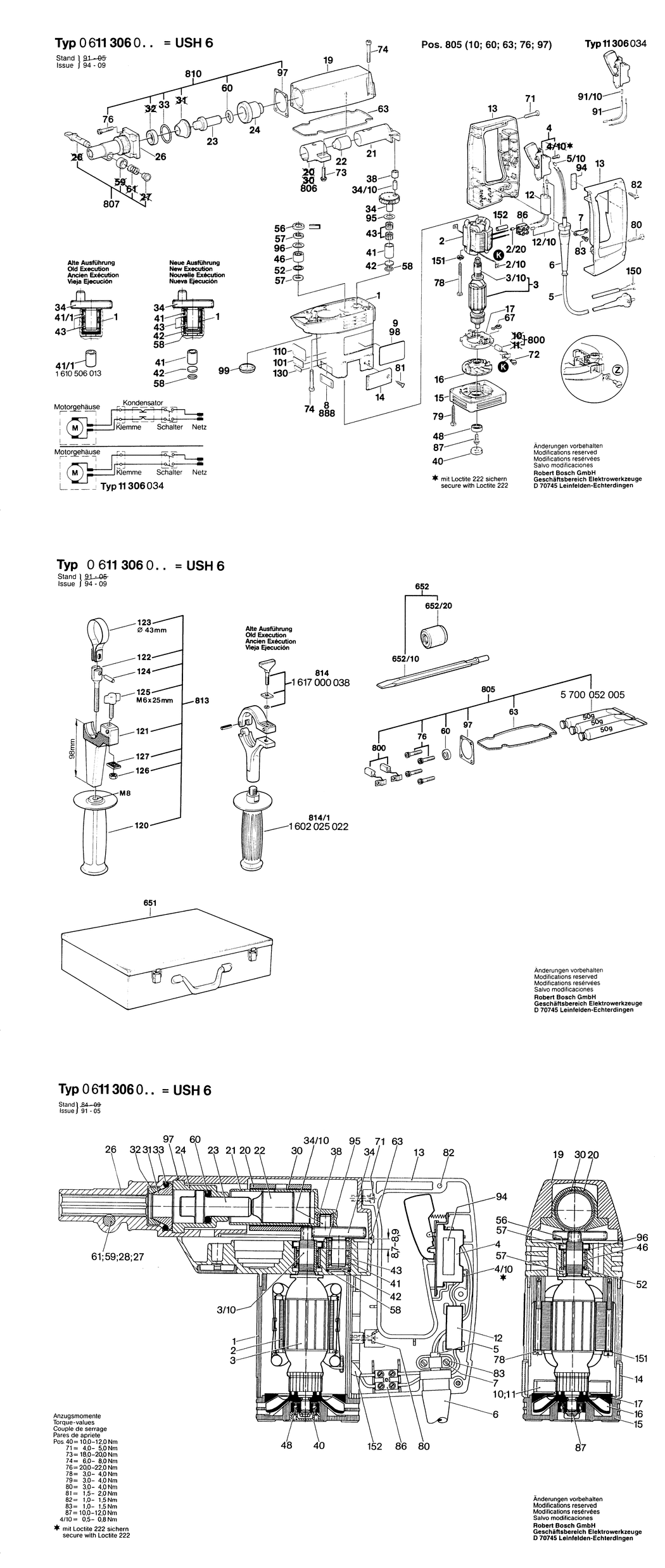

1 - MOTOR HOUSING
BSD-1615102138.A7
1615102138
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1614220054.A4
1614220054
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1614010013.A7
1614010013
|
-
|
|
|
|
3/10 - BUSHING
BSD-1610300045.A24
1610300045
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1617200017.A0
1617200017
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1617000723.A92
1617000723
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A731
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A45
1601302014
|
£2.74
|
£3.29
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110478.A1
1611110478
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1617328002.A22
1617328002
|
-
|
|
|
|
12/10 - END SPLICE
BSD-3604477009.A8
3604477009
|
£2.61
|
£3.13
|
|
|
13 - HANDLE
BSD-1615132019.A12
1615132019
|
-
|
|
|
|
14 - SEALING CAP
BSD-1615500283.A0
1615500283
|
-
|
|
|
|
15 - BEARING COVER
BSD-1615808070.A7
1615808070
|
-
|
|
|
|
16 - FAN
BSD-1616610053.A0
1616610053
|
-
|
|
|
|
17 - BRUSH HOLDER
BSD-1614336000.A5
1614336000
|
-
|
|
|
|
19 - GEAR HOUSING
BSD-1615806044.A0
1615806044
|
-
|
|
|
|
21 - HAMMER PISTON
BSD-1618700049.A0
1618700049
|
-
|
|
|
|
22 - STRIKER
BSD-1618710043.A5
1618710043
|
-
|
|
|
|
23 - STRIKER PIN
BSD-1613124025.A1
1613124025
|
-
|
|
|
|
24 - GUIDE BUSHING
BSD-1610521009.A4
1610521009
|
-
|
|
|
|
26 - TOOLHOLDER
BSD-1618597023.A5
1618597023
|
-
|
|
|
|
33 - O-RING 34.0x5.0 MM
BSD-1610210072.A5
1610210072
|
-
|
|
|
|
34 - ECCENTRIC SHAFT Z=36
BSD-1616110025.A12
1616110025
|
-
|
|
|
|
34/10 - BEARING BOLT
BSD-1613100011.A20
1613100011
|
£3.91
|
£4.69
|
|
|
38 - BUSHING
BSD-1610300046.A0
1610300046
|
-
|
|
|
|
40 - THREADED RING
BSD-1613344002.A4
1613344002
|
-
|
|
|
|
41 - BEARING SLEEVE
BSD-1610400029.A9
1610400029
|
-
|
|
|
|
42 - COVER DISC
BSD-1610000002.A13
1610000002
|
-
|
|
|
|
43 - NEEDLE-ROLLER ASSEMBLY dia13 MM
BSD-1610913004.A26
1610913004
|
£3.80
|
£4.56
|
|
|
46 - NEEDLE BEARING
BSD-1600910011.A7
1600910011
|
£16.41
|
£19.69
|
|
|
48 - BALL BEARING 9x26x8
BSD-1900905025.A67
1900905025
|
£21.52
|
£25.83
|
|
|
52 - SUPPORTING DISC 1.5 MM
BSD-1610101607.A16
1610101607
|
-
|
|
|
|
56 - RETAINING SNAP RING
BSD-1610500004.A59
1610500004
|
-
|
|
|
|
57 - FELT WASHER
BSD-1610205002.A8
1610205002
|
£1.75
|
£2.10
|
|
|
58 - O-RING 20.0x1.5 MM
BSD-1610210075.A81
1610210075
|
£2.74
|
£3.29
|
|
|
60 - O-RING 18.0x6.0 MM
BSD-1610210050.A0
1610210050
|
-
|
|
|
|
63 - SEALING FRAME
BSD-1611015018.A7
1611015018
|
-
|
|
|
|
67 - SPIRAL SPRING
BSD-1604652006.A237
1604652006
|
£1.84
|
£2.21
|
|
|
71 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8
BSD-2910011164.A52
2910011164
|
-
|
|
|
|
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A87
2910021118
|
£1.84
|
£2.21
|
|
|
73 - HEX SCREW
BSD-1613454002.A16
1613454002
|
-
|
|
|
|
74 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A63
2910141168
|
£3.80
|
£4.56
|
|
|
76 - HEX SOCKET HEAD CAP SCREW M 6X30
BSD-1613414006.A8
1613414006
|
-
|
|
|
|
76 - SPRING LOCK WASHER M6
BSD-2916690005.A150
2916690005
|
-
|
|
|
|
78 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A148
1603435008
|
£1.32
|
£1.58
|
|
|
79 - TAPPING SCREW DIN 7971-BZ4.8x32
BSD-2910211037.A122
2910211037
|
£1.84
|
£2.21
|
|
|
80 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A38
2910211036
|
£1.75
|
£2.10
|
|
|
81 - TAPPING SCREW DIN 7972-B3.9x13
BSD-2910601118.A64
2910601118
|
£1.75
|
£2.10
|
|
|
82 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A558
2910211011
|
£1.84
|
£2.21
|
|
|
83 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A458
2910211018
|
£1.75
|
£2.10
|
|
|
83 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A788
2910021116
|
£2.27
|
£2.72
|
|
|
86 - STRIP TERMINAL
BSD-1901091110.A63
1901091110
|
£1.75
|
£2.10
|
|
|
87 - HEX SCREW
BSD-1613454001.A8
1613454001
|
-
|
|
|
|
94 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A264
1602381001
|
-
|
|
|
|
95 - SUPPORTING DISC 0.5 MM
BSD-1610101609.A13
1610101609
|
-
|
|
|
|
96 - SUPPORTING DISC 1.5 MM
BSD-1610102017.A7
1610102017
|
£2.05
|
£2.46
|
|
|
97 - SEALING PLATE
BSD-1611015020.A17
1611015020
|
£1.75
|
£2.10
|
|
|
99 - SEALING CAP
BSD-1615500222.A7
1615500222
|
-
|
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025019.A128
1612025019
|
£6.85
|
£8.22
|
|
|
121 - SUPPORT CLAMP
BSD-1618040077.A41
1618040077
|
-
|
|
|
|
122 - STUD BOLT M8
BSD-1613521001.A2
1613521001
|
£5.58
|
£6.70
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316003.A2
1611316003
|
£2.61
|
£3.13
|
|
|
124 - STRAIGHT PIN
BSD-1613100012.A3
1613100012
|
£2.61
|
£3.13
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1611110500.A9
1611110500
|
-
|
|
|
|
130 - REFERENCE PLATE
BSD-1611110387.A51
1611110387
|
£1.84
|
£2.21
|
|
|
651 - CARRYING CASE
BSD-1615438172.A2
1615438172
|
-
|
|
|
|
652/10 - POINTED CHISEL
BSD-1618630016.A1
1618630016
|
-
|
|
|
|
652/20 - PROTECTIVE CAP
BSD-1610508013.A7
1610508013
|
-
|
|
|
|
652/20 - SEALING CAP dia15xdia27.5x36 MM
BSD-1610508001.A8
1610508001
|
-
|
|
|
|
652/20 - PROTECTIVE CAP
BSD-1610508009.A3
1610508009
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1617014108.A22
1617014108
|
£19.91
|
£23.89
|
|
|
805 - WEAR AND TEAR PART SET
BSD-1617000058.A5
1617000058
|
-
|
|
|
|
806 - BEARING PEDESTAL
BSD-1615819004.A5
1615819004
|
-
|
|
|
|
807 - LOCKING BOLT SET
BSD-1617000014.A15
1617000014
|
£24.45
|
£29.34
|
|
|
810 - PARTS SET
BSD-1617000092.A1
1617000092
|
-
|
|
|
|
813 - AUXILIARY HANDLE
BSD-1612025020.A41
1612025020
|
£26.12
|
£31.35
|
|
|
814 - PARTS SET
BSD-1617000038.A0
1617000038
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2999
160111A3H3
|
£2.74
|
£3.29
|
|
