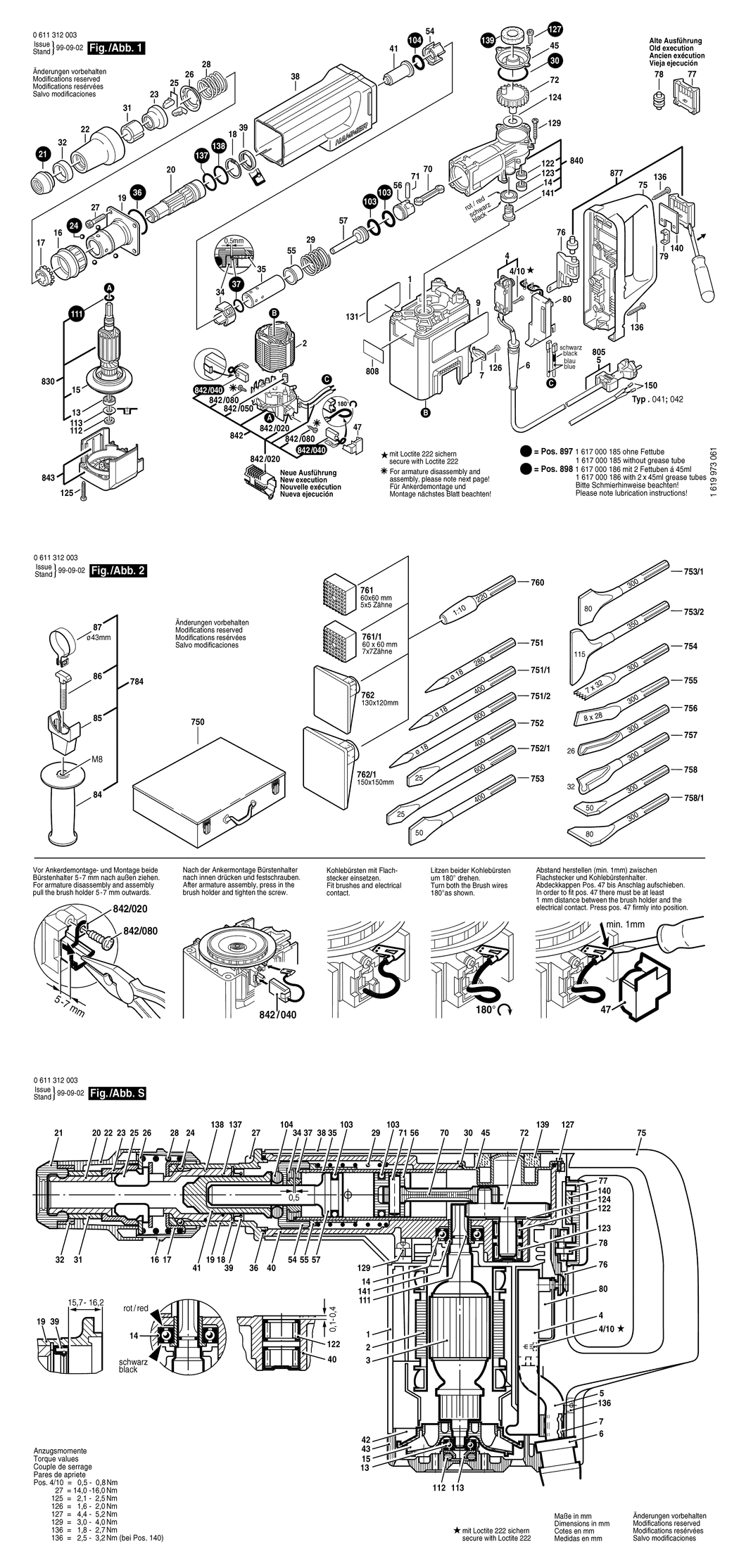

1 - MOTOR HOUSING
BSD-1615102142.A10
1615102142
|
£22.60
|
£27.12
|
|
|
2 - FIELD 100V
BSD-1614220132.A13
1614220132
|
£35.42
|
£42.51
|
|
|
4 - SWITCH
BSD-1617200048.A106
1617200048
|
£19.91
|
£23.89
|
|
|
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8
BSD-2910011088.A128
2910011088
|
£1.84
|
£2.21
|
|
|
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07RN-F
BSD-1614460060.A0
1614460060
|
-
|
|
|
|
6 - GROMMET dia9.7-dia12x89 MM
BSD-1610703053.A184
1610703053
|
£2.74
|
£3.29
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A767
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A771
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110667.A3
1611110667
|
-
|
|
|
|
13 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A151
1610900025
|
£16.41
|
£19.69
|
|
|
14 - GROOVE BALL BEARING 15x32x9
BSD-1610905027.A22
1610905027
|
-
|
|
|
|
15 - FAN
BSD-1616610071.A65
1616610071
|
£9.49
|
£11.39
|
|
|
16 - RATCHET SLEEVE
BSD-1610499016.A18
1610499016
|
-
|
|
|
|
17 - RETAINING SNAP RING
BSD-1610590002.A13
1610590002
|
£3.72
|
£4.47
|
|
|
18 - SPRING RETAINING RING DIN 472 37x1.5MM
BSD-2916660016.A15
2916660016
|
£2.61
|
£3.13
|
|
|
19 - CLAMPING-FLANGE
BSD-1615700033.A18
1615700033
|
-
|
|
|
|
20 - TOOLHOLDER
BSD-1618597069.A9
1618597069
|
-
|
|
|
|
21 - PROTECTIVE CAP
BSD-1610508017.A83
1610508017
|
£3.91
|
£4.69
|
|
|
22 - PROTECTION SLEEVE
BSD-1610499015.A13
1610499015
|
-
|
|
|
|
23 - STOP SLEEVE
BSD-1610520001.A134
1610520001
|
£12.64
|
£15.17
|
|
|
24 - BALL DIN 5401-5 MM-III-ST
BSD-1617000239.A13
1617000239
|
-
|
|
|
|
25 - STOPPING DEVICE
BSD-1612300027.A33
1612300027
|
£11.87
|
£14.24
|
|
|
26 - INDEXING DISK
BSD-1610290025.A108
1610290025
|
£6.85
|
£8.22
|
|
|
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A185
2910141201
|
£2.74
|
£3.29
|
|
|
28 - COMPRESSION SPRING
BSD-1614621000.A108
1614621000
|
£2.94
|
£3.53
|
|
|
29 - COMPRESSION SPRING
BSD-1614615002.A27
1614615002
|
£2.05
|
£2.46
|
|
|
30 - O-RING 60.0x1.5 MM
BSD-1610210092.A4
1610210092
|
-
|
|
|
|
31 - SPACER TUBE
BSD-1610390015.A17
1610390015
|
-
|
|
|
|
32 - CYLINDER SLEEVE
BSD-1610202016.A62
1610202016
|
-
|
|
|
|
34 - SPACER TUBE
BSD-1610390030.A13
1610390030
|
-
|
|
|
|
35 - HAMMER PIPE
BSD-1615806086.A17
1615806086
|
-
|
|
|
|
36 - O-RING 48.0x2.0 MM
BSD-1610210022.A17
1610210022
|
£1.74
|
£2.09
|
|
|
37 - O-RING 30x2.5 MM
BSD-1900210131.A50
1900210131
|
£4.48
|
£5.37
|
|
|
38 - COVERING HOOD
BSD-1615190058.A5
1615190058
|
-
|
|
|
|
39 - ROTARY SHAFT LIP SEAL
BSD-1610283027.A17
1610283027
|
£4.99
|
£5.99
|
|
|
41 - STRIKER PIN
BSD-1618710052.A13
1618710052
|
£16.74
|
£20.09
|
|
|
45 - HOUSING COVER
BSD-1615500286.A15
1615500286
|
-
|
|
|
|
47 - COVER
BSD-1610591012.A54
1610591012
|
£1.84
|
£2.21
|
|
|
54 - CONTROL DISC
BSD-1610190010.A17
1610190010
|
-
|
|
|
|
55 - CONTROL BUSHING
BSD-1610420004.A27
1610420004
|
-
|
|
|
|
56 - HAMMER PISTON
BSD-1618700057.A17
1618700057
|
-
|
|
|
|
57 - STRIKER
BSD-1618710077.A19
1618710077
|
-
|
|
|
|
70 - CONNECTING ROD
BSD-1612001031.A17
1612001031
|
-
|
|
|
|
71 - STRAIGHT PIN
BSD-1613101005.A24
1613101005
|
£1.38
|
£1.66
|
|
|
72 - ECCENTRIC COG WHEEL Z=43
BSD-1616317037.A11
1616317037
|
£103.14
|
£123.77
|
|
|
75 - HANDLE
BSD-1615132056.A4
1615132056
|
-
|
|
|
|
76 - CONTROL LEVER
BSD-1612026029.A16
1612026029
|
£5.57
|
£6.68
|
|
|
79 - BEARING PEDESTAL
BSD-1615819016.A17
1615819016
|
-
|
|
|
|
80 - SPEED GOVERNOR 100-120V
BSD-1617233025.A1
1617233025
|
-
|
|
|
|
84 - AUXILIARY HANDLE M8
BSD-1612025019.A134
1612025019
|
£6.85
|
£8.22
|
|
|
85 - SUPPORT CLAMP dia 43 MM
BSD-1618040057.A2
1618040057
|
-
|
|
|
|
86 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A642
1613490002
|
£4.48
|
£5.37
|
|
|
87 - CLAMPING BAND dia43 MM
BSD-1611316006.A25
1611316006
|
£2.61
|
£3.13
|
|
|
103 - O-RING 24.0x4.0 MM
BSD-1610210091.A14
1610210091
|
£3.91
|
£4.69
|
|
|
104 - O-RING 17.0x8.0 MM
BSD-1610210093.A11
1610210093
|
£1.75
|
£2.10
|
|
|
111 - O-RING 10.0x1.0 MM
BSD-1610210081.A73
1610210081
|
£3.72
|
£4.47
|
|
|
112 - CLAMPING RING
BSD-1610210090.A21
1610210090
|
£5.26
|
£6.31
|
|
|
113 - BACKUP RING
BSD-1610328013.A29
1610328013
|
-
|
|
|
|
122 - NEEDLE BEARING
BSD-1610910069.A31
1610910069
|
-
|
|
|
|
123 - NOZZLE SOCKET
BSD-1610910072.A0
1610910072
|
-
|
|
|
|
124 - THRUST BEARING DISC 1.0 MM
BSD-1610101008.A87
1610101008
|
-
|
|
|
|
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z
BSD-2912401036.A69
2912401036
|
£1.32
|
£1.58
|
|
|
126 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A605
2910211019
|
£1.84
|
£2.21
|
|
|
127 - MICROENCAPSULATED SCREW DIN 912 M 4x8-8.8
BSD-2914555131.A9
2914555131
|
£2.16
|
£2.59
|
|
|
129 - TAPPING SCREW DIN7981-ST4.8x25-C-Z
BSD-2912401036.A68
2912401036
|
£1.32
|
£1.58
|
|
|
131 - MANUFACTURER'S NAMEPLATE
BSD-1611110668.A7
1611110668
|
£2.80
|
£3.36
|
|
|
136 - TAPPING SCREW DIN 7971-ST4.8x25-C
BSD-2910211236.A25
2910211236
|
£1.75
|
£2.10
|
|
|
137 - O-RING 26.0x2.0 MM
BSD-1610210101.A26
1610210101
|
£2.80
|
£3.36
|
|
|
138 - O-RING 33.0x2.0 MM
BSD-1610210103.A11
1610210103
|
£2.74
|
£3.29
|
|
|
139 - FELT WASHER
BSD-1610205006.A12
1610205006
|
-
|
|
|
|
140 - SUPPORT PLATE
BSD-1611098004.A20
1611098004
|
-
|
|
|
|
141 - HEADED BUSH
BSD-1610322007.A4
1610322007
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A235
1900452012
|
£1.75
|
£2.10
|
|
|
750 - CARRYING CASE
BSD-2605438313.A6
2605438313
|
-
|
|
|
|
751 - POINTED CHISEL dia18x280 MM
BSD-1618600023.A9
1618600023
|
£15.76
|
£18.91
|
|
|
751/1 - POINTED CHISEL dia18x400 MM
BSD-1618600011.A9
1618600011
|
-
|
|
|
|
751/2 - POINTED CHISEL dia18x600 MM
BSD-1618600012.A14
1618600012
|
£24.81
|
£29.77
|
|
|
752 - COLD CHISEL 25x400 MM
BSD-1618600202.A14
1618600202
|
-
|
|
|
|
752/1 - COLD CHISEL 25x600 MM
BSD-1618600203.A9
1618600203
|
£19.16
|
£22.99
|
|
|
753 - SPADE-SHAPED CHISEL 50x400 MM
BSD-1618601006.A5
1618601006
|
-
|
|
|
|
753/1 - WIDE CHISEL 80x300 MM
BSD-1618601008.A5
1618601008
|
£37.08
|
£44.49
|
|
|
753/2 - WIDE CHISEL 115x350 MM
BSD-1618601007.A18
1618601007
|
£70.58
|
£84.70
|
|
|
754 - TOOTHED CHISEL 32x7x300 MM
BSD-1618601302.A18
1618601302
|
£34.74
|
£41.69
|
|
|
755 - MORTAR RAKING CHISEL 28x8x300 MM
BSD-1618601303.A5
1618601303
|
-
|
|
|
|
756 - GOUGE 26x300 MM
BSD-1618601101.A18
1618601101
|
£36.89
|
£44.27
|
|
|
757 - GOUGE 32x300 MM
BSD-1618601102.A5
1618601102
|
£47.04
|
£56.45
|
|
|
758 - TILE CHISEL 50x300 MM
BSD-1618601018.A18
1618601018
|
-
|
|
|
|
758/1 - WIDE CHISEL 80x300 MM
BSD-1618601019.A5
1618601019
|
£64.02
|
£76.83
|
|
|
760 - CHISEL HOLDER 65x220 MM
BSD-1618609003.A18
1618609003
|
£37.03
|
£44.44
|
|
|
761 - BUSH HAMMER 60x60 MM. Z= 5x5
BSD-1618623205.A5
1618623205
|
£68.09
|
£81.71
|
|
|
761/1 - BUSH HAMMER 60x60 MM. Z= 7x7
BSD-1618623206.A18
1618623206
|
£68.09
|
£81.71
|
|
|
762 - TAMPING TOOL 120x130 MM
BSD-1618633101.A14
1618633101
|
£92.22
|
£110.67
|
|
|
762/1 - TAMPING TOOL 150x150 MM
BSD-1618633102.A9
1618633102
|
£128.02
|
£153.62
|
|
|
784 - AUXILIARY HANDLE dia 43 MM
BSD-2602025063.A20
2602025063
|
£35.92
|
£43.10
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2977
160111A3H3
|
£2.74
|
£3.29
|
|
|
830 - ARMATURE 100-110V
BSD-1614010181.A0
1614010181
|
-
|
|
|
|
840 - ASSEMBLY OF SERVICE PARTS
BSD-1617000948.A12
1617000948
|
-
|
|
|
|
842 - BRUSH HOLDER
BSD-1614336009.A50
1614336009
|
-
|
|
|
|
842/020 - BRUSH GUIDE
BSD-1614336043.A57
1614336043
|
-
|
|
|
|
842/040 - CARBON-BRUSH SET
BSD-1617014122.A52
1617014122
|
£19.91
|
£23.89
|
|
|
842/040 - CARBON-BRUSH SET 10 x 1 617 014 122
BSD-1607000497.A23
1607000497
|
£120.11
|
£144.13
|
|
|
842/050 - RUBBER BUFFER
BSD-1613212004.A66
1613212004
|
£3.72
|
£4.47
|
|
|
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A297
2912401005
|
£1.84
|
£2.21
|
|
|
843 - BEARING COVER
BSD-1615808072.A8
1615808072
|
-
|
|
|
|
877 - SHIFT PLATE
BSD-1617000297.A13
1617000297
|
-
|
|
|
|
897 - WEAR AND TEAR PART SET
BSD-1617000185.A7
1617000185
|
-
|
|
|
|
898 - WEAR AND TEAR PART SET
BSD-1617000186.A2
1617000186
|
-
|
|
|
