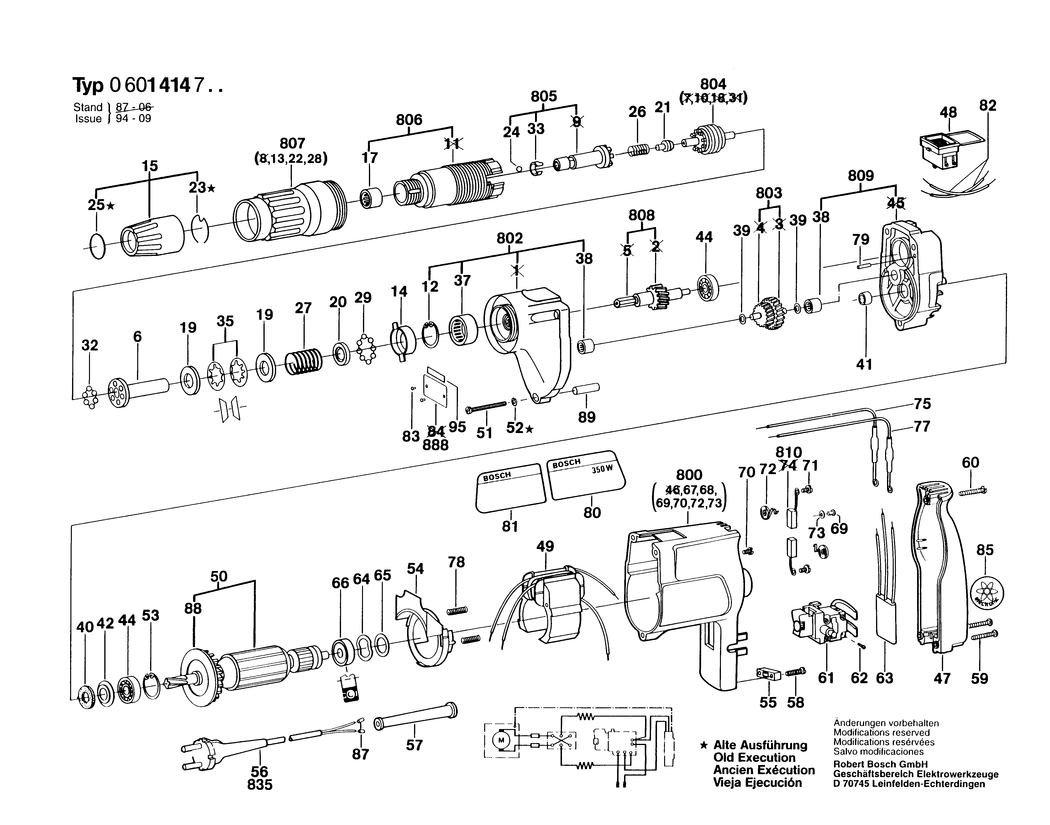

6 - DRIVE BUSHING
BSD-2606445005.A7
2606445005
|
-
|
|
|
|
12 - RETAINING RING 16 DIN 9045
BSD-2916600009.A34
2916600009
|
£1.75
|
£2.10
|
|
|
13 - GUIDE SLEEVE
BSD-2600460016.A0
2600460016
|
-
|
|
|
|
14 - CAPSULE
BSD-2600516009.A3
2600516009
|
-
|
|
|
|
15 - DEPTH-GAUGE
BSD-2600460901.A3
2600460901
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-2600914015.A3
2600914015
|
-
|
|
|
|
19 - SUPPORTING DISC
BSD-2600103015.A18
2600103015
|
£7.36
|
£8.83
|
|
|
20 - RETAINING SNAP RING
BSD-2600501031.A9
2600501031
|
£14.91
|
£17.89
|
|
|
21 - PRESSURE SPINDLE
BSD-2603132002.A6
2603132002
|
-
|
|
|
|
23 - SPRING RETAINING RING
BSD-2604601013.A2
2604601013
|
-
|
|
|
|
24 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A370
1903230003
|
£2.74
|
£3.29
|
|
|
25 - O-RING 21.0x2.0 MM
BSD-2600210028.A39
2600210028
|
£1.38
|
£1.66
|
|
|
26 - COMPRESSION SPRING
BSD-2604611040.A2
2604611040
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604619009.A14
2604619009
|
£2.80
|
£3.36
|
|
|
28 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A307
1903230006
|
£2.27
|
£2.72
|
|
|
29 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A113
1903230004
|
£2.27
|
£2.72
|
|
|
32 - BALL DIN 5401-5 G28
BSD-1903230009.A251
1903230009
|
£1.84
|
£2.21
|
|
|
33 - LEAF SPRING
BSD-2601250001.A20
2601250001
|
£3.72
|
£4.47
|
|
|
35 - DISC SPRING
BSD-2600550018.A19
2600550018
|
£2.80
|
£3.36
|
|
|
37 - NEEDLE BEARING dia 12 MM
BSD-2600914016.A17
2600914016
|
£3.72
|
£4.47
|
|
|
38 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A723
2600914010
|
£2.94
|
£3.53
|
|
|
39 - SHIM 0.3 MM
BSD-2600100607.A696
2600100607
|
£1.75
|
£2.10
|
|
|
40 - FELT DISC
BSD-2600108000.A198
2600108000
|
-
|
|
|
|
41 - SEAL BUSHING
BSD-2600300049.A83
2600300049
|
-
|
|
|
|
42 - CUPPED WASHER
BSD-2600500030.A65
2600500030
|
-
|
|
|
|
44 - BALL BEARING 8x22x7
BSD-1900905029.A289
1900905029
|
£22.60
|
£27.12
|
|
|
47 - HOUSING COVER
BSD-2605132017.A48
2605132017
|
-
|
|
|
|
48 - CHANGE-OVER SWITCH
BSD-2607200114.A15
2607200114
|
-
|
|
|
|
49 - POLE SHOE 110-115V
BSD-2604222301.A6
2604222301
|
-
|
|
|
|
50 - ARMATURE 110-115V
BSD-2604010532.A2
2604010532
|
-
|
|
|
|
51 - SCREW AND WASHER ASSEMBLY DIN 84-BM 4x35-Z4-8.8
BSD-2914501027.A56
2914501027
|
-
|
|
|
|
52 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A91
2916690003
|
£1.75
|
£2.10
|
|
|
53 - SPRING RETAINING RING
BSD-2600119000.A66
2600119000
|
£1.84
|
£2.21
|
|
|
54 - COVER DISC
BSD-2601328041.A21
2601328041
|
-
|
|
|
|
55 - CABLE CLIP
BSD-2601035001.A372
2601035001
|
£1.75
|
£2.10
|
|
|
56 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-3604460069.A7
3604460069
|
£39.61
|
£47.53
|
|
|
57 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1253
2600703012
|
£2.94
|
£3.53
|
|
|
58 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1558
2910211019
|
£1.84
|
£2.21
|
|
|
59 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A626
2910211021
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A280
2910211020
|
£2.16
|
£2.59
|
|
|
61 - SWITCH
BSD-2607200148.A0
2607200148
|
-
|
|
|
|
62 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A445
2603410023
|
-
|
|
|
|
63 - SUPPRESSION CAPACITOR
BSD-2607329097.A1
2607329097
|
-
|
|
|
|
64 - SHIM
BSD-2600150004.A170
2600150004
|
£2.27
|
£2.72
|
|
|
65 - SHIM 0.3 MM
BSD-2600101023.A168
2600101023
|
£1.84
|
£2.21
|
|
|
65 - SHIM 0.2 MM
BSD-2600101022.A451
2600101022
|
£1.84
|
£2.21
|
|
|
65 - SHIM 0.5 MM
BSD-2600101020.A198
2600101020
|
£1.84
|
£2.21
|
|
|
66 - BALL BEARING 7x22x7
BSD-1900905018.A887
1900905018
|
£19.91
|
£23.89
|
|
|
70 - TAPPING SCREW 2.2x6.5
BSD-2603435016.A63
2603435016
|
-
|
|
|
|
71 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A181
2914501011
|
£1.75
|
£2.10
|
|
|
72 - SPIRAL SPRING
BSD-2604652003.A24
2604652003
|
-
|
|
|
|
73 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A536
2916011005
|
£1.84
|
£2.21
|
|
|
75 - CABLE
BSD-2604411530.A64
2604411530
|
-
|
|
|
|
77 - CABLE
BSD-2604411523.A43
2604411523
|
-
|
|
|
|
78 - COMPRESSION SPRING
BSD-2604611026.A208
2604611026
|
-
|
|
|
|
79 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A355
1903201042
|
£2.27
|
£2.72
|
|
|
80 - STICKER
BSD-2601110176.A1
2601110176
|
-
|
|
|
|
81 - MANUFACTURER'S NAMEPLATE
BSD-2601110099.A40
2601110099
|
-
|
|
|
|
82 - CABLE
BSD-2604411524.A17
2604411524
|
-
|
|
|
|
83 - GROOVED NAIL
BSD-3603133000.A356
3603133000
|
£2.61
|
£3.13
|
|
|
85 - STICKER
BSD-2601110230.A89
2601110230
|
-
|
|
|
|
87 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A334
1900452012
|
£1.75
|
£2.10
|
|
|
88 - FAN
BSD-2606610021.A20
2606610021
|
-
|
|
|
|
89 - CENTERING SLEEVE
BSD-2600409013.A39
2600409013
|
-
|
|
|
|
653 - GUIDE SLEEVE
BSD-2600326006.A21
2600326006
|
-
|
|
|
|
654 - GUIDE SLEEVE
BSD-2600326007.A1
2600326007
|
-
|
|
|
|
655 - GUIDE SLEEVE
BSD-2600326008.A21
2600326008
|
-
|
|
|
|
800 - MOTOR HOUSING
BSD-2605104954.A51
2605104954
|
-
|
|
|
|
802 - GEAR HOUSING
BSD-2605806964.A2
2605806964
|
-
|
|
|
|
803 - TOOTHED SHAFT Z=21/41
BSD-2606311904.A4
2606311904
|
-
|
|
|
|
804 - COUPLING HALF
BSD-2606490908.A2
2606490908
|
-
|
|
|
|
805 - COUPLING HALF
BSD-2606455902.A10
2606455902
|
-
|
|
|
|
806 - THREADED SLEEVE
BSD-2600390900.A4
2600390900
|
-
|
|
|
|
807 - ADJUSTING SLEEVE
BSD-2600499900.A4
2600499900
|
-
|
|
|
|
808 - DRIVE SHAFT Z= 29
BSD-2603124901.A5
2603124901
|
-
|
|
|
|
809 - BEARING FLANGE
BSD-2605700925.A15
2605700925
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320902.A171
2604320902
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A806
160111A3H3
|
£2.74
|
£3.29
|
|
