Bosch 400 / 0611305074 / F 220 Volt Spare Parts

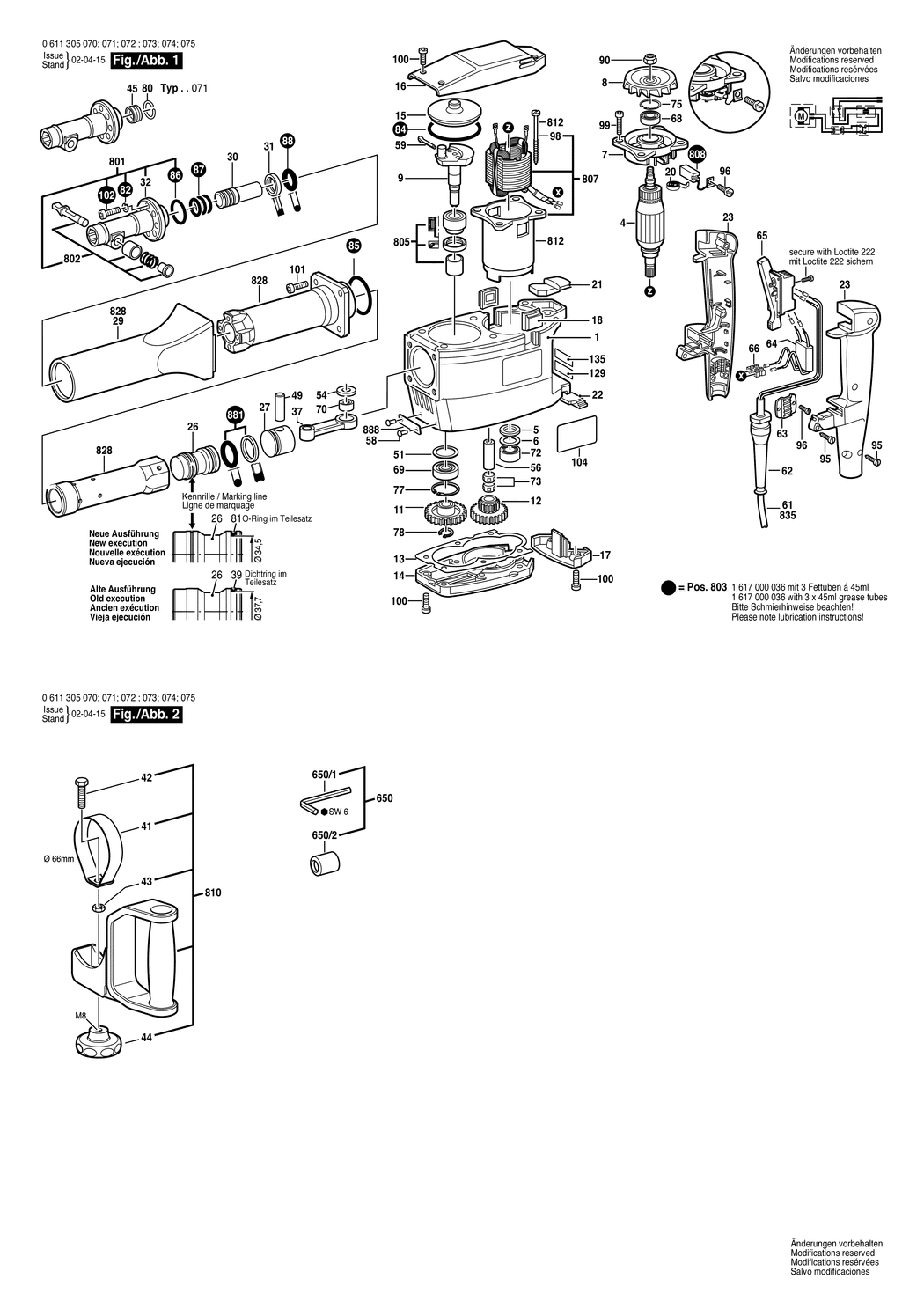

An exploded drawing and listing for the Bosch 400 / 0611305074 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106040.A2 1615106040	-
4 - ARMATURE 220-230V BSD-1614011019.A12 1614011019	-
5 - SEALING DISK BSD-1610108012.A30 1610108012	£1.75	£2.10
6 - SHIM 1.0 MM BSD-1610102013.A9 1610102013	£1.75	£2.10
7 - BEARING FLANGE BSD-1615805060.A11 1615805060	-
8 - FAN BSD-1616610047.A9 1616610047	-
9 - ECCENTRIC SHAFT BSD-1616110032.A4 1616110032	£46.82	£56.18
11 - CYLINDRICAL GEAR Z=45 BSD-1616317015.A17 1616317015	-
12 - CYLINDRICAL GEAR Z=47/21 BSD-1616328025.A16 1616328025	-
13 - SEALING PLATE BSD-1611015012.A30 1611015012	£2.33	£2.80
14 - GEAR COVER BSD-1615808053.A2 1615808053	-
15 - SEALING CAP BSD-1615500168.A53 1615500168	£2.52	£3.02
16 - FAN COVER BSD-1615500263.A0 1615500263	-
17 - SWITCH COVER BSD-1615500261.A17 1615500261	£7.78	£9.33
18 - SEALING CAP BSD-1615500262.A5 1615500262	-
20 - SPIRAL SPRING BSD-1614652000.A107 1614652000	-
21 - RUBBER PLATE BSD-1612392001.A51 1612392001	£3.80	£4.56
22 - RUBBER PLATE BSD-1612392000.A15 1612392000	£3.80	£4.56
23 - HANDLE BSD-1615133021.A16 1615133021	£21.52	£25.83
26 - STRIKER BSD-1618710058.A18 1618710058	£41.62	£49.95
27 - HAMMER PISTON BSD-1618700047.A22 1618700047	£27.23	£32.68
29 - PROTECTIVE TUBE BSD-1615190018.A2 1615190018	-
30 - STRIKER PIN BSD-1613120015.A10 1613120015	-
31 - STOP DISC BSD-3606100101.A27 3606100101	£12.04	£14.45
32 - TOOLHOLDER BSD-1618597033.A8 1618597033	£58.76	£70.51
37 - CONNECTING ROD BSD-1612001029.A6 1612001029	-
41 - CLAMPING BAND dia 66 MM BSD-1611316005.A10 1611316005	£10.10	£12.12
42 - HEX SCREW DIN 933-M8x30-8.8 BSD-2911061246.A13 2911061246	£1.75	£2.10
43 - HEX NUT DIN 439-BM8-04 BSD-2915051107.A11 2915051107	£1.75	£2.10
44 - STAR KNOB BSD-1613349015.A10 1613349015	£2.80	£3.36
49 - PISTON PIN BSD-1610300058.A4 1610300058	£2.80	£3.36
51 - SHIM 1.0 MM BSD-1610102014.A44 1610102014	-
54 - COVER DISC dia12xdia26x2.0 MM BSD-1610113005.A30 1610113005	£1.75	£2.10
56 - BEARING BOLT BSD-1610300057.A46 1610300057	£4.75	£5.70
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A113 2917721034	£1.75	£2.10
59 - SPLIT PIN 3.2x18 DIN 94-ST BSD-1904681350.A48 1904681350	£1.75	£2.10
62 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A716 3600703011	£2.80	£3.36
63 - FASTENING CLAMP BSD-1611302006.A28 1611302006	-
64 - SUPPRESSION CAPACITOR BSD-1617328019.A13 1617328019	-
65 - ON-OFF SWITCH BSD-1617200021.A12 1617200021	-
66 - CONNECTING TERMINAL BSD-1611091002.A15 1611091002	£1.75	£2.10
68 - GROOVE BALL BEARING 10x32x12 BSD-1610905001.A78 1610905001	£14.91	£17.89
69 - GROOVE BALL BEARING BSD-1610900013.A50 1610900013	£11.30	£13.56
70 - NEEDLE-ROLLER BEARING BSD-1610910049.A20 1610910049	£37.26	£44.71
72 - NEEDLE-ROLLER BEARING BSD-1610910007.A61 1610910007	£21.68	£26.01
73 - NEEDLE-ROLLER ASSEMBLY BSD-1610913001.A51 1610913001	£11.30	£13.56
75 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A771 2916660013	£2.16	£2.59
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472 BSD-2916660018.A24 2916660018	£2.61	£3.13
78 - LOCKING WASHER DIN 6799-12-FST BSD-2916080014.A72 2916080014	£1.75	£2.10
82 - SPRING LOCK WASHER DIN 128-A8-FST BSD-2916690007.A7 2916690007	£1.75	£2.10
84 - O-RING 70x3 MM BSD-1900210160.A30 1900210160	£5.58	£6.70
85 - O-RING 55x3 MM BSD-1900210152.A30 1900210152	£3.72	£4.47
86 - O-RING 30x2 MM BSD-1900210130.A41 1900210130	£3.72	£4.47
87 - O-RING 21.0x3.0 MM BSD-1610210041.A4 1610210041	£6.52	£7.83
88 - O-RING 22.0x6.0 MM BSD-1610210042.A20 1610210042	£1.75	£2.10
90 - HEX NUT DIN 985-M8-8 BSD-2915061005.A67 2915061005	£2.61	£3.13
95 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A47 2914201506	£1.75	£2.10
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A89 2910021118	£1.75	£2.10
98 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A19 1613412001	£1.75	£2.10
99 - MICROENCAPSULATED SCREW DIN 84 M6x30-8.8 BSD-2914551114.A11 2914551114	£2.61	£3.13
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A163 2910141201	£2.61	£3.13
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A34 2910141244	£1.75	£2.10
102 - HEX SOCKET HEAD CAP SCREW M 8x25`MM BSD-1613414009.A4 1613414009	£1.75	£2.10
104 - REFERENCE PLATE BSD-1611110217.A4 1611110217	-
129 - STICKER BSD-1601110265.A357 1601110265	-
135 - REFERENCE PLATE BSD-1611110387.A49 1611110387	£1.75	£2.10
650 - PARTS SET BSD-1617000103.A1 1617000103	-
650/1 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A203 1907950007	£5.30	£6.36
650/2 - PROTECTIVE CAP BSD-2600508042.A8 2600508042	-
801 - TOOL HOLDER SET BSD-1617000037.A14 1617000037	£103.14	£123.77
802 - LOCKING BOLT SET BSD-1617000014.A17 1617000014	£24.45	£29.34
803 - WEAR AND TEAR PART SET BSD-1617000036.A0 1617000036	-
805 - SEAL KIT BSD-1617031004.A17 1617031004	-
807 - FIELD 220-230V BSD-1617031009.A20 1617031009	-
808 - CARBON-BRUSH SET BSD-1617014110.A26 1617014110	£18.96	£22.75
810 - AUXILIARY HANDLE dia 66 MM BSD-1612025027.A0 1612025027	£27.23	£32.68
812 - POLE HOUSING BSD-1617000059.A0 1617000059	-
828 - HAMMER PIPE BSD-1617000919.A5 1617000919	-
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A191 1607000228	£23.86	£28.63
881 - SEAL KIT BSD-1617000172.A0 1617000172	-
888 - NAMEPLATE BSD-160111A3HC.A166 160111A3HC	£2.61	£3.13
