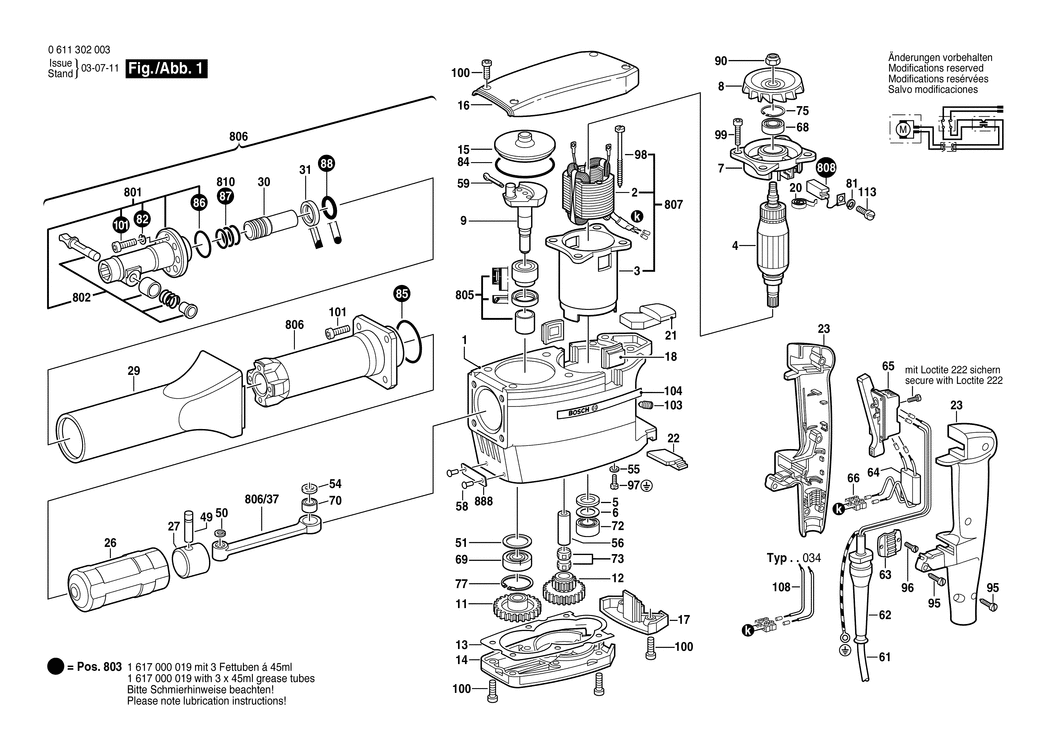

1 - MOTOR HOUSING
BSD-1615106023.A5
1615106023
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1617031009.A6
1617031009
|
-
|
|
|
|
3 - POLE HOUSING
BSD-1617000059.A16
1617000059
|
-
|
|
|
|
4 - ARMATURE 220-230V
BSD-1614011019.A5
1614011019
|
-
|
|
|
|
5 - SEALING DISK
BSD-1610108012.A17
1610108012
|
£1.75
|
£2.10
|
|
|
6 - SHIM 1.0 MM
BSD-1610102013.A14
1610102013
|
£1.75
|
£2.10
|
|
|
7 - BEARING FLANGE
BSD-1615805060.A16
1615805060
|
-
|
|
|
|
8 - FAN
BSD-1616610047.A16
1616610047
|
-
|
|
|
|
9 - ECCENTRIC SHAFT
BSD-1616110032.A17
1616110032
|
£46.82
|
£56.18
|
|
|
11 - CYLINDRICAL GEAR Z=45
BSD-1616317015.A4
1616317015
|
-
|
|
|
|
12 - CYLINDRICAL GEAR Z=47/21
BSD-1616328025.A5
1616328025
|
-
|
|
|
|
13 - SEALING PLATE
BSD-1611015012.A20
1611015012
|
£2.33
|
£2.80
|
|
|
14 - GEAR COVER
BSD-1615808039.A19
1615808039
|
-
|
|
|
|
15 - SEALING CAP
BSD-1615500168.A37
1615500168
|
£2.52
|
£3.02
|
|
|
16 - FAN COVER
BSD-1615500276.A36
1615500276
|
£52.15
|
£62.58
|
|
|
17 - SWITCH COVER
BSD-1615500261.A28
1615500261
|
£7.78
|
£9.33
|
|
|
18 - SEALING CAP
BSD-1615500282.A34
1615500282
|
£2.33
|
£2.80
|
|
|
20 - SPIRAL SPRING
BSD-1614652000.A94
1614652000
|
-
|
|
|
|
21 - RUBBER PLATE
BSD-1612392001.A60
1612392001
|
£3.80
|
£4.56
|
|
|
22 - RUBBER PLATE
BSD-1612392000.A6
1612392000
|
£3.80
|
£4.56
|
|
|
23 - HANDLE
BSD-1615133021.A3
1615133021
|
£21.52
|
£25.83
|
|
|
26 - STRIKER
BSD-1618710031.A15
1618710031
|
-
|
|
|
|
27 - IMPACT MECHANISM
BSD-1617000917.A28
1617000917
|
£653.78
|
£784.53
|
|
|
29 - PROTECTIVE TUBE
BSD-1615190020.A28
1615190020
|
£16.41
|
£19.69
|
|
|
30 - STRIKER PIN
BSD-1613120013.A11
1613120013
|
-
|
|
|
|
31 - ADAPTOR PLATE
BSD-1610114011.A16
1610114011
|
-
|
|
|
|
49 - PISTON PIN
BSD-1613105009.A33
1613105009
|
-
|
|
|
|
50 - LOCKING WASHER
BSD-1610113008.A2
1610113008
|
-
|
|
|
|
51 - SHIM 1.0 MM
BSD-1610102014.A38
1610102014
|
-
|
|
|
|
54 - COVER DISC dia12xdia26x2.0 MM
BSD-1610113005.A21
1610113005
|
£1.75
|
£2.10
|
|
|
55 - SPRING WASHER DIN 137-A4
BSD-1600150006.A837
1600150006
|
-
|
|
|
|
56 - BEARING BOLT
BSD-1610300057.A57
1610300057
|
£4.75
|
£5.70
|
|
|
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A96
2917721034
|
£1.75
|
£2.10
|
|
|
59 - SPLIT PIN 3.2x18 DIN 94-ST
BSD-1904681350.A39
1904681350
|
£1.75
|
£2.10
|
|
|
61 - ELEC. CABLE W/CONNECTION
BSD-1614461024.A0
1614461024
|
-
|
|
|
|
62 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A726
3600703011
|
£2.80
|
£3.36
|
|
|
63 - FASTENING CLAMP
BSD-1611302007.A2
1611302007
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-1617328002.A29
1617328002
|
-
|
|
|
|
65 - ON-OFF SWITCH
BSD-1617200021.A7
1617200021
|
-
|
|
|
|
66 - CONNECTING TERMINAL
BSD-1611091002.A2
1611091002
|
£1.75
|
£2.10
|
|
|
68 - GROOVE BALL BEARING 10x32x12
BSD-1610905001.A63
1610905001
|
£14.91
|
£17.89
|
|
|
69 - GROOVE BALL BEARING
BSD-1610900013.A38
1610900013
|
£11.30
|
£13.56
|
|
|
70 - NEEDLE-ROLLER BEARING
BSD-1610910049.A29
1610910049
|
£37.26
|
£44.71
|
|
|
72 - NEEDLE-ROLLER BEARING
BSD-1610910007.A33
1610910007
|
£21.68
|
£26.01
|
|
|
73 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913001.A33
1610913001
|
£11.30
|
£13.56
|
|
|
75 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A782
2916660013
|
£2.16
|
£2.59
|
|
|
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472
BSD-2916660018.A37
2916660018
|
£2.61
|
£3.13
|
|
|
81 - TAB WASHER
BSD-1611331007.A79
1611331007
|
£1.32
|
£1.58
|
|
|
81 - SPRING WASHER DIN 137-A4
BSD-1600150006.A838
1600150006
|
-
|
|
|
|
82 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A126
2916680009
|
-
|
|
|
|
84 - O-RING 70x3 MM
BSD-1900210160.A12
1900210160
|
£5.58
|
£6.70
|
|
|
85 - O-RING 55x3 MM
BSD-1900210152.A59
1900210152
|
£3.72
|
£4.47
|
|
|
86 - O-RING 30x2 MM
BSD-1900210130.A18
1900210130
|
£3.72
|
£4.47
|
|
|
88 - O-RING 22.0x6.0 MM
BSD-1610210042.A13
1610210042
|
£1.75
|
£2.10
|
|
|
90 - HEX NUT DIN 985-M8-8
BSD-2915061005.A38
2915061005
|
£2.61
|
£3.13
|
|
|
95 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A548
2910211011
|
£1.75
|
£2.10
|
|
|
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A115
2910021118
|
£1.75
|
£2.10
|
|
|
97 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A308
2910110116
|
£1.75
|
£2.10
|
|
|
98 - SOCKET HEAD CAP SCREW DIN 84-B5x65-5.8
BSD-2910011179.A3
2910011179
|
-
|
|
|
|
99 - SOCKET HEAD CAP SCREW DIN 84-AM6x28-8.8
BSD-2910021204.A11
2910021204
|
-
|
|
|
|
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8
BSD-2910141199.A52
2910141199
|
£3.72
|
£4.47
|
|
|
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8
BSD-2910141244.A27
2910141244
|
£1.75
|
£2.10
|
|
|
104 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A60
1601110004
|
-
|
|
|
|
104 - REFERENCE PLATE
BSD-1601110058.A190
1601110058
|
£1.75
|
£2.10
|
|
|
108 - CONNECTING CABLE
BSD-1614437008.A9
1614437008
|
-
|
|
|
|
113 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A172
2910021120
|
£1.75
|
£2.10
|
|
|
801 - TOOL HOLDER SET
BSD-1617000017.A6
1617000017
|
-
|
|
|
|
802 - LOCKING BOLT SET
BSD-1617000014.A30
1617000014
|
£24.45
|
£29.34
|
|
|
803 - SERVICE BOX
BSD-1617000019.A12
1617000019
|
-
|
|
|
|
805 - SEAL KIT
BSD-1617031004.A23
1617031004
|
-
|
|
|
|
806 - PISTON ASSEMBLY
BSD-1617031005.A3
1617031005
|
-
|
|
|
|
806/37 - CONNECTING ROD
BSD-1612001023.A3
1612001023
|
-
|
|
|
|
807 - FIELD 110-115V
BSD-1617031010.A6
1617031010
|
-
|
|
|
|
807 - FIELD 220-230V
BSD-1617031009.A8
1617031009
|
-
|
|
|
|
808 - CARBON-BRUSH SET
BSD-1617014110.A29
1617014110
|
£18.96
|
£22.75
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3047
160111A3H3
|
£2.61
|
£3.13
|
|
