Bosch GSR 18V-21 / 3601JH1000 / EU 18 Volt Spare Parts

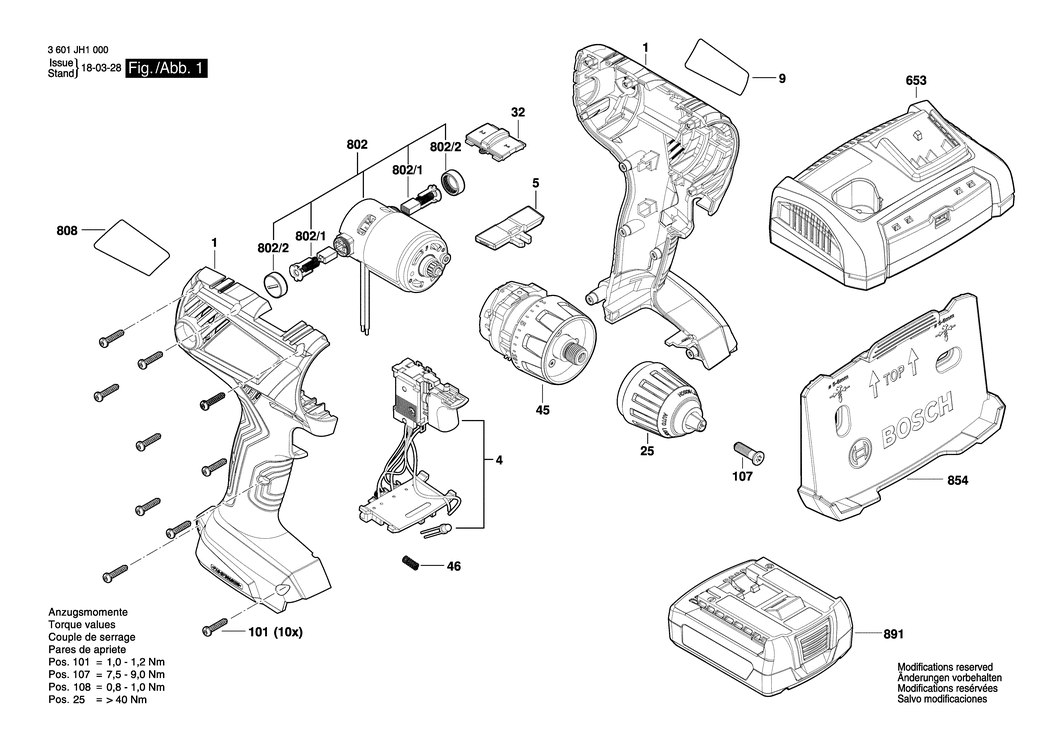

An exploded drawing and listing for the Bosch GSR 18V-21 / 3601JH1000 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101741.A9 2609101741	£14.91	£17.89
4 - ELECTRONICS MODULE BSD-2607202346.A5 2607202346	£37.27	£44.72
5 - ADJUSTING LEVER BSD-2609101484.A25 2609101484	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE GSR 18V-21 BSD-160111C2CD.A0 160111C2CD	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2609111940.A8 2609111940	£31.64	£37.97
32 - SWITCHOVER UNIT BSD-2609199812.A27 2609199812	£2.61	£3.13
45 - GEAR BOX BSD-1600A00S4G.A0 1600A00S4G	£37.27	£44.72
46 - COMPRESSION SPRING BSD-1609280477.A162 1609280477	£1.75	£2.10
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A33 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A84 2603421229	£1.75	£2.10
653 - CHARGER EU GAX 18V-30 230/10.8-18V 1h BSD-2607225991.A4 2607225991	£81.81	£98.17
653 - CHARGER GB GAX 18V-30 230/10.8-18V 1h BSD-2607225993.A1 2607225993	£81.81	£98.17
802 - DC MOTOR 18V BSD-160702266N.A5 160702266N	£33.74	£40.49
802/1 - CARBON-BRUSH SET BSD-1607000CZ1.A0 1607000CZ1	£5.58	£6.70
802/2 - SEALING CAP BSD-2609199049.A13 2609199049	£5.58	£6.70
808 - NAMEPLATE BSD-160111C2FE.A0 160111C2FE	£2.61	£3.13
854 - BRACKET BSD-1609280A81.A3 1609280A81	£6.52	£7.83
891 - SLIDE-IN ACCU PACKAGE 18V. 2.0Ah. LI BBS MR-L BSD-2607336905.A9 2607336905	£58.76	£70.51
