Bosch GSR 18 V-EC FC2 / 3601JE11D0 / --- 18 Volt Spare Parts

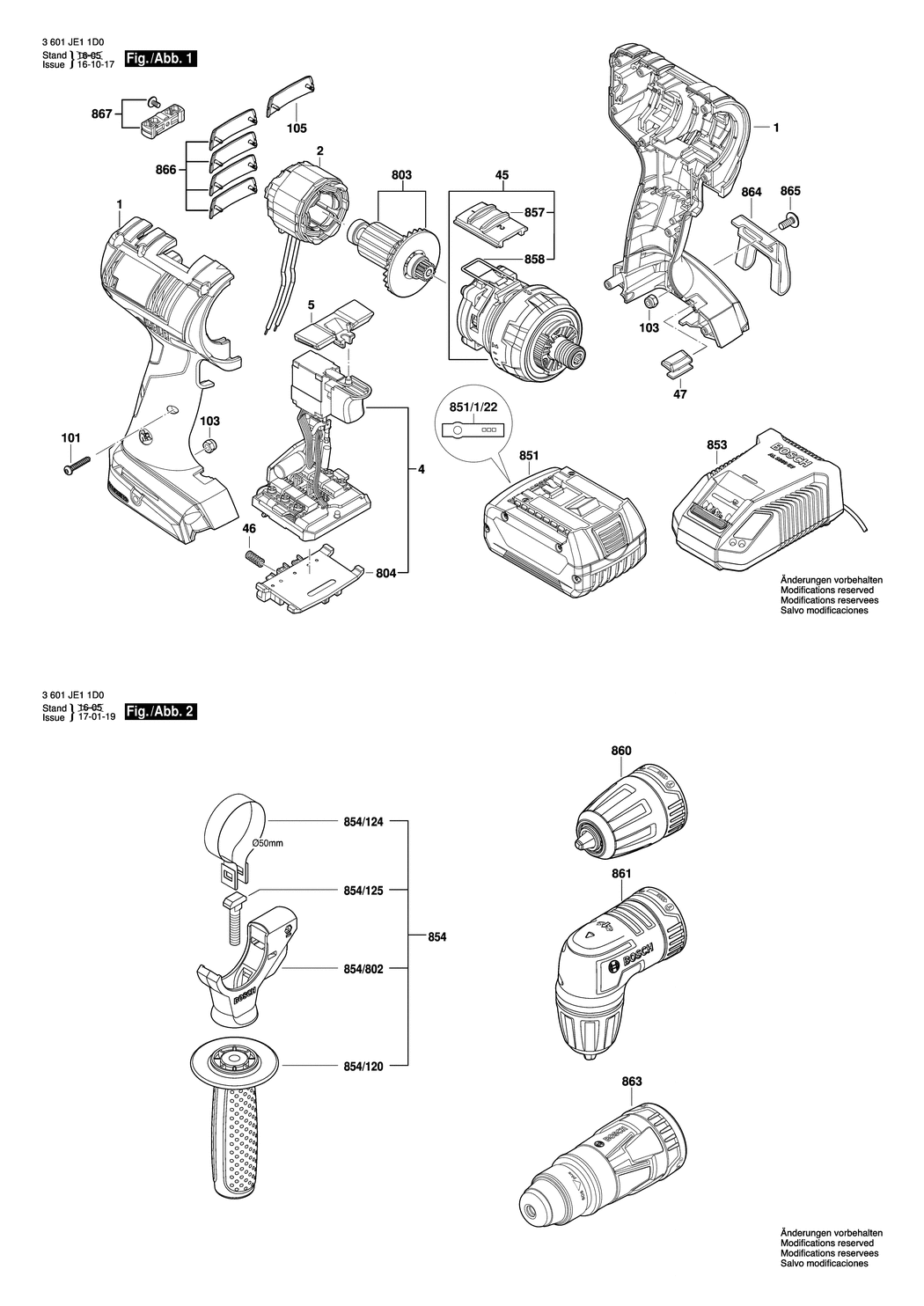

An exploded drawing and listing for the Bosch GSR 18 V-EC FC2 / 3601JE11D0 / --- 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101226.A4 2609101226	£27.31	£32.77
2 - STATOR 18V BSD-1619P08583.A2 1619P08583	£41.62	£49.95
4 - ELECTRONIC MODULE BSD-1600A001BG.A1 1600A001BG	£80.61	£96.73
5 - ADJUSTING LEVER BSD-2609101227.A2 2609101227	£1.75	£2.10
45 - GEAR BOX BSD-2609199714.A0 2609199714	£93.88	£112.65
46 - COMPRESSION SPRING BSD-1609280477.A111 1609280477	£1.75	£2.10
47 - LENS BSD-2609100858.A15 2609100858	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW BSD-2609110353.A59 2609110353	£2.16	£2.59
103 - NUT BSD-2609110835.A39 2609110835	£1.75	£2.10
105 - COLOR CLIP BSD-2609101409.A1 2609101409	£1.75	£2.10
803 - ROTOR 14.4-18V BSD-2609199671.A6 2609199671	£45.67	£54.80
804 - CONTACT RETAINER BSD-1609280478.A20 1609280478	£13.41	£16.09
851 - SLIDE-IN ACCU PACKAGE 18V. 2.0Ah. LI BBS MR-L BSD-2607336905.A5 2607336905	£58.76	£70.51
851/1/22 - STICKER BSD-2601115537.A11 2601115537	£2.33	£2.80
853 - FAST CHARGER BR 220/10.8-18V.1h BSD-2607225437.A0 2607225437	£102.57	£123.08
853 - FAST CHARGER RC 115/10.8-18V. 1h BSD-2607225431.A0 2607225431	£103.14	£123.77
853 - FAST CHARGER AR 230/10.8-18V. 1h BSD-2607225589.A2 2607225589	£102.57	£123.08
854 - AUXILIARY HANDLE BSD-1602025090.A0 1602025090	£21.52	£25.83
854/120 - AUXILIARY HANDLE BSD-160202507H.A498 160202507H	£11.30	£13.56
854/124 - CLAMPING BAND dia50 MM BSD-1611316021.A163 1611316021	£2.80	£3.36
854/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A161 1613490002	£4.26	£5.11
854/802 - SUPPORT CLAMP BSD-1617000475.A120 1617000475	£10.10	£12.12
857 - SWITCH SLIDE BSD-2609101293.A1 2609101293	£2.16	£2.59
858 - SWITCH SPRING BSD-2609111078.A5 2609111078	£1.75	£2.10
860 - CHUCK ATTACHMENT BSD-2609199634.A1 2609199634	£81.81	£98.17
861 - RIGHT-ANGLE ATTACHMENT BSD-2609199635.A1 2609199635	£81.81	£98.17
863 - ATTACHMENT BSD-2609199816.A1 2609199816	-
864 - CLIP BSD-2609110956.A14 2609110956	£7.36	£8.83
865 - SCREW BSD-2609110834.A52 2609110834	£1.75	£2.10
866 - COLOR CLIP BSD-2609199746.A2 2609199746	£2.33	£2.80
867 - BIT HOLDER BSD-2609199748.A4 2609199748	£2.16	£2.59
