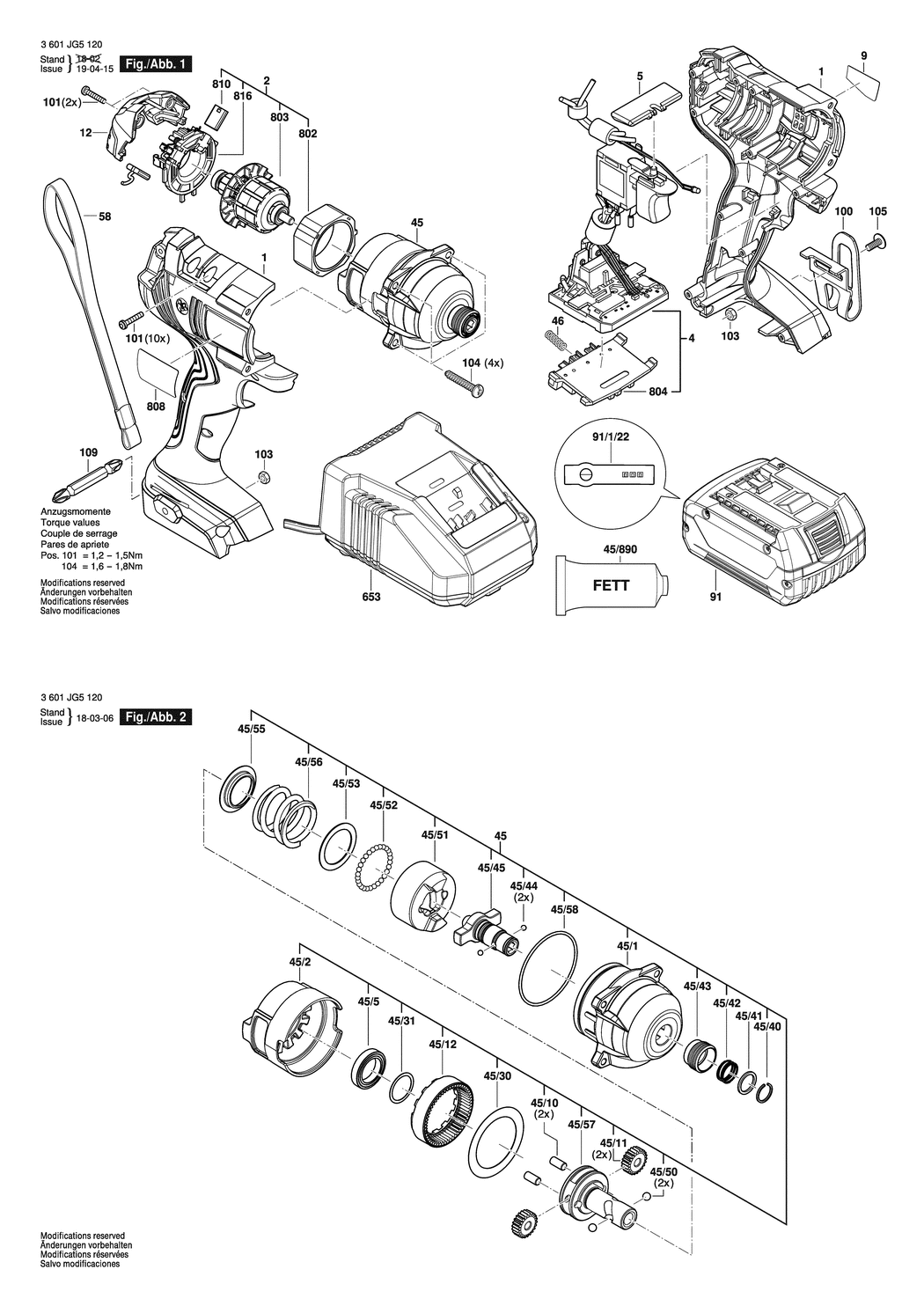

1 - HOUSING
BSD-2609101686.A2
2609101686
|
-
|
|
|
|
2 - DC MOTOR
BSD-160702267M.A2
160702267M
|
£63.50
|
£76.20
|
|
|
4 - ELECTRONICS MODULE
BSD-1600A011E6.A1
1600A011E6
|
£63.50
|
£76.20
|
|
|
5 - BUTTON
BSD-2609100698.A38
2609100698
|
£2.94
|
£3.53
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-160111C292.A0
160111C292
|
-
|
|
|
|
12 - COVER
BSD-2609101783.A3
2609101783
|
£2.16
|
£2.59
|
|
|
45 - GEAR BOX
BSD-1600A00P1V.A0
1600A00P1V
|
£68.42
|
£82.10
|
|
|
45/1 - HOUSING ASSEMBLY
BSD-2609199998.A0
2609199998
|
£12.04
|
£14.45
|
|
|
45/2 - HOUSING
BSD-2609101670.A1
2609101670
|
£2.27
|
£2.72
|
|
|
45/5 - BALL BEARING
BSD-2609110807.A1
2609110807
|
£3.91
|
£4.69
|
|
|
45/10 - PIN
BSD-2609110808.A0
2609110808
|
£1.75
|
£2.10
|
|
|
45/11 - PLANET GEAR
BSD-2609111289.A1
2609111289
|
£3.72
|
£4.47
|
|
|
45/12 - RING GEAR
BSD-2609112141.A1
2609112141
|
£2.74
|
£3.29
|
|
|
45/30 - WASHER
BSD-2609110811.A1
2609110811
|
£1.75
|
£2.10
|
|
|
45/31 - WASHER
BSD-2609110812.A0
2609110812
|
£1.75
|
£2.10
|
|
|
45/40 - CLIP
BSD-2609110336.A0
2609110336
|
£1.75
|
£2.10
|
|
|
45/41 - RETAINING RING
BSD-2609110329.A0
2609110329
|
£1.84
|
£2.21
|
|
|
45/42 - COMPRESSION SPRING
BSD-2609110330.A0
2609110330
|
£1.84
|
£2.21
|
|
|
45/43 - SLEEVE
BSD-2609110814.A0
2609110814
|
-
|
|
|
|
45/44 - BALL
BSD-2609110331.A0
2609110331
|
-
|
|
|
|
45/45 - COUPLING HALF
BSD-2609112233.A0
2609112233
|
-
|
|
|
|
45/50 - BALL
BSD-2609110818.A0
2609110818
|
£1.84
|
£2.21
|
|
|
45/51 - STRIKER
BSD-2609112142.A0
2609112142
|
£12.04
|
£14.45
|
|
|
45/52 - BALL
BSD-2609110331.A1
2609110331
|
-
|
|
|
|
45/53 - WASHER
BSD-2609110820.A1
2609110820
|
£1.75
|
£2.10
|
|
|
45/55 - WASHER
BSD-2609110821.A0
2609110821
|
£1.84
|
£2.21
|
|
|
45/56 - COMPRESSION SPRING
BSD-2609112143.A1
2609112143
|
£5.57
|
£6.68
|
|
|
45/57 - JACK SHAFT
BSD-2609112144.A0
2609112144
|
£15.65
|
£18.78
|
|
|
45/58 - O-RING
BSD-160021007H.A0
160021007H
|
£1.75
|
£2.10
|
|
|
45/890 - GREASE TUBE 45 ml
BSD-1600A002NE.A6
1600A002NE
|
£27.23
|
£32.68
|
|
|
46 - COMPRESSION SPRING
BSD-1609280477.A171
1609280477
|
£1.84
|
£2.21
|
|
|
58 - STRAP
BSD-2609100301.A4
2609100301
|
£3.51
|
£4.21
|
|
|
91 - BATTERY PACK GBA 18V 3.0 Ah
BSD-1607A35071.A1
1607A35071
|
£73.75
|
£88.50
|
|
|
91/1/22 - STICKER
BSD-2601115537.A45
2601115537
|
£2.33
|
£2.80
|
|
|
100 - CLIP
BSD-2609111584.A2
2609111584
|
£3.72
|
£4.47
|
|
|
101 - TORX FLAT-HEAD SCREW 3x16
BSD-2609110201.A37
2609110201
|
£2.27
|
£2.72
|
|
|
103 - NUT
BSD-2609110835.A21
2609110835
|
£1.84
|
£2.21
|
|
|
104 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1047
2603490023
|
£1.84
|
£2.21
|
|
|
105 - SCREW
BSD-2609110834.A71
2609110834
|
£1.84
|
£2.21
|
|
|
109 - SCREWDRIVER BLADE
BSD-2609110343.A17
2609110343
|
£2.74
|
£3.29
|
|
|
653 - FAST CHARGER EU AL 1820 CV 220V
BSD-2607225423.A52
2607225423
|
£71.84
|
£86.21
|
|
|
802 - STATOR
BSD-1600A003V5.A1
1600A003V5
|
£21.68
|
£26.01
|
|
|
803 - ROTOR
BSD-1600A015UW.A3
1600A015UW
|
£33.74
|
£40.49
|
|
|
804 - CONTACT RETAINER
BSD-1609280478.A6
1609280478
|
£14.08
|
£16.89
|
|
|
808 - NAMEPLATE
BSD-160111A5FN.A0
160111A5FN
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-160701418R.A1
160701418R
|
£9.11
|
£10.93
|
|
|
816 - BRUSH HOLDER
BSD-1600A011KB.A1
1600A011KB
|
£14.91
|
£17.89
|
|
