Bosch --- / 3611BA4060 / --- Spare Parts

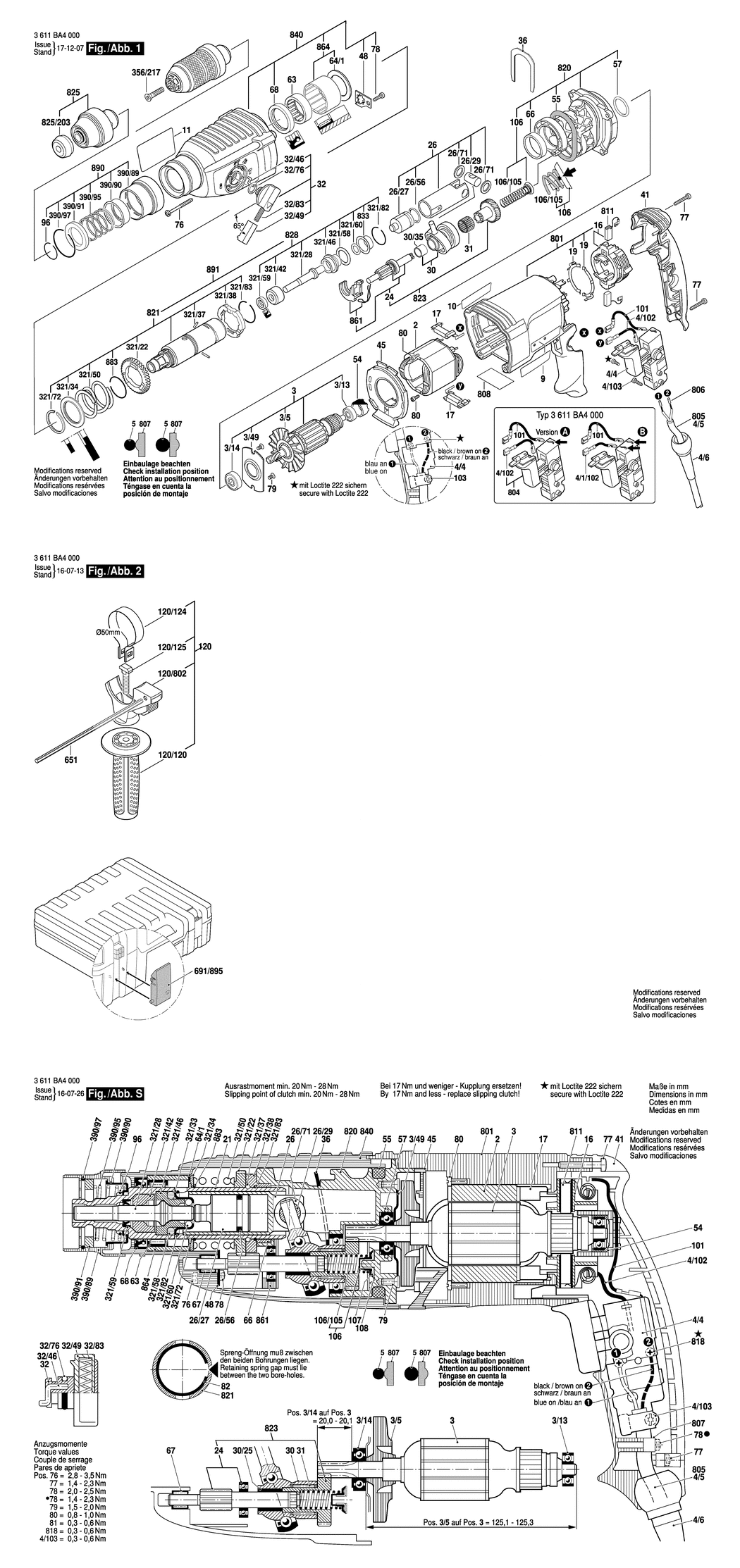

An exploded drawing and listing for the Bosch --- / 3611BA4060 / ---

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A43 1614220117	£16.41	£19.69
2 - FIELD 110-120V BSD-1614220180.A7 1614220180	£21.52	£25.83
3 - ARMATURE 230V BSD-1614010709.A49 1614010709	£46.82	£56.18
3 - ARMATURE 110V BSD-1614010233.A8 1614010233	£66.68	£80.01
3/5 - FAN BSD-1616610094.A34 1616610094	£2.16	£2.59
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A357 1610905025	£6.52	£7.83
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A143 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A187 1615700044	£2.27	£2.72
4/102 - CONNECTING CABLE BSD-1614449015.A85 1614449015	£1.84	£2.21
4/4 - SWITCH BSD-1617200559.A7 1617200559	£28.59	£34.31
4/5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07 RN-F BSD-1614460061.A68 1614460061	£21.68	£26.01
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A154 1600703034	£2.74	£3.29
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A390 1613435034	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0PV.A3 160111C0PV	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-160111C0PW.A1 160111C0PW	£2.74	£3.29
11 - REFERENCE PLATE BSD-1611110X17.A29 1611110X17	£3.72	£4.47
16 - BRUSH PLATE BSD-1614336061.A21 1614336061	£19.91	£23.89
17 - SUPPRESSION FILTER BSD-1614465011.A155 1614465011	£6.85	£8.22
19 - SWITCH CONTACT BSD-1611329024.A148 1611329024	£1.84	£2.21
24 - TOOTHED SHAFT BSD-1617000556.A74 1617000556	£40.80	£48.96
26 - HAMMER PISTON BSD-1617000557.A2 1617000557	£38.47	£46.16
26/27 - STRIKER BSD-1610311018.A77 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A35 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A55 1610210187	£2.27	£2.72
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A428 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A75 1615819028	£35.12	£42.15
30/35 - PLAIN BEARING BSD-1610202024.A72 1610202024	£5.57	£6.68
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A63 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026037.A61 1612026037	£10.82	£12.99
32/46 - DRIVER PIN BSD-1614690002.A260 1614690002	£1.84	£2.21
32/49 - SWITCH BUTTON BSD-1612026035.A201 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A412 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A162 1614611006	£3.91	£4.69
36 - HOLDING PLATE BSD-1611016003.A47 1611016003	£2.27	£2.72
41 - HOUSING COVER BSD-1615500343.A36 1615500343	£8.67	£10.41
45 - AIR-DEFLECTOR RING BSD-1610522013.A17 1610522013	£2.27	£2.72
48 - TAB WASHER BSD-1611098008.A57 1611098008	£2.27	£2.72
54 - RUBBER BUSHING BSD-1610502016.A3 1610502016	£1.84	£2.21
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A108 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A397 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A236 1610910063	£5.87	£7.04
64/1 - SUPPORTING DISC BSD-1610190060.A5 1610190060	£2.27	£2.72
66 - PLAIN BEARING BSD-1610202021.A63 1610202021	£2.74	£3.29
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A71 1610283036	£7.72	£9.27
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A140 160343000A	£1.84	£2.21
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A196 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A463 2603490022	£1.84	£2.21
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A135 1613435023	£1.75	£2.10
80 - SCREW BSD-1613435043.A48 1613435043	£1.84	£2.21
96 - RETAINING RING BSD-1614601046.A18 1614601046	£1.84	£2.21
101 - CONNECTING CABLE BSD-1614449014.A62 1614449014	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A62 1614611022	£2.74	£3.29
106/105 - COMPRESSION SPRING BSD-1614611021.A31 1614611021	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202508X.A57 160202508X	£19.91	£23.89
120/120 - AUXILIARY HANDLE BSD-160202507H.A308 160202507H	£11.87	£14.24
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A9 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A26 1613490002	£4.48	£5.37
120/802 - SUPPORT CLAMP BSD-1617000475.A42 1617000475	£10.61	£12.73
321/22 - CYLINDRICAL GEAR BSD-1616312004.A89 1616312004	£12.64	£15.17
321/28 - STRIKER PIN BSD-1613124082.A13 1613124082	£18.96	£22.75
321/34 - SUPPORTING DISC BSD-1610190067.A27 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A225 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A93 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610290099.A13 1610290099	£5.57	£6.68
321/46 - GUIDE BUSHING BSD-1610390066.A8 1610390066	£12.04	£14.45
321/50 - COMPRESSION SPRING BSD-1614611020.A62 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A89 1610210178	£1.84	£2.21
321/59 - SHAFT SEAL BSD-1600A009VC.A115 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A91 1610210176	£1.84	£2.21
321/72 - RETAINING RING BSD-1604601027.A141 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A52 1614601034	£2.27	£2.72
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A134 1604601028	£1.84	£2.21
356/217 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A208 2603421229	£1.84	£2.21
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A53 1600A00NC8	£2.74	£3.29
390/90 - COLLAR SLEEVE BSD-1610590016.A47 1610590016	£4.48	£5.37
390/91 - BACKUP RING BSD-1610200033.A9 1610200033	£2.94	£3.53
390/95 - COMPRESSION SPRING BSD-1614643016.A73 1614643016	£2.27	£2.72
390/97 - RETAINING RING BSD-1614601047.A64 1614601047	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A487 1613001009	£3.91	£4.69
691/895 - LOCK BSD-1615438409.A50 1615438409	£6.85	£8.22
801 - MOTOR HOUSING BSD-1617000558.A42 1617000558	£33.45	£40.14
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A517 1900452012	£1.75	£2.10
807 - CABLE CLIP BSD-2601035001.A911 2601035001	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3H5.A309 160111A3H5	£2.74	£3.29
811 - CARBON-BRUSH SET BSD-1617000525.A237 1617000525	£11.87	£14.24
820 - INTERMEDIATE FLANGE BSD-16170006DX.A56 16170006DX	£31.79	£38.15
821 - PIPE BSD-1617000V42.A18 1617000V42	£63.50	£76.20
823 - TOOTHED SHAFT BSD-1617000579.A64 1617000579	£37.72	£45.27
825 - TOOL HOLDING FIXTURE BSD-1617000895.A58 1617000895	£49.16	£58.99
825/203 - PROTECTIVE CAP BSD-1610508047.A221 1610508047	£2.41	£2.89
828 - STRIKER PIN BSD-1617000V43.A14 1617000V43	£40.80	£48.96
833 - HOLDING JACKET BSD-1610590018.A26 1610590018	£4.75	£5.70
840 - GEAR HOUSING BSD-1607000C5N.A5 1607000C5N	£47.95	£57.54
861 - SWITCHING ELEMENT BSD-1615820097.A147 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A11 1617000A07	£11.87	£14.24
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A135 1604601028	£1.84	£2.21
890 - GUIDE SLEEVE BSD-1617000V41.A62 1617000V41	£11.87	£14.24
891 - HAMMER PIPE BSD-1617000876.A26 1617000876	£80.61	£96.73
