Bosch ---- / 1609280026 / --- Spare Parts

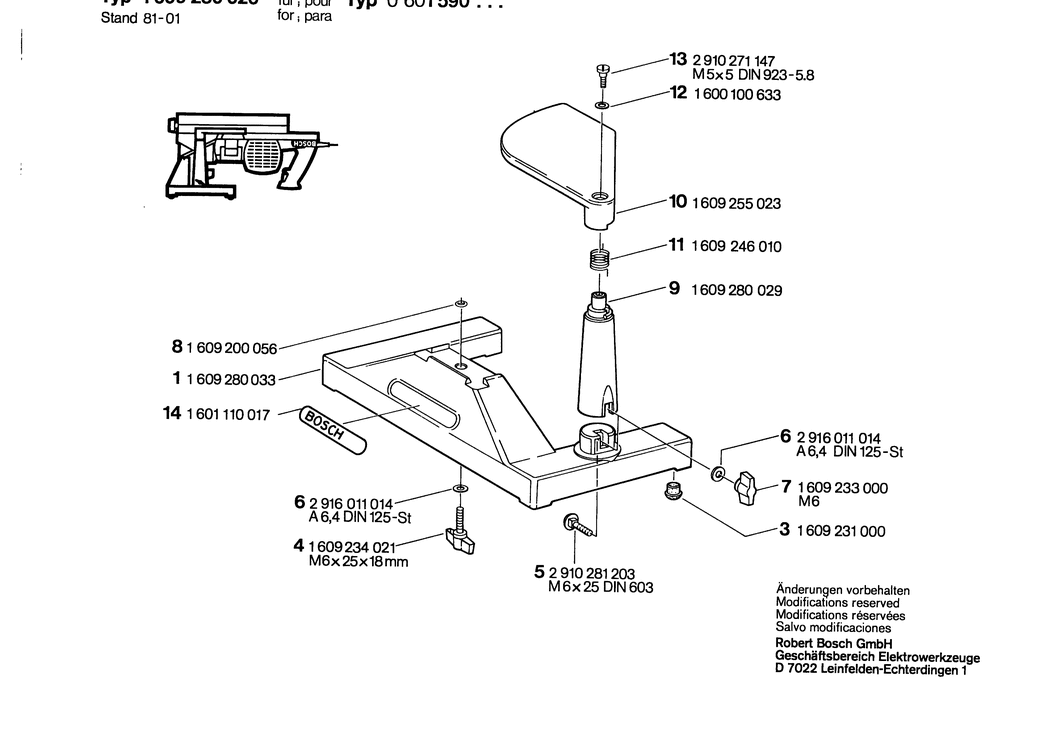

An exploded drawing and listing for the Bosch ---- / 1609280026 / ---

	Ex VAT	Inc VAT
1 - BASE BSD-1609280033.A0 1609280033	-
2 - PLAIN WASHER dia6.4xdia16x2 MM BSD-1609201082.A93 1609201082	-
3 - BUFFER BSD-1609231000.A0 1609231000	-
4 - WING SCREW BSD-1609234021.A1 1609234021	-
5 - ROUND-HEAD BOLT DIN 603-M6x25 BSD-2910281203.A210 2910281203	£2.61	£3.13
6 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A415 2916011014	£1.75	£2.10
7 - WING NUT M6 BSD-1609233000.A138 1609233000	-
8 - RETAINING RING DIN 9045-6 BSD-2916600003.A1 2916600003	-
9 - SEALING CAP BSD-1609280029.A0 1609280029	-
10 - SAFETY DEVICE BSD-1609255023.A0 1609255023	-
11 - COILED SPRING BSD-1609246010.A0 1609246010	-
12 - PLAIN WASHER 0.3 MM BSD-1600100633.A50 1600100633	-
13 - PAN HEAD SCREW DIN 923-M5x5-5.8 BSD-2910271147.A115 2910271147	-
14 - MANUFACTURER'S NAMEPLATE BSD-1601110017.A56 1601110017	-

Attribute Name	Value
Brand	Bosch
