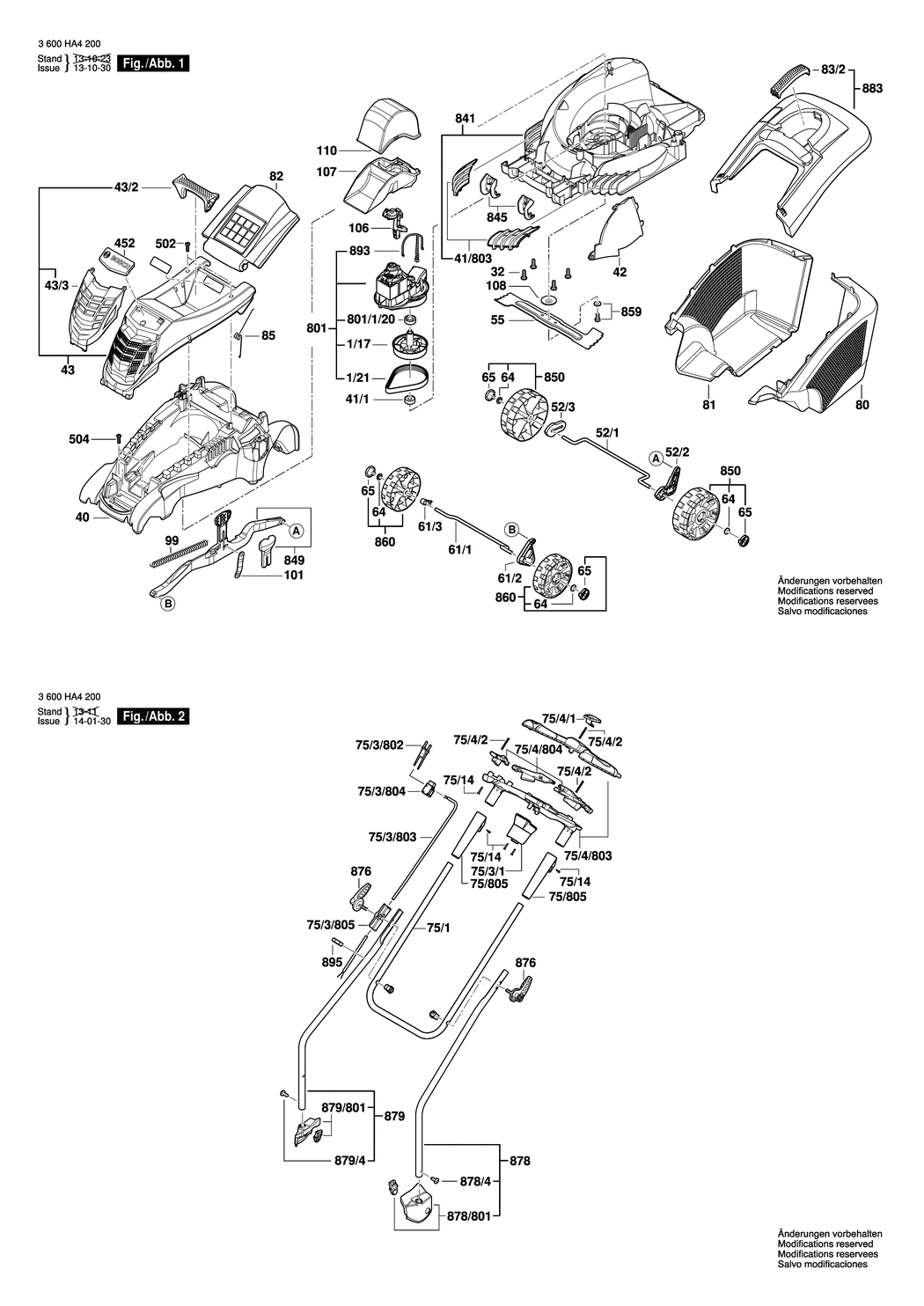

1/17 - DRIVE SHAFT
BSD-F016L65108.A61
F016L65108
|
£13.12
|
£15.75
|
|
|
1/21 - DRIVE BELT
BSD-F016L65109.A40
F016L65109
|
£16.41
|
£19.69
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A138
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L69542.A2
F016L69542
|
£23.86
|
£28.63
|
|
|
41/1 - BEARING 6003
BSD-F016L64387.A62
F016L64387
|
£5.30
|
£6.36
|
|
|
41/803 - COVER PANEL
BSD-F016104404.A9
F016104404
|
£4.26
|
£5.11
|
|
|
42 - COVER PANEL
BSD-F016L66040.A6
F016L66040
|
£6.61
|
£7.93
|
|
|
43 - MOTOR HOOD
BSD-F016L68149.A8
F016L68149
|
£27.31
|
£32.77
|
|
|
43/2 - CARRYING HANDLE
BSD-F016L68084.A53
F016L68084
|
£2.16
|
£2.59
|
|
|
43/3 - GRILLE
BSD-F016L68150.A28
F016L68150
|
£5.30
|
£6.36
|
|
|
52/1 - AXLE
BSD-F016L68529.A31
F016L68529
|
£4.75
|
£5.70
|
|
|
52/2 - LEVER
BSD-F016L90582.A160
F016L90582
|
-
|
|
|
|
52/3 - SPACER
BSD-F016L90583.A32
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L68215.A6
F016L68215
|
£31.64
|
£37.97
|
|
|
61/1 - AXLE
BSD-F016L68528.A30
F016L68528
|
£5.01
|
£6.01
|
|
|
61/2 - LEVER
BSD-F016L90581.A32
F016L90581
|
£7.78
|
£9.33
|
|
|
61/3 - SPACER
BSD-F016L90585.A160
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP
BSD-F016L68095.A44
F016L68095
|
£1.75
|
£2.10
|
|
|
65 - COVER
BSD-F016L68116.A20
F016L68116
|
£1.75
|
£2.10
|
|
|
75/1 - HANDLE
BSD-F016L90608.A90
F016L90608
|
£16.41
|
£19.69
|
|
|
75/3/1 - SWITCH HOUSING
BSD-F016L67217.A14
F016L67217
|
£5.58
|
£6.70
|
|
|
75/3/802 - CONNECTING CABLE EU
BSD-F016104214.A3
F016104214
|
£8.49
|
£10.19
|
|
|
75/3/803 - CONNECTING CABLE
BSD-F016104164.A21
F016104164
|
£11.78
|
£14.13
|
|
|
75/3/804 - SWITCH KIT
BSD-F016104162.A84
F016104162
|
£13.12
|
£15.75
|
|
|
75/3/805 - CABLE GUIDE
BSD-F016104213.A148
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A109
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A32
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/803 - HOUSING SET
BSD-F016104360.A10
F016104360
|
£16.41
|
£19.69
|
|
|
75/4/804 - SWITCH SEGMENT
BSD-F016104160.A38
F016104160
|
£10.82
|
£12.99
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A857
F016T49429
|
£1.75
|
£2.10
|
|
|
75/805 - SLEEVE
BSD-F016104361.A78
F016104361
|
£4.26
|
£5.11
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A99
F016L64304
|
£21.68
|
£26.01
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A49
F016L64338
|
£16.41
|
£19.69
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A156
F016L66137
|
£13.32
|
£15.99
|
|
|
83/2 - HANDLE
BSD-F016L66441.A145
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A51
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A156
F016L59327
|
£2.80
|
£3.36
|
|
|
101 - LEAF SPRING
BSD-F016L68117.A61
F016L68117
|
£1.75
|
£2.10
|
|
|
106 - WIRE GUIDE
BSD-F016L90579.A34
F016L90579
|
£33.45
|
£40.14
|
|
|
107 - BAFFLE
BSD-F016L68501.A5
F016L68501
|
£3.80
|
£4.56
|
|
|
108 - BEARING COVER
BSD-F016L67627.A124
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - BAFFLE
BSD-F016L68448.A44
F016L68448
|
£3.34
|
£4.01
|
|
|
452 - COMPANY LOGO Rotak 40 M
BSD-F016L68212.A1
F016L68212
|
£2.61
|
£3.13
|
|
|
502 - TORX HEAD SCREW
BSD-F016L68124.A66
F016L68124
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A856
F016T49429
|
£1.75
|
£2.10
|
|
|
801 - MOTOR
BSD-F016103596.A49
F016103596
|
£134.16
|
£160.99
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A84
F016L64594
|
£3.75
|
£4.50
|
|
|
841 - HOUSING
BSD-F016104399.A7
F016104399
|
£33.74
|
£40.49
|
|
|
845 - COVER PANEL
BSD-F016104425.A38
F016104425
|
£3.34
|
£4.01
|
|
|
849 - LINKAGE PART
BSD-F016104303.A54
F016104303
|
-
|
|
|
|
850 - WHEEL
BSD-F016104306.A6
F016104306
|
£8.67
|
£10.41
|
|
|
859 - SCREW AND WASHER ASSEMBLY
BSD-F016104350.A62
F016104350
|
£1.95
|
£2.34
|
|
|
860 - WHEEL
BSD-F016104305.A55
F016104305
|
£10.10
|
£12.12
|
|
|
876 - CLAMPING LEVER
BSD-F016L67530.A103
F016L67530
|
£11.30
|
£13.56
|
|
|
878 - BOTTOM HANDLE
BSD-F016104928.A18
F016104928
|
-
|
|
|
|
878/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A325
F016L36542
|
£1.63
|
£1.96
|
|
|
878/801 - MOUNTING BRACKET
BSD-F016104926.A13
F016104926
|
£3.80
|
£4.56
|
|
|
879 - BOTTOM HANDLE
BSD-F016104929.A8
F016104929
|
£8.49
|
£10.19
|
|
|
879/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A324
F016L36542
|
£1.63
|
£1.96
|
|
|
879/801 - MOUNTING BRACKET
BSD-F016104927.A8
F016104927
|
£3.80
|
£4.56
|
|
|
883 - COVER
BSD-F016103608.A131
F016103608
|
£27.23
|
£32.68
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103605.A46
F016103605
|
£12.04
|
£14.45
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A159
F016L66895
|
£1.75
|
£2.10
|
|
