Bosch GSH 16-30 / 3611C35100 / EU 230 Volt Spare Parts

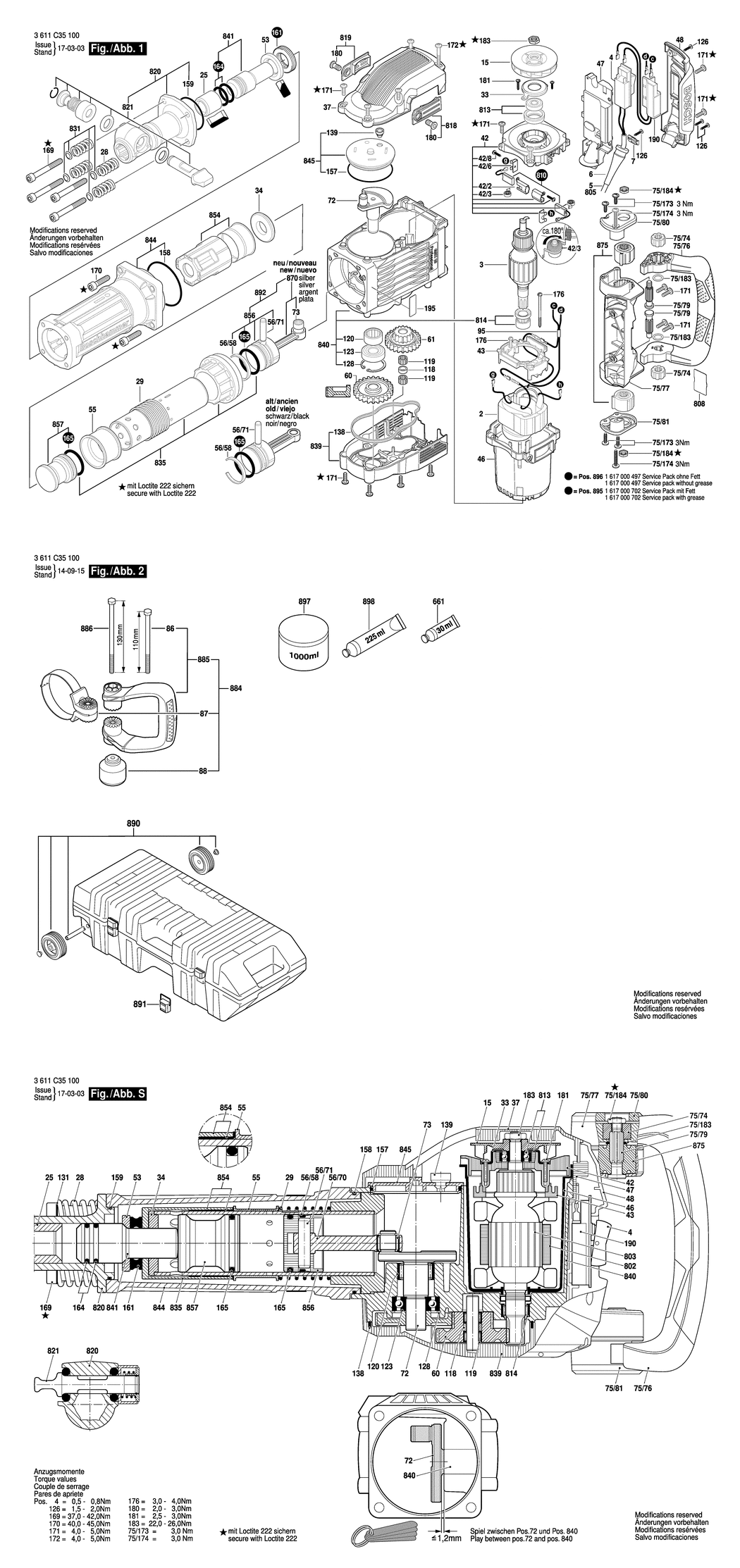

An exploded drawing and listing for the Bosch GSH 16-30 / 3611C35100 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-240V BSD-160422052M.A5 160422052M	£80.61	£96.73
3 - ARMATURE 220-240V BSD-1614011117.A9 1614011117	£134.16	£160.99
4 - SWITCH BSD-1607200244.A1 1607200244	£31.64	£37.97
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A24 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A110 1601302018	£1.75	£2.10
15 - FAN BSD-1616610102.A7 1616610102	£18.96	£22.75
25 - GUIDE RING BSD-1610300070.A1 1610300070	£23.86	£28.63
28 - COMPRESSION SPRING BSD-1614614006.A10 1614614006	£6.52	£7.83
29 - COMPRESSION SPRING BSD-1614614007.A1 1614614007	£6.52	£7.83
33 - HOLDING PLATE BSD-1611006008.A10 1611006008	£10.10	£12.12
34 - SUPPORTING DISC BSD-1610102635.A10 1610102635	£14.91	£17.89
37 - FAN COVER BSD-1615500380.A5 1615500380	£40.80	£48.96
42 - BRUSH HOLDER BSD-1614336078.A2 1614336078	£41.62	£49.95
42/2 - BRUSH GUIDE BSD-1614336017.A31 1614336017	£12.04	£14.45
42/3 - SPIRAL SPRING BSD-1614652007.A9 1614652007	£3.72	£4.47
42/6 - CONNECTOR BSD-1611390005.A6 1611390005	£5.30	£6.36
42/8 - TAPPING SCREW BSD-2912401412.A5 2912401412	£1.75	£2.10
43 - SPACER BSD-1610508054.A6 1610508054	£2.80	£3.36
46 - MOTOR HOUSING BSD-1615106053.A2 1615106053	£27.31	£32.77
47 - BASE PLATE BSD-1618000028.A6 1618000028	£16.41	£19.69
48 - HOUSING COVER BSD-1615500383.A3 1615500383	£31.64	£37.97
53 - STOP DISC BSD-1610190058.A0 1610190058	£12.04	£14.45
55 - CONTROL BUSHING BSD-1610506019.A5 1610506019	£37.27	£44.72
56/58 - RETAINING SNAP RING BSD-1610500023.A6 1610500023	£6.52	£7.83
56/71 - PISTON PIN BSD-1613101012.A11 1613101012	£5.30	£6.36
60 - CYLINDRICAL GEAR BSD-1616317086.A2 1616317086	£80.61	£96.73
61 - CYLINDRICAL GEAR BSD-1616317093.A9 1616317093	£103.14	£123.77
72 - ECCENTRIC SHAFT BSD-1616110037.A9 1616110037	£116.15	£139.38
73 - NEEDLE BEARING BSD-1600A0014G.A6 1600A0014G	£4.26	£5.11
75/74 - SPLINED COUPLING BSD-1613060049.A11 1613060049	£11.30	£13.56
75/76 - STRAP-SHAPED HANDLE BSD-1618045022.A8 1618045022	£59.53	£71.44
75/77 - BEARING PEDESTAL BSD-1615805069.A7 1615805069	£27.23	£32.68
75/79 - TOOTHED SHAFT BSD-1613060050.A0 1613060050	£12.04	£14.45
75/80 - BEARING COVER BSD-1615500376.A7 1615500376	£8.67	£10.41
75/81 - BEARING COVER BSD-1615500377.A3 1615500377	£10.10	£12.12
75/173 - TORX OVAL-HEAD SCREW 6x20 BSD-1613490008.A11 1613490008	£1.75	£2.10
75/174 - TORX OVAL-HEAD SCREW 6x40 BSD-1613490009.A0 1613490009	£1.75	£2.10
75/183 - SUPPORTING DISC S15x21x1.5 DIN988 BSD-2916280013.A6 2916280013	£1.75	£2.10
75/184 - HEX NUT BSD-1613349021.A11 1613349021	£2.16	£2.59
86 - HEX SCREW BSD-2911021267.A42 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1600A00AR5.A5 1600A00AR5	£18.96	£22.75
88 - STAR KNOB M8 BSD-1619P16922.A73 1619P16922	£6.45	£7.74
95 - CONNECTING CABLE BSD-1614448038.A9 1614448038	£8.67	£10.41
118 - SPACER TUBE BSD-1610520003.A6 1610520003	£2.80	£3.36
119 - NEEDLE-ROLLER ASSEMBLY BSD-1610913020.A0 1610913020	£2.61	£3.13
120 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910092.A16 1610910092	£31.64	£37.97
123 - GROOVE BALL BEARING 20x47x14 BSD-1610900030.A0 1610900030	£21.52	£25.83
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1445 2603490023	£1.75	£2.10
128 - SPRING RETAINING RING 47x1.75MM. DIN 472 BSD-2916660021.A46 2916660021	£4.26	£5.11
138 - SEALING FRAME BSD-1611015059.A0 1611015059	£3.72	£4.47
139 - PLUG BSD-1610508050.A16 1610508050	£2.61	£3.13
157 - O-RING BSD-1610210192.A9 1610210192	£2.80	£3.36
158 - O-RING BSD-1610210191.A2 1610210191	£2.80	£3.36
159 - O-RING 66.0x3.0 MM BSD-1600210005.A289 1600210005	£2.80	£3.36
161 - DAMPING RING BSD-1610290118.A8 1610290118	£3.72	£4.47
164 - O-RING BSD-1610210194.A2 1610210194	£2.80	£3.36
165 - O-RING BSD-1610210195.A9 1610210195	£11.30	£13.56
169 - HEX SOCKET HEAD CAP SCREW BSD-1613414022.A0 1613414022	£3.72	£4.47
170 - HEX SOCKET HEAD CAP SCREW BSD-1613414023.A11 1613414023	£1.75	£2.10
171 - TORX OVAL-HEAD SCREW M6x20 BSD-1613490010.A11 1613490010	£2.61	£3.13
172 - TORX OVAL-HEAD SCREW M6x50 BSD-1613490011.A0 1613490011	£2.16	£2.59
176 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A116 1603435036	£1.75	£2.10
180 - CLAMP SCREW BSD-1613490007.A0 1613490007	£2.80	£3.36
181 - SCREW 4x16 BSD-2603490022.A447 2603490022	£1.75	£2.10
183 - HEX NUT BSD-1613349020.A0 1613349020	£2.16	£2.59
190 - SUPPRESSION FILTER BSD-1614503007.A8 1614503007	£37.27	£44.72
195 - STICKER BSD-1611110D43.A10 1611110D43	£2.33	£2.80
661 - GREASE TUBE 30 ML BSD-1615430010.A226 1615430010	£6.52	£7.83
805 - POWER SUPPLY CORD BSD-1617000723.A1 1617000723	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3H3.A1609 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617014143.A3 1617014143	£21.68	£26.01
813 - BEARING BSD-1617000480.A9 1617000480	£16.41	£19.69
814 - BEARING BSD-1617000481.A2 1617000481	£31.64	£37.97
818 - BRUSH-COVER BSD-1617000482.A9 1617000482	£4.26	£5.11
819 - BRUSH-COVER BSD-1617000483.A2 1617000483	£4.26	£5.11
820 - TOOLHOLDER BSD-1617000722.A0 1617000722	£357.27	£428.72
821 - LOCKING BOLT SET BSD-1617000721.A6 1617000721	£68.42	£82.10
831 - PLAIN WASHER BSD-1617000A4Z.A8 1617000A4Z	£14.91	£17.89
835 - GUIDE TUBE BSD-1617000709.A7 1617000709	£195.26	£234.31
839 - GEAR COVER BSD-1617000489.A8 1617000489	£81.81	£98.17
840 - GEAR HOUSING BSD-1617000490.A2 1617000490	£478.70	£574.44
841 - STRIKER PIN BSD-1617000491.A9 1617000491	£81.81	£98.17
844 - HAMMER PIPE BSD-1617000492.A2 1617000492	£218.41	£262.09
845 - SEALING CAP BSD-1617000710.A4 1617000710	£18.96	£22.75
854 - SPACER TUBE BSD-1617000740.A3 1617000740	£27.31	£32.77
856 - HAMMER PISTON BSD-1607000C3N.A0 1607000C3N	£21.52	£25.83
857 - STRIKER BSD-1617000495.A9 1617000495	£63.50	£76.20
870 - CONNECTING ROD BSD-1607000C3P.A11 1607000C3P	£21.68	£26.01
875 - RUBBER TORSION-BAR BSD-1617000496.A2 1617000496	£48.38	£58.06
884 - AUXILIARY HANDLE BSD-160202508K.A6 160202508K	£54.42	£65.30
885 - HANDLE BSD-1605132163.A0 1605132163	£14.91	£17.89
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A9 2911011270	£4.26	£5.11
890 - WHEEL SET BSD-1617000716.A4 1617000716	£33.74	£40.49
891 - LOCK BSD-1617000715.A6 1617000715	£7.36	£8.83
892 - HAMMER PISTON BSD-1607000C3M.A11 1607000C3M	£40.80	£48.96
895 - WEAR AND TEAR PART SET BSD-1617000702.A4 1617000702	£65.17	£78.20
896 - WEAR AND TEAR PART SET BSD-1617000497.A9 1617000497	£37.27	£44.72
897 - LUBRICATING GREASE 1000 ML BSD-1615430016.A9 1615430016	£93.88	£112.65
898 - GREASE TUBE 225 ML BSD-1615430015.A26 1615430015	£37.27	£44.72
